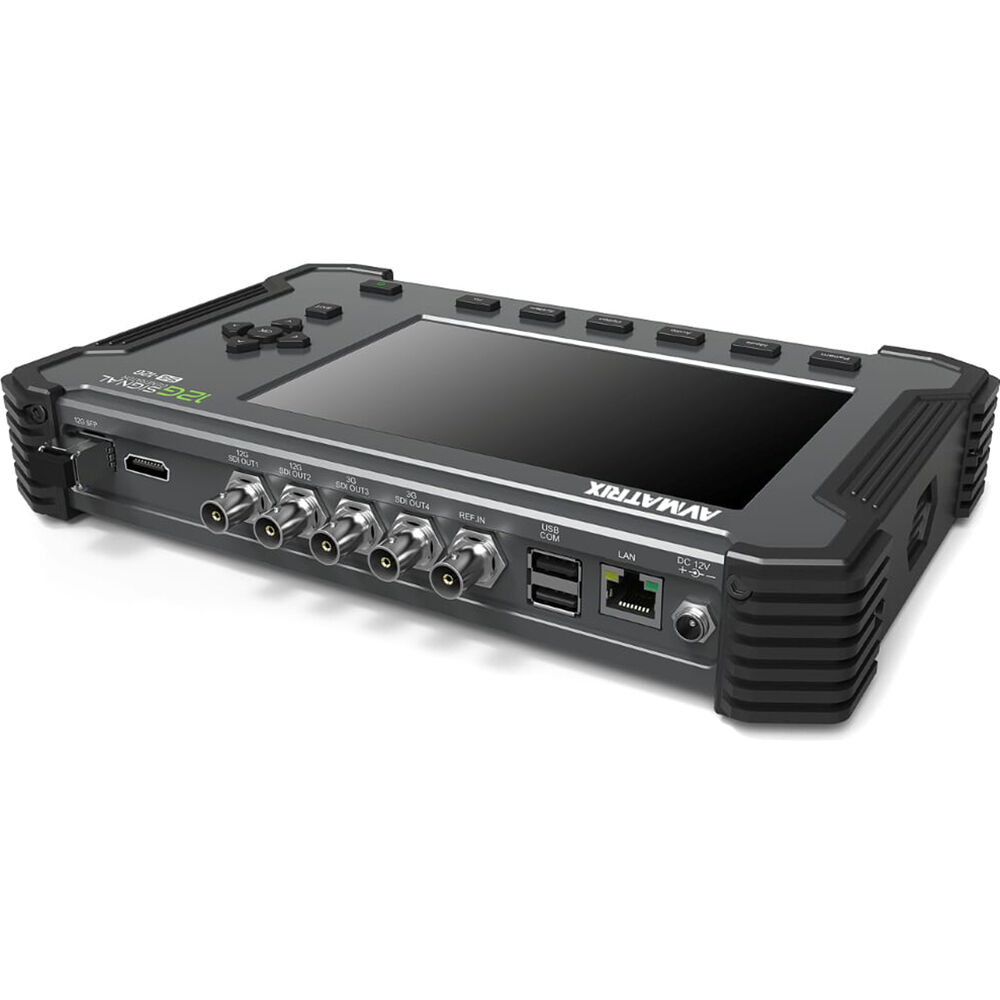

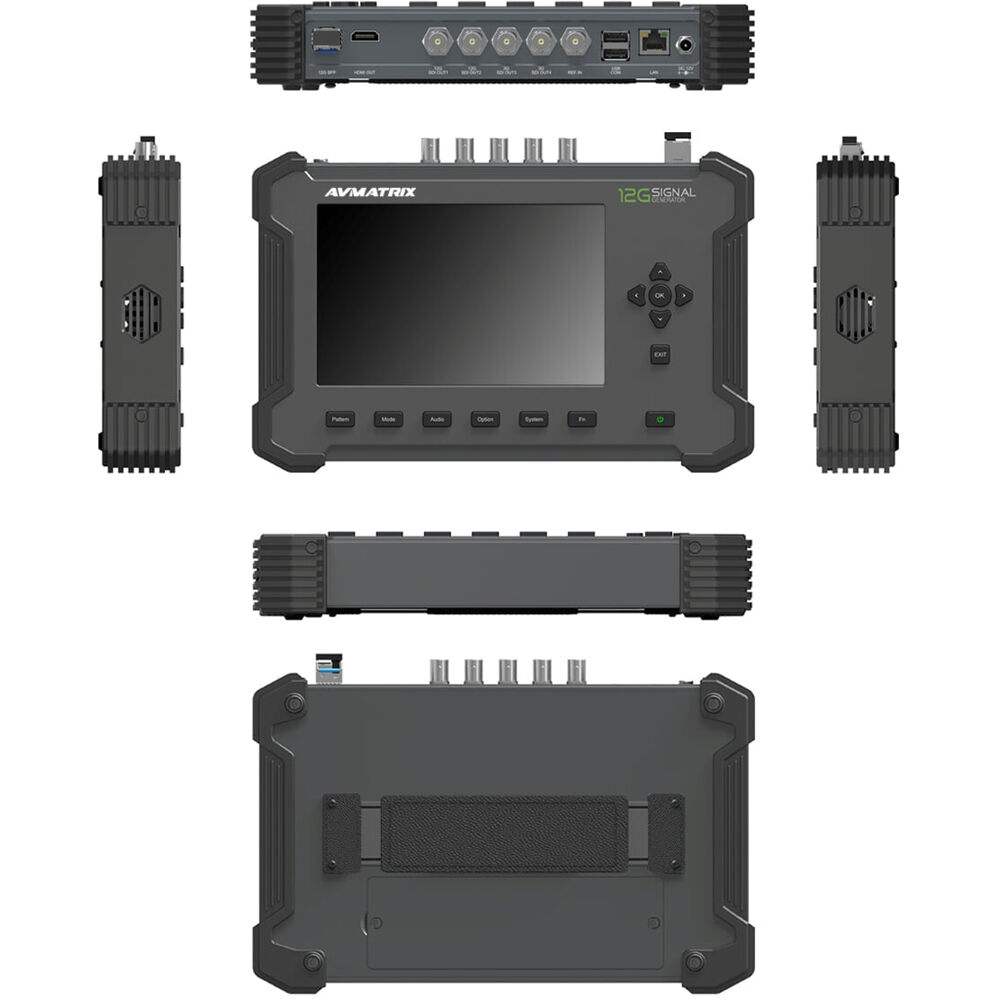

AVMATRIX PG4K 12G-SDI & 4K HDMI 2.0 Pattern Generator

• 12G-SDI(4K60Hz) single/ dual/ quad link SQ/ 2SI; 4K HDMI
• 6G-SDI, 3G-SDI level A and level B;12G-SDI fiber signal (SFP optional)
• 16-Channel SDI audio generation
• Presets patterns: Color bar, pathology patterns, monochrome, etc.
• USB for import the patterns on demands
• Ring pattern, time code, frame counter overlay test and moving test
• REF in for frame synchronization
• HDR, EDID and Closed Caption
