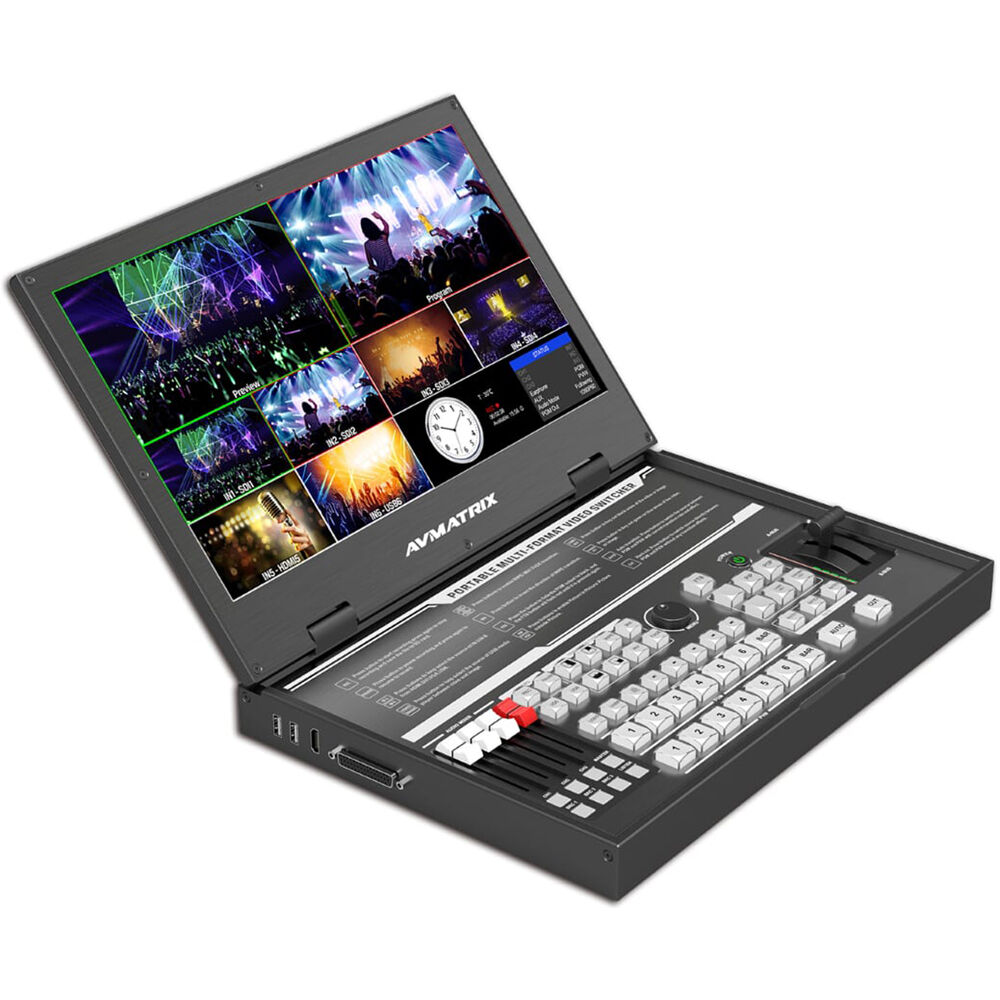

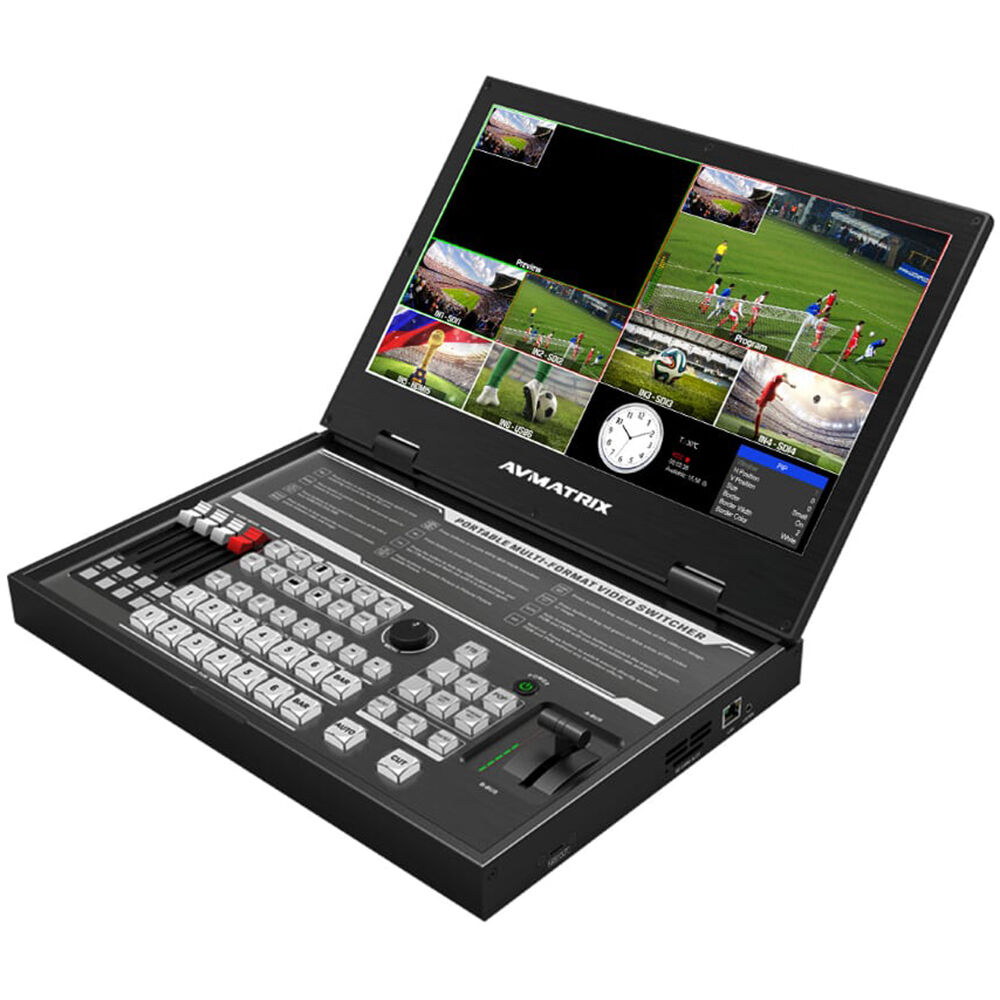

AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display

• 4 channel auto-detected HDMI inputs • 1×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output • AUX output configurable and assignable • USB for capturing and streaming on PC • Upstream key: Luma key, Chroma key, PIP×2/ POP • Downstream key and LOGO overlay • T-bar/ Auto/ Cut; various effects: WIPE(9 ×2 patterns) / MIX/ DIP • Audio mixer: HDMI embedded audio & 2-Ch MIC/line In; audio delay • Media: 49 default patterns, 16 imported images, 16 captured images • FTB/ MUTE/ STILL/ GPIO for tally/ PC software

SDI in, USB 3.1 Gen1(USB3.0) out • Automatic input signal detection, up to 1080p60 • Uncompressed video & audio capture, comply with UVC and UAC • Plug-and-Play, driver free & power free • Compatible with Windows, Linux, macOS • Compatible with OBS, ZOOM, Teams, Twitch, etc.

• 4-channel 3G-SDI simultaneous input and capture • Input and capture up to 1080p60, bit rate up to 200Mbps • Support YUY2 uncompressed video • PCIE GEN2×4, 2.5GB/S transfer bandwidth • Support portrait and landscape mode • Compatible with Windows 7 and above, Linux 18.04 and above • Compatible with OBS/potplayer/XSplit and other live recording software • Stable operation, 24 hours non-stop working • Support one machine with multiple cards working simultaneously

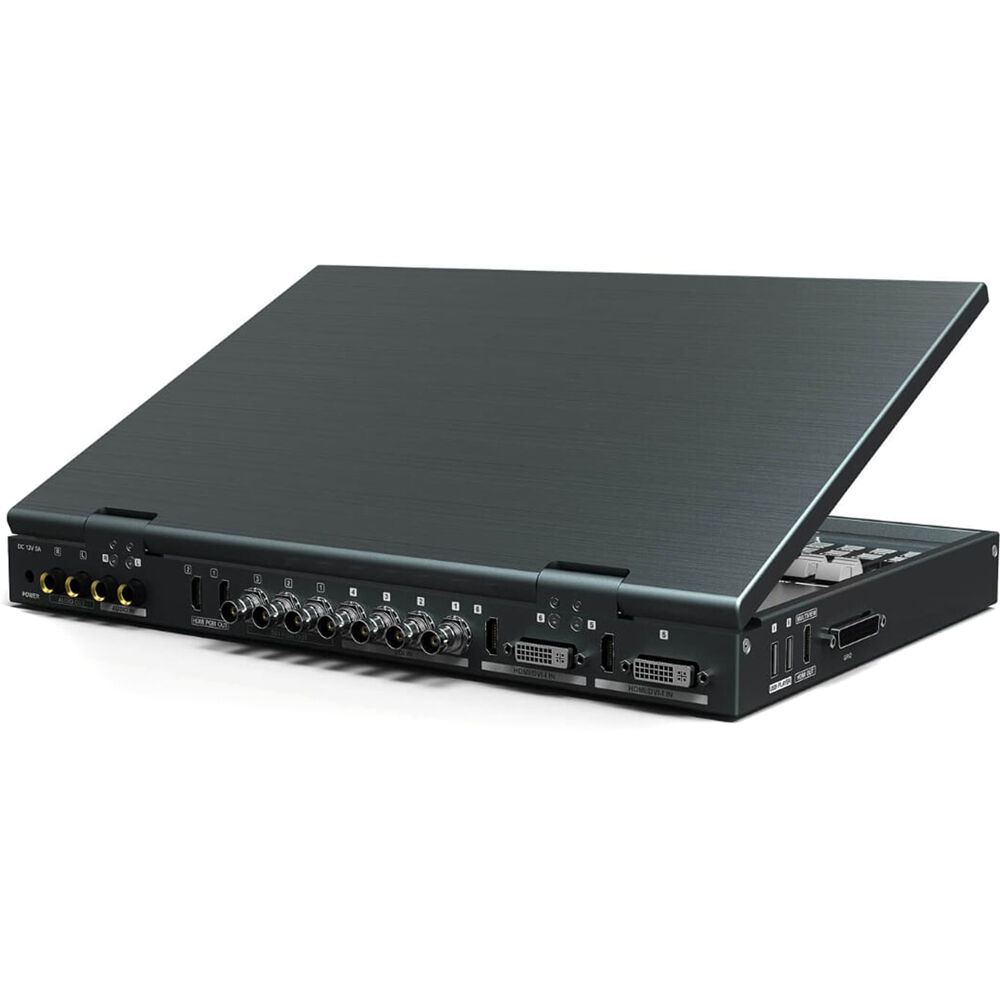

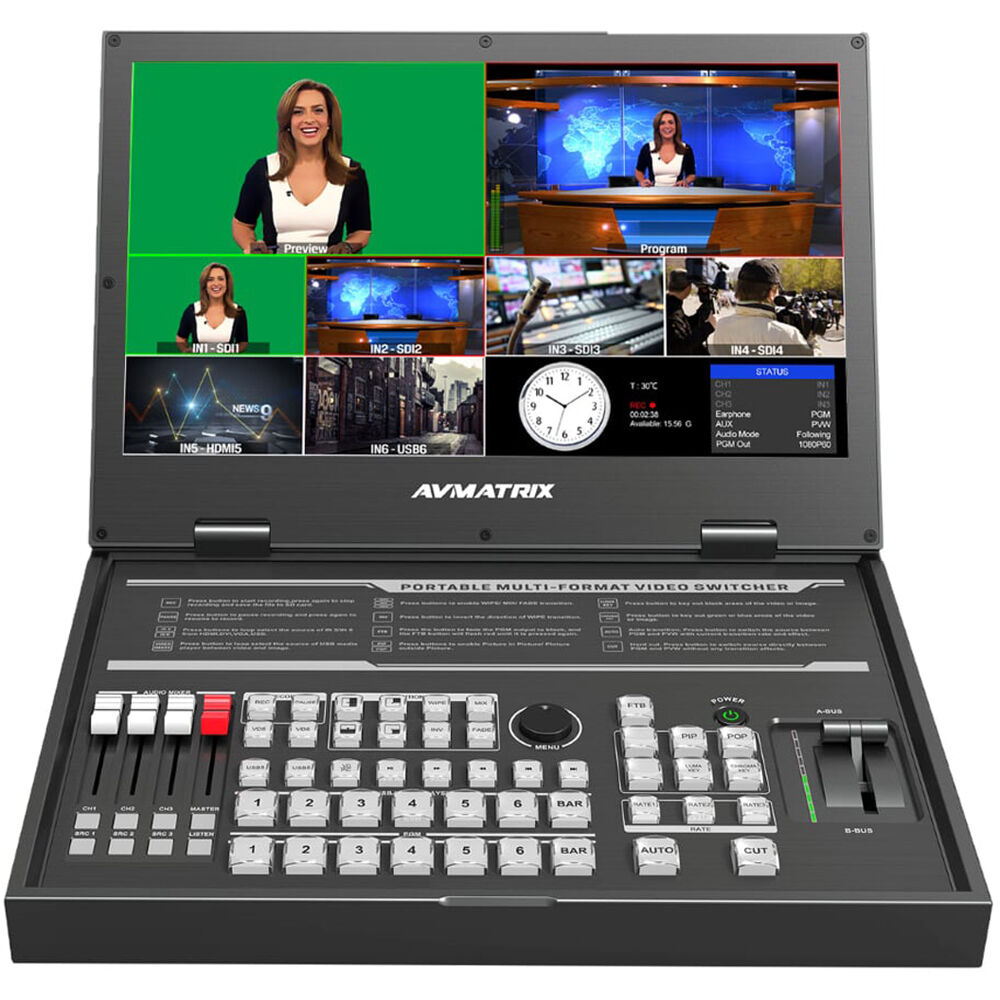

• USB-C out for capturing and streaming • 6 channel inputs: 4×SDI and 2×DVI-I/HDMI/VGA/USB player inputs • 2×SDI & 1×HDMI PGM outputs, 1×SDI AUX output, . 1×SDI & 1×HDMI multiview outputs • Input format auto-detected and PGM/ AUX output format selectable • Remote PTZ camera control: Visca & Pelco protocol • T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects • Luma Key/ Chroma Key for virtual studio • PIP/ POP window size and position adjustable • Record PGM video to SD card, up to 1080p60 • Audio mixer: XLR/RCA audio & SDI, HDMI, USB embedded audio • GPIO port for Tally system
