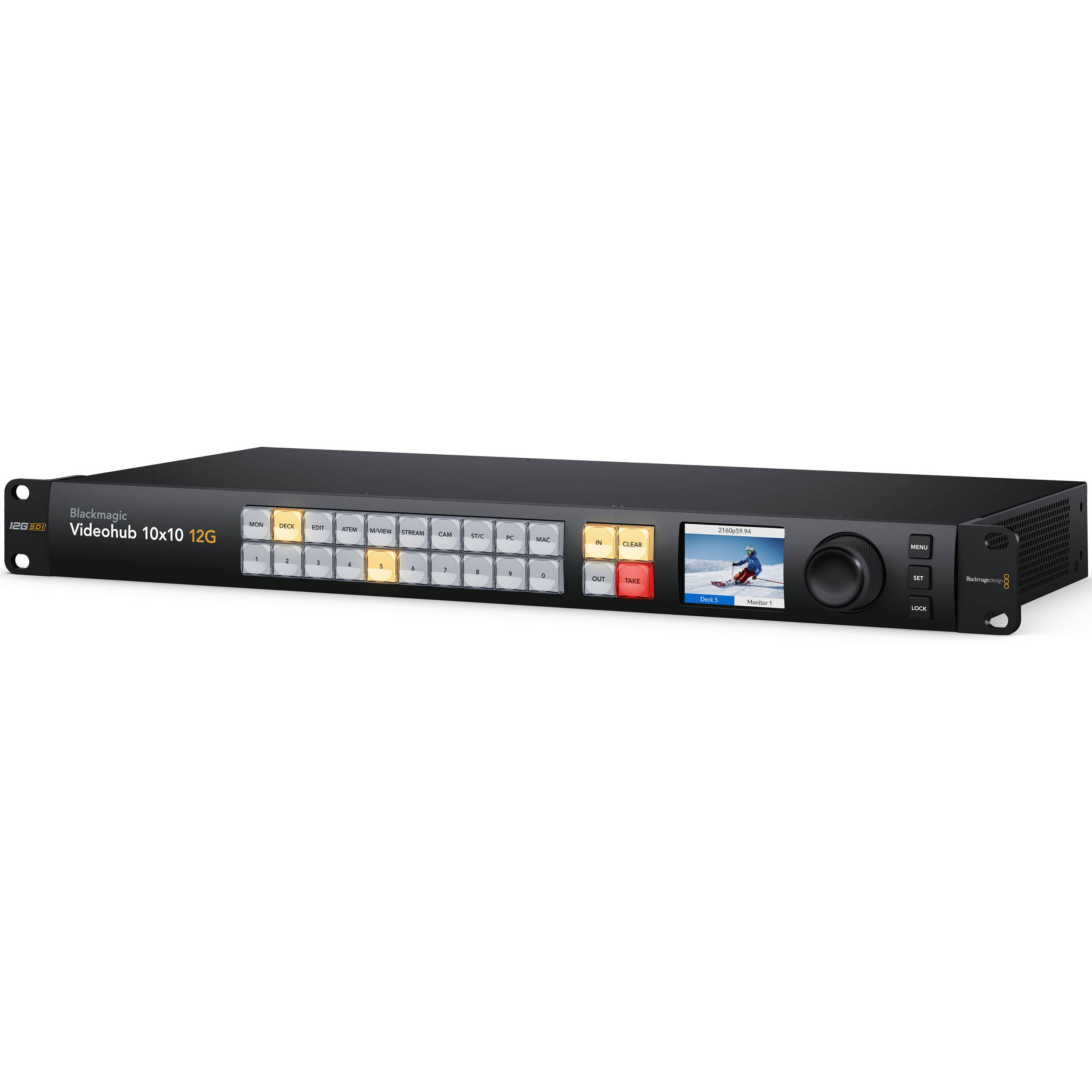

Blackmagic Design VHUBSMAS12G1010 Videohub 10×10 12G Zero-Latency Video Router
€ 1.325,00 + VAT
- Zero-Latency Routing Switcher
- 10 x 12G-SDI Inputs/10 x 12G-SDI Outputs
- Supports Up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- Push-Button, Knob & Ethernet Control
- 2.2″ Front Panel LCD Status Display
- SDI Reclocking, 1 RU Form
- Includes Videohub Mac/Windows Software
Description
Support a mix of multiple video formats using the Videohub 10×10 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 10 12G-SDI inputs and ten 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 10×10 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output or even a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms or add extra inputs to an ATEM switcher.
12G-SDI Multi-Rate Connections
- Multi-rate 12G-SDI connections enable you to route up to 10 different video standards at the same time.
- Supports up to DCI 4K60 video resolutions.
- Provides 4:2:2 8 or 10-bit color routing in any standard.
- Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.
SDI Reclocking
- Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.
- Reduces or eliminates signal loss and jitter when using longer cables.
Front Panel Controls
- A sleek front panel offers multiple control options.
- Buttons include assignable shortcuts and In, Out, Clear, and Take buttons.
- The machined metal spin knob provides precise control using an electronic clutch.
Optional Hardware Control Panels
- Can be used with optional hardware panels for easier control when components are spaced out in large facilities.
- Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.
Flexible Control
The macOS and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.
Built-In LCD
- View your live input before routing the signal on the built-in 2.2″ LCD screen.
- Bottom labels enable you to scroll through your sources in alphabetical order.
- Eliminates the need to add an external SDI monitor to your setup.
Setup Utility and SDK
Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.
Multiple Language Support
Customized support is available in:
- English, Chinese, Japanese, Korean
- Spanish, German, French, Russian
- Italian, Portuguese, Turkish, Polish, Ukrainian
Additional information
| Weight | 3600 g |
|---|
