DATAVIDEO CAP-1 Capture Devices SDI to USB 3.0 Capture Box

€ 355,00

+ additional shipping charge

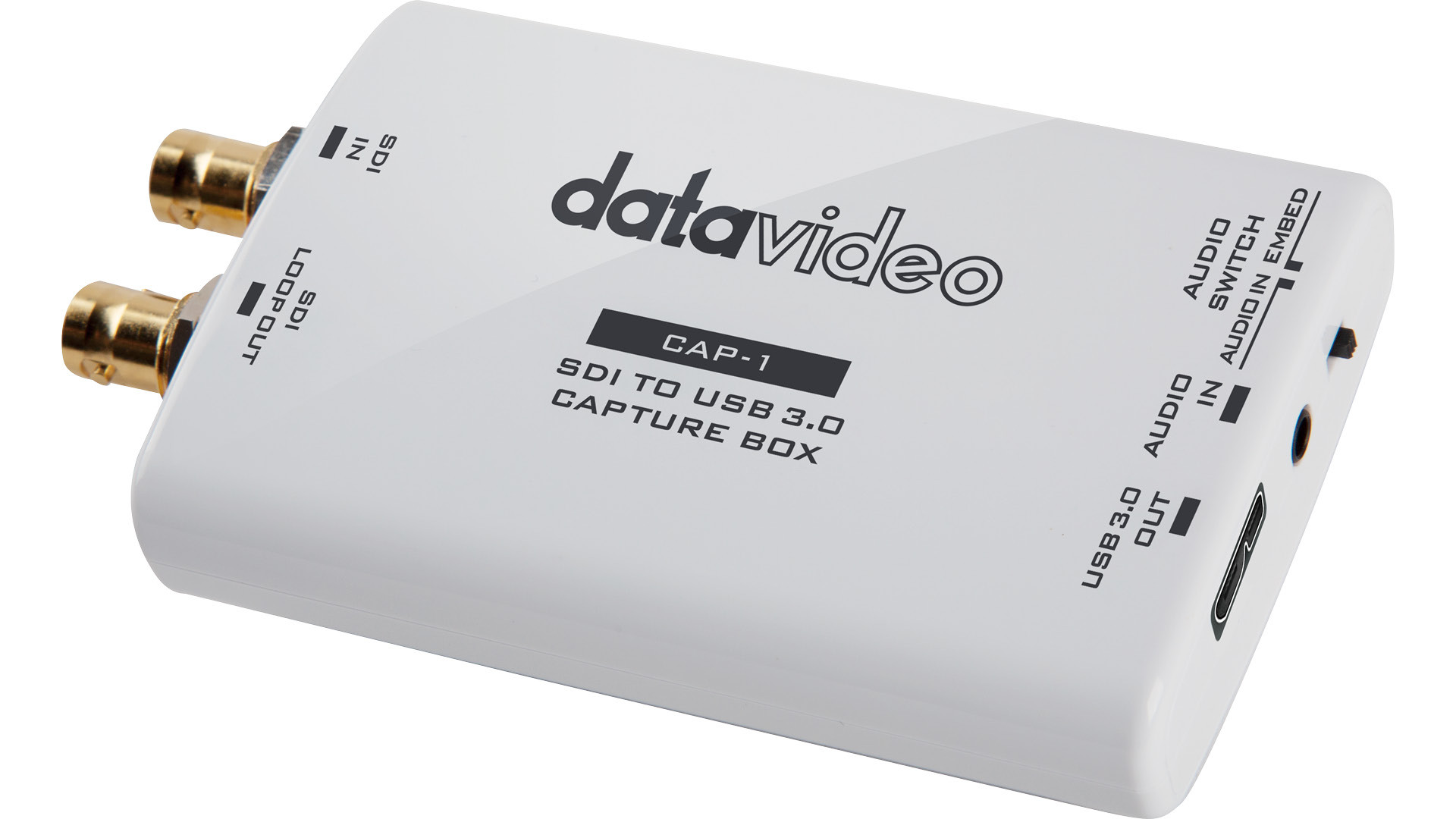

CAP-1 SDI to USB 3.0 Capture Box

Datavideo believes in sharing our innovative value with our customers. We are also inspired by several decades of industrial experience, and we believe that technological and vocational education is essential to have sustainable development for the industry. Thus, Datavideo Academy was established. Datavideo Academy is a comprehensive learning platform, which includes education,

Category:
SDI to USB 3.0 Capture Box

This new capture device takes 3G-SDI in with embedded or external audio and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing.

The USB compliant CAP-1 is ideal to use with any SDI equipped camera or switcher and it’s plug-n-play design requires no drivers to install. Stream from your SDI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting.

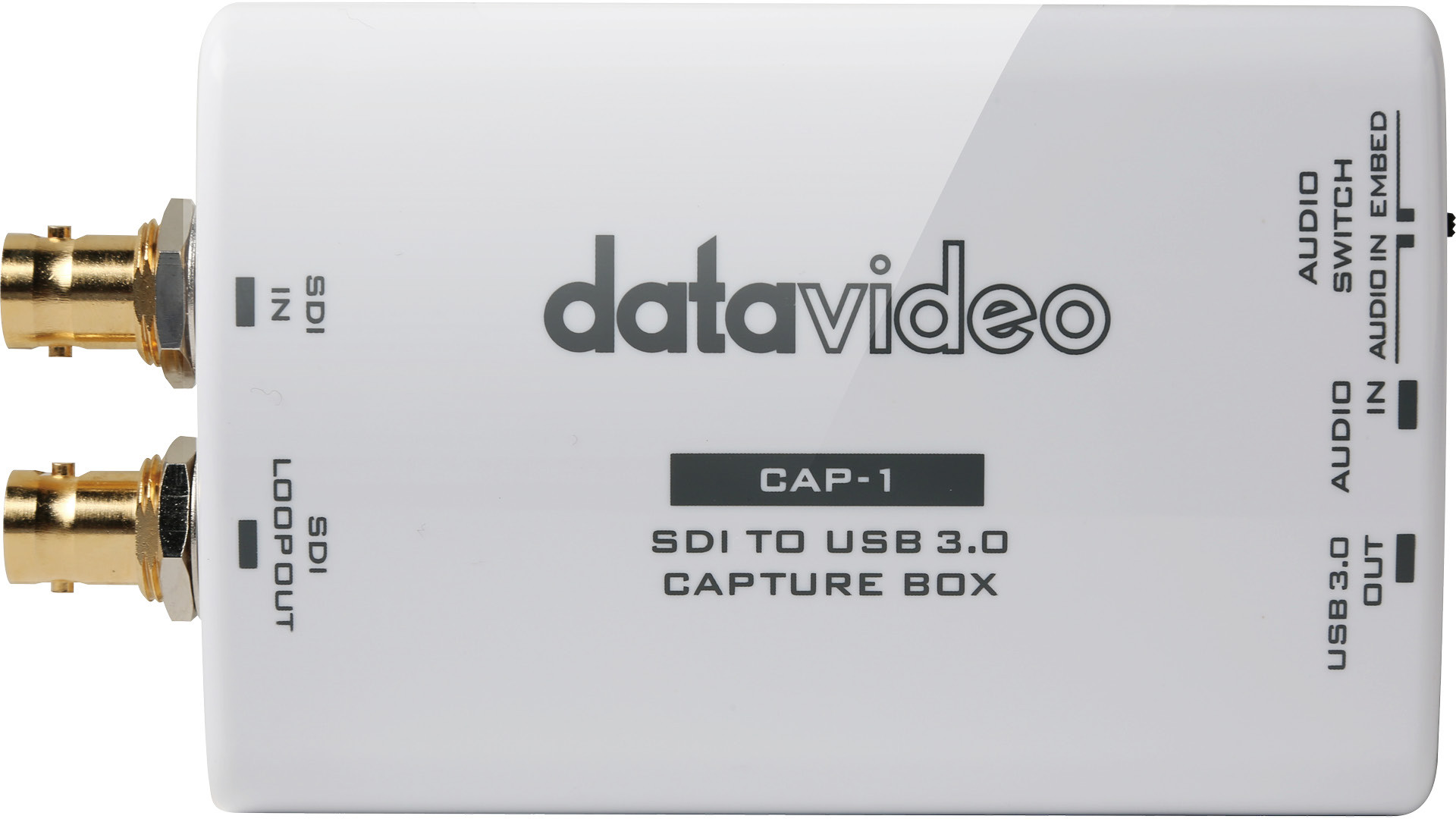

CAP-1 SDI to USB 3.0 Capture Box
CAP-1 SDI to USB 3.0 Capture Box

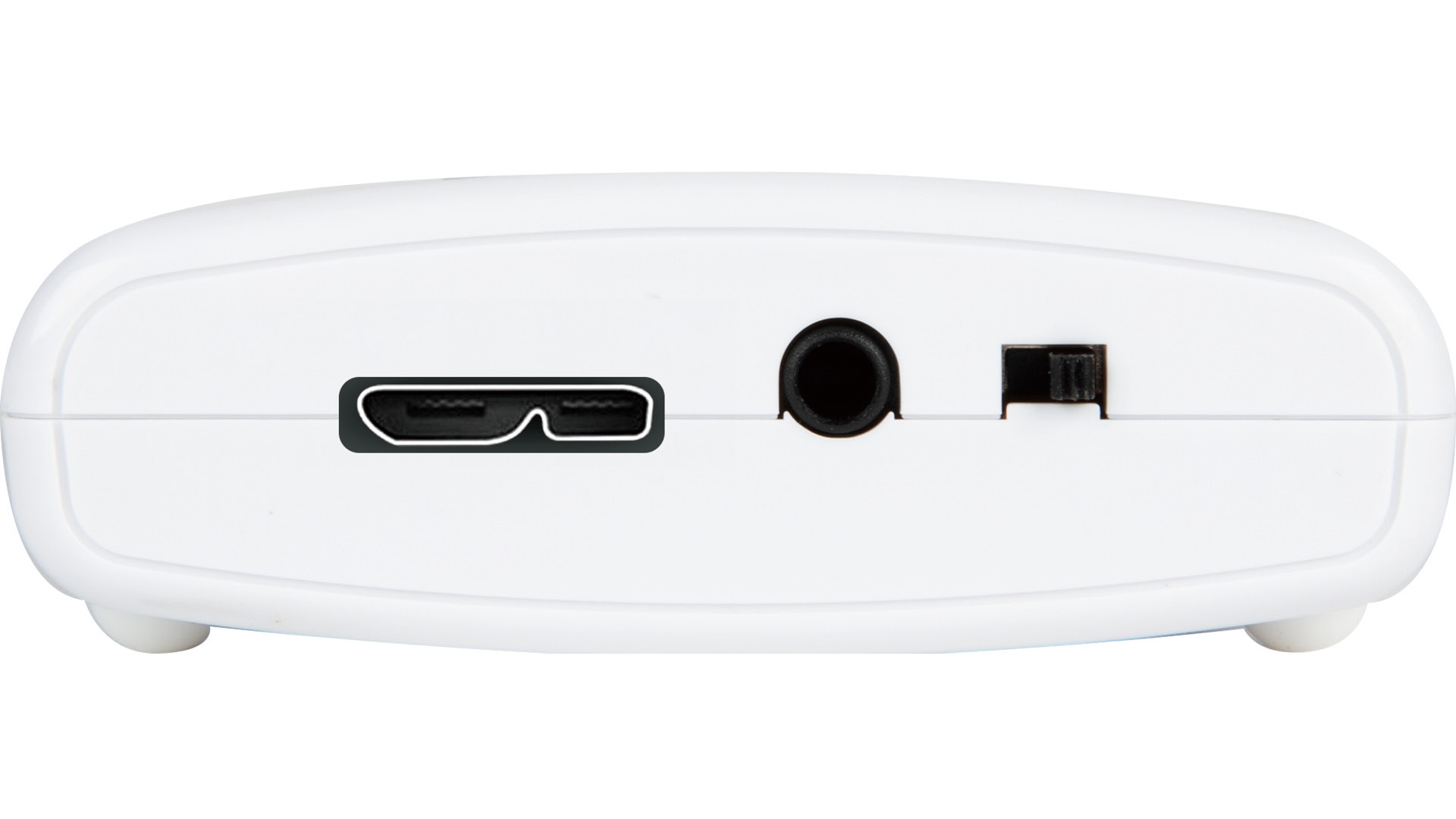

USB 3.0 Interface

No external power is needed. Power source from USB connection.

No external power is needed. Power source from USB connection.
Plug-and-Play

Support UVC. Operations with video format (resolution and frame rate) auto-detection capability. Scalable video resolution. Connect to video conference platform

Plug-and-Play

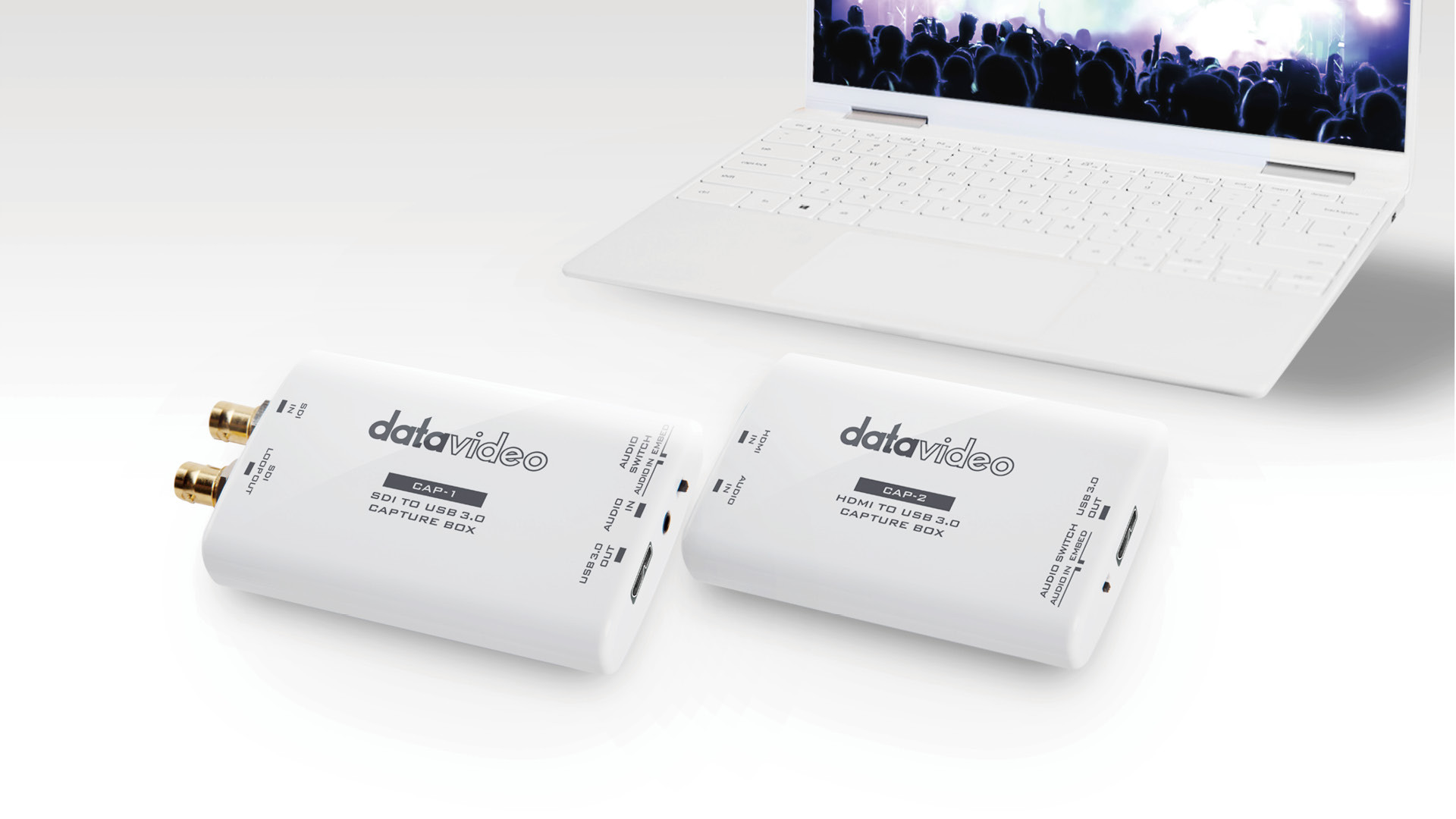

Compatible with Various Operating Systems
  • Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
  • Linux: VLC, OBS
  • Mac OS X: OBS, Quicktime player, VLC, Facetime
Compatible with various operating systems

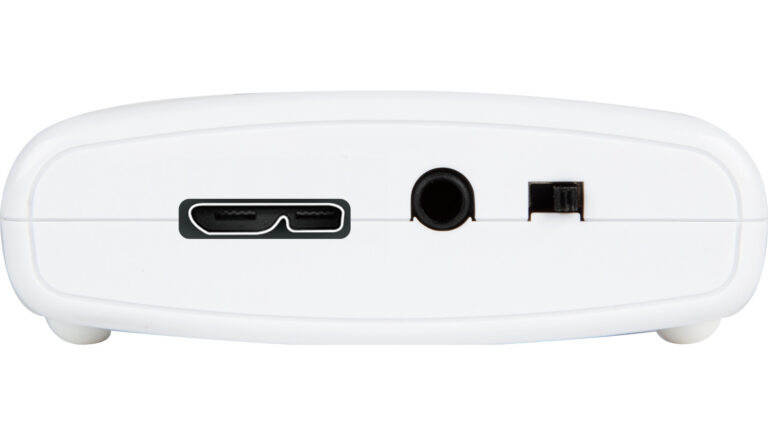

Stereo Line in External Audio

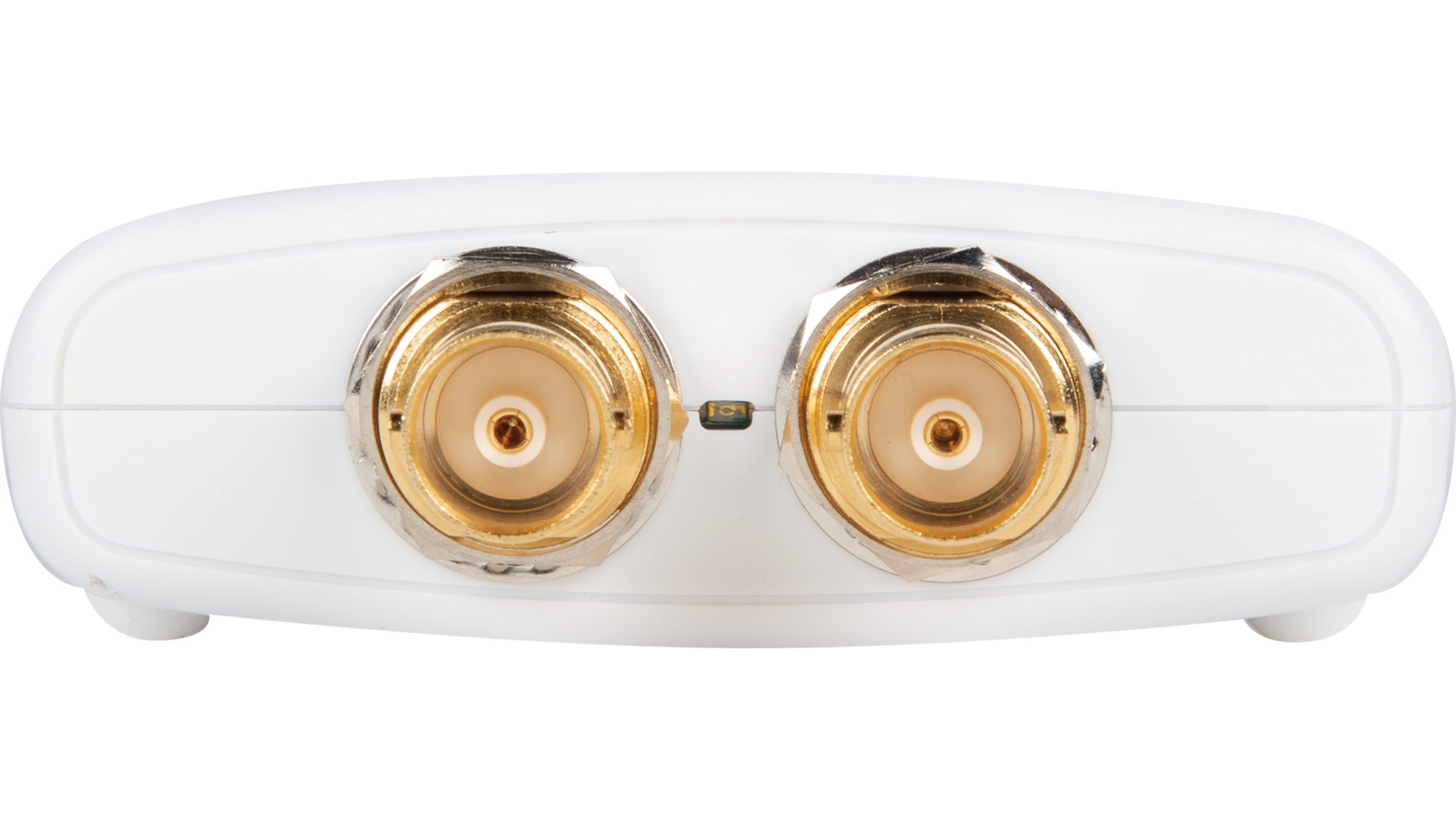

SDI Loop-out for monitoring or recording the video source.

Switched as SDI embedded audio or external Mini-Jack audio.

Stereo line in external audio

SDI to USB 3.0 Capture Box

Model Number
CAP-1
Input
1x HD/3G-SDI
Output
1x USB 3.0 (Micro B)
1x SDI loopthrough
Input Video Bandwidth
150MHz (pixel clock rate)
Output Video Bandwidth
Up to 350Mbps (USB)
Supported Input Video Formats
1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
1920 x 1080i 60/59.94/50 (de-interlaced out)
1280 x 720p 60/59.94/50
Supported Output Video Formats
1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
1920 x 1080i 60/59.94/50 (de-interlaced out)
1280 x 720p 60/59.94/50
Audio Input
SDI Embedded Audio & 3.5 mm stereo in
Audio Format
2-Channel, 16-bit PCM
Capture Video Format
YUY2 (USB3.0), MJPG (USB2.0/3.0)
Firmware Update
Via USB Port
Software Compatibility
Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime
Supported OS
Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04
Power Supply
Via USB
Power Consumption
3W
Operation Temperature
0~40°C
Storage Temperature
-20~60°C
Humidity
20~90% RH (no condensation)
Minimum System Requirement
Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
Note: The driver is required for Windows 7 OS
OS X (10.10 or above)
Linux Ubuntu 14.04
PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
4GB RAM or higher
Dimension (LxDxH)
121 x 68 x 23 mm
Weight
92g
What’s in the Box
1 x CAP-1
1 x USB 3.0 Cable
PRODUCT WORKFLOW
Weight 928 g
