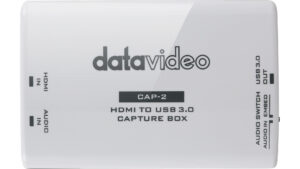

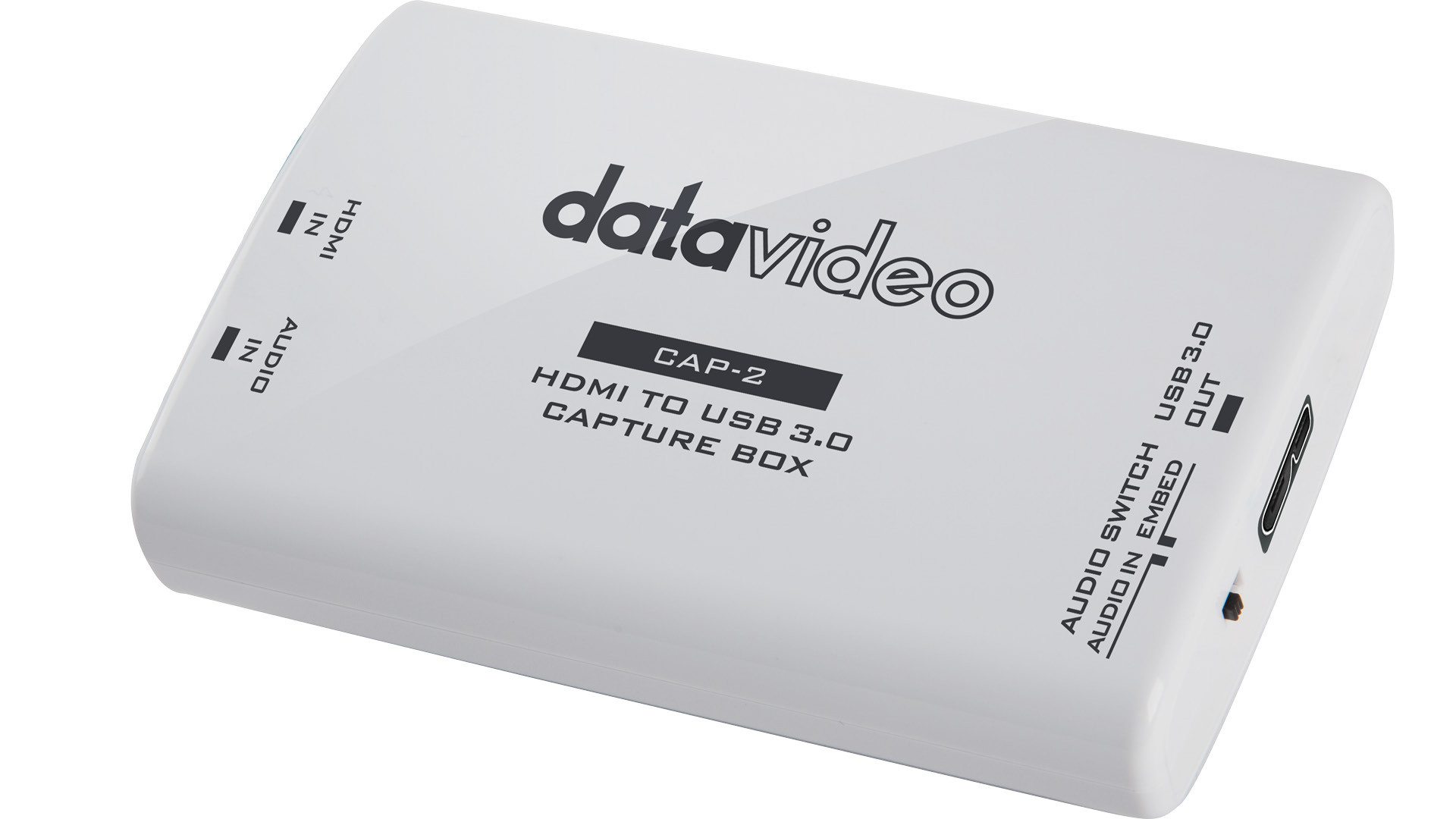

CAP-2 HDMI IN to USB 3.0 Capture Box
CAP-2 HDMI IN to USB 3.0 Capture Box is an HDMI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system.
It features a stereo line in external audio, which can be switched as HDMI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.

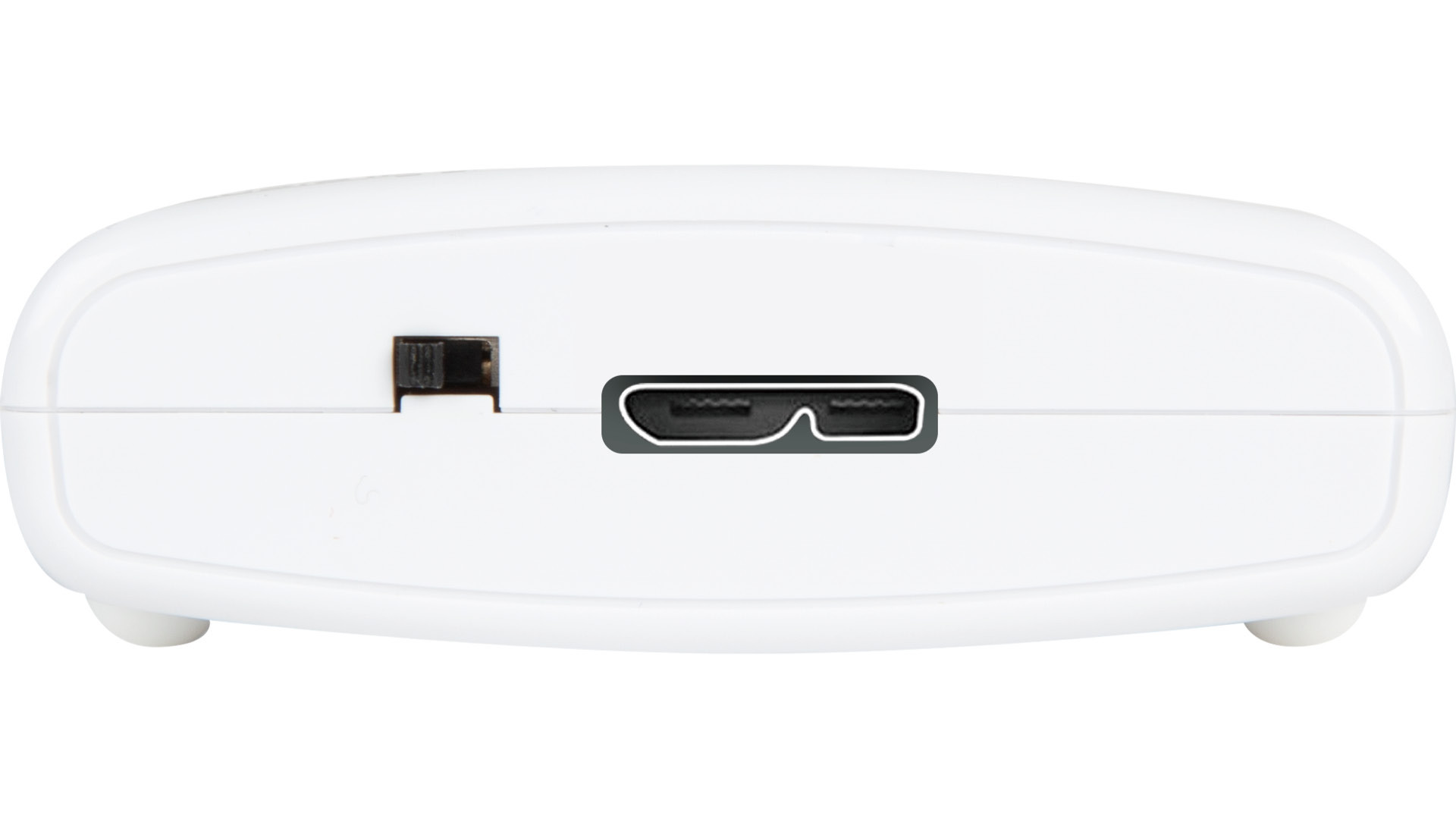

USB 3.0 Interface
No external power is needed.
Plug-and-Play
Support UVC. Operations with video format (resolution and frame rate) auto-detection capability.
Compatible with Various Operating Systems
- Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
- Linux: VLC, OBS
- Mac OS X: OBS, Quicktime player, VLC, Facetime

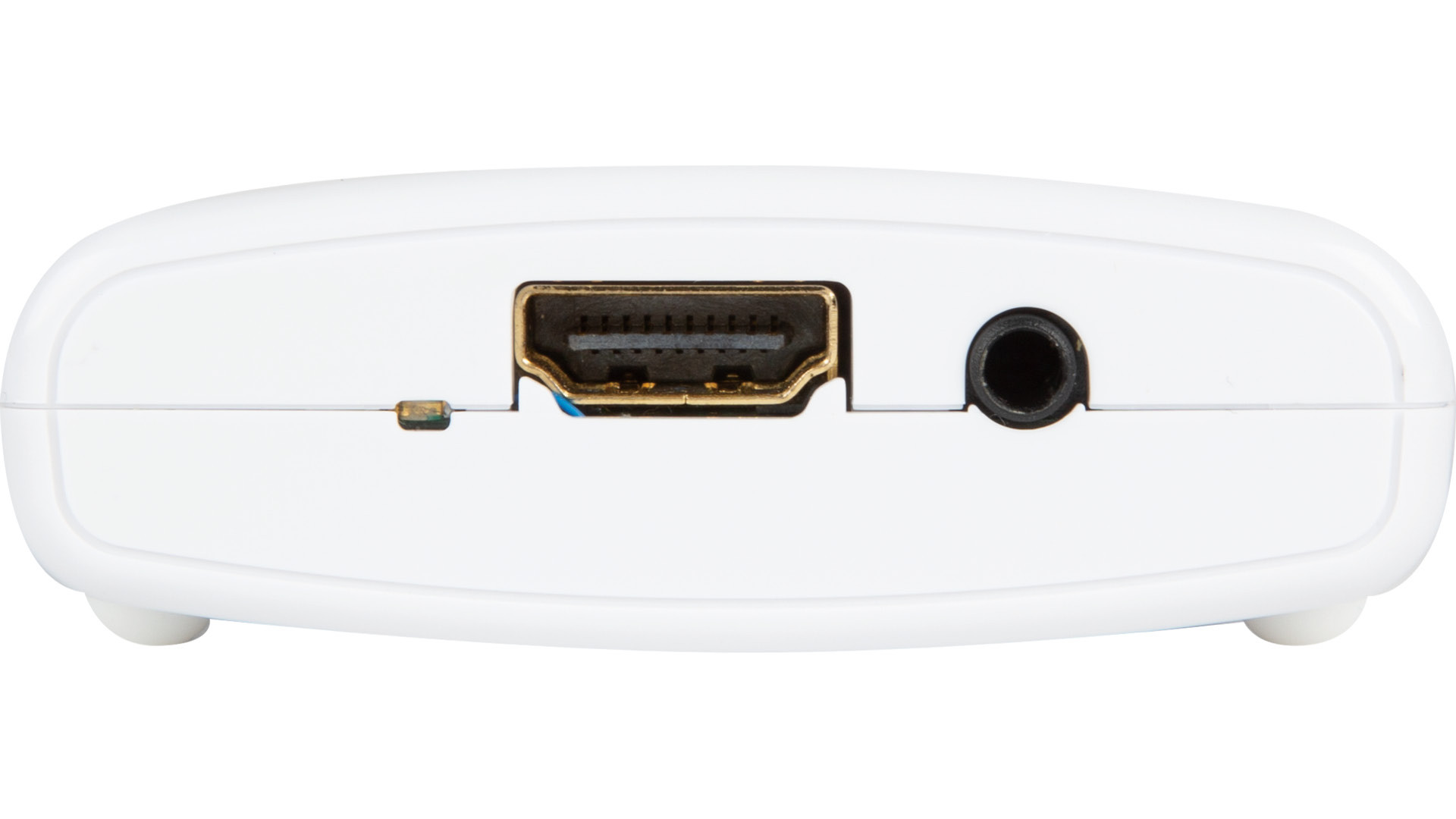

Stereo Line in External Audio
Switched as HDMI embedded audio or external line-in audio.
PRODUCT WORKFLOW
HDMI to USB 3.0 Capture Box
Model Number
CAP-2
Input
1x HDMI
Output
1x USB 3.0 (Micro B)
Input Video Bandwidth
150MHz (pixel clock rate)
Output Video Bandwidth
Up to 350Mbps (USB)
Supported Input Video Formats
1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
1920 x 1080i 60/59.94/50 (de-interlaced out)
1680 x 1050p 60
1600 x 1200p 60
1440 x 900p 75/60
1400 x 1050p 60
1366 x 768p 60
1360 x 768p 60
1280 x 1024p 75/60
1280 x 720p 60/59.94/50
1024 x 768p 75/60
800 x 600p 75/60
720 x 576p 50
720 x 480p 60
640 x 480p 60
1920 x 1080i 60/59.94/50 (de-interlaced out)
1680 x 1050p 60
1600 x 1200p 60
1440 x 900p 75/60
1400 x 1050p 60
1366 x 768p 60
1360 x 768p 60
1280 x 1024p 75/60
1280 x 720p 60/59.94/50
1024 x 768p 75/60
800 x 600p 75/60
720 x 576p 50
720 x 480p 60
640 x 480p 60
Supported Output Video Formats
1920 x 1080p 60/50/30/25/24
1680 x 1068p 60
1440 x 1080p 60
1440 x 896p 60
1360 x 768p 60
1280 x 768p 60
1280 x 720p 60/50
1024 x 768p 60
960 x 536p 60
848 x 480p 60
768 x 576p 60
720 x 480p 60/50
640 x 480p 60
640 x 360p 60
1680 x 1068p 60
1440 x 1080p 60
1440 x 896p 60
1360 x 768p 60
1280 x 768p 60
1280 x 720p 60/50
1024 x 768p 60
960 x 536p 60
848 x 480p 60
768 x 576p 60
720 x 480p 60/50
640 x 480p 60
640 x 360p 60
Audio Input
HDMI Embedded Audio & 3.5 mm stereo in
Audio Format
2-Channel, 44.1KHz and 48KHz sample rate embedded in, up to 24-bit PCM, fixed 48KHz output
Capture Video Format
YUY2 (USB3.0), MJPG (USB2.0/3.0)
Firmware Update
Via USB Port
Software Compatibility
Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime
Supported OS
Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04
Power Supply
Via USB
Power Consumption
2W
Operation Temperature
0~40°C
Storage Temperature
-20~60°C
Humidity
20~90% RH (no condensation)
Minimum System Requirement
Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
Note: The driver is required for Windows 7 OS
OS X (10.10 or above)
Linux Ubuntu 14.04
PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
4GB RAM or higher
Note: The driver is required for Windows 7 OS
OS X (10.10 or above)
Linux Ubuntu 14.04
PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
4GB RAM or higher
Dimension (LxDxH)
105 x 68 x 23 mm
Weight
70g
What’s in the Box
1 x CAP-2
1 x USB 3.0 Cable
1 x USB 3.0 Cable
