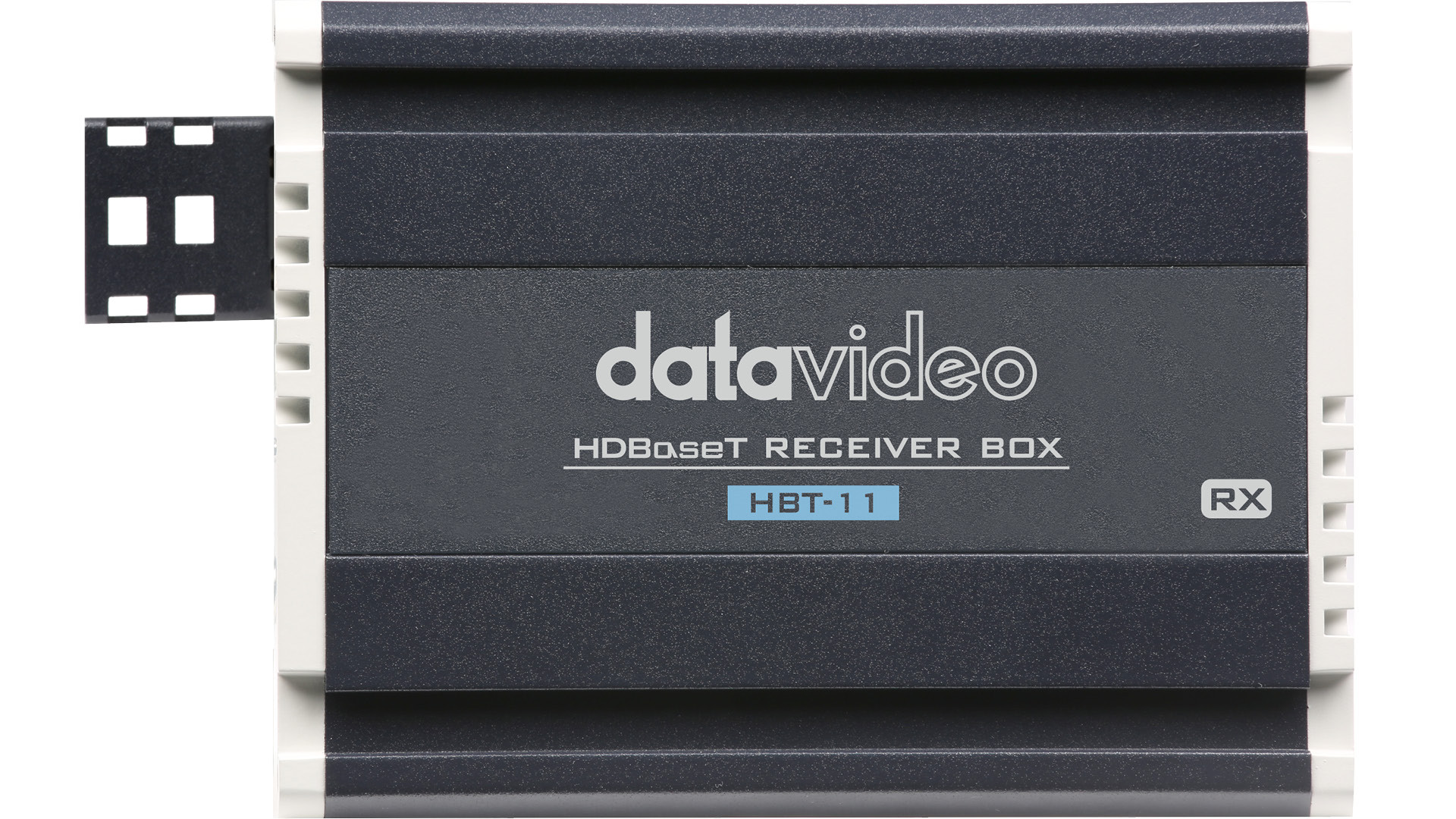

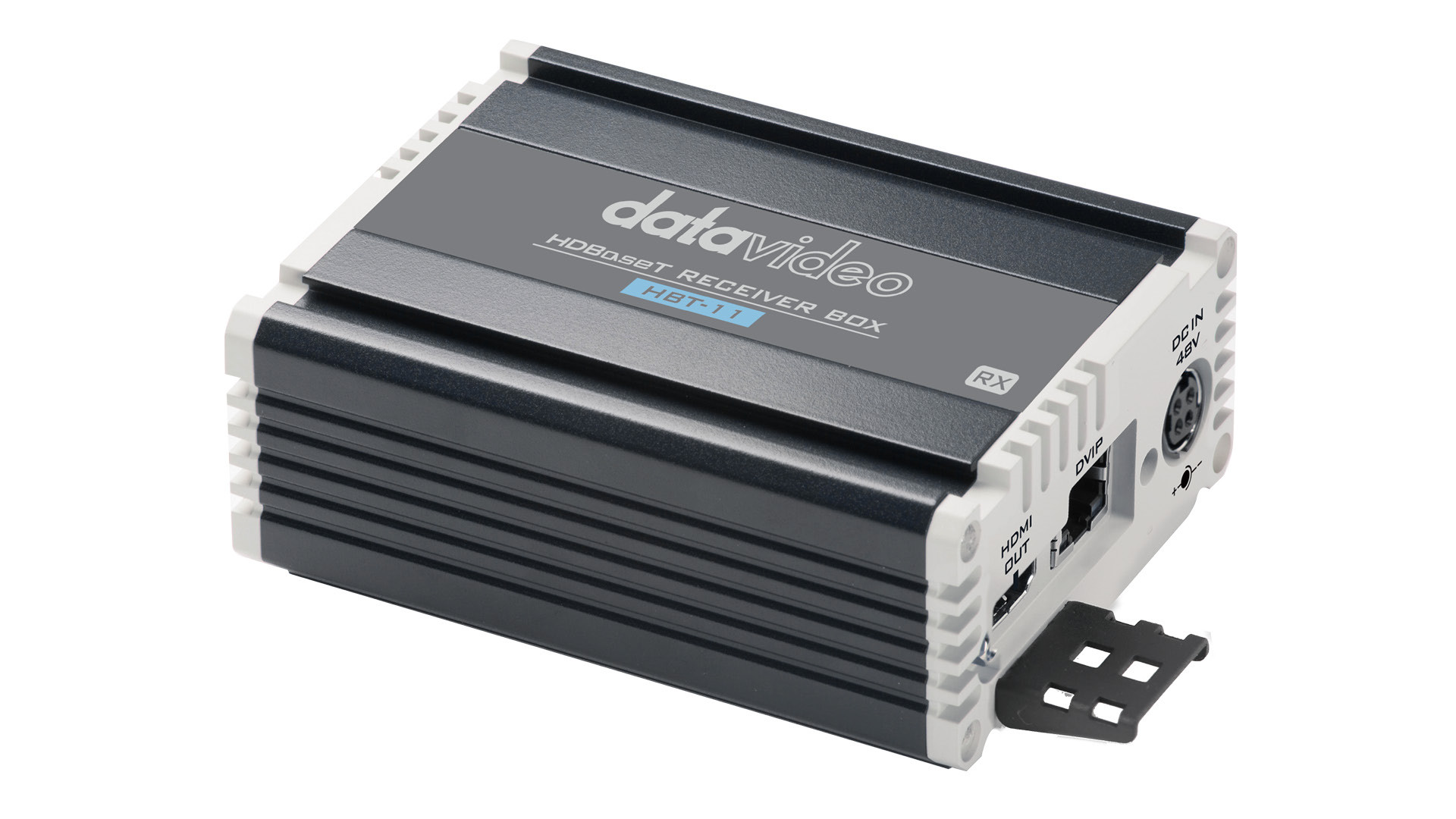

DATAVIDEO HBT-11 HDBaseT Receiver

 475,00

+ additional shipping charge

HDBaseT Receiver Box receives HDBaseT signals to convert into 4Kx2K video, audio, DVIP ethernet control and RS-422/232 by a single Cat.5e/6/6a/7.

Category:

supports HDMI as signal output to transmit HDMI video, DVIP control signals and Power over Ethernet (PoE)

HDBaseT Receiver

The HBT-11 supports HDMI as signal output to transmit HDMI video, DVIP control signals and Power over Ethernet (PoE) between the transmitter and the receiver.

HDBaseT Receiver

Single cable transmission by HDBaseT technology, up to 100m

Transmit video, audio, DVIP Ethernet control, RS-422/232 and POE from a single Cat.5e/6/6a/7 cable. The HBT-11 provides a maximum video transmission distance of 100 meters in Full HD Mode.
Single cable transmission by HDBaseT technology, up to 100m

4K Transmission

Transmit up to 4K video from HBT-10 Transmitter to HBT-11 Receiver.

4K Transmission

Supports DVIP/RS-422/232 Control Protocol

The HBT-11 supports protocol enabling to be controlled via RS-422/232 or DVIP interface.
Supports DVIP/RS-422/232 Control Protocol

HDBaseT Compatibility List

PoE Compatibility List
The chart above shows the product’s direct compatibility with other HDBaseT products.

Datavideo’s Comprehensive HDBaseT Lineup

Experience a seamless live production future with Datavideo’s exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T MKII switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo’s HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.


HDBaseT Receiver

Model Number
HBT-11

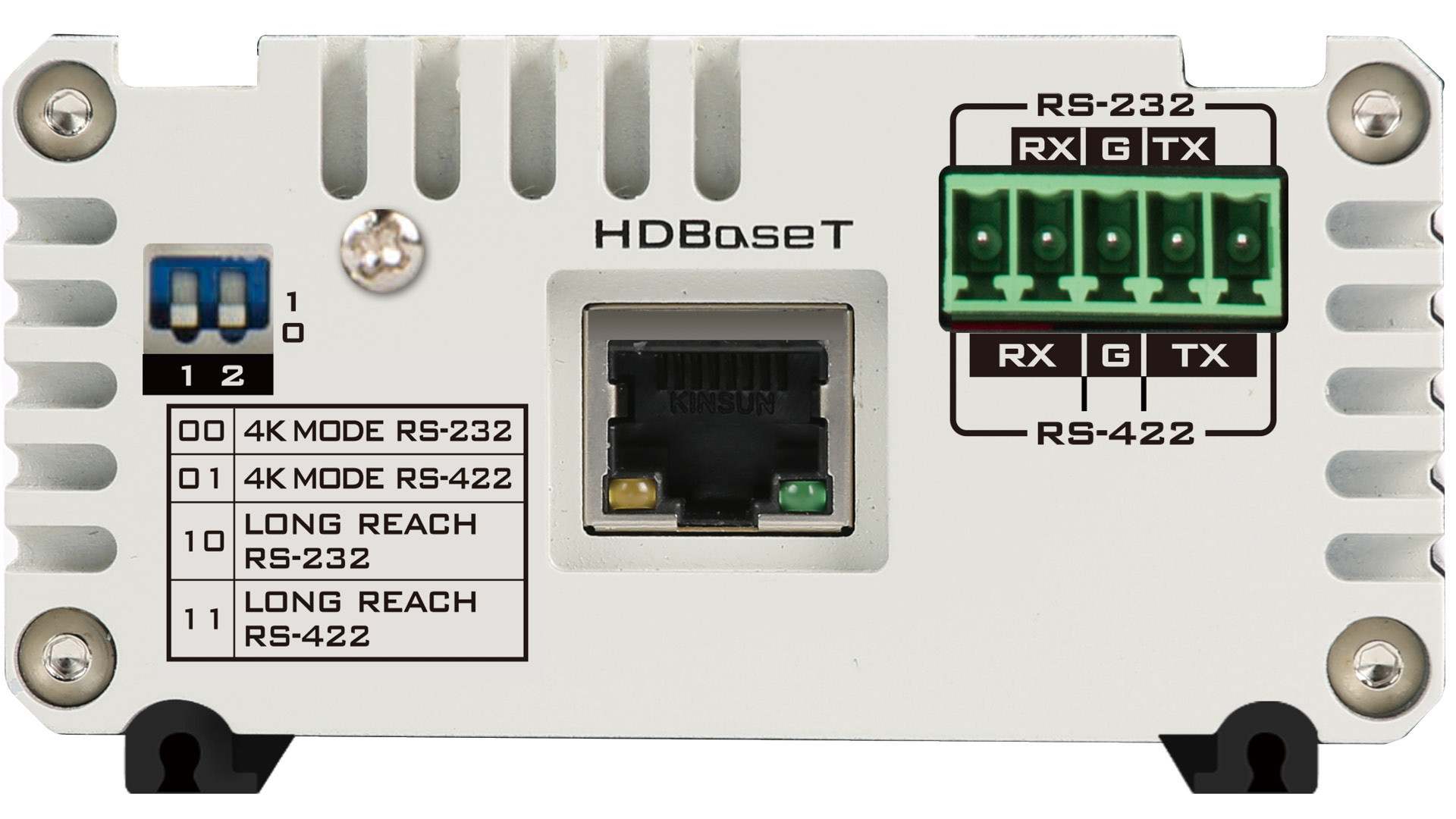

Video/Audio Input
HDBaseT RJ-45 x1

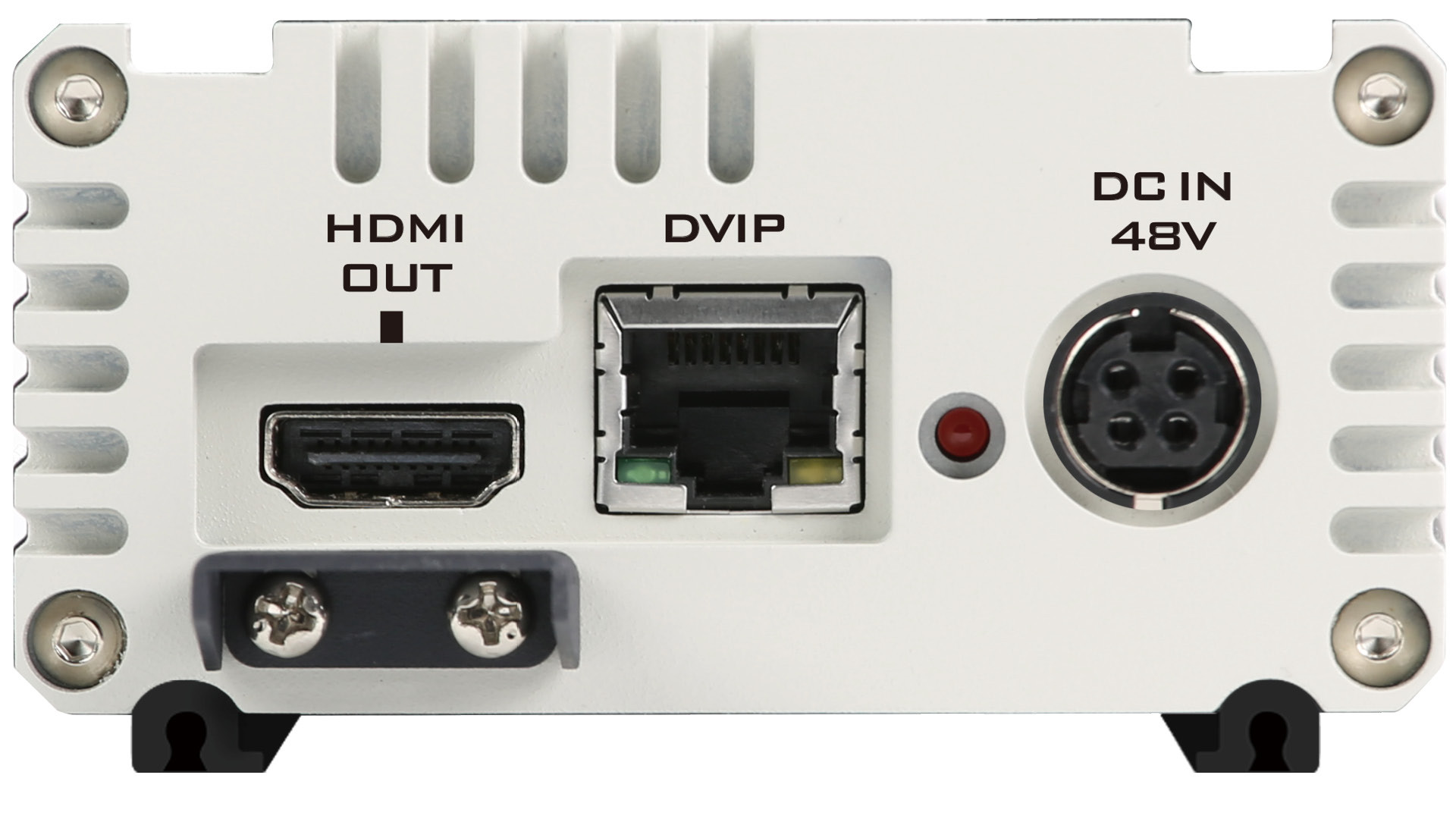

Video/Audio Output
HDMI x1
Supported Video Format
3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
Video Process
Video bandwidth
DVIP
RJ-45 x1(input)
RS-422/ RS-232
Phoenix terminal. Pitch 3.50mm
Power
DC IN: DC 48V
PoE Output
35W
HDBaseT Distance
Up to 100m by Cat.6 cable
HDMI compliance
HDCP compliance
Audio support
Dimension (LxWxH)
132 x 85 x 45 mm
Weight
400 g
Operating Temp. Range
0~40 °C
What’s in the Box
1 x HBT-11 main unit
1 x AC cord
1 x DC 48V power adaptor
1 x Phoenix connector to RJ-45
Weight 1000 g
