Produce Hybrid Events Using an All-in-One Switcher
The iCAST 10NDI is an innovative live production tool combining a switcher, camera controller, and streaming encoder in a single unit. It supports a diverse range of inputs, enabling you to craft captivating presentations with various video sources like PTZ and document cameras, as well as laptops for slides.
Significantly, it supports up to 3 NDI signals, enhancing its network-based video streaming capabilities. With a built-in streaming encoder and recorder, the iCAST 10NDI allows for easy live streaming to multiple platforms and SSD recording. It can ISO record six video channels simultaneously, providing ample material for post-production.
This makes the iCAST 10NDI an efficient, user-friendly solution for video streaming and recording needs.

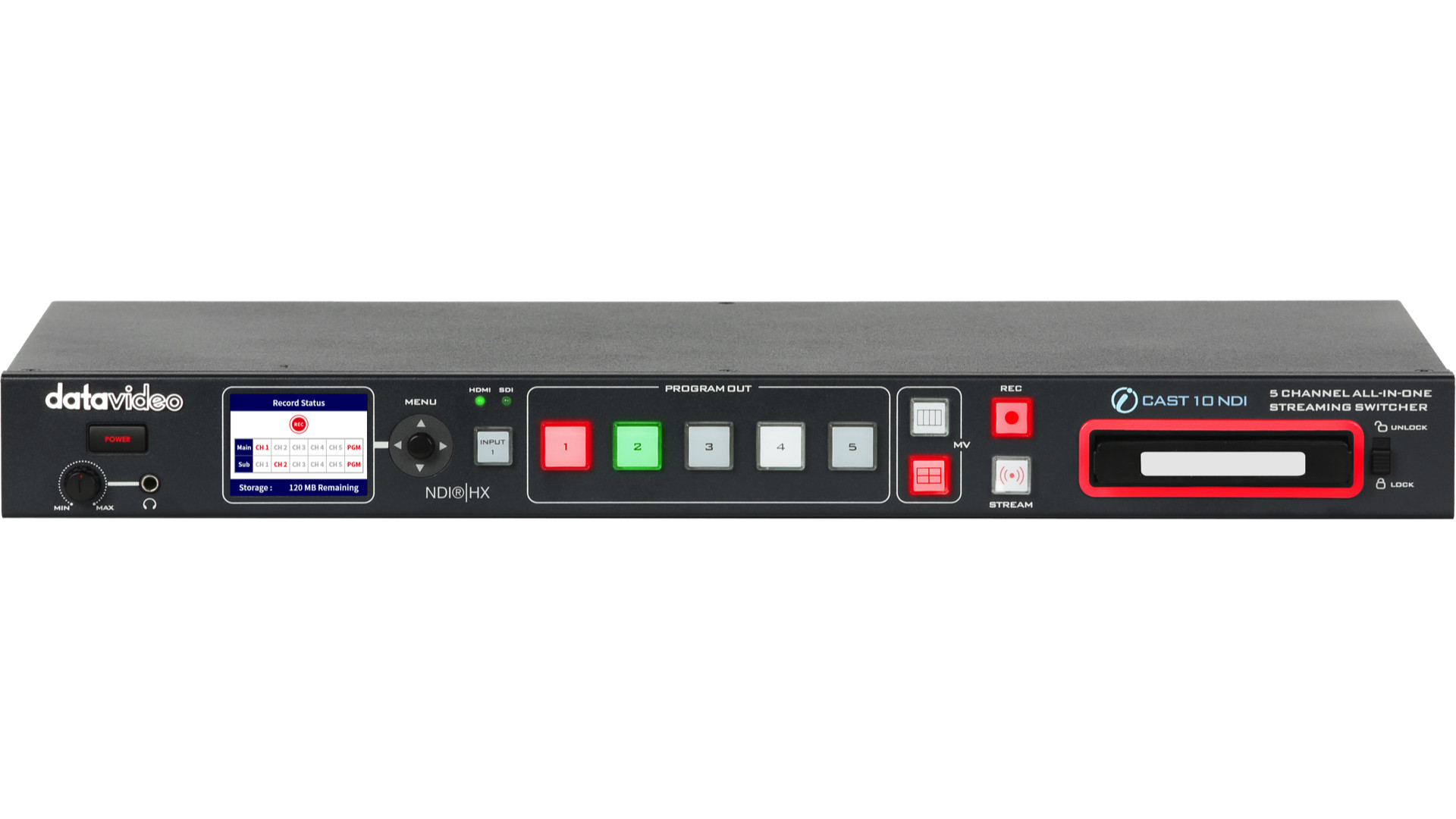

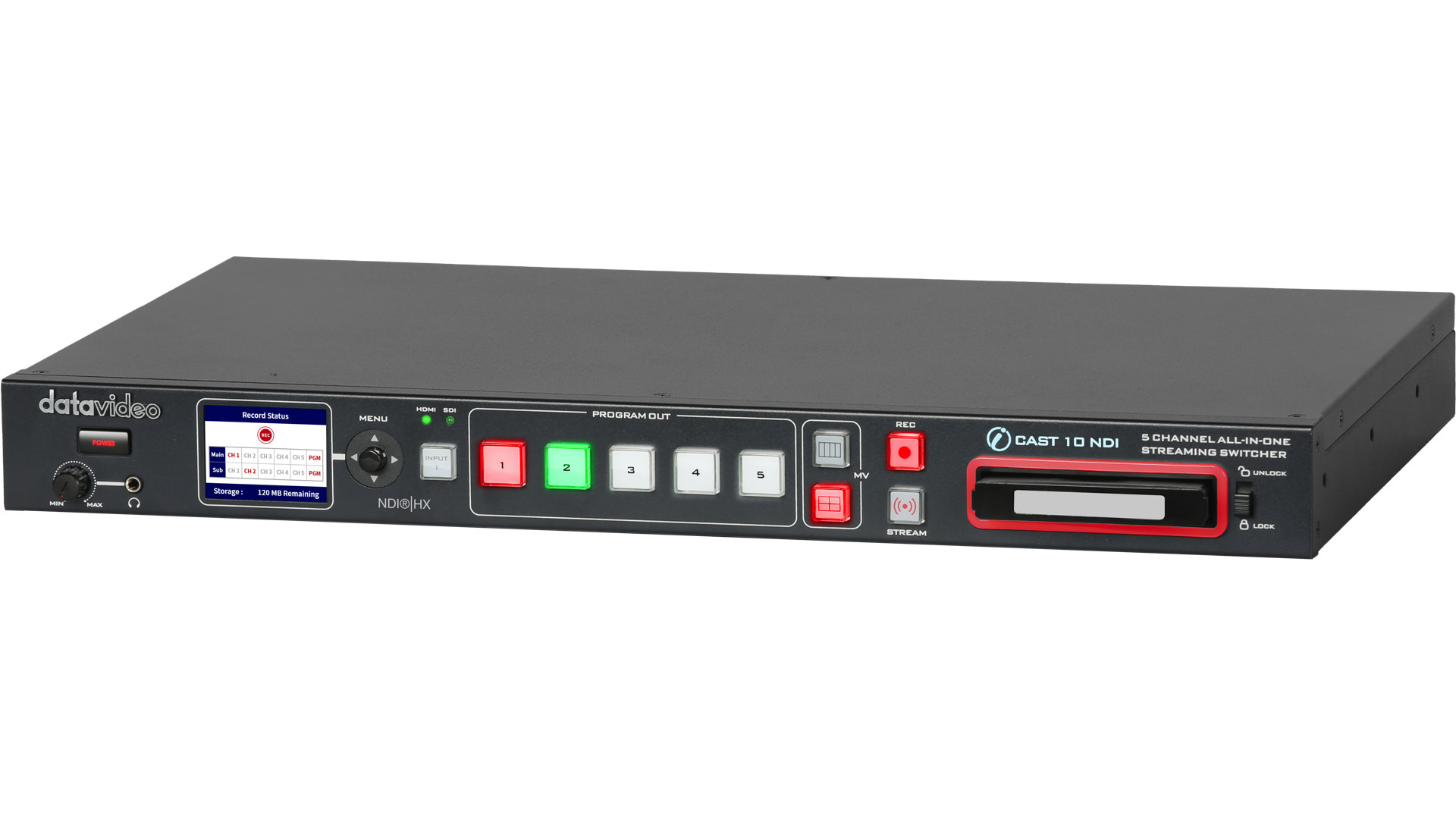

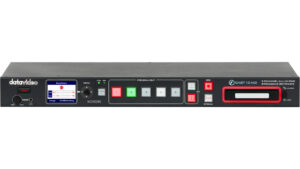

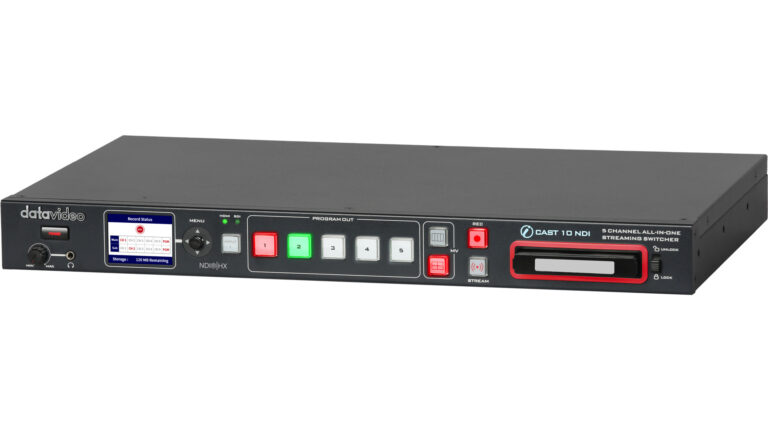

iCAST 10NDI
A hybrid event switcher designed for classroom, lecture capture, conferencing with all the I/O needed for producing,
streaming, recording, and conferencing with Zoom, MS Teams, and other platforms. An intuitive touch screen
interface with presets for screen layout settings, camera angles, and buttons for activating the stream and recording
of your event.
iCAST 10NDI: 6 Main Features
Seamless switching
Multichannel audio mixing
Video Streaming
Multi-Camera Video Recording
Character Generation
System Control
Multiple Video Input Interfaces

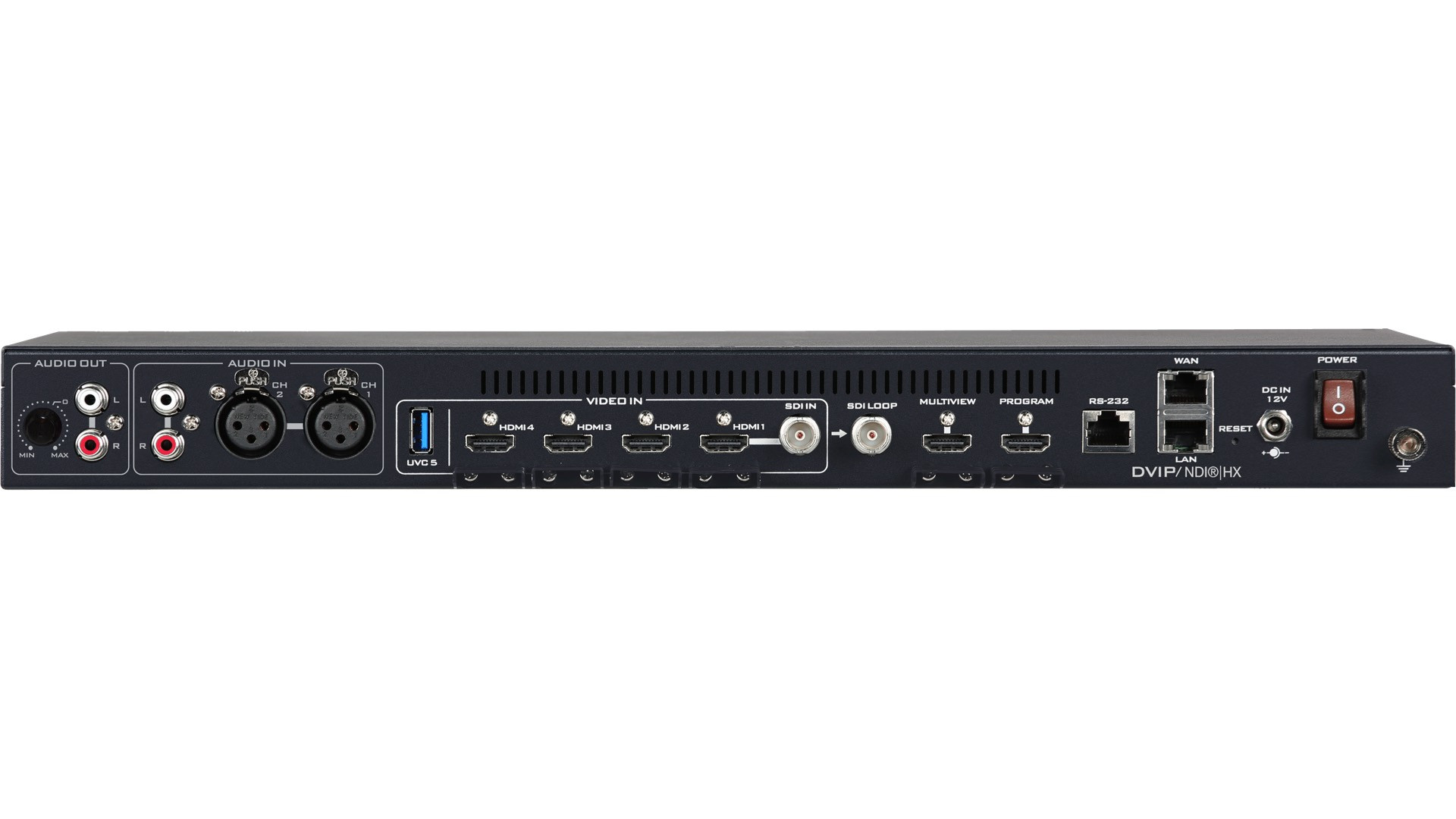

The iCast 10NDI elevates live production with its versatile video input capabilities. It features five inputs, including one SDI/HDMI selectable port, three HDMI ports, and one USB 3.0 port, accommodating a wide range of professional cameras, laptops, and document cameras.
Notably, it supports up to 3 NDI signals, embracing the power of network-based video streaming. Additionally, its RJ-45 port allows for receiving IP videos, using RTMP(S) or SRT protocols. This array of interfaces ensures seamless compatibility with various video devices, making the iCast 10NDI a highly adaptable solution for diverse live streaming and broadcasting needs.
Dual Multiview Modes
iCAST 10NDI provides an intuitive preview of your output sources. You can view them either horizontally or vertically (a new technology for viewing videos on mobile devices) and preview these mode changes on a Multiview screen.
Multiple PGM Modes
In addition to displaying a full screen view of the program out video, you can also stream the four input videos live
to your audience.
The iCAST 10NDI offers five Multiview layouts to allow you to show your input videos all at the same time. The videos can be streamed to all corners of the world and your audience can, with zero delay, participate in your events using a receiver/decoder, personal mobile device, or a computer.
Side by Side
POP
Stream OUT
You no longer need multiple devices to stream your video to multiple platforms. This is now achievable with one iCAST 10NDI.
iCAST 10NDI supports NDI | HX input and output. Another alternative to broadcast a quality low latency video transmission.
Decode Up to 3 NDI Channels
One Ethernet Cable with NDI® | HX Technology
There is no need for multiple cables and complicated setup. Single-wire concept helps you to decode video and audio over only one Ethernet cable for live video switching.
NDI® is a registered trademark of Newtek, Inc.
Vertical Streaming Appropriate for Video Playback on Social Media
Of all videos streamed, up to 50% of the videos are viewed on mobile devices and 94% of the mobile users hold the phone vertically to view the video. iCAST 10NDI provides vertical streaming which can be generated with only a few basic settings.
Auto Capturing of the Image in the Center for Vertical Streaming
Rotate the Camera in 90 Degrees Directly
Supporting SRT Protocol so that iCAST 10NDI Works Well Even When You Have Low Bandwidth
Video latency often results when there is insufficient network bandwidth. iCAST-10 supports SRT protocol which mitigates packet loss when the network becomes unstable. Sometimes RTMP may give you stuttering viewing experience but SRT will solve your problem.
Add dvCloud to Enhance Your Streaming Experience
dvCloud, a paid service, is a professional streaming platform developed by Datavideo. Once you’ve logged in, you can manage all the streaming channels that you have created. You can stream your video to at most 25 platforms at the same time without any time limit while backing up the video on the cloud automatically for future downloads. iCAST 10NDI, SRT and dvCloud form a low latency, secure and reliable streaming workflow.
Recording: Easy-to-Read LED Indicator
A protruding frame like LED indicator allows you to easily see its color. A red indicator means that the video is being recorded and a green indicator appears when the record function enters standby mode.
The 2″ LCD screen on iCAST 10NDI allows you to view the record status of all video channels.
ISO Recording of 5 Video Inputs and One Main Program Output
ISO recording refers to the ability to create isolated recordings of your five camera inputs and one PGM output for video backup and adding visual effects during post production. ISO recording allows you to save your data locally or on a file server
H.264 Encoding to Back Up HD Videos
A built-in professional recorder records using H.264 video encoding with configurable resolution, frame rate, video bitrate, etc.
Recording Resolution
Supports up to Full HD 1080p50/60 broadcast record quality with a low file size so it is often used for long time recording. Even with a high data compression ratio, fine details of the image can still be retained as well as high recoverable color information.
Multi-Channel Audio Mixing and Audio-to-Video Synchronization
In addition to embedded audio, we have also provided input ports for external audio such as XLR port for connecting microphones, and RCA terminals for audio players.
The Web audio, the most popular audio source, is another external audio source. You can easily perform professional audio mixing with iCAST 10NDI and at the same time switch between AES and EBU modes so that your output audio will always be compatible with various audio systems in different countries without issues such as unstable audio volume and the audio and video out of sync error.
A Variety of Audio Input and Output Ports
XLR and stereo RCA ports for external analog audio and a 3.5 mm headphone jack for audio monitoring.
Audio Delay
iCAST 10NDI is capable of independently delaying each audio channel by adjusting the delay time in order to eliminate the audio and video out of sync error.
Character Generation
iCAST 10NDI allows you to add graphic elements such as logos, titles, text, and images to any input video channels or the program output. You can add course chapters text or workflow diagram images to your program.
Custom Real-time Captions and Subtitles for Your Programs Such as News Broadcast
Transcribe audio by entering subtitles line by line using News CG then play subtitles in real time by simply tapping the space bar on the keyboard.
Adjust the Size, Position, Color and Borders
Highlight the information that you wish to convey to your audience. You can also transcribe audio by entering subtitles line by line using News CG after which you will be able to play subtitles in real time by simply tapping the space bar on the keyboard controller.
Multiple Control Protocols
iCAST 10NDI supports multiple control methods which are DVIP, RS-232, Web UI and the LCD screen. The LCD screen can be found on the front panel of the device. DVIP is a control protocol developed by Datavideo for controlling peripheral devices such as cameras, switchers and recorders, allowing you to create a complete video production environment.
Web UI and Touch Panel Controller
Connect TPC-700, an external touch panel controller, via DVIP to gain access to an intuitive and easy-to-use graphical user interface.
The iCAST 10NDI APP is installed on the TPC-700 touch panel controller along with many frequently used control settings. The responsive touch panel allows you to easily switch between different control modes, adds versatility to video production and reduces operation complexity.
Web User Interface
TPC-700 Touch Panel Controller
Recommended Drives
- Samsung 870 EVO MZ-77E Solid State Drive 250GB
- Samsung 870 EVO MZ-77E Solid State Drive 500GB
- Samsung 860 EVO MZ-77E Solid State Drive 250GB
- Samsung 860 EVO MZ-77E Solid State Drive 500GB
Datavideo’s Comprehensive NDI Lineup
Experience a seamless live production future with Datavideo’s exceptional NDI products. NDI technology enables effortless connectivity over Ethernet. Explore the magic of our NDI cameras – delivering brilliant 4K video and dynamic Auto Tracking with ease. The iCAST 10NDI switcher revolutionizes integration and control. Datavideo’s NDI lineup brings the power of effortless connectivity to live production.
Tutorial Videos Created Specifically for the iCAST 10NDI
Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the iCAST 10NDI is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
PRODUCT WORKFLOW
5-Channel All-in-one Streaming Switcher
Model Number
Video Standard
Video Format
1080p60/59.94/50,
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480i59.94, 576i50
Output:
1080p60/59.94/50→1080p60/59.94/50
1080p30/29.97/25/24/23.98→1080p30/29.97/25/24/23.98
1080i60/59.94/50→1080p30/29.97/25
720p60/59.94/50→720p60/59.94/50
480i59.94, 576i50→480p29.97, 576p25
(not supporting interlace)
Input Routable / Crosspoint
Video Input
4 x HDMI 1.4 (Channel 1 as SDI/HDMI selectable)
1 x USB 3.0
3 x RTSP/ SRT/ NDI | HX via IP Stream
Mix HD & SD Source
Computer Graphic Interface
Video Output
1 x HDMI 1.4
1 x HDMI 1.4 (Multiview)
2 x RJ-45 female (10/100/1000M Ethernet) (LAN & WAN)
Down-Converted Output
Built-in Multi-view Monitoring Out
Analogue Audio Input
RCA Unbalanced audio x 1 pair
SDI embedded audio
HDMI embedded audio
IP Audio (RTSP AAC-ADTS, PCM)
(External and embedded audio mixable)
Analogue Audio Output
Audio Delay Calibration
Chromakey
Title Creator
USK
DSK
Picture in Picture
Logo Insertion
Still Store
Effects
Transition Preview
Sync / Reference In/Out
Tally Output
PC Remote Control
Serial Port Control: RS-232 (RJ-45)
Camera Control
Built-in Audio Mixer
Storage
Recording File System
Recording File Format
Video Encode
Audio Encode
Sample rate: 48KHz, 16bit
AAC-LC
Sample rate: 48KHz, 16bit
Configurable bit rate: 128K or 256K or 384K
Streaming Protocol
TS over UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP (Publish)/RTMPS
HLS
SRT Caller and Listener
Web RTC (encode/decode)
NDI | Hx
Firmware Update
Special Features
Vertical video Multiview
Chassis
Dimension (LxWxH)
Weight
Power
Operating Temp. Range
What’s in the Box
1 x DC 12V Power Adaptor
2 x 1U Rack Mount Ear
6 x M4 Screws for Rack Mount Ear
1 x 2.5” Removable HDD/SSD Enclosure
4 x Screws for 2.5 Removable HDD/SSD Enclosure
1 x Blank Label
1 x SATA to USB 3.0 Cable
