Intercom System Evolution and Innovation

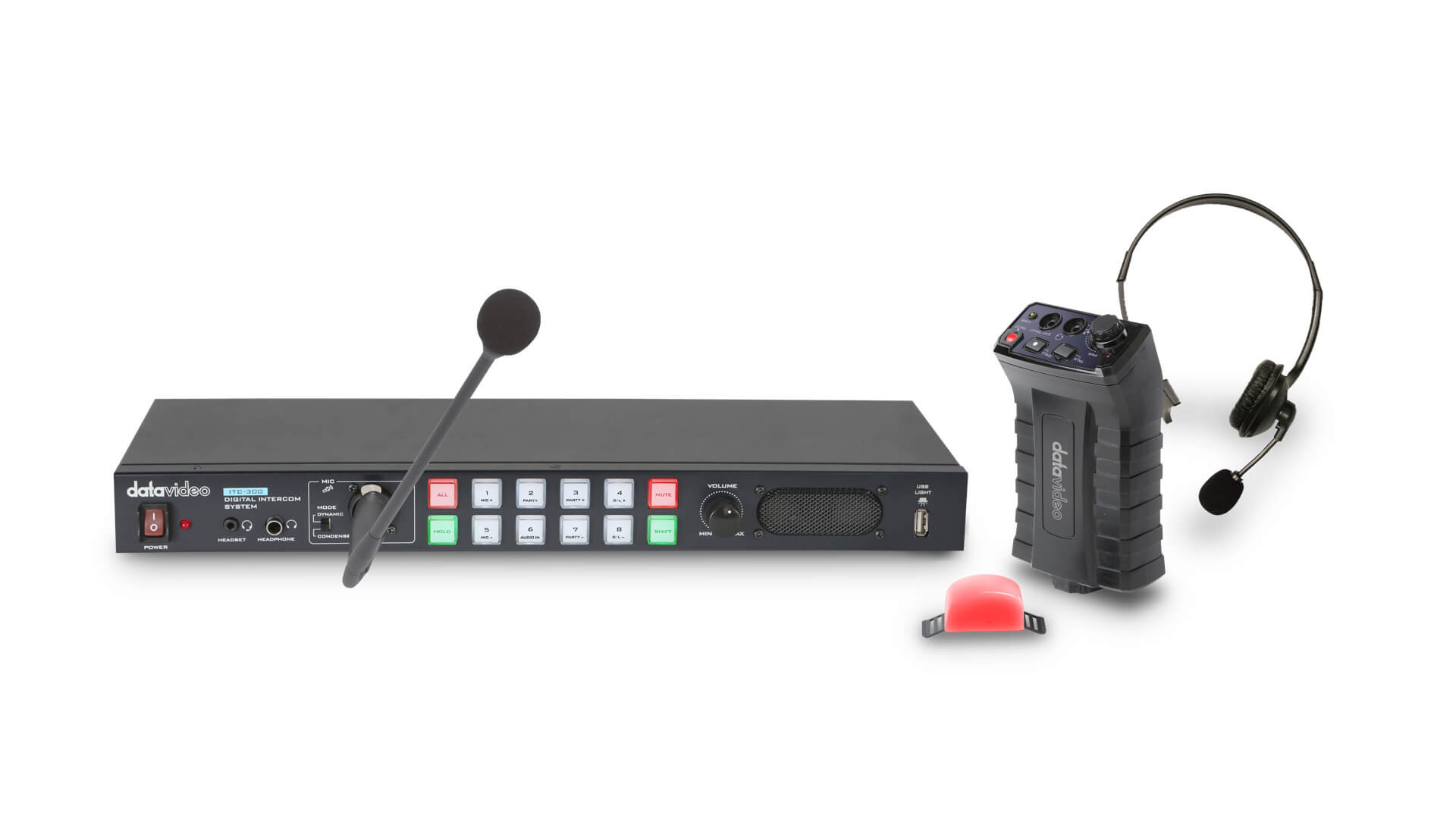

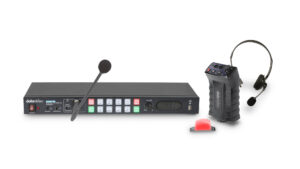

The Datavideo ITC-300 Digital Intercom System is an 8-channel wired communication system, allowing direct connections of up to 8 belt packs. With the ITC-300, the director will then be able to speak to the team crews located at different sites either simultaneously or individually.

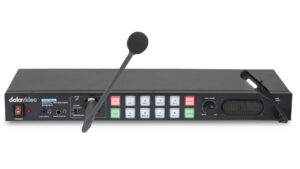

The ITC-300 is a standard 19″ 1U rack design which facilitates integration of the device into any rack system for use in the field or studio. It can also be used with other various switcher models designed and manufactured by Datavideo such as the SE-500HD, SE- 650, SE-2200, SE-2850 and SE-3200.
Single CAT Cable for Everything

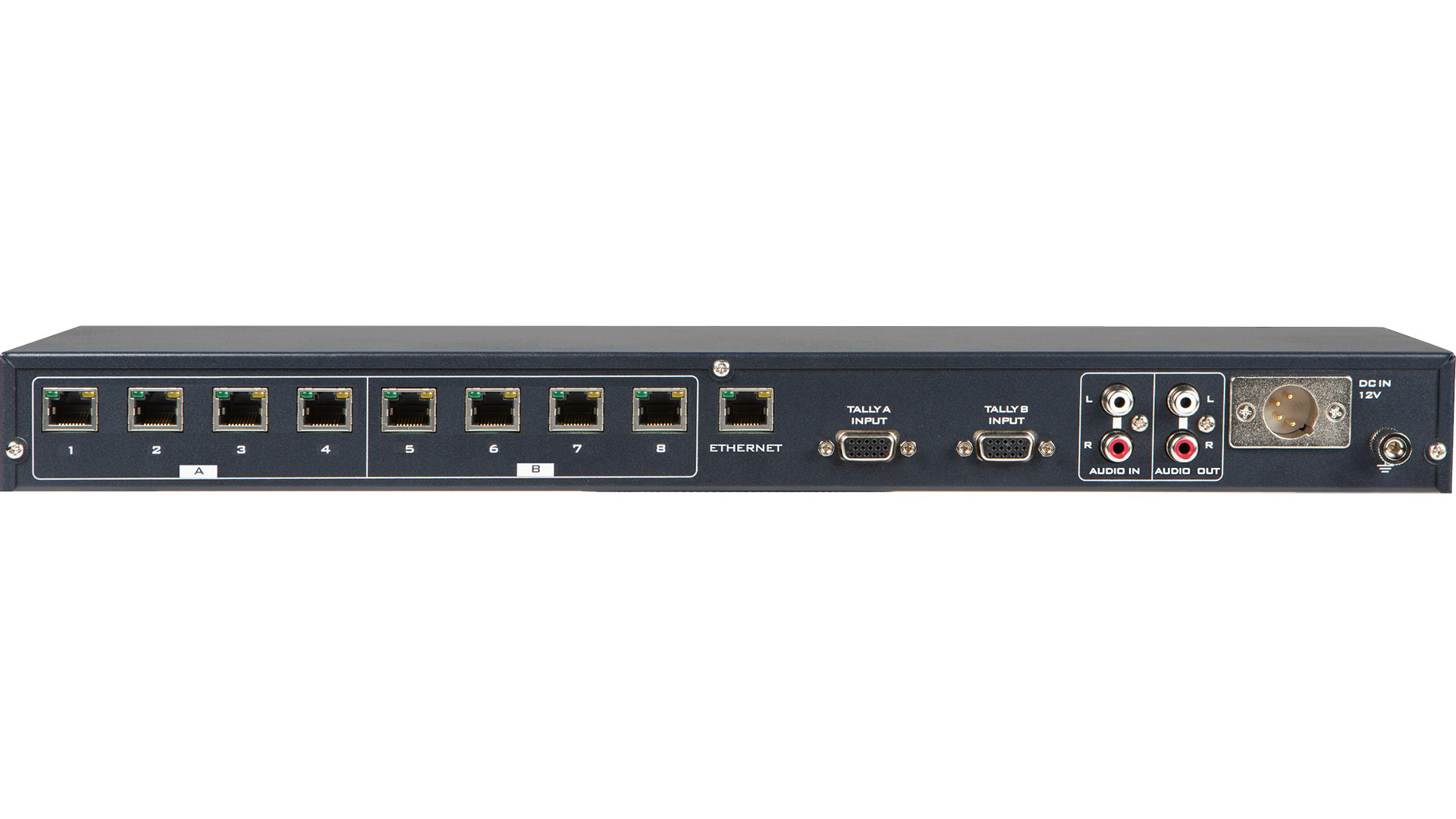

The ITC-300 is a single wired communication system, featuring power over Ethernet to 8 belt packs.

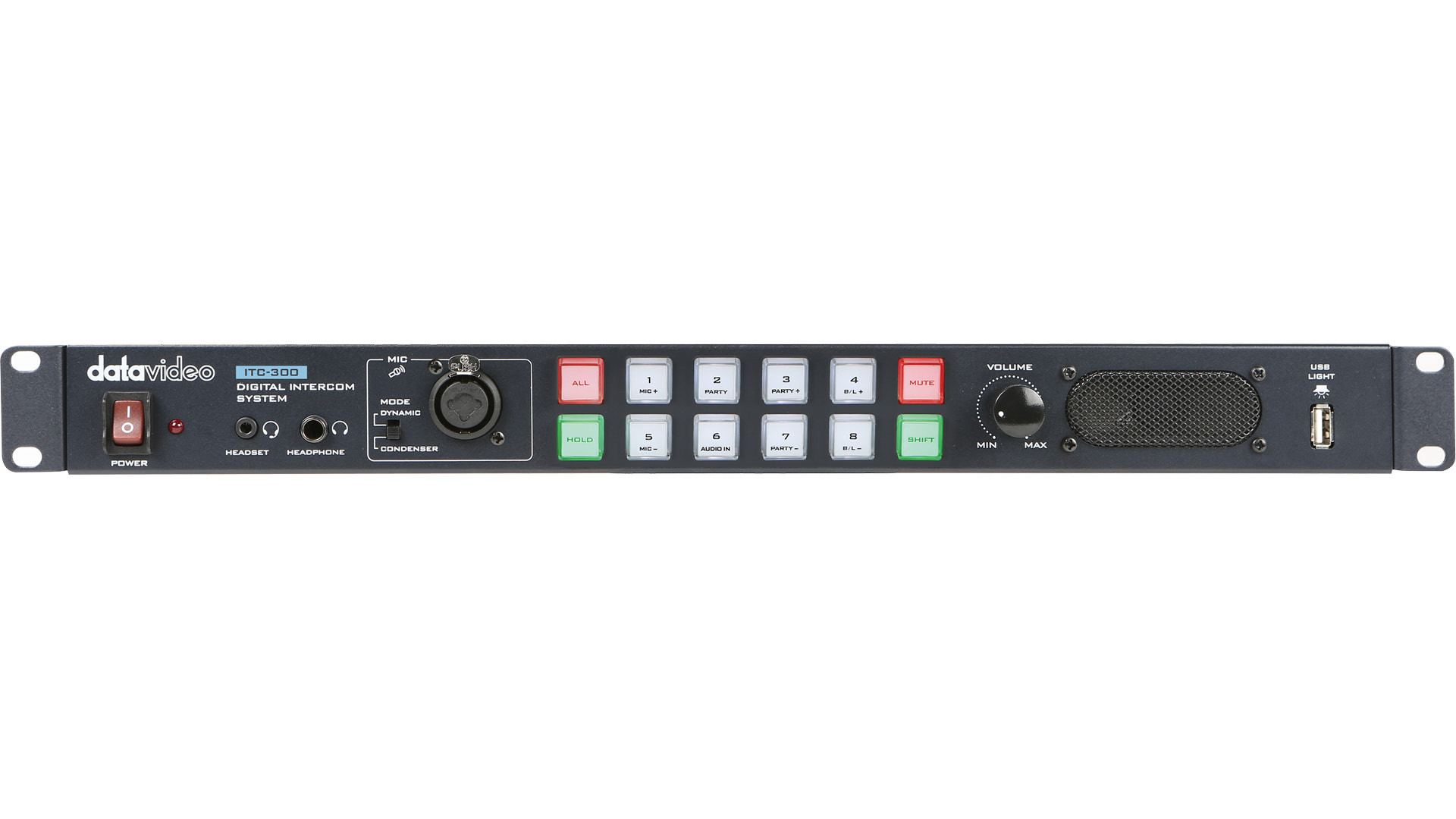

Rackmountable 8 Channels Intercom System
The ITC-300 provides 8-Way talkback and bi-colour tally indicators.
Selectable Channel Talk, Broadcast to All or Mute
The director can select to talk to an individual channel or to all channels simultaneously.

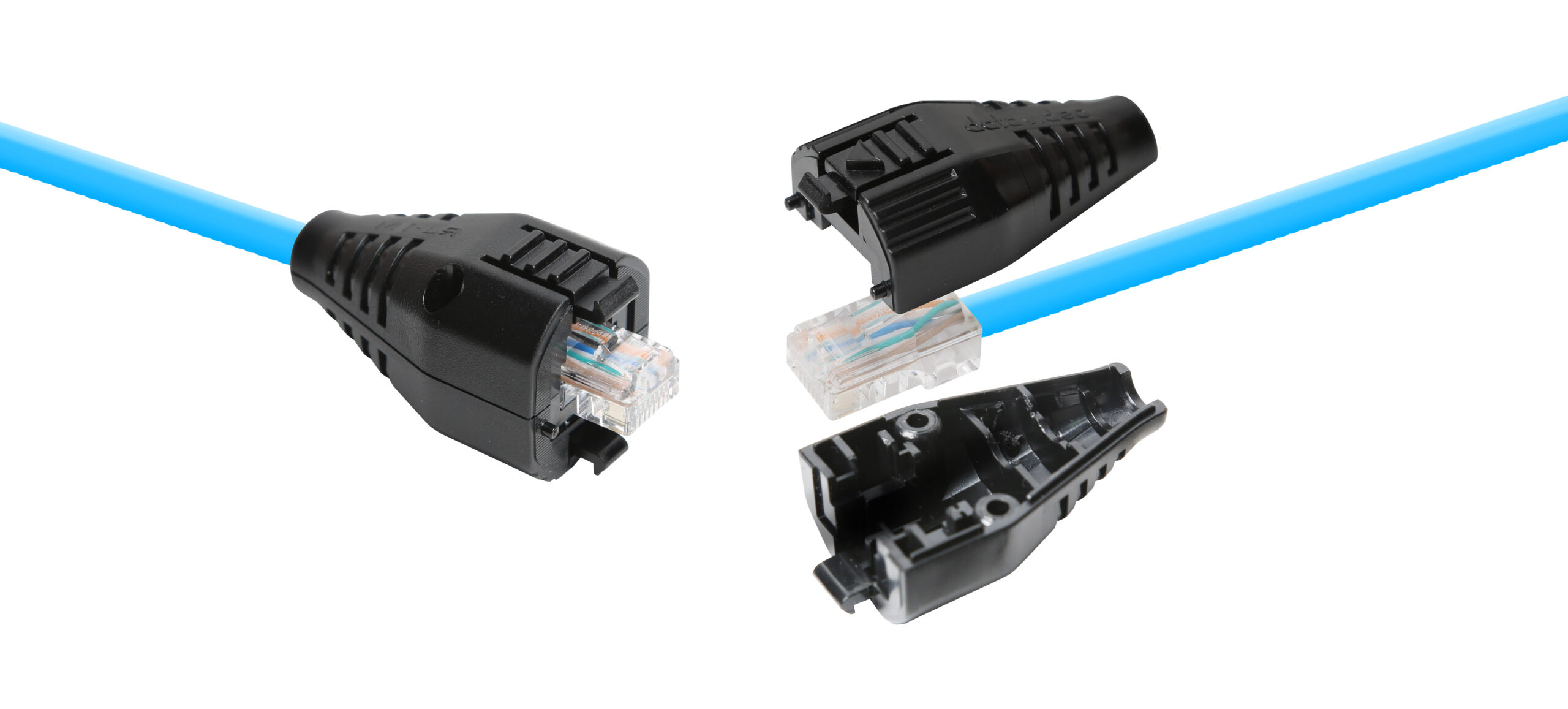

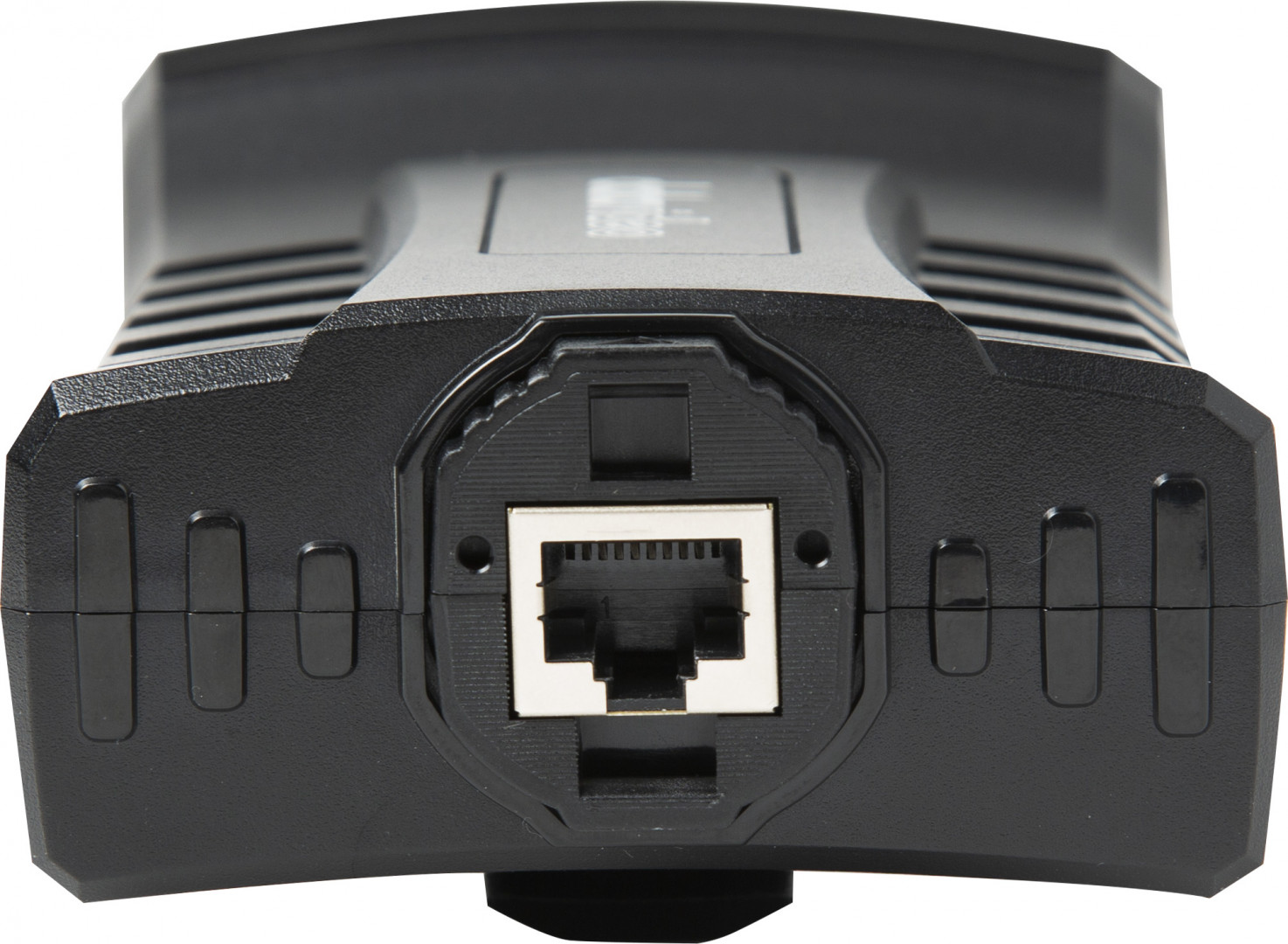

Special Design for Your RJ-45 Connector
The ITC-300SL has a special CAT-6 connector shield to prevent the cable lost when used.

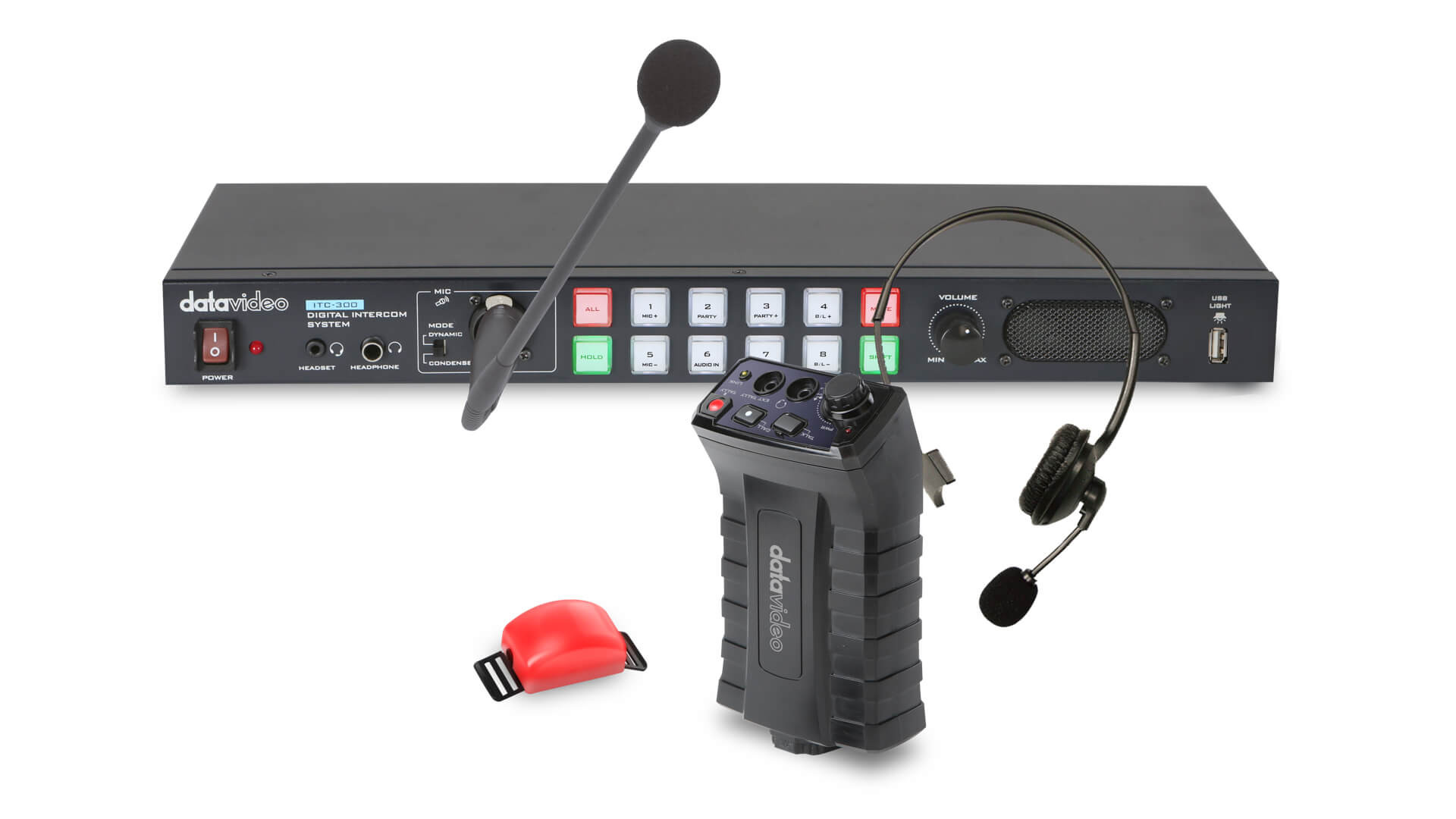

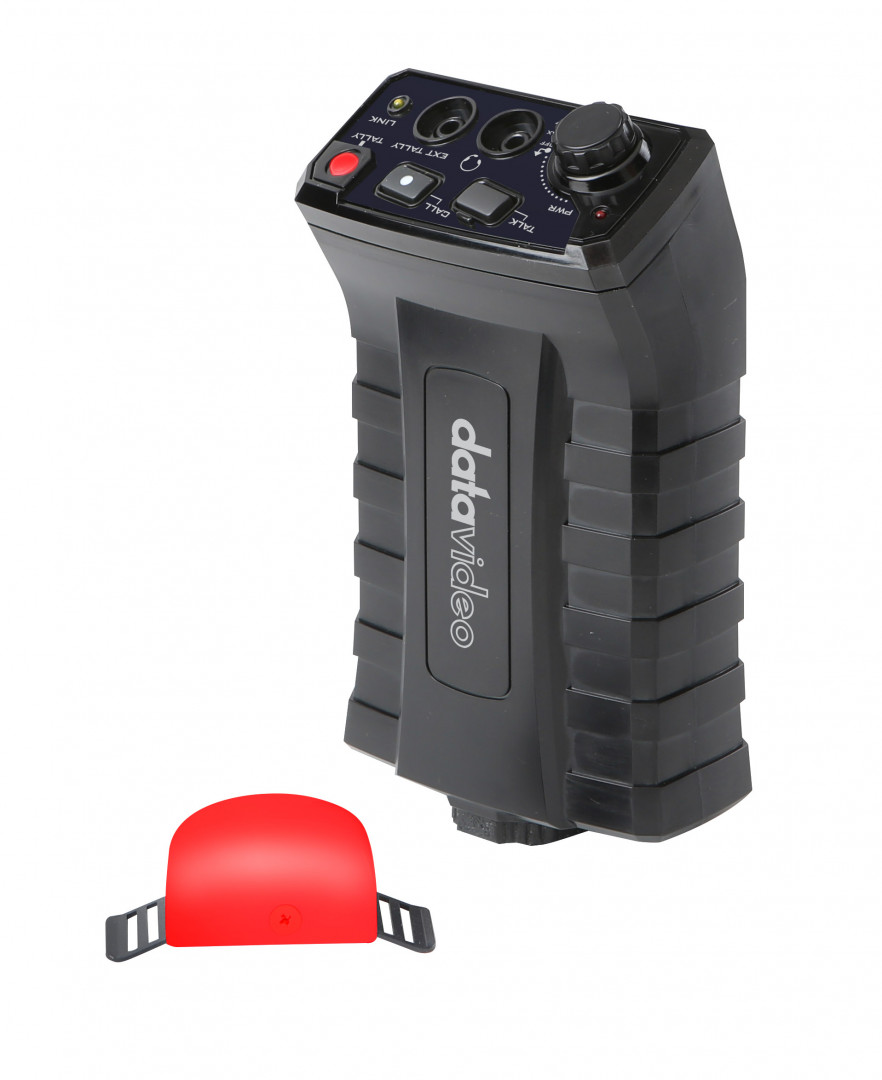

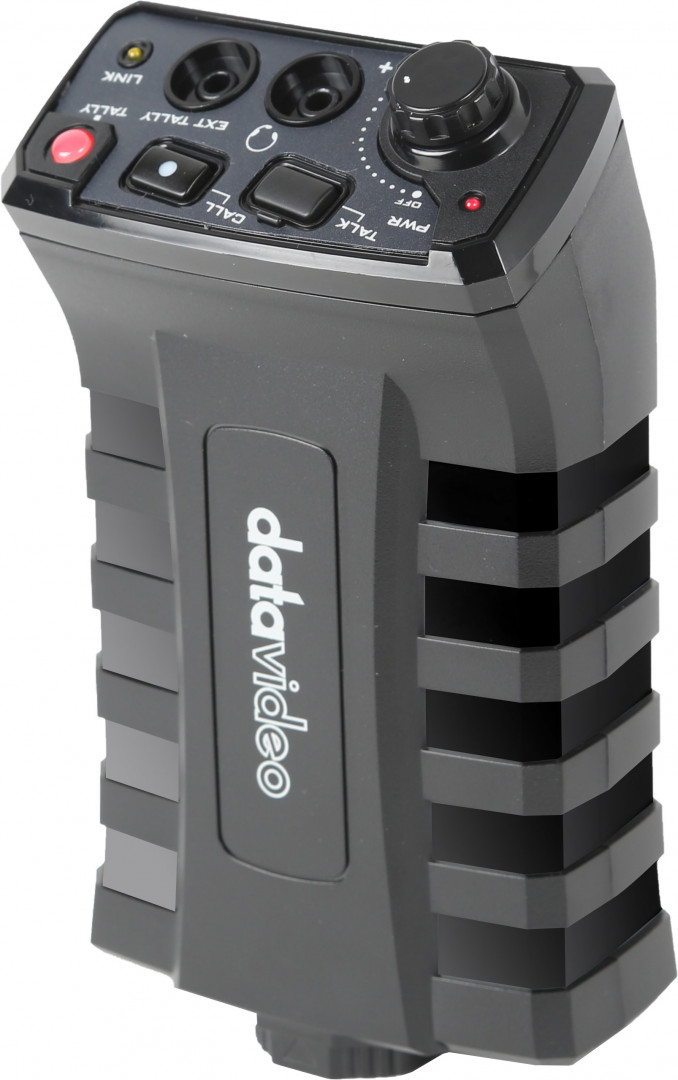

ITC-300SL Belt Packs Included

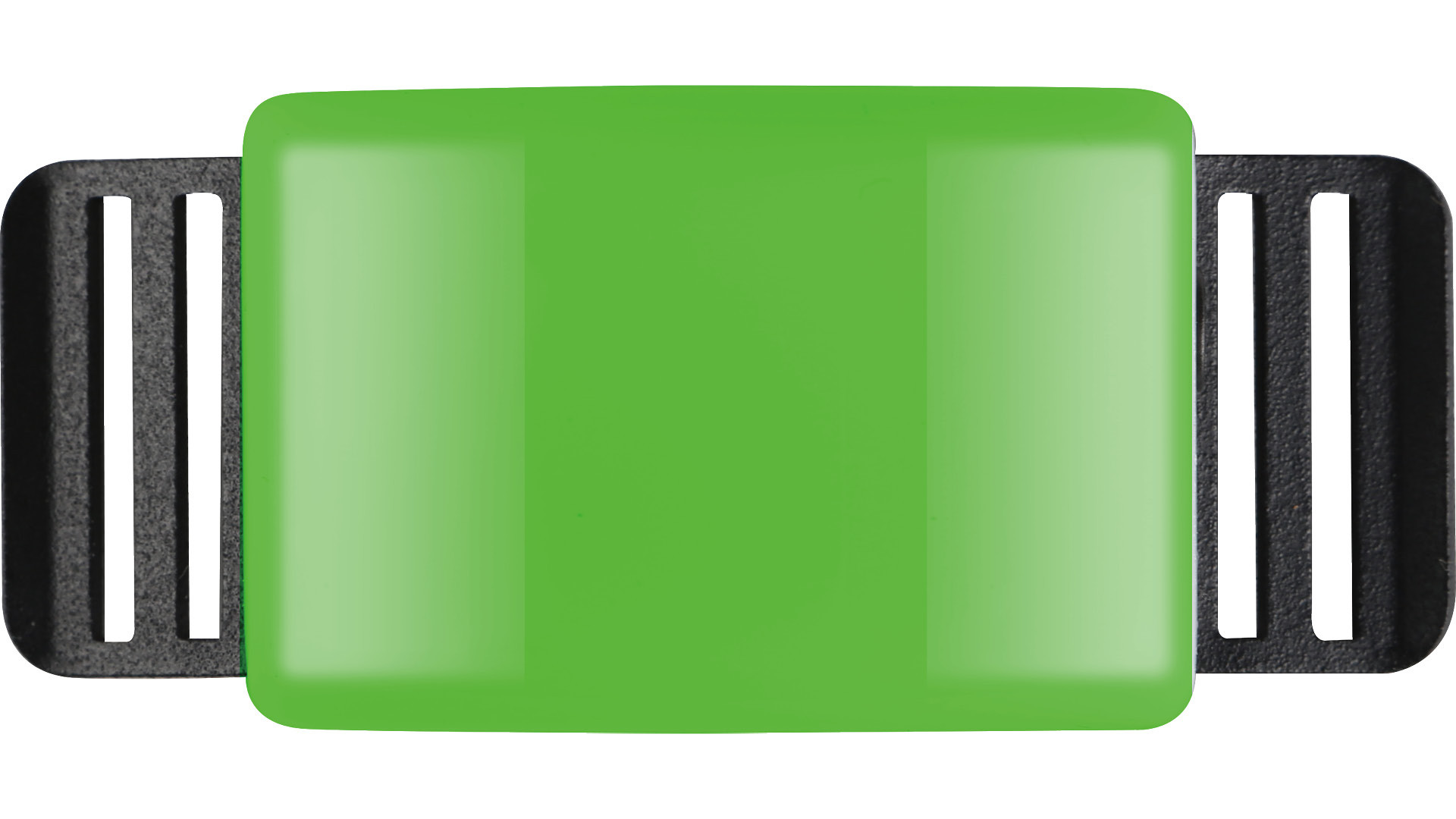

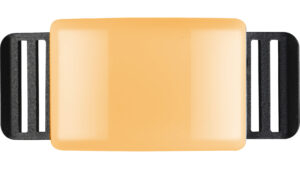

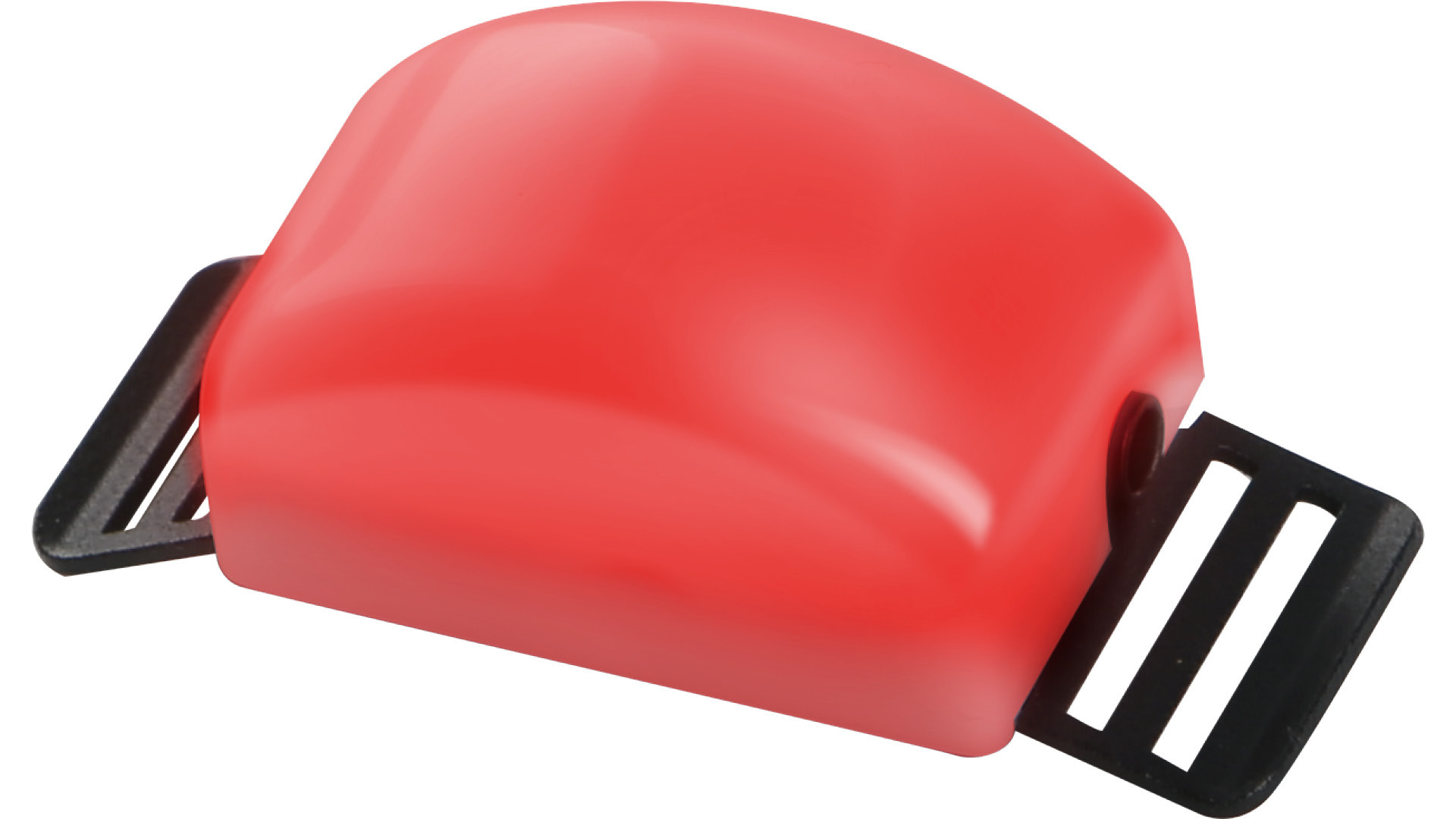

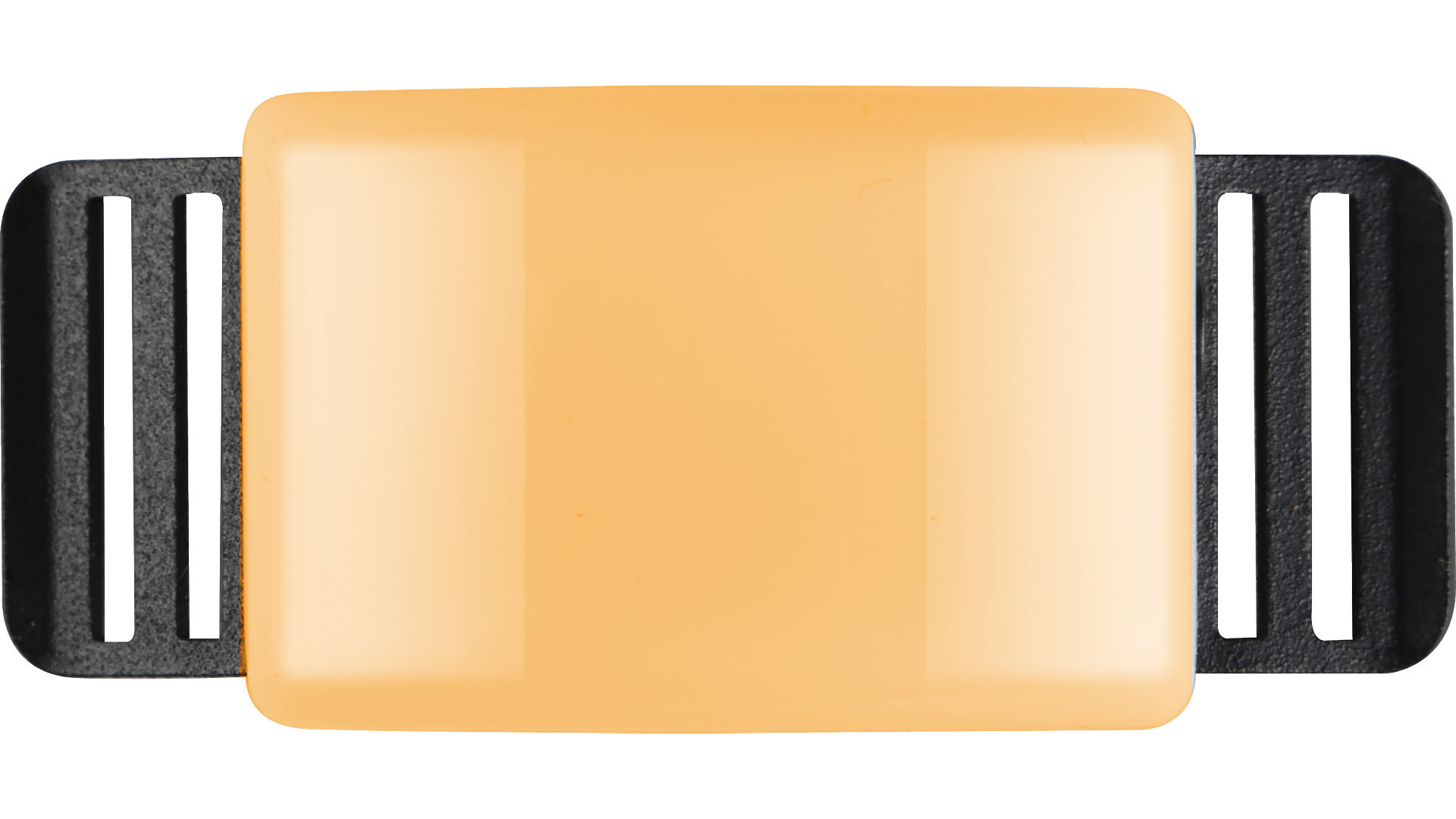

- TD-3 – Camera Tally Light
- MC-1 – Headset / Microphone
- 1 x GPI Cable
- 1 x Ethernet Cable
- 1 x Earphone Cable
- 1 x Black Velcro
- 1 x Velcro
- 4 x Ethernet Cable Connector Set
Tutorial videos created specifically for the ITC-300
Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the ITC-300 is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
PRODUCT WORKFLOW
Digital Intercom System
Model Number
Tally
for Tally A and Tally B
MIC / Headset
(For Headphone / Microphone combination)
Headset Impedance 24 ohm 100mW(min)
Microphone Level -45.2dB
(Tip: Mic、Ring: Phone、Sleeve: GND)
Headphone
(Tip: Phone、Ring: Phone、Sleeve: GND)
Light Socket (DC 12 V)
Microphone
Switchable Condenser / Dynamic Input
Microphone Level -67dB
PIN1:N/A,PIN2:MIC,PIN3:GND
Frequency Response
THD
S/N
Built-in Speaker
Speaker is mute when headphones or mic / headset are connected to the ITC-300
Operating Range
Operating Temp. Range
Dimension (LxWxH)
Weight
Power
What’s in the Box
4 x ITC-300SL Belt Pack
4 x Ethernet Cable
4 x Earphone Cable
4 x Headset with microphone

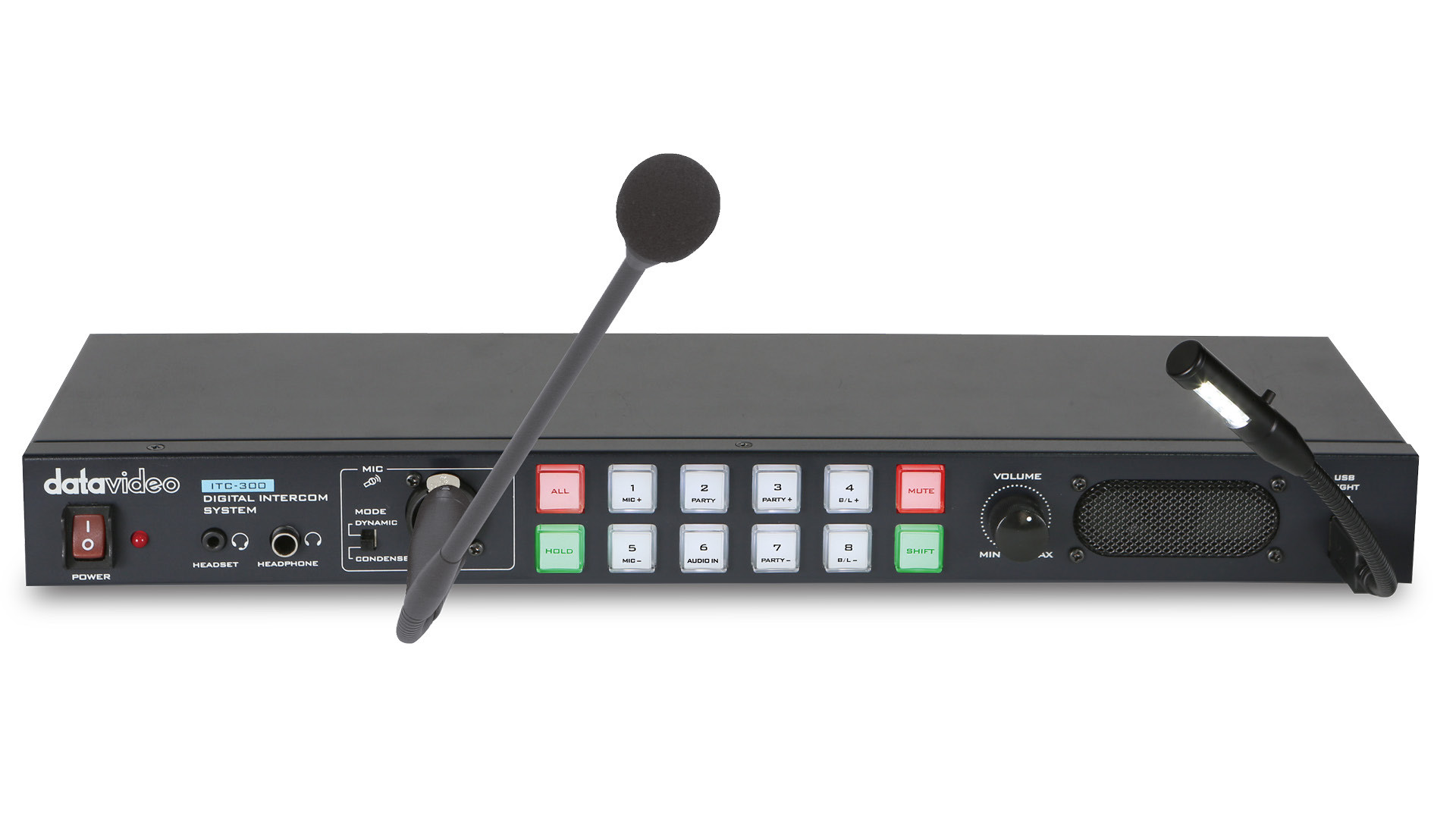

1 x Gooseneck Microphone
4 x Tally LED Indicator
4 x Velcro
1 x Adaptor + AC Cord
