Generates Up to 8 Cutouts Out of One or Two 4K Inputs

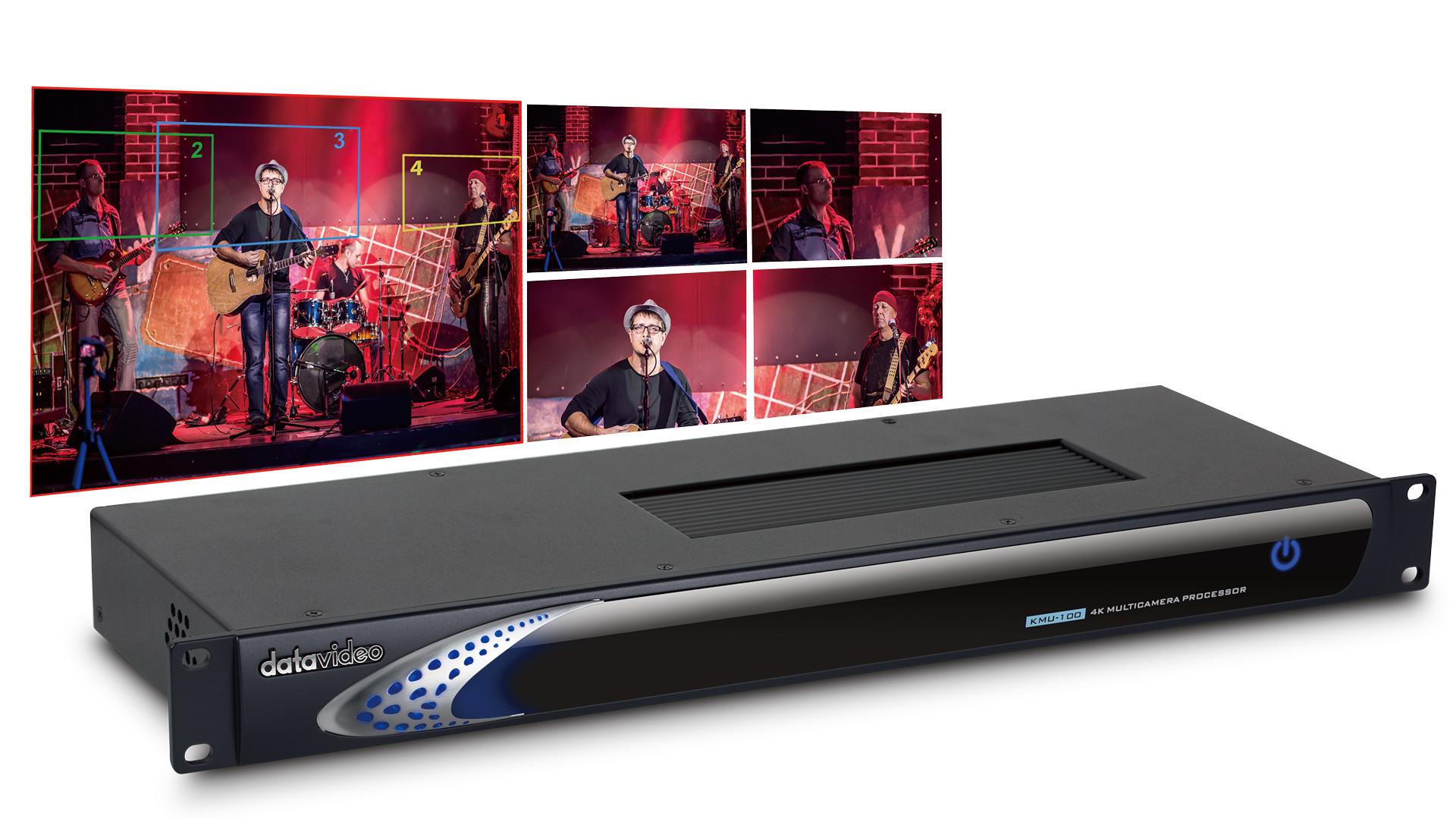

Generates up to eight cutouts out of one or two 4K inputs
Generates up to eight cutouts out of one or two 4K inputs
8 channel switcher to switch between cutouts

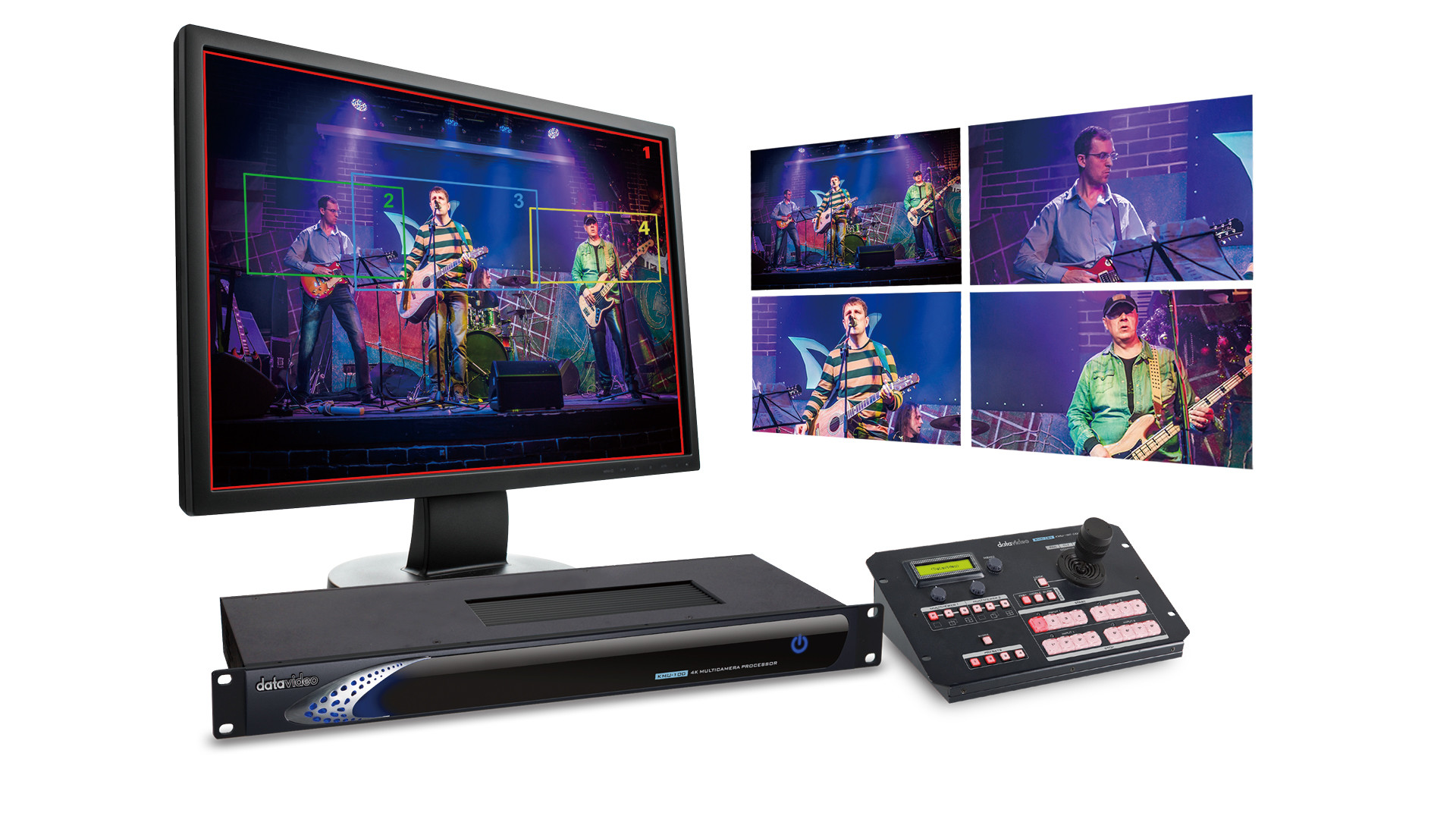

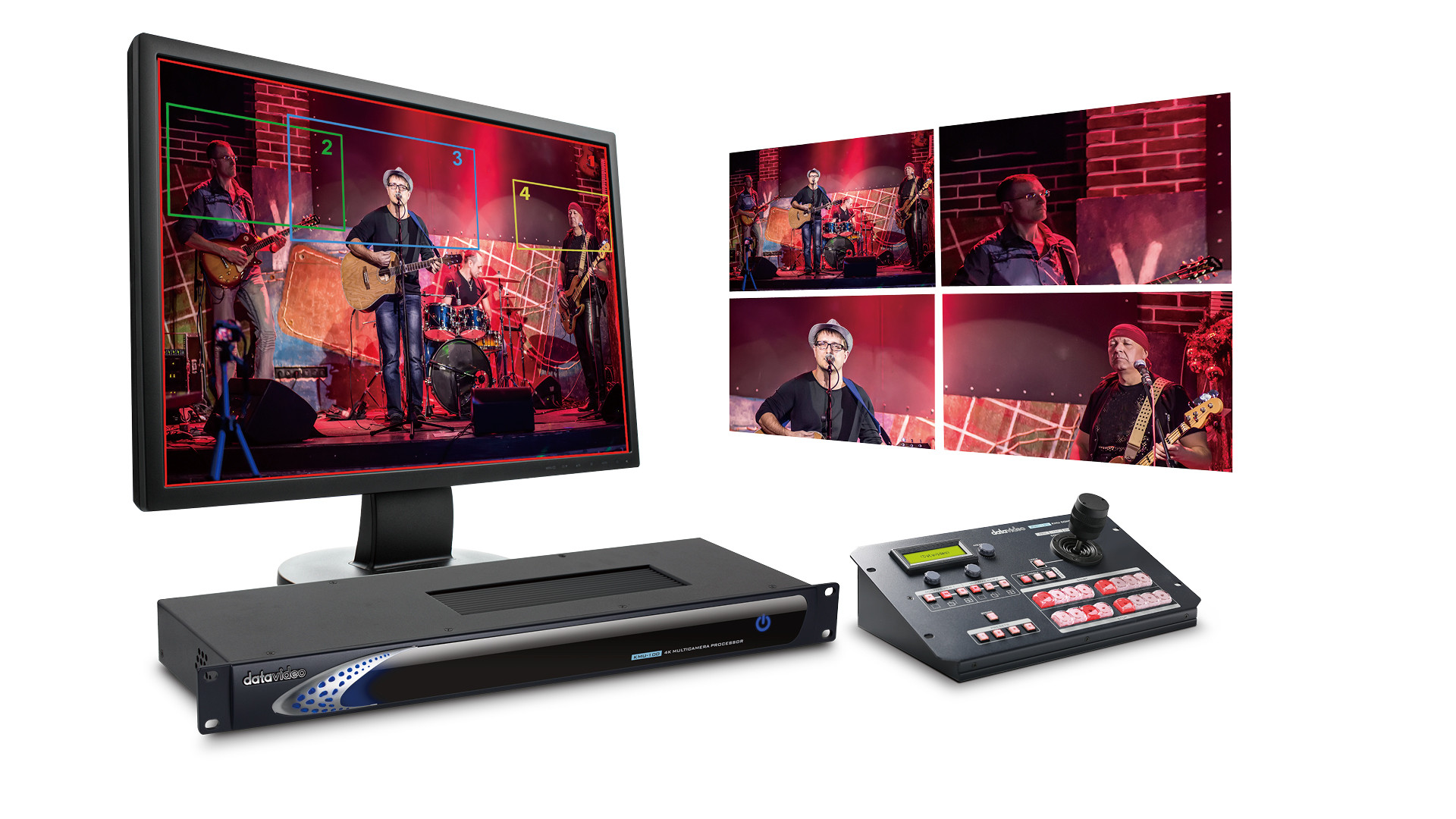

Can view two 4K video channels at the same time on the multiview monitor as well as other cropped 4K video images in smaller windows for easier video switching.
Create speed sensitive motion paths
Real-time lens movement can be simulated by the cutouts selected from the 4K camera, thus adding more varieties of motions to your video.

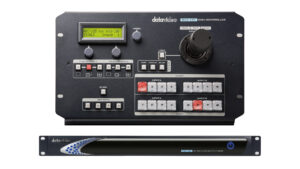

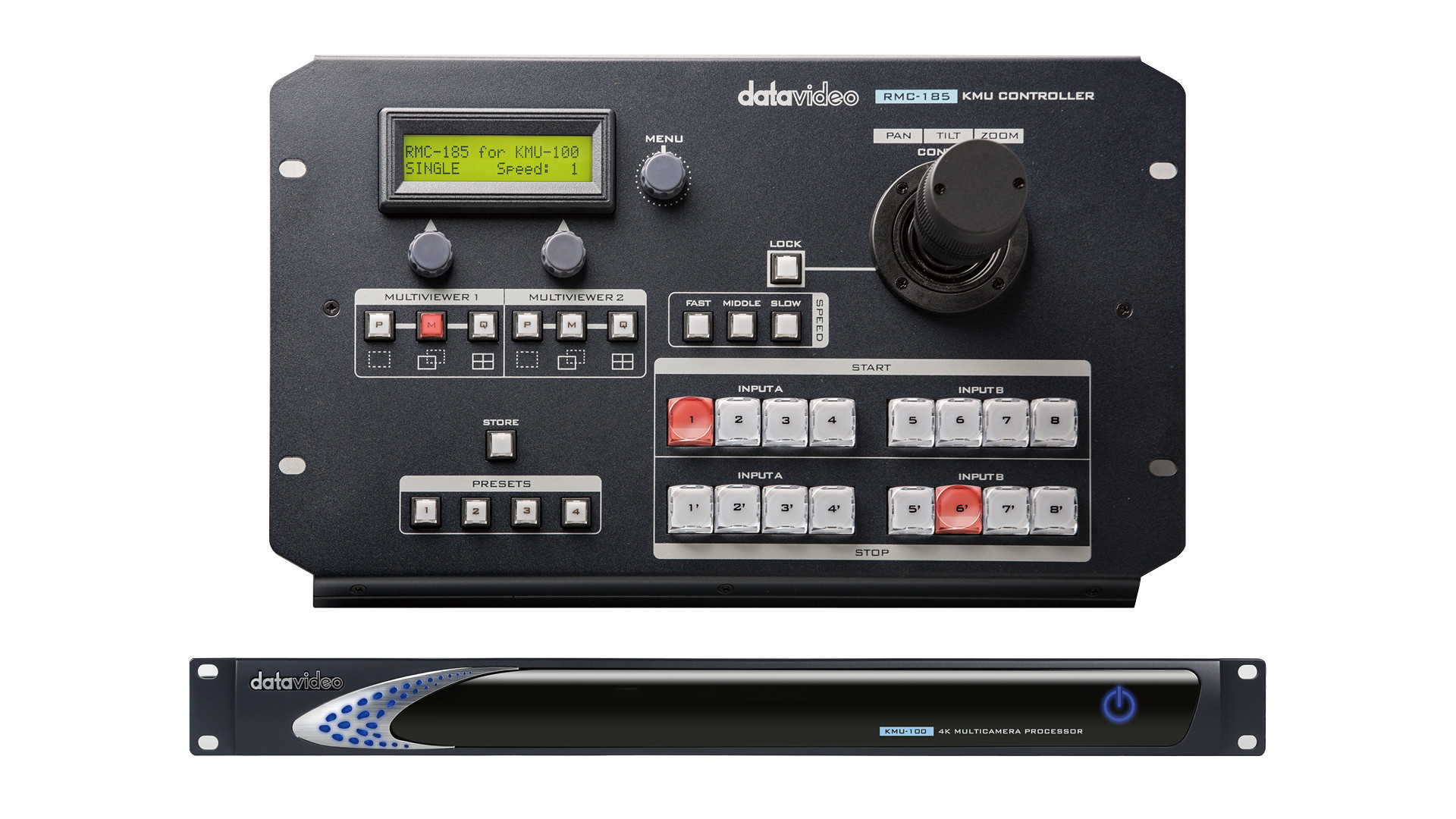

Control through RMC-185 hardware controller
Allows user to easily pan, tilt, and zoom to create the user-defined windows on the 4K signal.
Tutorial videos created specifically for the KMU-100
Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the KMU-100 is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
PRODUCT WORKFLOW

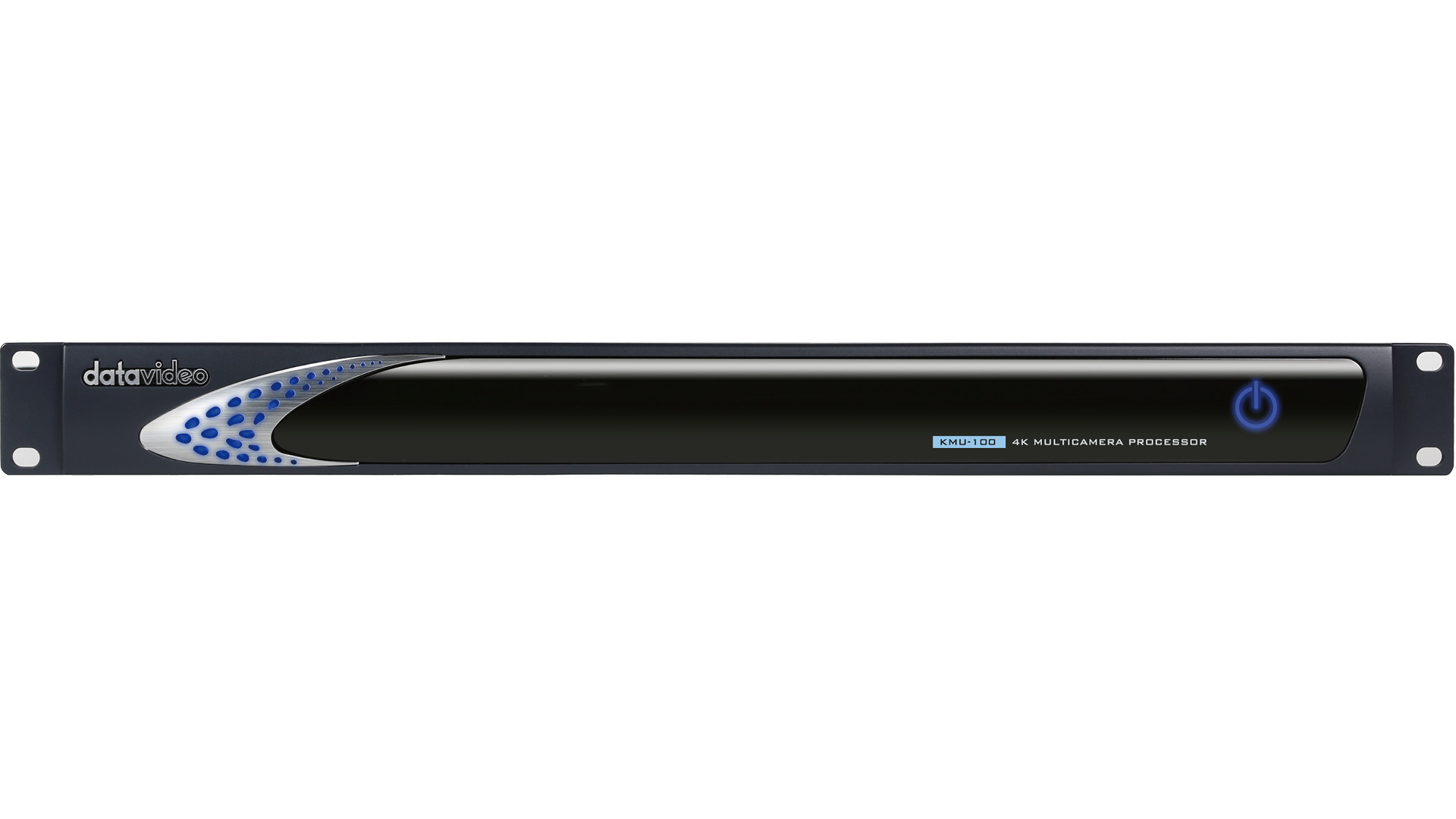

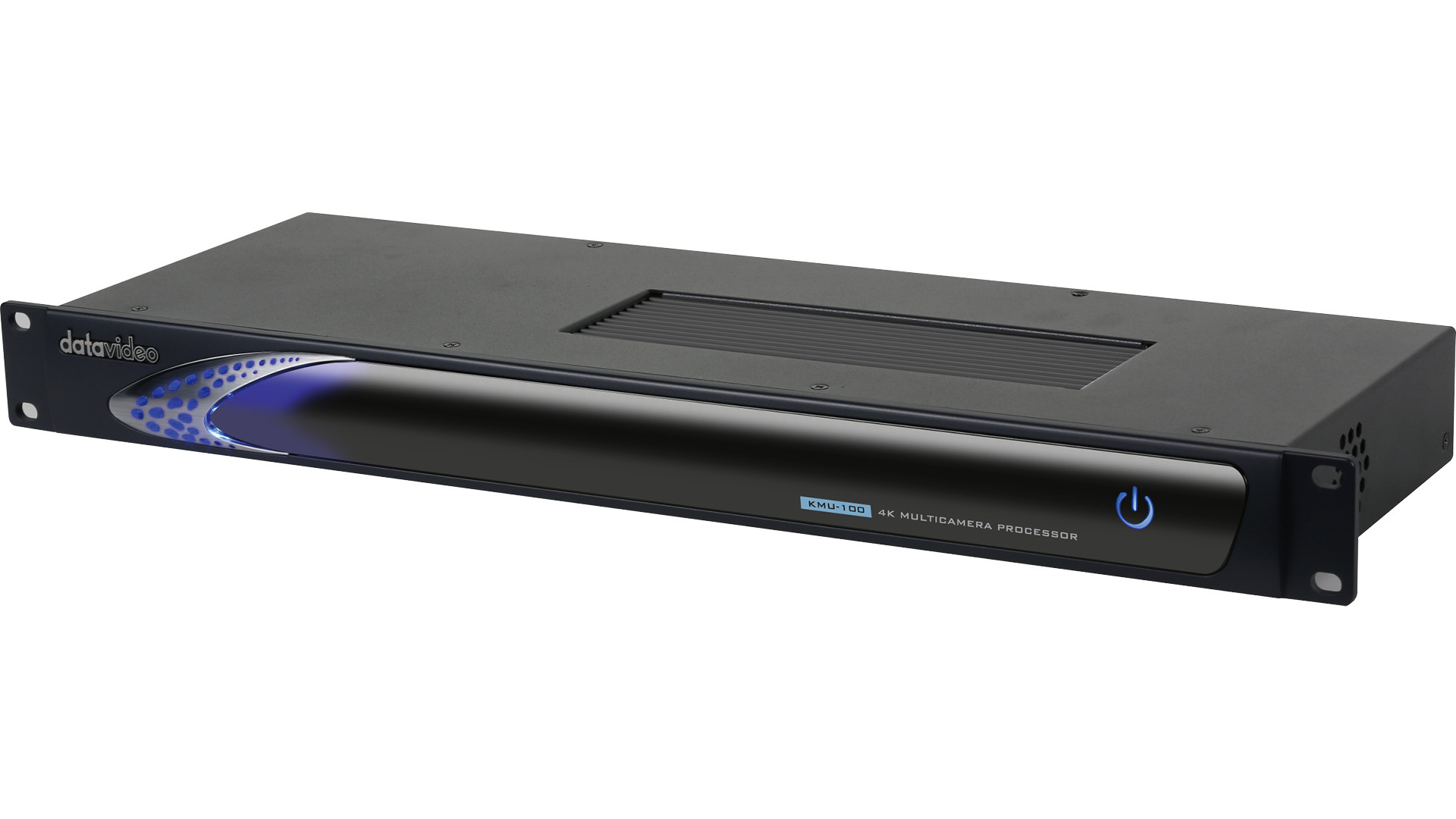

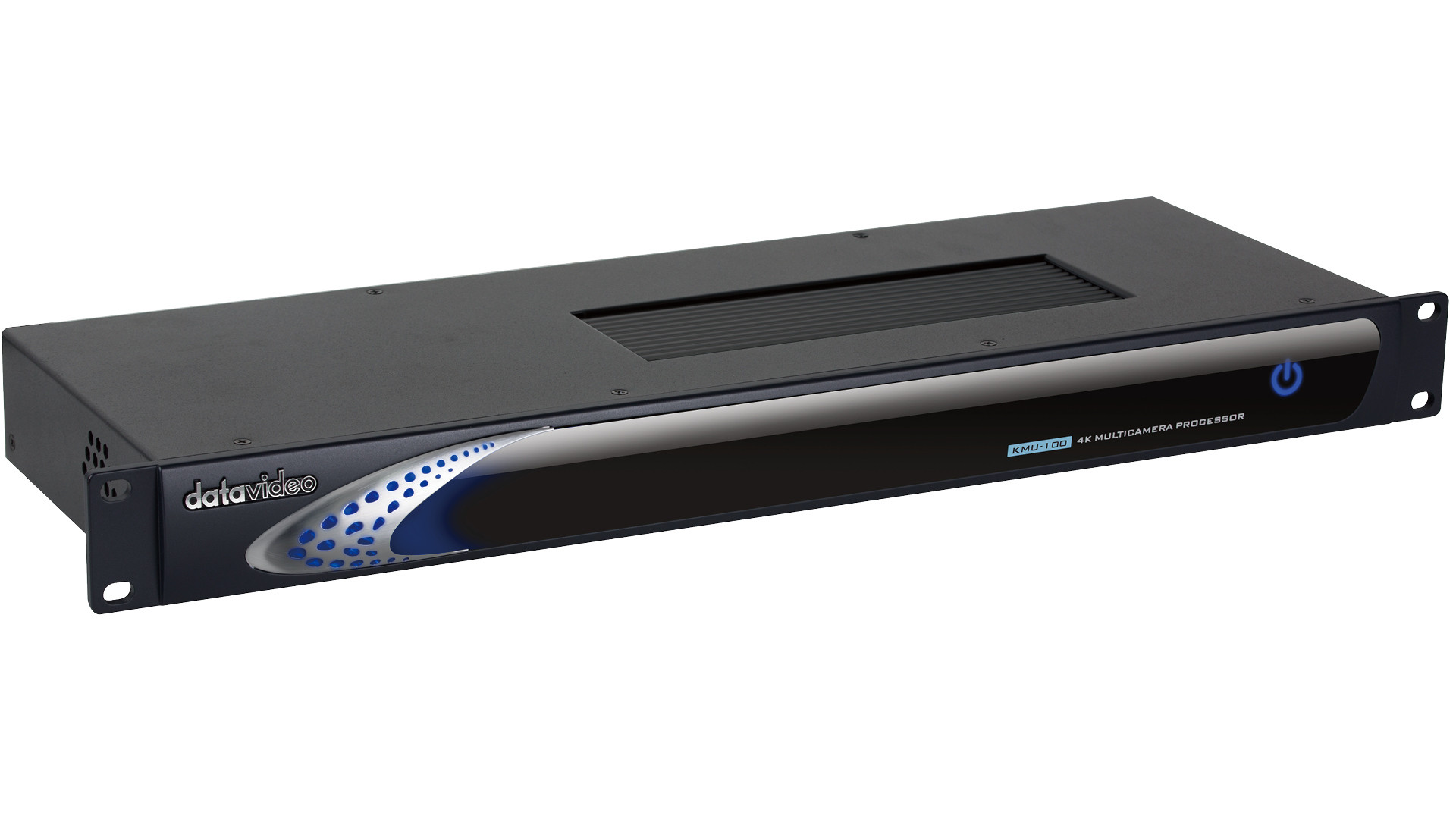

4K Multicamera Processor
Model Number
KMU-100
Video Standard
UHD & HD
Video Format
3840x2160p 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
720p 50/59.94/60
1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
720p 50/59.94/60
Video Processing
—

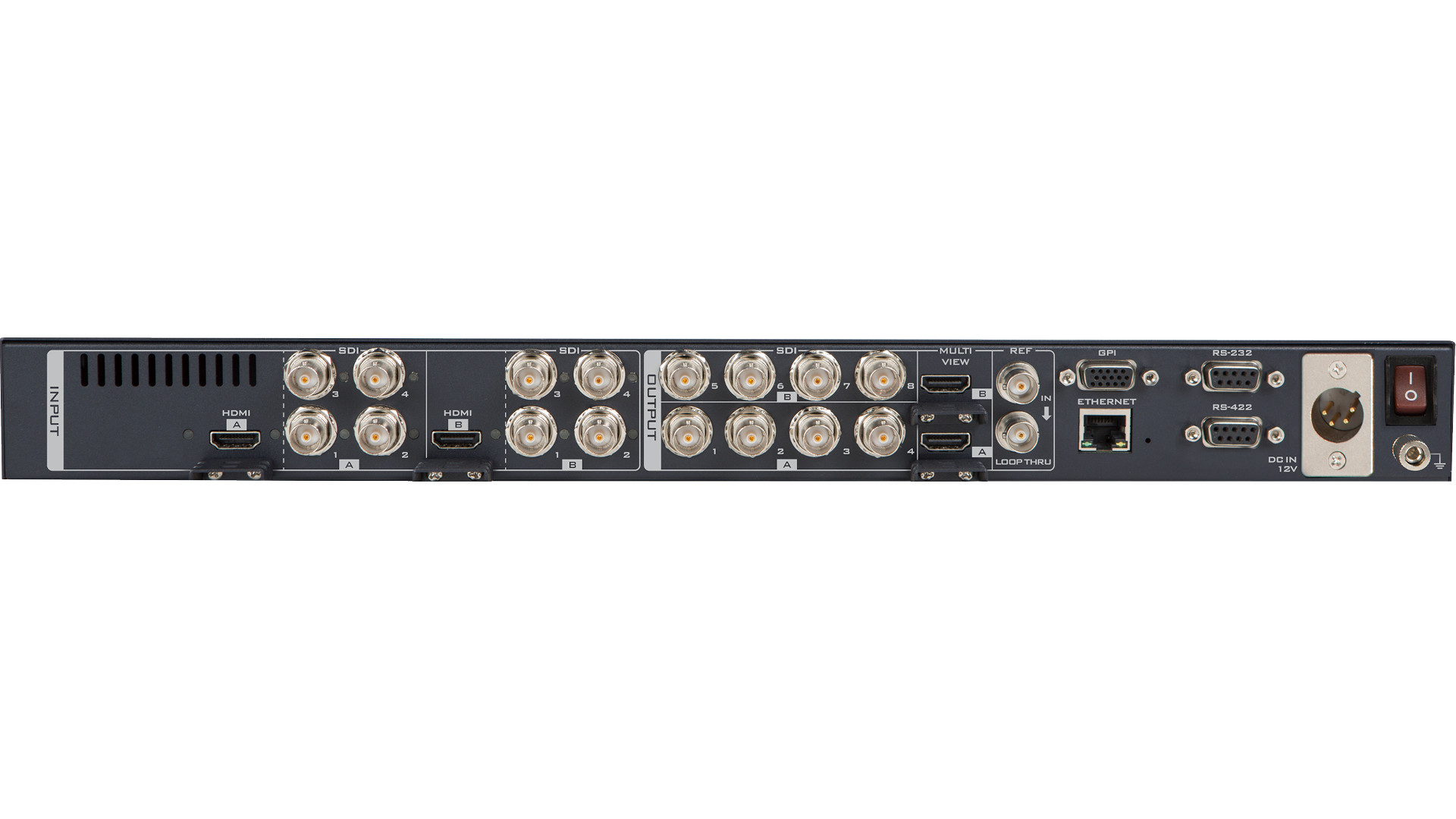

Video Input
2 sets of SDI Input:
each set of 4x SDI
1 x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2
3 x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:22 x HDMI Input:
each of HDMI support for Ultra HD 4K 60p in 4:2:0/4:2:2
each set of 4x SDI
1 x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2
3 x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:22 x HDMI Input:
each of HDMI support for Ultra HD 4K 60p in 4:2:0/4:2:2
Video Output
2 sets of SDI output:
each set of 4x SDI
1 x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2
3 x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:2
each set of 4x SDI
1 x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2
3 x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:2
Support Video Output Resolution
1080p 25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
625/50i PAL, 525/59.94i NTSC
1080i 50/59.94/60
720p 50/59.94/60
625/50i PAL, 525/59.94i NTSC
Multiview Out
HDMI 1.4 x2
Multiview Mode
Preview, Motion, Quad
Streaming
Streaming Encode
—
Streaming Video Bitrate
—
Streaming Video Rate Mode
—
Streaming Audio Mode
—
Streaming Audio Bitrate
—
Streaming Protocols
—
Network Interface
—
Recording
Recording Storage Medium
—
Recording Storage File System
—
Recorded File Format
—
Built-in Audio Mixer
—
Audio
Audio Input
SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD
HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K
HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K
Audio Output
SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD
HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K
HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K
Audio Sampling
Television standard sample rate of 48 kHz at 24-bit
Reference Input
Blackburst, Tri-level
Others
Control Interface
Ethernet RJ45 for control, configuration and updates
RS-232 x 1 input for controlling configuration
RS-422 x 1 input with external keyboard support
GPIO x1
RS-232 x 1 input for controlling configuration
RS-422 x 1 input with external keyboard support
GPIO x1
Preview Display
—
Controller
RMC-185/RMC-185+
Dimension (LxWxH)
484 x 192 x 49 mm
Weight
3.2 kg
Power Supply
DC 12V, 5A
Operating Temp. Range
0~40 °C
What’s in the box
1 x KMU-100 Main Unit
1 x AD Switch DC 12V with AC Cord
4 x Screw
1 x AD Switch DC 12V with AC Cord
4 x Screw
