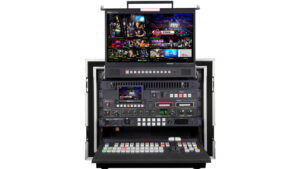

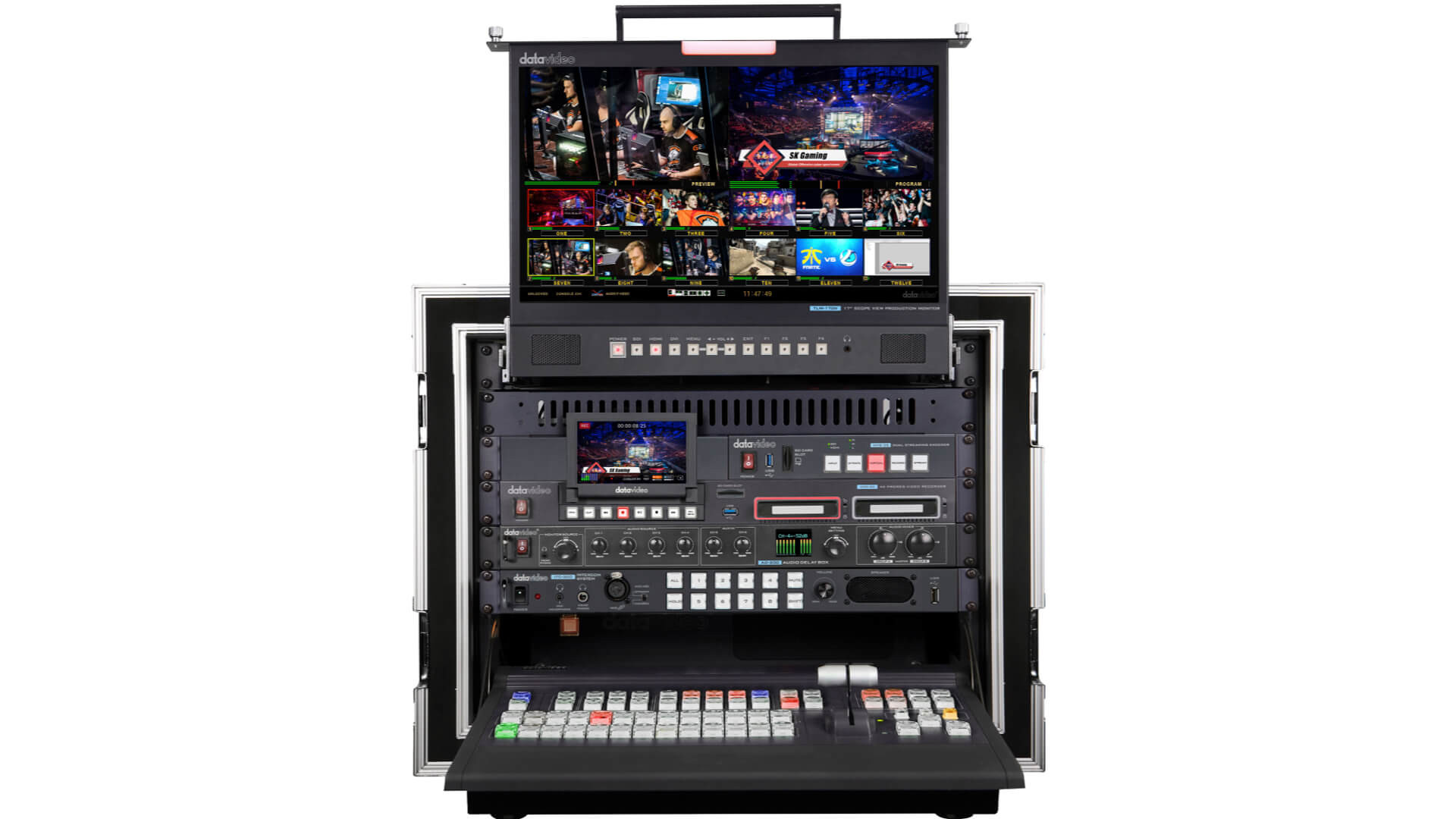

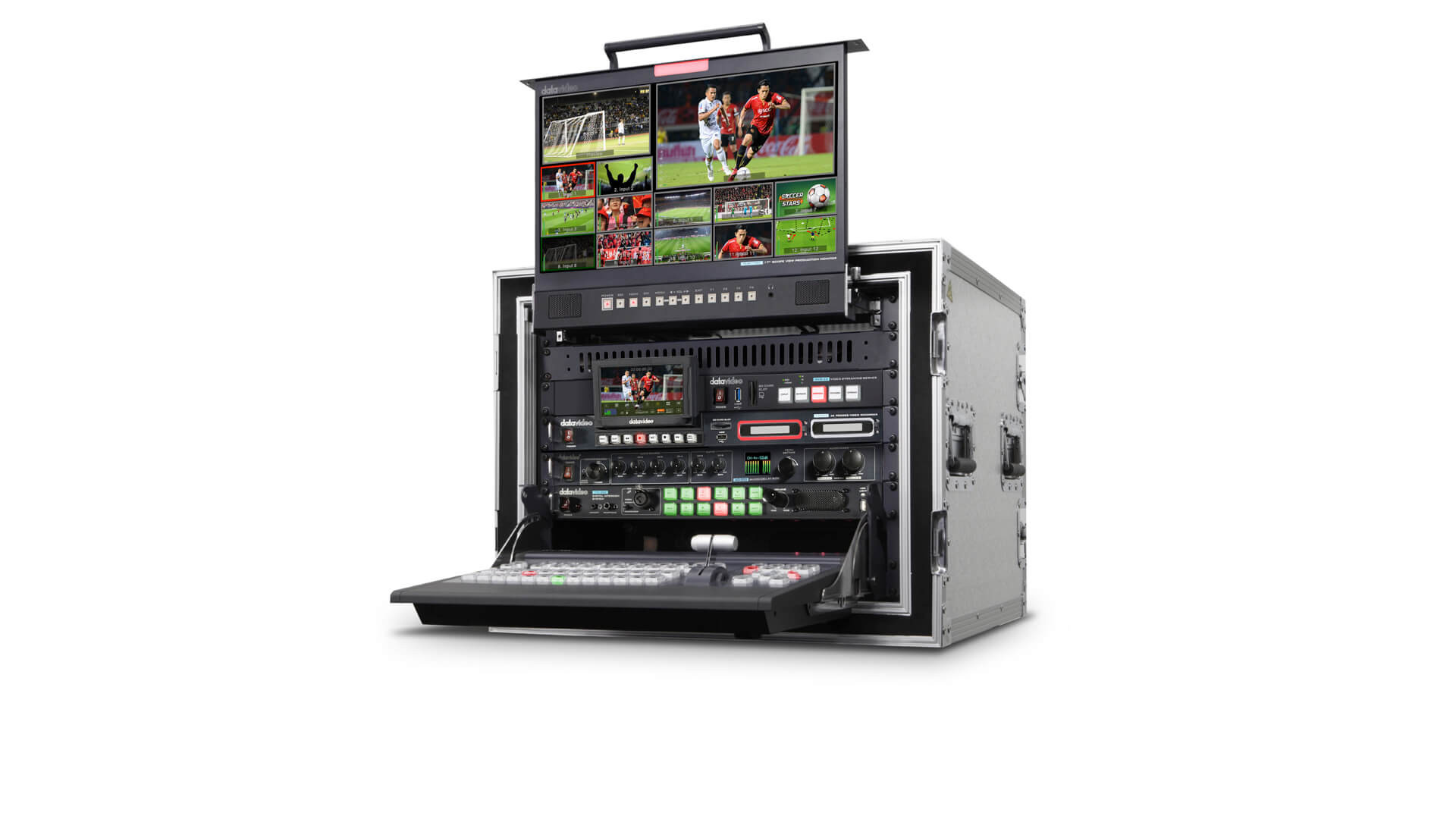

DATAVIDEO MS-3200 Mobile Studios HD 12-Channel Mobile Video Studio

 19.500,00

+ additional shipping charge

MS-3200 Complete Mobile Studio

Category:

All-in-One Video Production Studio in Rugged Flyaway Case

Includes switcher, intercom, recorder, scope view monitor, and power supply.

Completely Customizable 12 Inputs Full HD Production Switcher

The SE-3200 is Datavideo’s top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.

The SE-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.


Suitable for Large-Sized Productions

The SE-3200 supports up to 12 inputs in resolutions up to 1080p50/60, and it has a total of 9 outputs in HDMI and SDI.


17.3” Full HD Pull-Out Monitor

Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field.


Intercom and Talkback Functionality

Single wired communication system, featuring power over Ethernet to 8 belt packs.

Free from noise.


UHD 4K Recording and Compressed in 10-Bit 4:2:2 ProRes

Large 5″ LCD Touch screen for operating and monitoring.


H.264 Streaming and Recording Simultaneously

NVS-35 is a small, easy-to-use video streaming and recording equipment designed for professional video producers.

The encoder supports different bitrates for recording and streaming, allowing user live stream video to YouTube, Facebook and many other platforms.

Recording to SD Card with either NTFS and FAT file system to keep the continuous recording with a file size limit of 4GB.


Several Optional Accessories Available

Multiple accessories available including audio mixers, camera control, test & measurement tools and more.

Seamlessly Compatible with dvCloud

Get the most out of your streaming hardware using DVCloud. The MS-3200 is seamlessly compatible with Datavideo’s DVCloud service.

This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.

You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.

Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.


HD 12-Channel Mobile Video Studio

Model Number
MS-3200
Digital Video Switcher
SE-3200
17.3″ Rack Mount LCD
TLM-170VM x1
Recorder
HDR-90 x1
Intercom/Tally System
ITC-300 w/4 Belt Pack
SDI Vector Scope
Built-in TLM-170VM
Audio Mixer
AD-200
Power Distributor (8-way)
PD-2A
Return Video (8-CH CV)
—-
Camera Control System
—-
Camera Power Distributor
PD-6 (optional)
Multi-camera Control Unit
—-
H.264 Video Streaming Server
NVS-35
4K Multicamera Processor
—-
Network Media Player
—-
HD/SD SDI Amplifier
—-
Rack System Integration
8RU Flight Case
Weight
65 kg
Operating Temp. Range
0~40 °C

Options

Camera Power Distributor
—-
Camera Power Regulator
—-
Redundant Power (360W)
—-
SDI/CV/ITC/DC Cable
—-
CB-22H/23H Repeater
—-
SDI/ITC Cable
—-
ITC/Tally Cable
—-
HDMI Cable
CB-60/61/62 (30m/50m/100m)
100m SDI Repeater
VP-633 / VP-634
What’s in the Box
1 x MS-3200 product
4 x ITC-300SL Belt Pack
4 x Tally LED Indicator
4 x Headset with microphone
1 x Goose neck MIC
4 x Ethernet Cable
4 x RJ-45 Protective Shield Set
4 x GPI Cable
1 x AC Power Cord
1 x Y type USB cable
5 x 120mm cable tie
10 x 200mm cable tie
1 x Y type 2 pin MOLEX cable
2 x 2.5″ HDD enclosure
1 x SATA to USB Cable
10 x Screw M3*4mm
10 x Anti-vibration screw + M5*10 washer
2 x ISO screw 2*6mm
4 x Black Velcro 36cm
Weight 87000 g
