Decodes all common streaming protocols
NVD-35 MARK II decodes all common streaming protocols, directly from YouTube Live, UStream, Dailymotion, Livestream, Twitch and other major CDNs, and skips all third-party ads.
Decodes all common streaming protocols including SRT
The NVD-35 MARK II decodes common streaming protocols including SRT, RTSP, RTMP, UDP, TCP, HTTP, HLS and MPEG-TS.
The new support for SRT streaming protocol has three main features of security, reliability and low latency, which enables high quality video streaming with ultra-low latency even in unstable network environment.
Output high quality video at 1080p 50/60 FPS
The NVD-35 MARK II IP Video Decoder supports SDI and Composite video output with resolutions up to 1080p 50/60 FPS. RCA audio output is also supported.
Easily connect encoders to decoders with dvCloud
The NVD-35 MARK II Decoder is seamlessly compatible with our dvCloud live streaming platform, when connected to dvCloud you can remotely control the decoder from anywhere in the world.
- Connect encoders to decoders anywhere in the world without firewall configuration
- Connect encoders to decoder with a single click, no need to copy stream URLS or IP addresses.
- Connect multiple decoders to a single encoder without putting extra load on the internet connection at the encoder side. The video encoder sends a single stream to the cloud and the cloud distributes it to the multiple decoders via its high-speed connection to the internet backbone.
- Remotely monitor and control all connected decoders from a single dashboard
- Detailed statistics allow you to make sure that every frame makes it all the way from encoder to decoder.
Perfectly Matched with Datavideo Streaming Encoders
The NVD-35 MARK II can be matched with Datavideo NVS-33/34/40 and other streaming encoders to create a Full HD video transmission architecture based on Ethernet, WiFi or the Internet.
Real-time Video Flip and Rotate
The NVD-35 MARK II adds real-time video flipping and rotating functions for more flexible video output options.
PRODUCT WORKFLOW
SDI IP Video Decoder
Model Number
Audio/Video Input
· RTSP over UDP (Unicast / Multicast)
· RTSP over TCP
· RTSP over HTTP
· SRT (Secure Reliable Transport) caller
· MPEG-TS over UDP
· RTMP Pull
· RTMP Push (Internal Server)
· UDP raw (Unicast/Multicast)
· HLS over HTTP
· MPEG-TS over TCP Pull
· Video sharing websites
Audio Output
SDI embedded audio
Video Output
SDI (digital)
Network Feature
Supported Video Resolution
1080i 60/59.94/50
720p 60/59.94/50
576i 50 (PAL)
480i 60 (NTSC)
Supported Decoding Resolution
Control
TCP/IP Socket commands
Update
Power
Output DC 12V / 1A
Environmental Conditions
Dimension (LxWxH)
Weight
Power
What’s in the Box
1 x AD Switch DC 12V

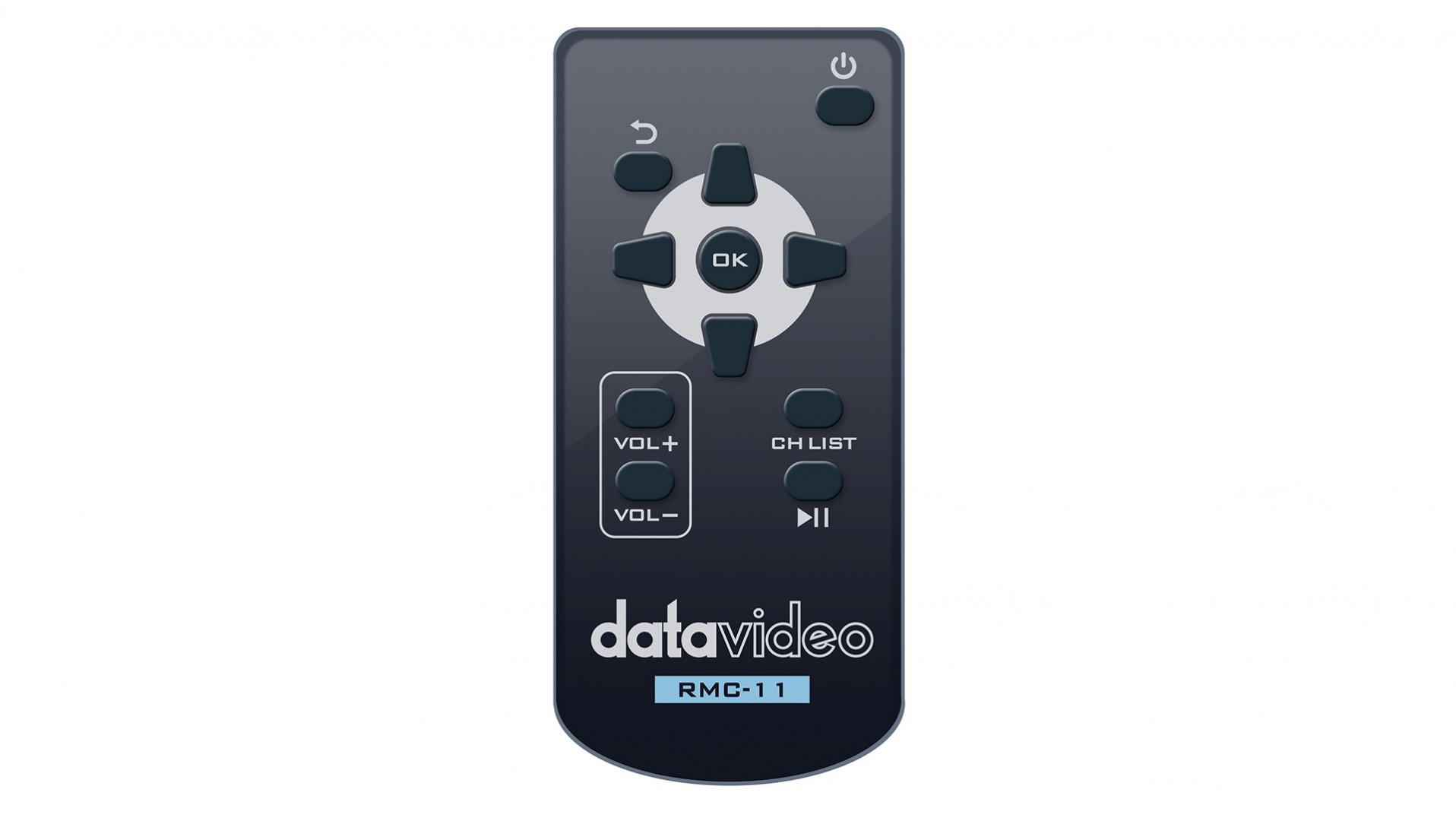

1 x Remote Control
