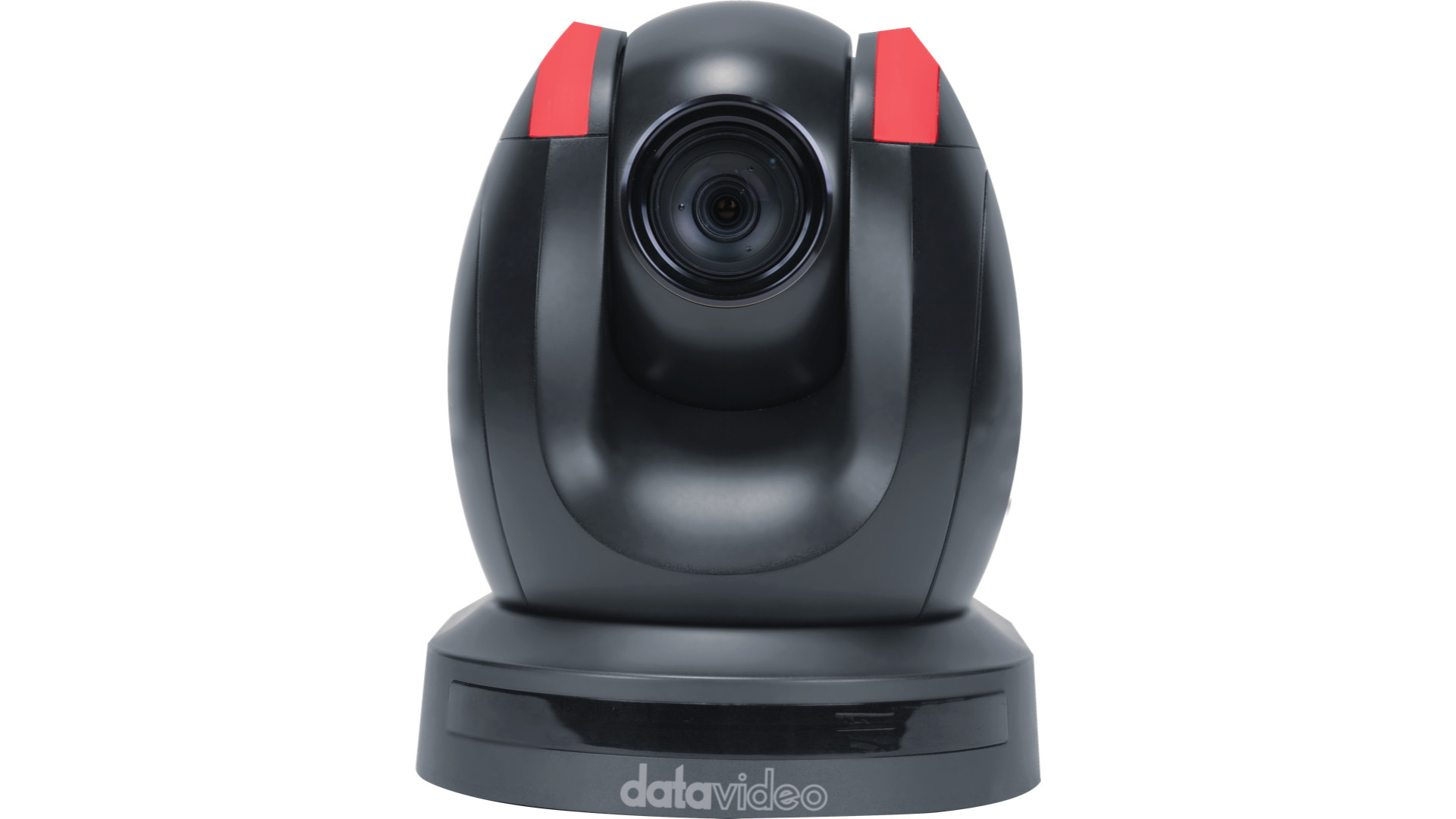

DATAVIDEO PTC-150 Cameras HD/SD PTZ Video Camera

 1.775,00

+ additional shipping charge

Full HD PTZ camera (Black) with 1/2.8″ HD 2.0 MPixels progressive MOS sensor, 30x optical zoom, Pan: 270deg/Tilt:+90deg, -20deg, DNR Function, HD-SDI + CVBS + HDMI synchronously output’s, Green/Red Tally LED, Control thru IR/RF/ RS-422/DVIP Supports SONY VISCA/DVIP, with mounting bracket and Flip/Mirror function (& Day/Night function)

Category:

One-person camera crew

The beauty of multiple PTC-150 cameras is the ability to control all of them from a single control panel. Pair up to 4 cameras with the RMC-180 controller, and you can reduce your camera crew to just… you.

Simultaneous Outputs

Connect your PTC-150 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.

PTC-150 HD/SD PTZ Video Camera

Simple multi-camera control at your fingertips

With its ergonomic joystick and tactile button layout, the RMC-180 series makes it easy to set up and control up to four Datavideo PTC-150 cameras for any live video production.


RMC-300A can control up to 24 PTC-150 cameras

Designed to control up to 24 PTC-150 cameras, with preset memory for easy camera control. Able to control up to 24 Datavideo PTC-150 cameras simultaneously, 7 presets for each camera to operate with RGB backlit buttons.

RMC-300A can control up to 24 PTC-150 cameras

Wide 63° Field of View

PTC-150 provides a wide Field of View of 63°, easily shooting all the scenes in the field.


Fantastic 3G Resolution

The PTC-150 shoots video at a maximum resolution of 1080p60, with advanced digital noise reduction for beautiful, smooth image quality even in less-than-perfect lighting conditions.

1/2.8” CMOS and Two Megapixel Resolution

High-quality CMOS and fine resolution bring you extremely clear and sharp images.
1/2.8” CMOS and Two Megapixel Resolution

30x Optical Zoom

The PTC-150’s impressive 30x optical zoom allows you to mount it near or far and still get great, sharp shots.

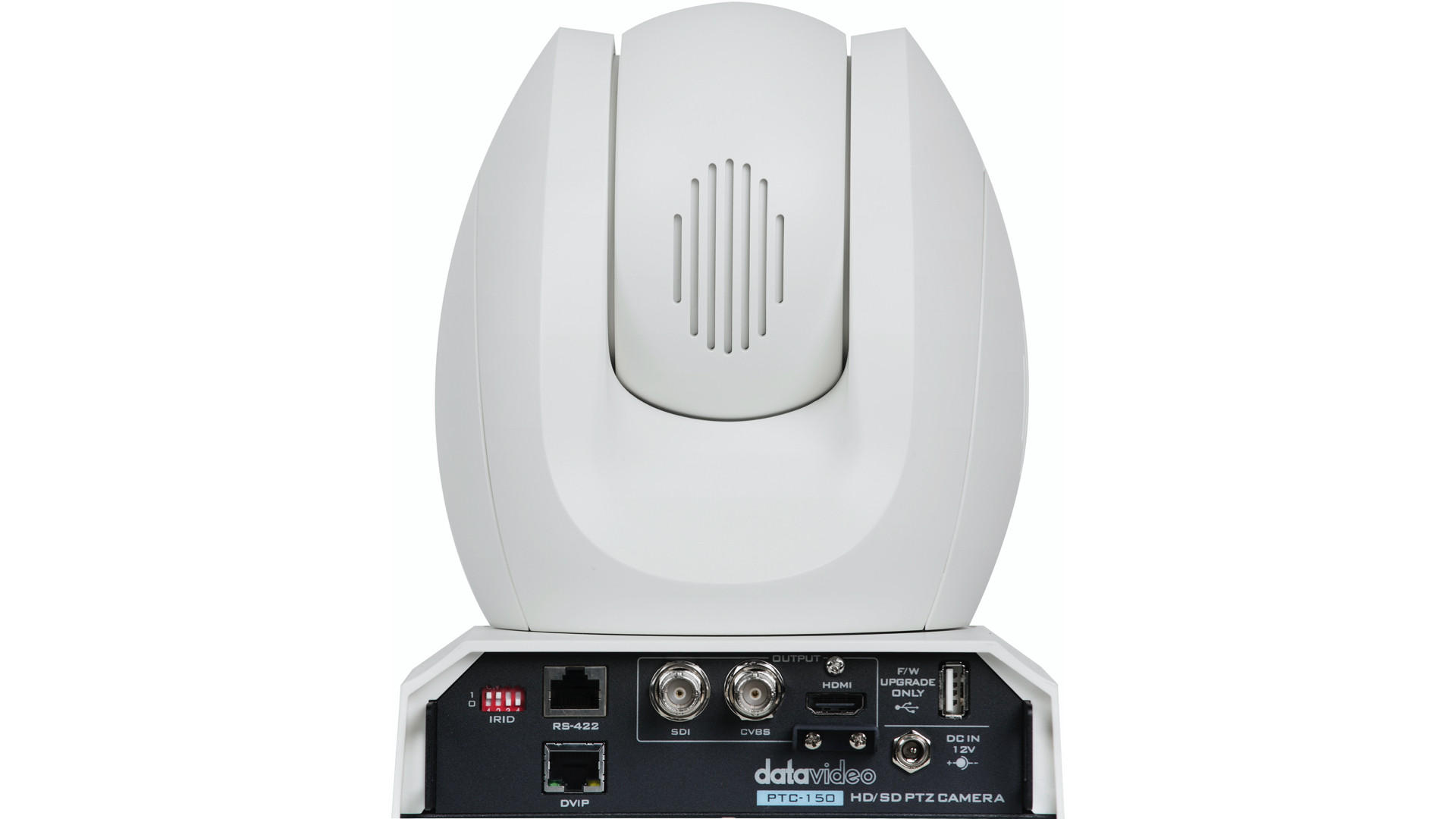

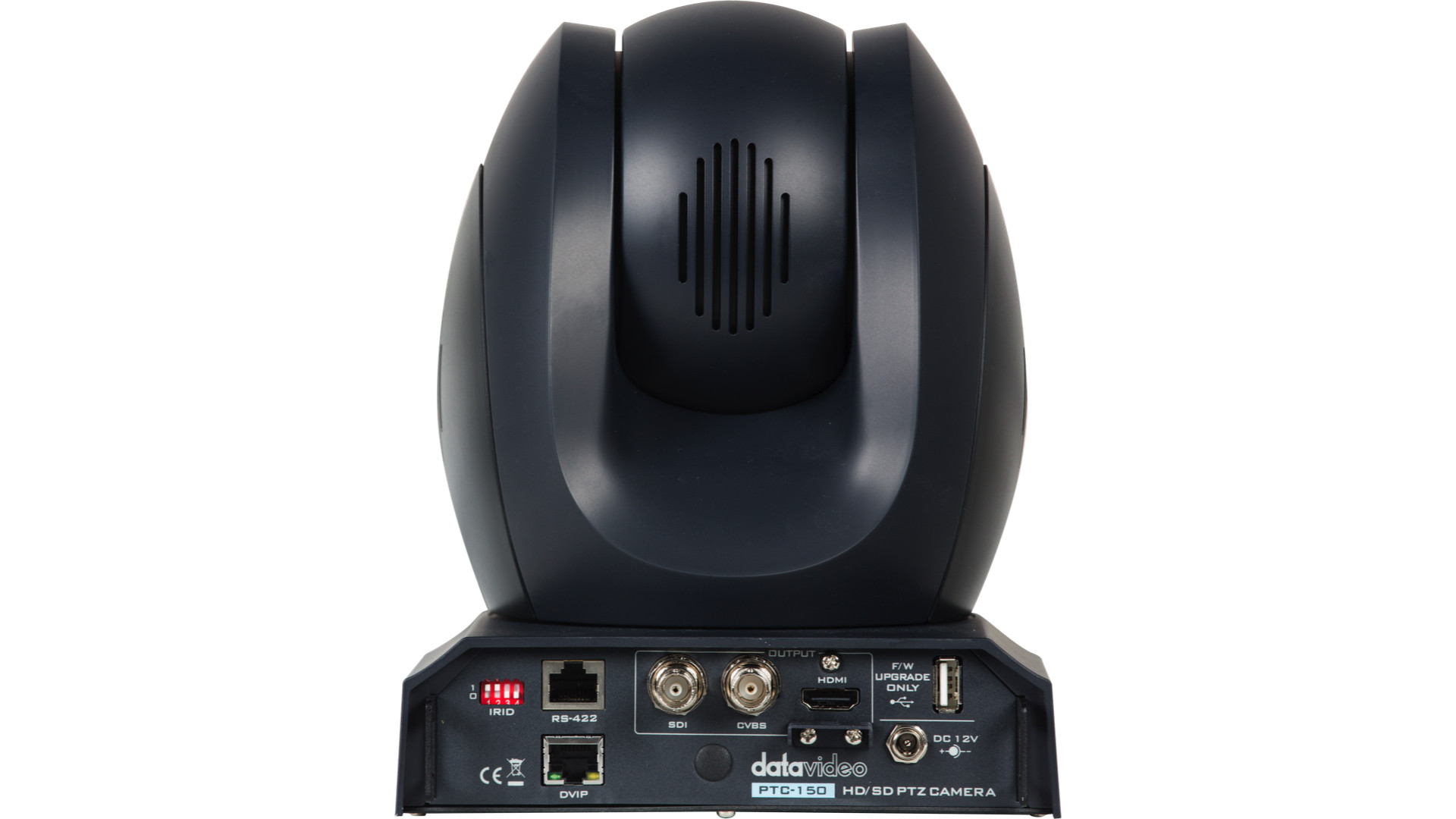

Simultaneous output 3G-SDI+CVBS+HDMI

HDMI, SDI and CVBS video are output synchronously.  The output signal is flexibly expanded to adapt to your workflow without the trouble of using various format converters.

30x Optical Zoom

30x Optical Zoom

Simultaneous output 3G-SDI+CVBS+HDMI

Simultaneous output 3G-SDI+CVBS+HDMI

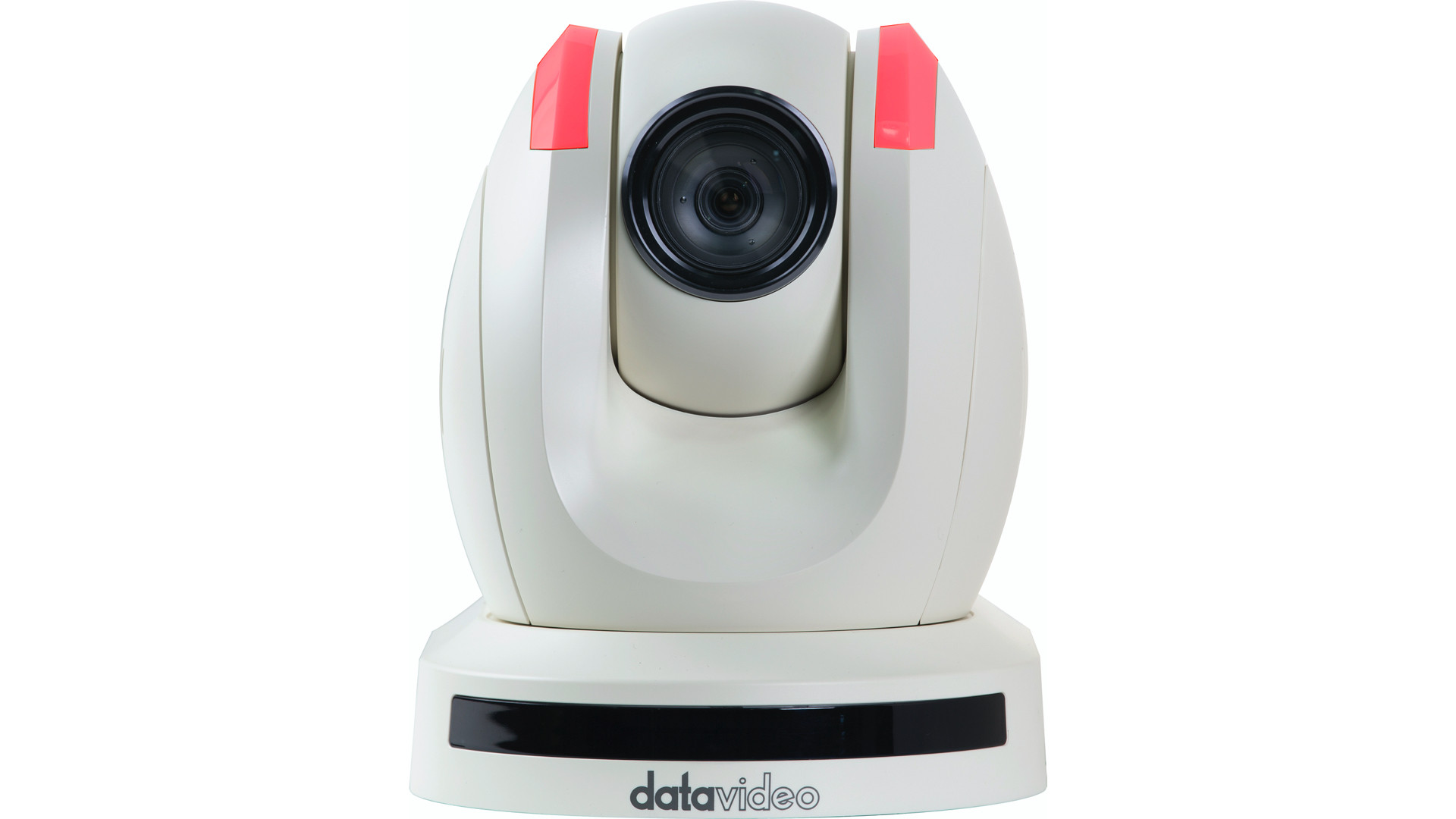

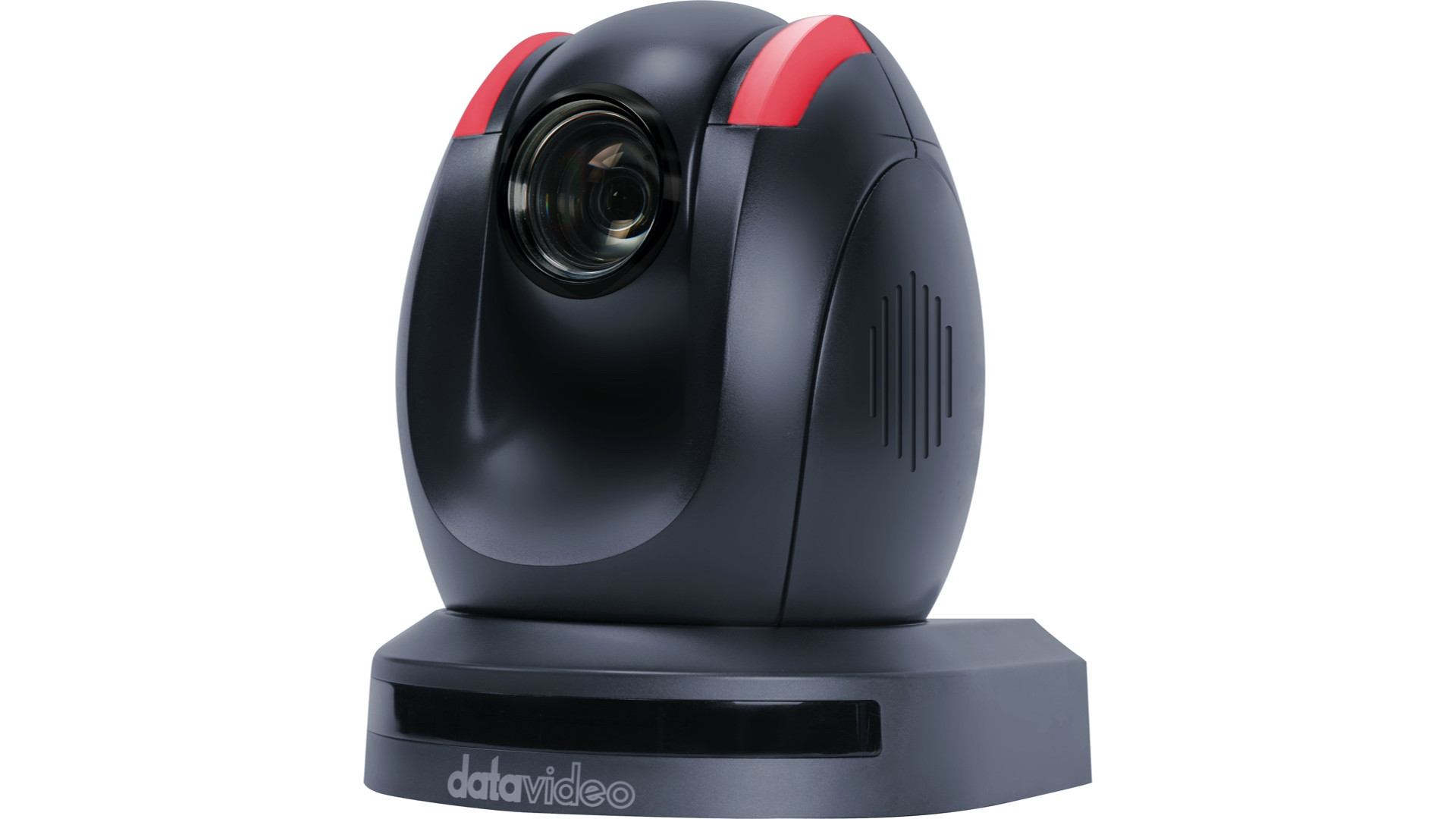

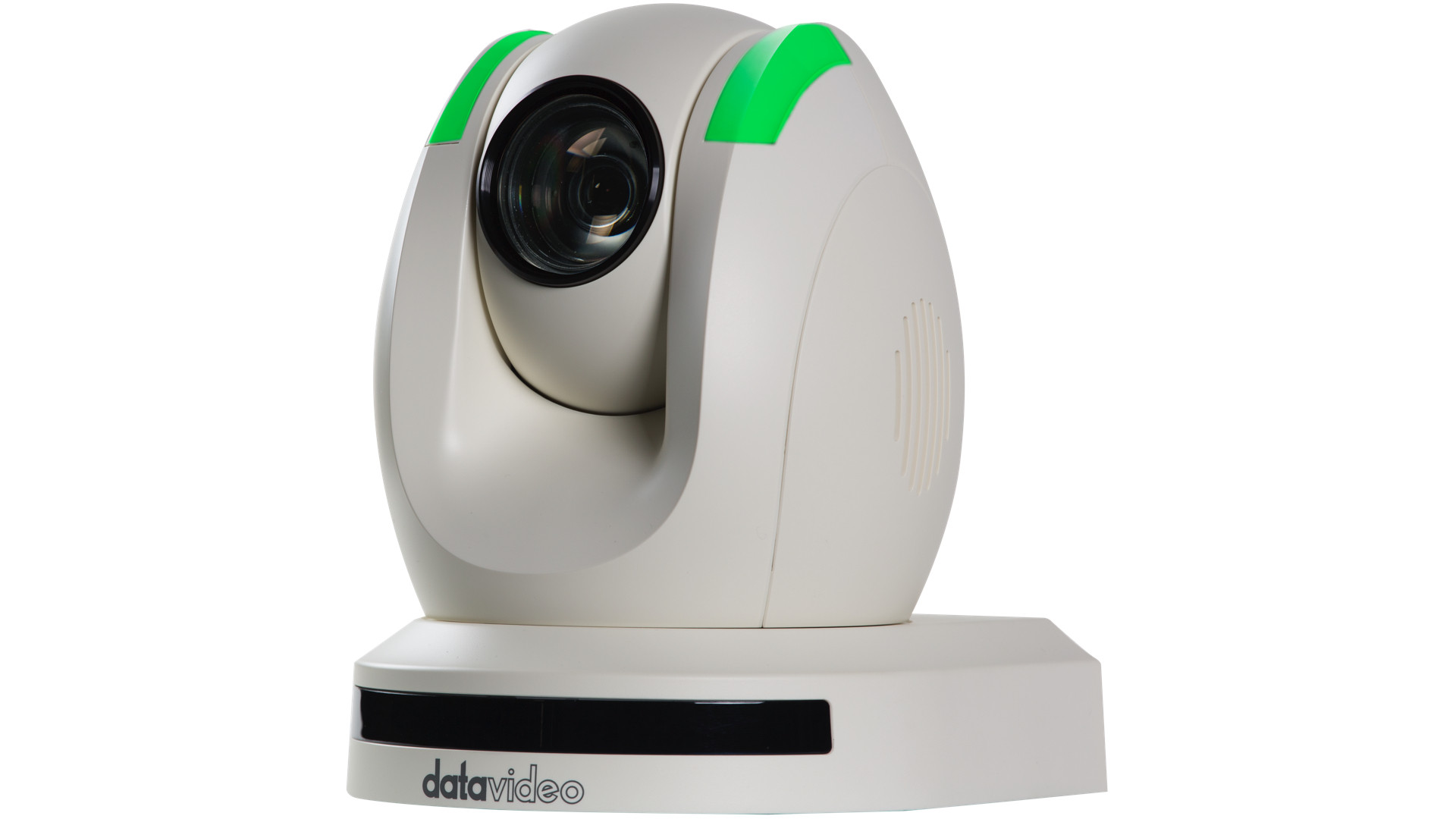

Black or White Body

The PTC-150 is available in dark gray or white to remain inconspicuous in permanent setups.


Tutorial videos created specifically for the PTC-150 series

Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the PTC-150 series is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.

HD/SD PTZ Video Camera

Model Number
PTC-150
Video format/Resolution
1080p 59.94/50/29.97/25
1080i 59.94/50
720p 59.94/50
480i, 576i (on CVBS)
Image Sensor
1/2.8” type progressive scan CMOS sensor
Effective Pixels (approx.)
2.14 Mega pixels
S/N Ratio
50dB
Min. Illumination
Color : 0.4 lx
B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
Electronic Shutter
1/25~1/1250 sec (50/25Hz)
1/30~1/1500 sec (59.94/29.97Hz)
Zoom Ratio
30x Optical Zoom
Gamma Control
Off / Normal / Standard Mode 1-4
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English
White Balance
AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent
AGC / Gain Control
Auto / Manual
Max. Gain Limit
HDR/WDR
WDR
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 270° , Tilt: +90° to -20°
Panning / Tilting Speed
Manual: 1~150°/Sec
Swing: 1~150°/Sec
Preset
50 Position
Focal Length
f=4.3 mm (WIDE) to 129 mm (TELE)
F1.6 to F4.7
Field of View (Horizontal, Wide)
Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation
Day & Night Function
Video Output
3G-SDI x1
HDMI x1
CVBS x1
Audio Input
—-
Tally LED
Dual color (Red, Green)
Lens Filter
M52.0 x 0.75 Thread with UV Protection
Control Protocol
VISCA, DVIP
Remote Control Interface
IR
RS-422
DVIP
Video Compression Format
—-
Audio Compression Format
—-
Audio Bitrate
—-
HD IP Interface
—-
Streaming Protocols
—-
First Stream Supported Resolution
—-
Second Stream Supported Resolution
—-
Video Bitrate
—-
Video Bitrate Mode
—-
Encoding Frame rate
—-
POE
—-
F/W Update
USB
IR Control
Yes
Camera Control Unit
RMC-180 series/RMC-300 series
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Dark Blue/White
Dimension (LxWxH)
173(W) x 189(H) x 219(D)
Weight
2.7 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 29W

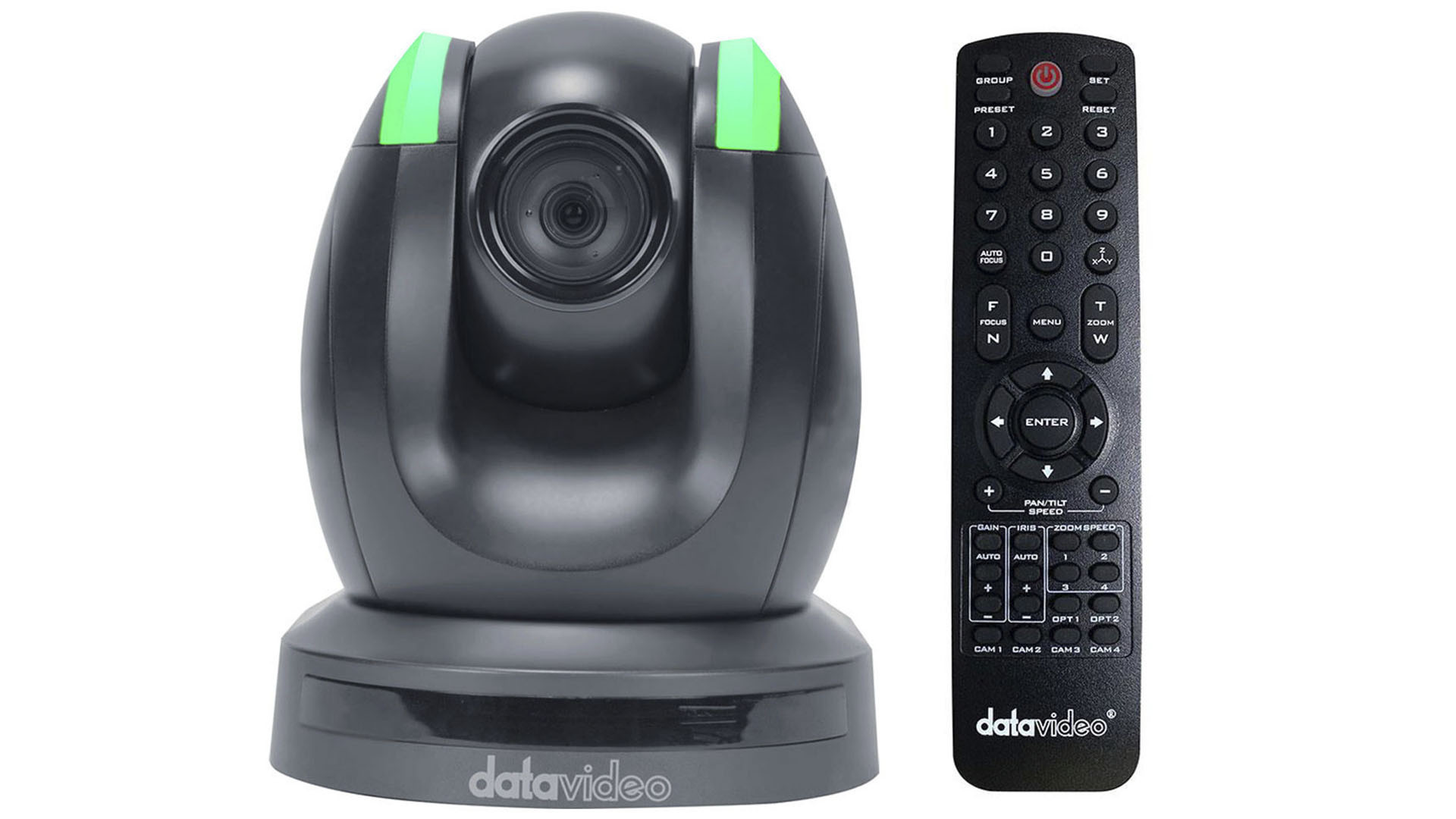

What’s in the Box
1 x PTC-150 Unit

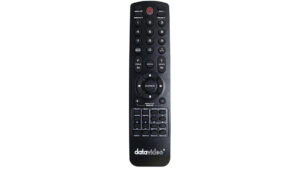

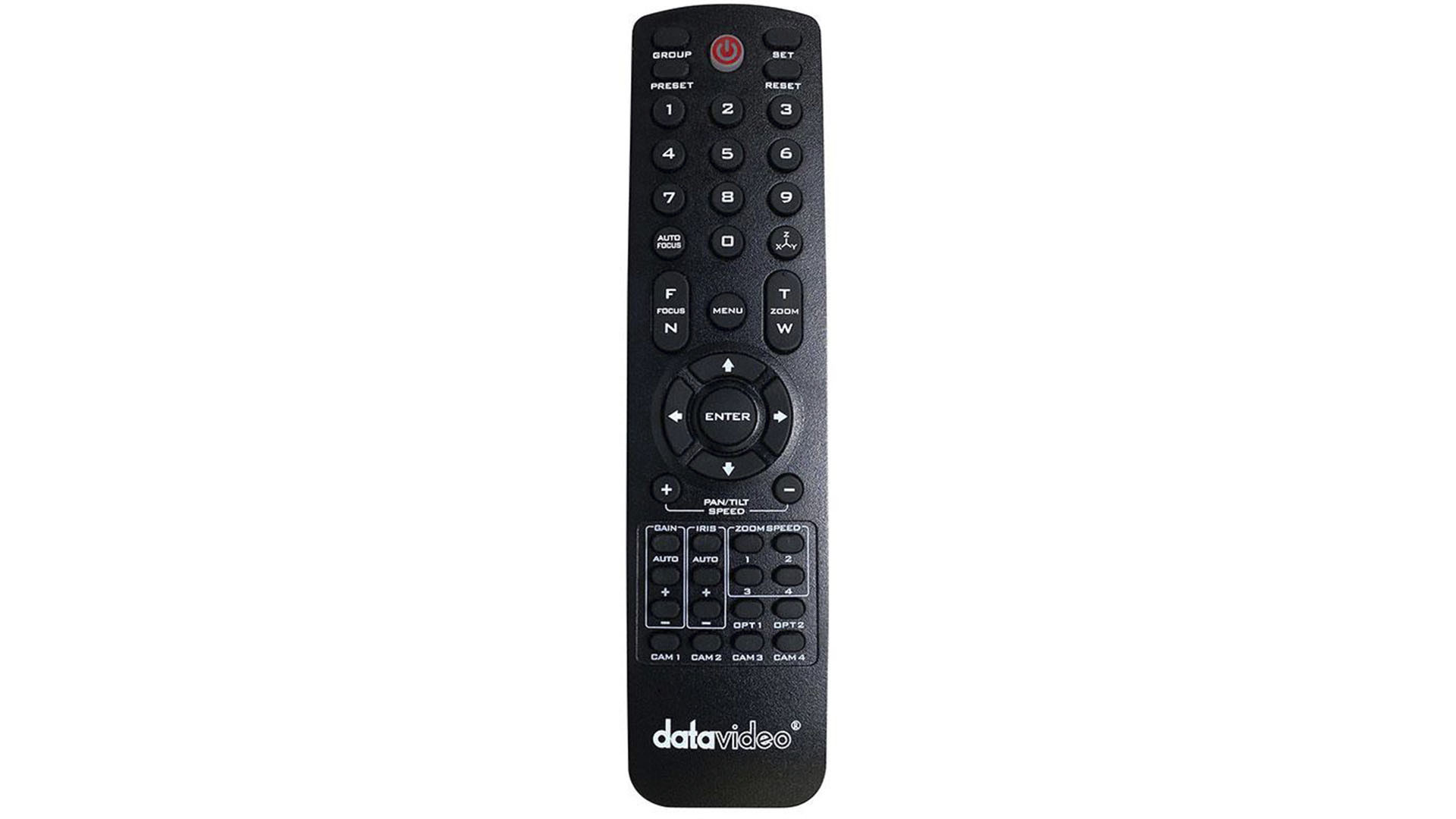

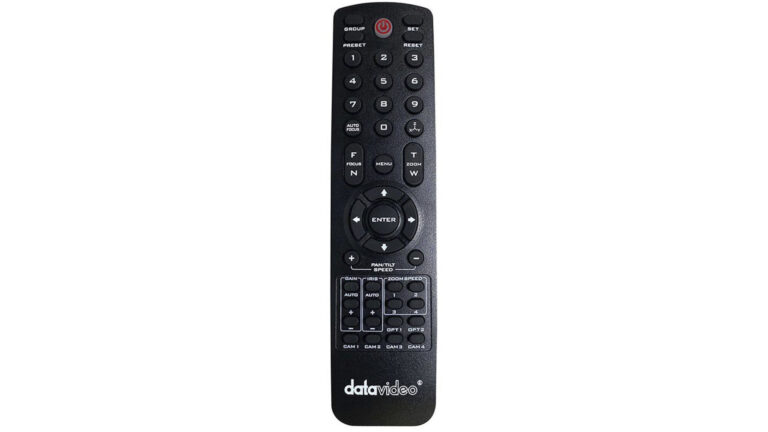

1 x IR remote controller
1 x Ceiling mount bracket -A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A tightrope
Weight 4700 g
