Brand New 4K Auto Tracking PTZ Camera
Live productions rely on high-performance cameras and controllers.
Introducing the Datavideo PTC-285, a 4K50/60p auto-tracking PTZ camera with 12x optical zoom, designed for seamless control. The PTC-285 can be easily managed via the traditional RS-422 serial port or remotely through IP using DVIP (Datavideo’s proprietary protocol) or Sony VISCA over IP. This cutting-edge 4K camera series supports dual streaming outputs for versatile A/V market applications, allowing effortless streaming to platforms like Facebook (RTMPS), YouTube, and dvCloud.
In addition to these features, the PTC-285 includes integrated NDI control functionality, providing enhanced flexibility and efficiency for modern live production environments. Datavideo also offers an extended model, the PTC-285T 4K HDBaseT, to meet the needs of different workflows.

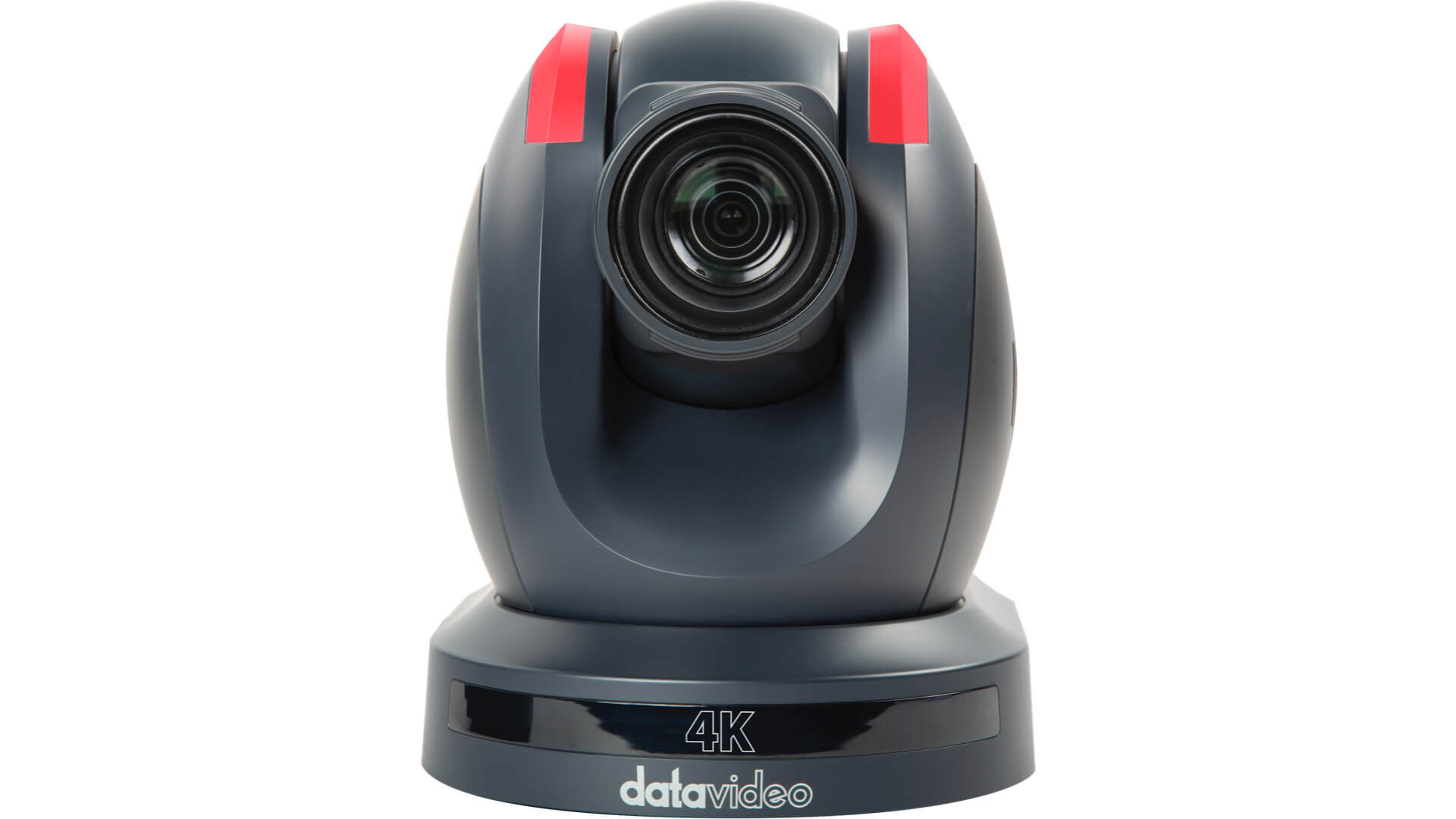

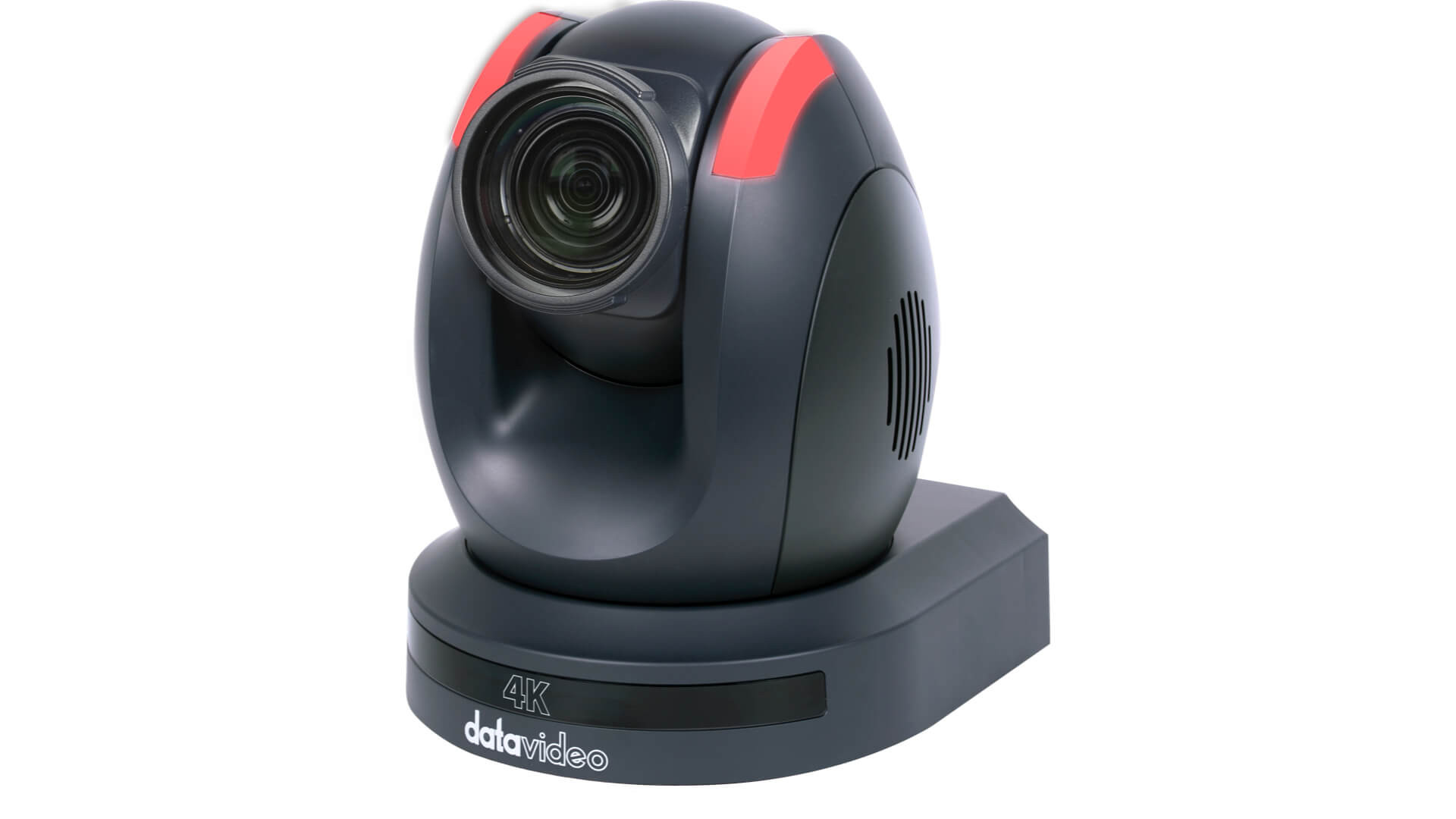

PTC-285 360° Product View
Simultaneous Outputs
Connect your camera to multiple devices in your workflow for flexibility. All the outputs are active at the same time.
Quick Access to Camera’s Auto Tracking
You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers (RMC-300A, PTC View Assist, etc.)
In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include iCAST mini, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.
Custom Auto Object Tracking
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.
Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera’s corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
Talent Position: Center / Left Side / Right Side
The positioning of talent depends on the videographer’s creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent’s sight direction or potential future possibilities.
Quick Selection of Full Body / Half Body / Close-up
All of the PTC-285 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.
S-Shaped Speed Curve
The S-Shaped Speed Curve, inspired by the smooth acceleration and deceleration of a lift, is a pivotal feature that enhances the camera lens movement. Much like the elevator ride that starts and stops seamlessly, the PTZ camera ensures your video captures maintain uninterrupted fluidity.
This innovative technology eliminates any jerky movements that might be discernible to the naked eye, resulting in professional-quality, visually pleasing content. The S-Shaped Speed Curve is your assurance that the camera’s pan, tilt, and zoom functions will operate with precision and grace, delivering an unparalleled visual experience for your audience. Experience the future of camera movement with the Datavideo PTZ camera.
Simply enable auto tracking with your IR remote control
RMC-1AT PTZ Controller: All you need is a remote control to set and control all four cameras and save the four presets.
RMC-1AT PTZ Controller
Remote control and preview by web user interface
PTZ View Assist: Control up to four cameras
The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285 and PTC-300 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.
The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!
Low Noise in Low Light
Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

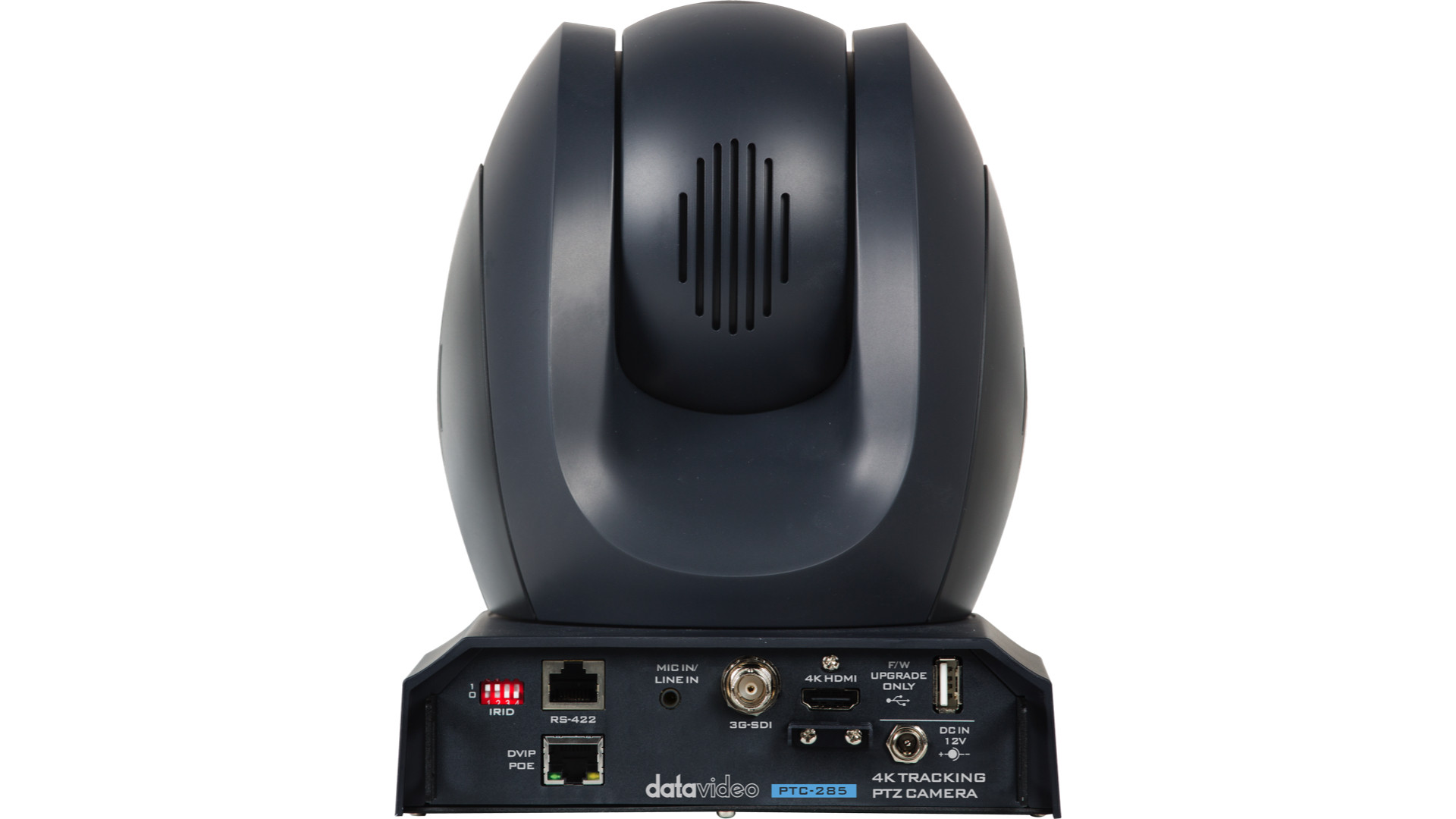

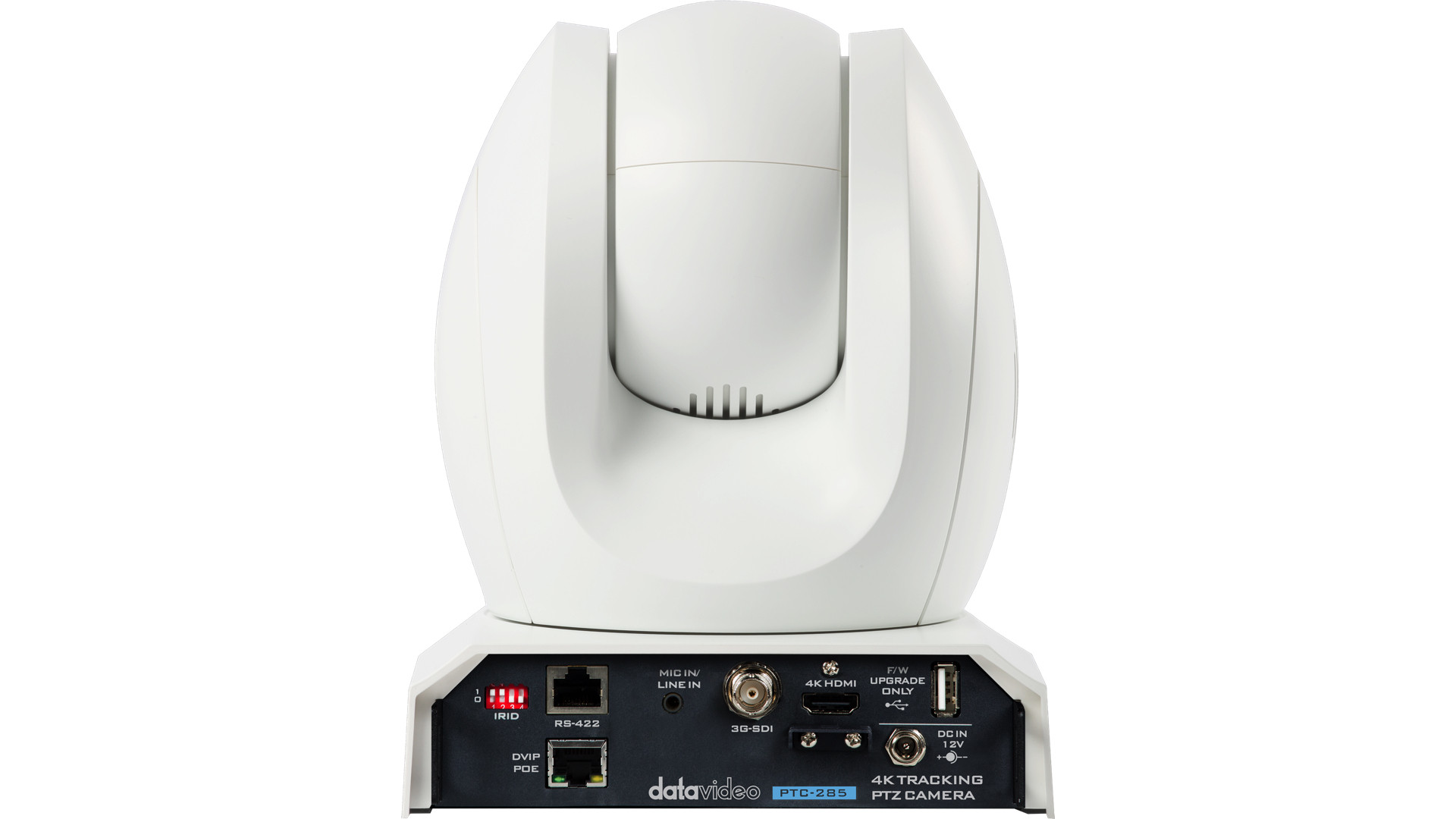

Multiple Simultaneous Video Outputs
Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.
Multiple Network Protocol with Dual Stream Function
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.
Compatible with Various Controller
Control real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.
RS-422, DVIP , NDI and Ethernet Camera Control
RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.
Compliant with the ONVIF Profile S Standard
The PTC-285 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.
Datavideo PTZ Cameras Support NDI Features
Datavideo’s PTZ camera series now supports NDI (Network Device Interface) features, enhancing their versatility and integration capabilities. With NDI, these cameras can transmit high-quality, low-latency video over IP networks, making them ideal for live production environments. The implementation of NDI utilizes the DVIP (Datavideo Protocol) ports, ensuring seamless connectivity and control. This advancement allows users to leverage the flexibility of IP-based workflows, simplifying setup and reducing the need for additional cabling, ultimately streamlining the production process.
One Ethernet Cable with NDI® | HX Technology
There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.
Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.
NDI® is a registered trademark of Newtek, Inc.
NDI® Virtual Input
PTC-285 as an video input source can be applied to various platforms: Skype, GoToMeeting, WebEx, Zoom, and more.
Power over Ethernet
The PTC-285 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-285.
Tally Light
Green and red lights tally to show the preview and program status for broadcast applications.
Wide 80° Field of View
PTC-285 provides a wide Field of View of 80°, easily shooting all the scenes in the field.
Supports H.264/H.265 Video Compression
Support compression of resolution up to 3840×2160 with frame up to 59.94, 60fps and the second channel 720×480 with 29.97fps compression. AAC, MP3 and PCM audio compression also supported.
Dark or Light Body

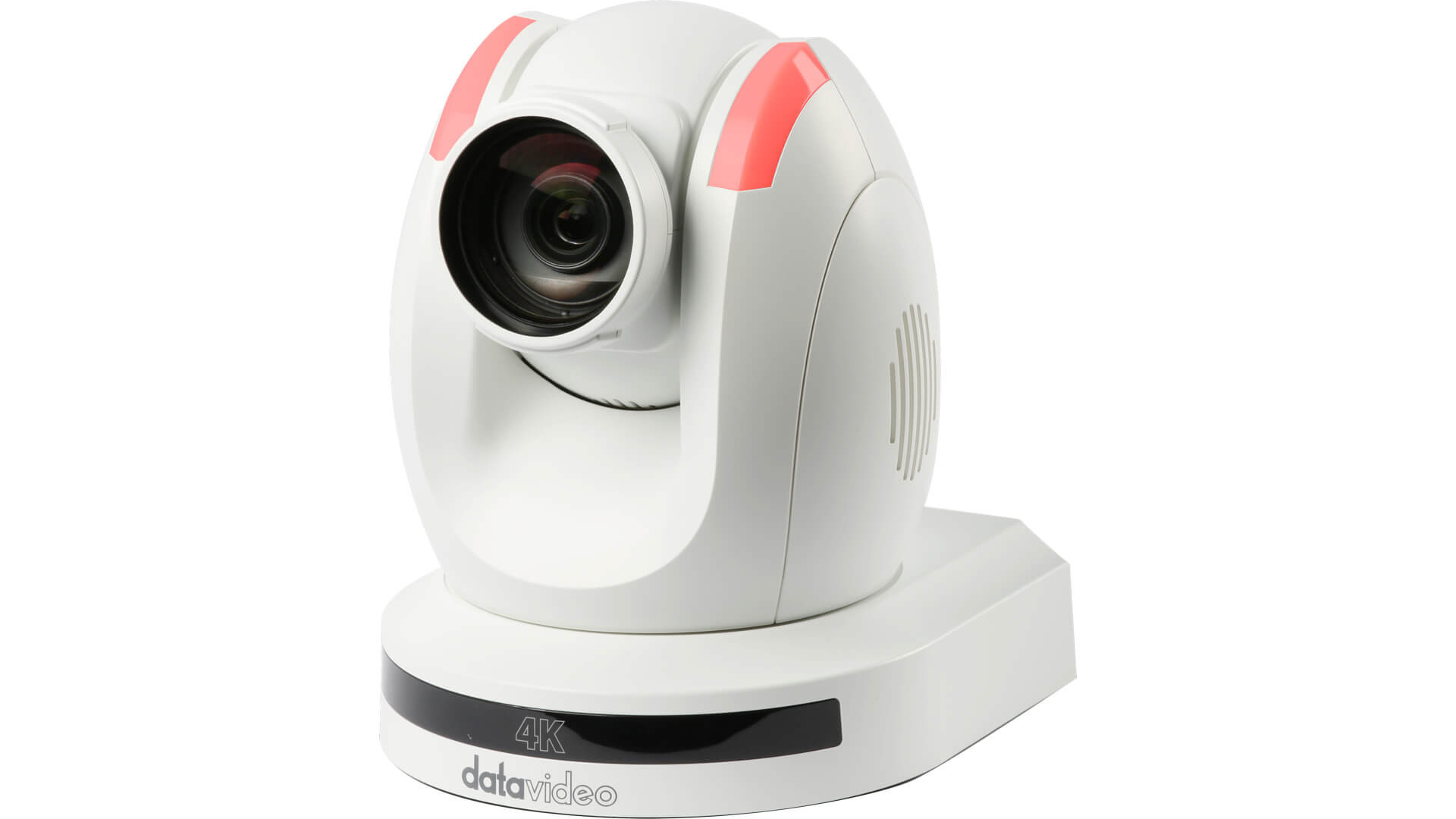

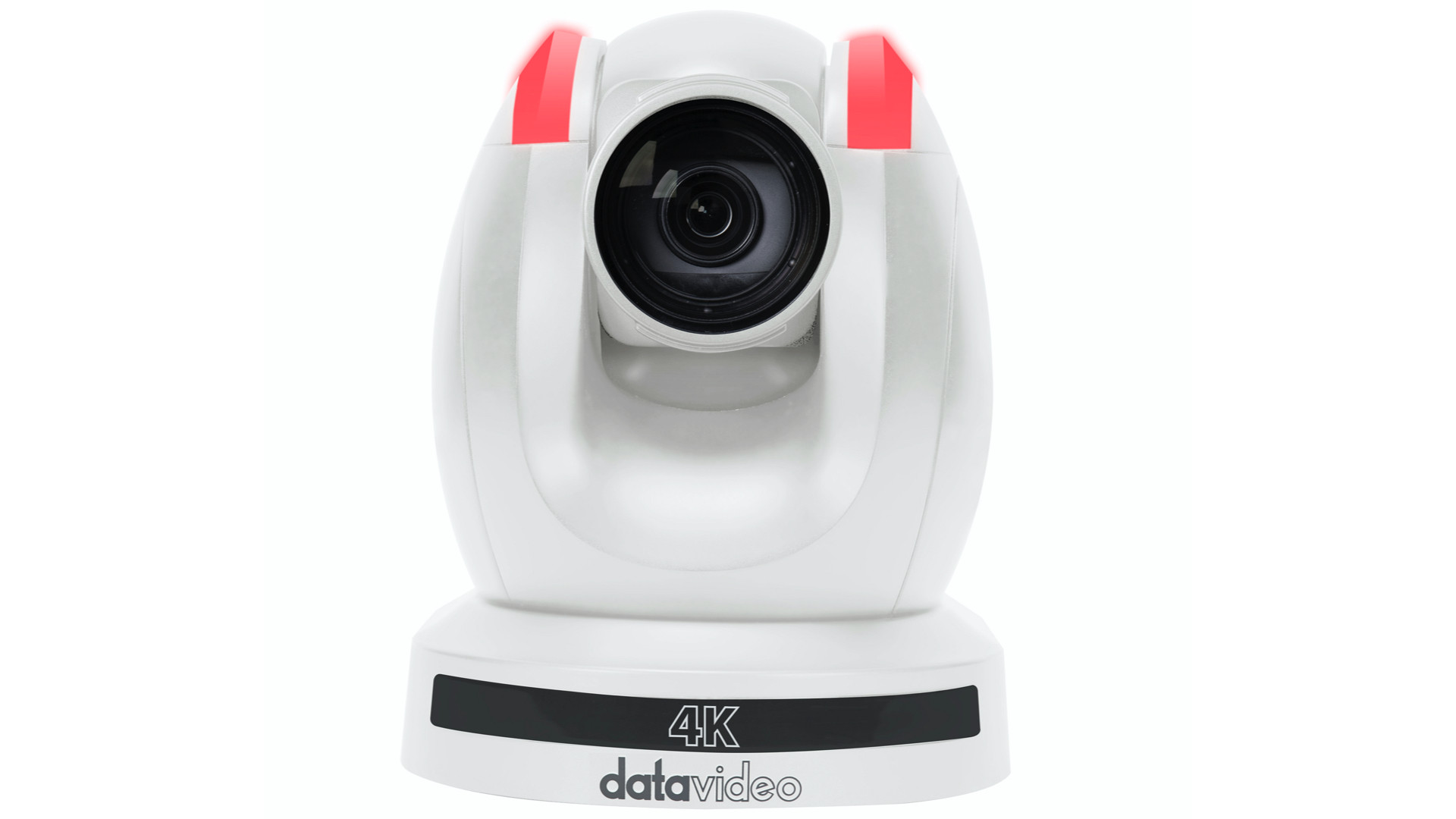

The PTC-285 is available in dark gray or white to remain inconspicuous in permanent setups.
Build a reliable SRT live streaming workflow with all Datavideo products
Datavideo’s wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.
By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or “First Mile.” After your video stream reaches dvCloud, you can depend on dvCloud’s reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
For more information on DVCloud, please visit the product page or sign up directly on www.dvcloud.tv
Single Operator Hybrid Event Solution Course
Explore our exclusive course on the Datavideo Academy website, covering essential aspects of setting up a seamless hybrid production environment. Learn hardware connections, software settings for key devices, troubleshooting techniques, and equipment operation. Gain the skills to navigate various scenarios in hybrid events, from presentations to lectures. Equip yourself with the knowledge needed for successful setups using core components like the iCAST mini 4K touch screen switcher and PTC camera. Visit Datavideo Academy today for a comprehensive learning experience, and master the art of hybrid event production.
Tutorial videos created specifically for the PTC-285
Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the PTC-285 is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
PRODUCT WORKFLOW
4K Tracking PTZ Camera
Model Number
Video format/Resolution
2160p60/59.94/50/30/29.97/25
1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
*2160p60/59.94/50 YUV 4:2:2
SDI:
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor
Effective Pixels (approx.)
S/N Ratio
Min. Illumination
Electronic Shutter
Zoom Ratio
Gamma Control
Iris Control
Digital Noise Reductions
On-Screen Display (OSD)
White Balance
AGC / Gain Control
HDR/WDR
Mirror / Flip Image
Focus Mode
Panning / Tilting Range
Tilt: +130° to -15°
Panning / Tilting Speed
Tilt: 0.693°/s ~21.32°/s
Preset
Focal Length
Field of View (Horizontal, Wide)
Image Compensation
Video Output
3G-SDI x1
10/100/1000M RJ45 (PoE) x1
Audio Input
switch from Web UI
Tally LED
Lens Filter
Control Protocol
VISCA, VISCA over IP,
DVIP, ONVIF, NDI
Remote Control Interface
Web GUI
RS-422/RS-232
DVIP
NDI
Video Compression Format
Audio Compression Format
Audio Bitrate
HD IP Interface
Streaming Protocols
First Stream Supported Resolution
1920×1080
1280×720
1024×576
960×540
640×480
640×360
Second Stream Supported Resolution
640×360
480×270
320×240
Video Bitrate
Video Bitrate Mode
Encoding Frame rate
60Hz: 1-60fps
POE
F/W Update
IR Control
Camera Control Unit
RMC-180 series/
RMC-300 series/
PTZ View Assist APP
Tripod Mount
Optional Accessories
Color
Dimension (LxWxH)
Weight
Operating Temp. Range
Power
What’s in the Box
1 x RMC-1AT IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Safety cable
