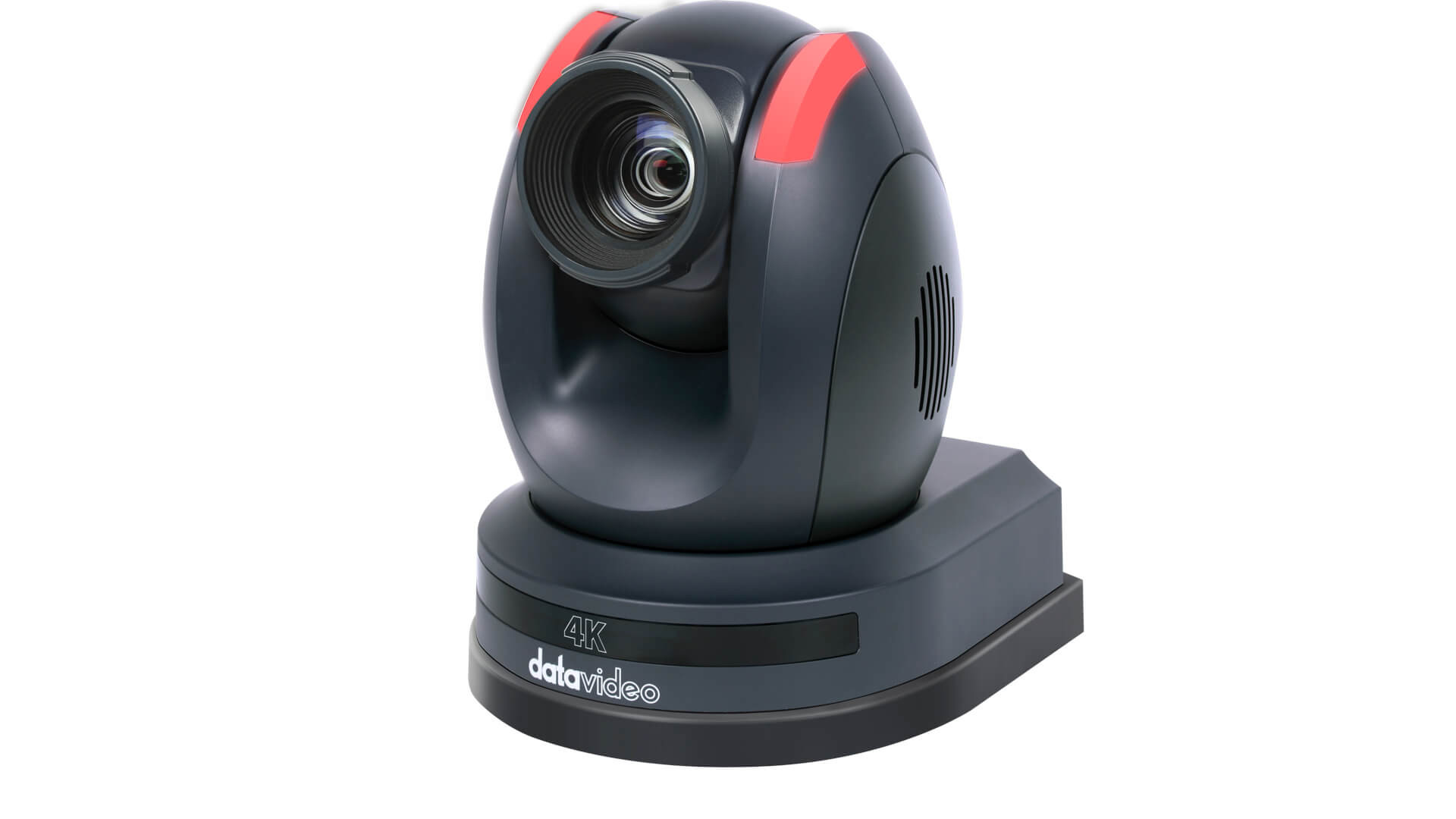

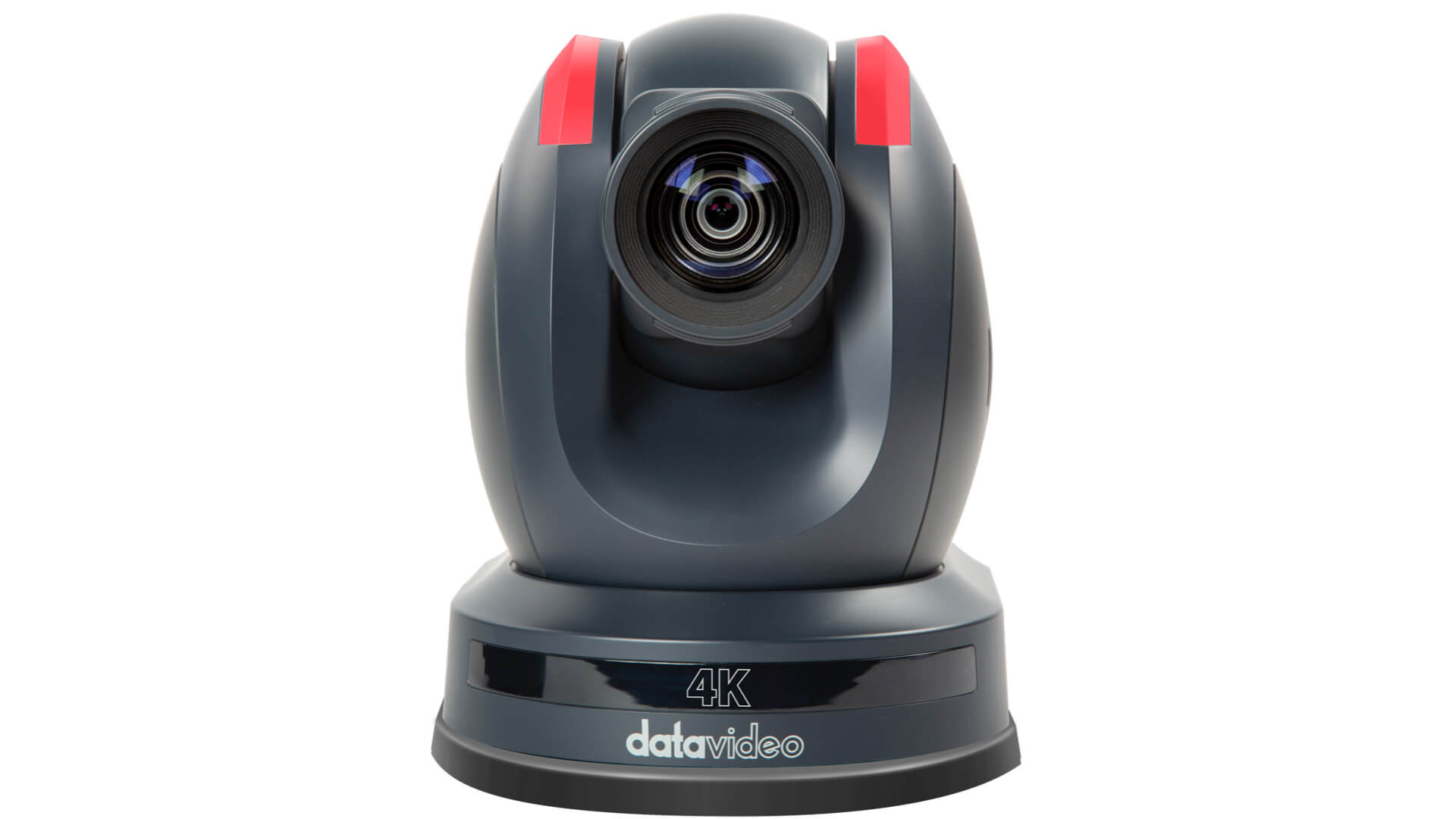

DATAVIDEO PTC-305NDI Cameras 4K 20X Tracking NDI PTZ Camera

 2.615,00

+ additional shipping charge
  • PTC-305NDI 4K50/60p Auto tracking PTZ camera | RS-422 serial port, or IP remote control via DVIP or Sony VISCA over IP. Supports dual streaming output, 3G-SDI and 4K HDMI and NDI output. Stream easily to Facebook (RTMPS), YouTube and dvCloud
  • PTC-305NDIW 4K50/60p Auto tracking PTZ camera | RS-422 serial port, or IP remote control via DVIP or Sony VISCA over IP. Supports dual streaming output, 3G-SDI and 4K HDMI and NDI output. Stream easily to Facebook (RTMPS), YouTube and dvCloud (White housing)
Category:

Brand New 4K 20x Auto Tracking NDI PTZ Camera

Live productions depend on high performance cameras and camera controllers.

Datavideo is introducing the 4K50/60p Auto Tracking PTZ camera, PTC-305NDI can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP.

This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.


Multiple simultaneous video output

PTC-305NDI supports multiple simultaneous video output formats. It can output video in HDMI 2.0 and IP formats at resolutions up to 2160p (50/60 frames per second). Additionally, it offers 3G-SDI output at resolutions up to 1080p (60/50 frames per second). This allows for flexible integration with various production setups and equipment.


Quick Access to Camera’s Auto Tracking

You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers (RMC-300A, PTC View Assist, etc.)

In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include iCAST mini, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.

Custom Auto Object Tracking

If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.


Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera’s corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.


Talent Position: Center / Left Side / Right Side

The positioning of talent depends on the videographer’s creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent’s sight direction or potential future possibilities.


Quick Selection of Full Body / Half Body / Close-up

All of the PTC-305 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.


Simply enable auto tracking with your IR remote control

RMC-1AT PTZ Controller: All you need is a remote control to set and control all four cameras and save the four presets.


RMC-1AT PTZ Controller


Remote control and preview by web user interface

The web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.

PTZ View Assist: Control up to four cameras

The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-145, PTC-280, PTC-285, PTC-300 and PTC-305 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.

The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!


Low Noise in Low Light

Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.


Multiple Simultaneous Video Outputs

Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.


Multiple Network Protocol with Dual Stream Function

Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.


Compatible with Various Controller

Control real-time pan, tilt, and zoom camera movements with Datavideo SHOWCAST 100, PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.


Compliant with the ONVIF Profile S Standard

The PTC-305 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.


RS-422, DVIP , NDI and Ethernet Camera Control

RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.


Tally Light

Green and red lights tally to show the preview and program status for broadcast applications.


Wide 60° Field of View

PTC-305NDI provides a wide Field of View of 60°, easily shooting all the scenes in the field.


Supports H.264/H.265 Video Compression

Support compression of resolution up to 3840×2160 with frame up to 59.94, 60fps and the second channel 720x480p compression. AAC, MP3 and PCM audio compression also supported.


One Ethernet Cable with NDI® | HX3 Technology

There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.

Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.

The PTC-305NDI camera supports both NDI | HX3 and
NDI | HX2 technologies, with switchable functionality.

NDI® is a registered trademark of Newtek, Inc.


Power over Ethernet

The PTC-305NDI supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your PTC-305NDI.


NDI® Virtual Input

Present PTC-305NDI as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.

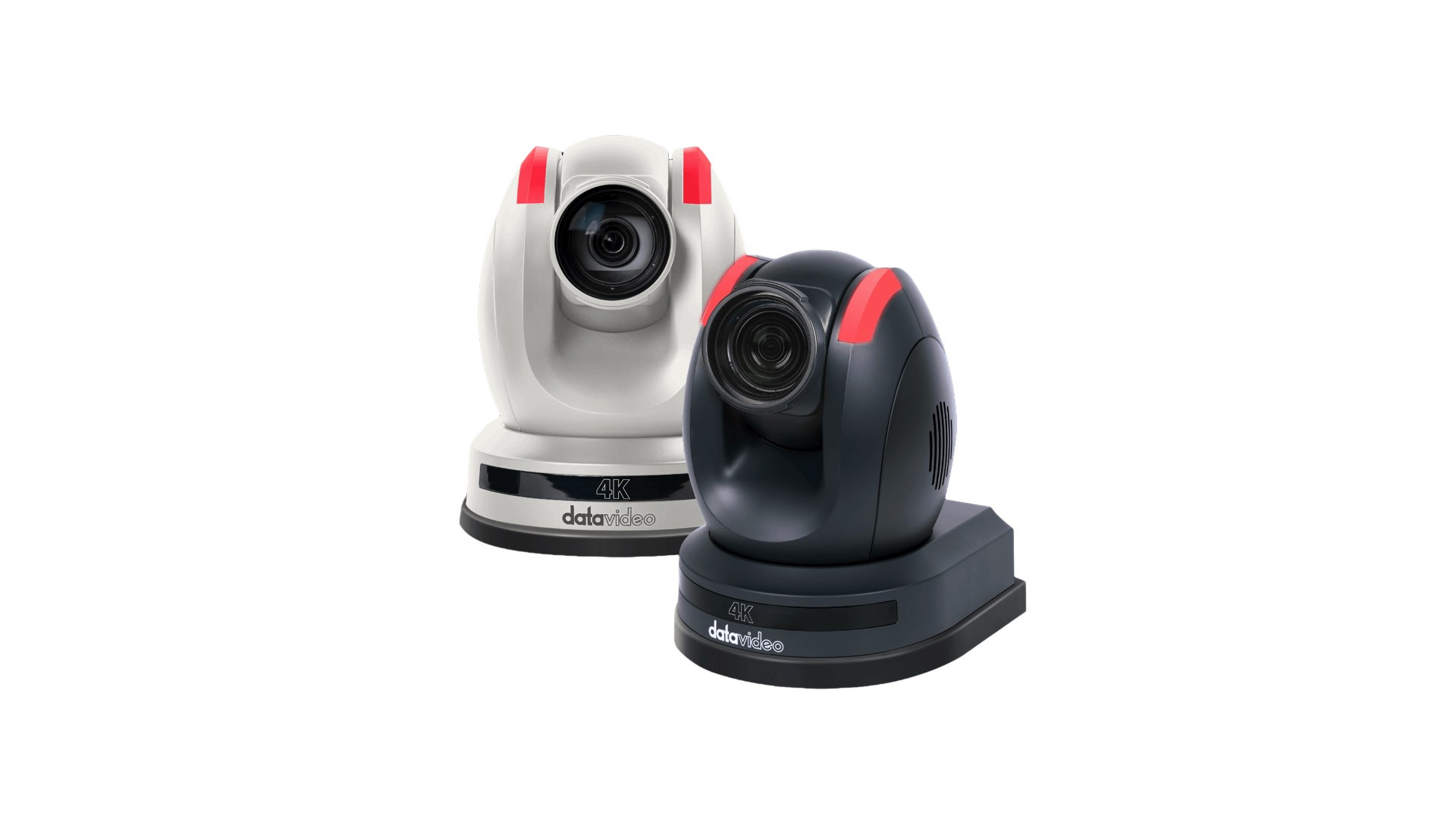

Dark or Light Body

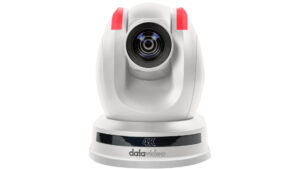

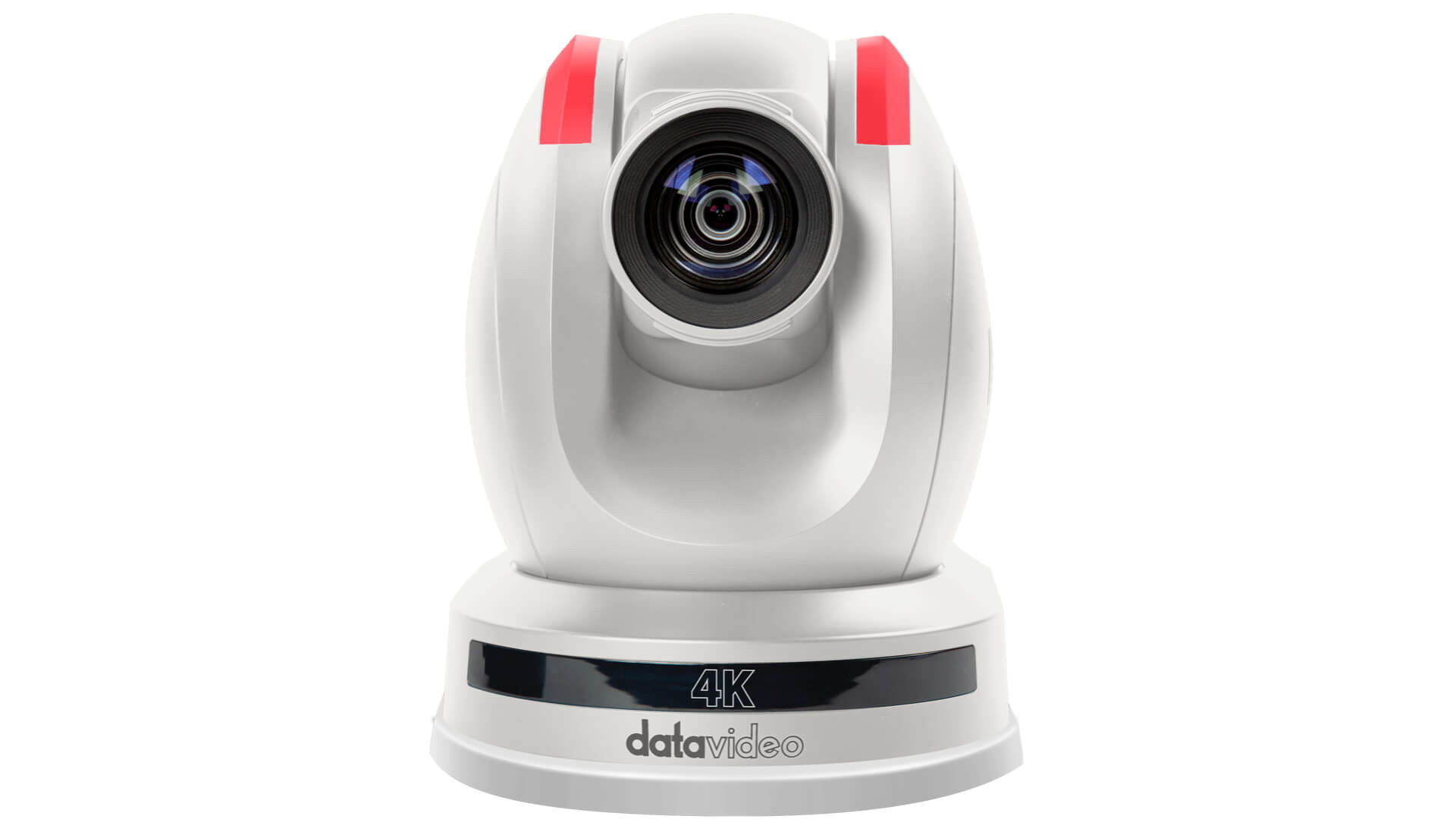

The PTC-305NDI is available in dark gray or white to remain inconspicuous in permanent setups.

Build a reliable SRT live streaming workflow with all Datavideo products


Datavideo’s wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or “First Mile.” After your video stream reaches dvCloud, you can depend on dvCloud’s reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

Datavideo’s Comprehensive NDI Lineup

Experience a seamless live production future with Datavideo’s exceptional NDI products. NDI technology enables effortless connectivity over Ethernet. Explore the magic of our NDI cameras – delivering brilliant 4K video and dynamic Auto Tracking with ease. The iCAST 10NDI switcher revolutionizes integration and control. Datavideo’s NDI lineup brings the power of effortless connectivity to live production.


Datavideo NDI PTZ Cameras Series

Datavideo is a leading innovator in the realm of professional video production, and we offer a diverse range of NDI PTZ Cameras. These cameras integrate seamlessly with NDI technology, revolutionizing the way video content is captured, transmitted, and integrated in modern workflows.


Tutorial videos created specifically for the PTC-305 Series

Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the PTC-305 Series is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.

4K 20X Tracking NDI PTZ Camera

Model Number
PTC-305NDI
Video format/Resolution
HDMI:
2160p60/59.94/50/30/29.97/25
1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
*2160p60/59.94/50 YUV 4:2:2

SDI:
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50

Image Sensor
1/1.8″ CMOS
Effective Pixels (approx.)
8.42Mega Pixels
S/N Ratio
≥55dB
Min. Illumination
0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter
1/30s ~ 1/10000s
Zoom Ratio
20x Optical Zoom, 16x Digital Zoom
Gamma Control
N/A
Iris Control
Auto / Manual
Digital Noise Reductions
3D
On-Screen Display (OSD)
English/Simplified Chinese/Traditional Chinese
White Balance
Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control
Yes
HDR/WDR
N/A
Mirror / Flip Image
Yes
Focus Mode
Auto/Manual
Panning / Tilting Range
Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed
Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset
255 Position
Focal Length
20x, f = 6.7mm ~ 125mm, F1.58 ~ F3.95
Field of View (Horizontal, Wide)
60°
Image Compensation
Back light compensation
Video Output
HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 (PoE) x1
Audio Input
3.5 mm x1 (mic in/line in)
switch from Web UI
Tally LED
Yes
Lens Filter
N/A
Control Protocol
Pelco-D, Pelco-P,
VISCA, VISCA over IP,
DVIP, ONVIF, NDI
Remote Control Interface
IR
Web GUI
RS-422/RS-232
DVIP
NDI
Video Compression Format
H.264/H.265/MJPEG
Audio Compression Format
AAC, G711
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
HD IP Interface
Streaming Protocols
RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3 (1080p)
First Stream Supported Resolution
3840×2160
1920×1080
1280×720
1024×576
960×540
640×480
640×360
Second Stream Supported Resolution
720×480
640×360
480×270
320×240
Video Bitrate
32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode
VBR, CBR
Encoding Frame rate
50Hz: 1-50fps
60Hz: 1-60fps
POE
IEEE 802.3at
F/W Update
Via Web UI or USB 2.0
IR Control
Yes
Camera Control Unit
RMC-2P
RMC-180 series/
RMC-300 series/
PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Dark Blue/White
Dimension (LxWxH)
173 (W) x 219 (H) x 189.08 (D)
Weight
2.6 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 21W
What’s in the Box
1 x PTC-305NDI product
1 x RMC-1AT IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Safety cable
Weight 4600 g
Variations

PTC-305NDI, PTC-305NDIW
