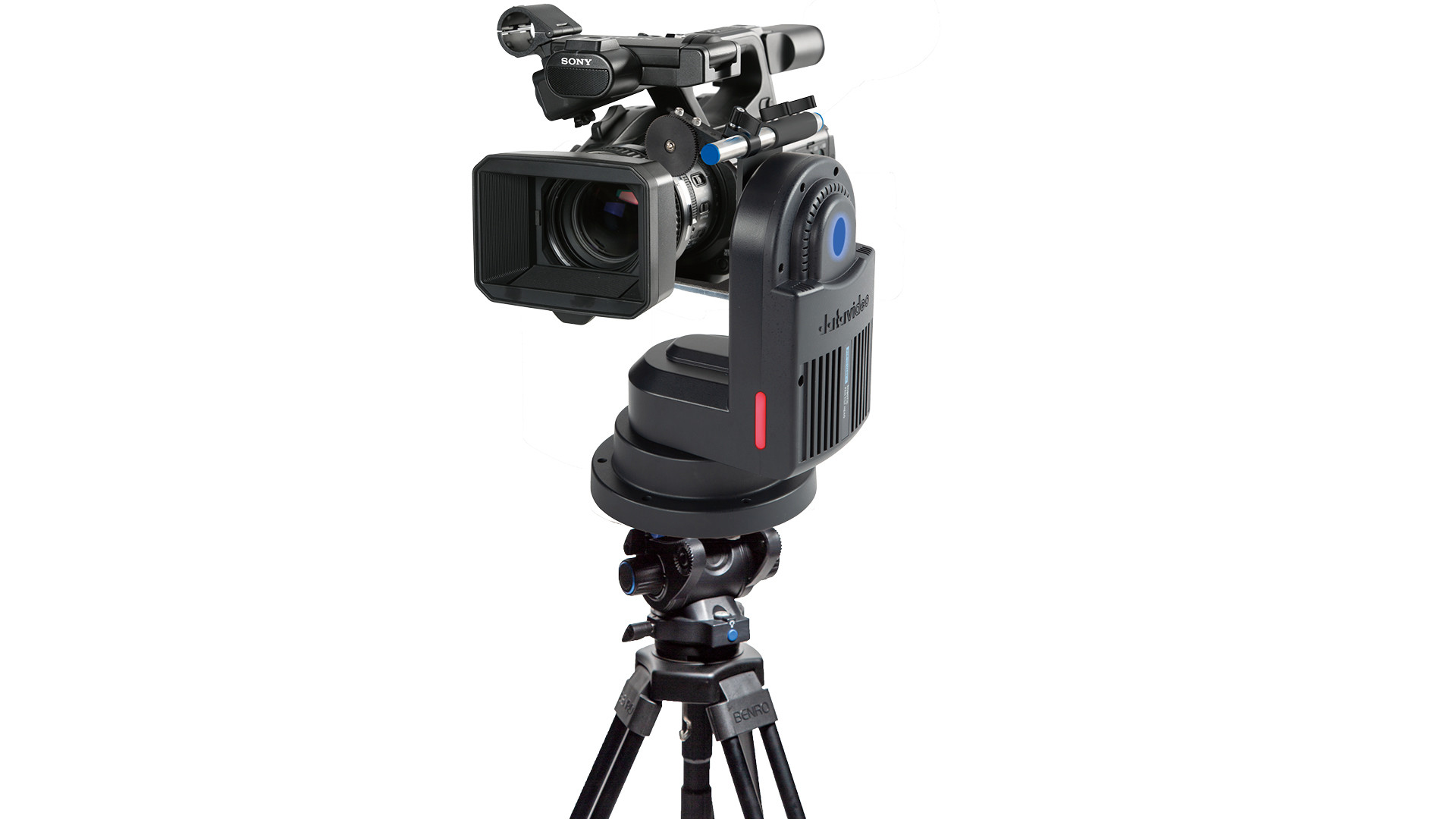

A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.
The PTR-10T MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, HS-1600T series and compatible with HDBaseT over Ethernet and other integration solutions such as Crestron.
Multiple Signal Interface

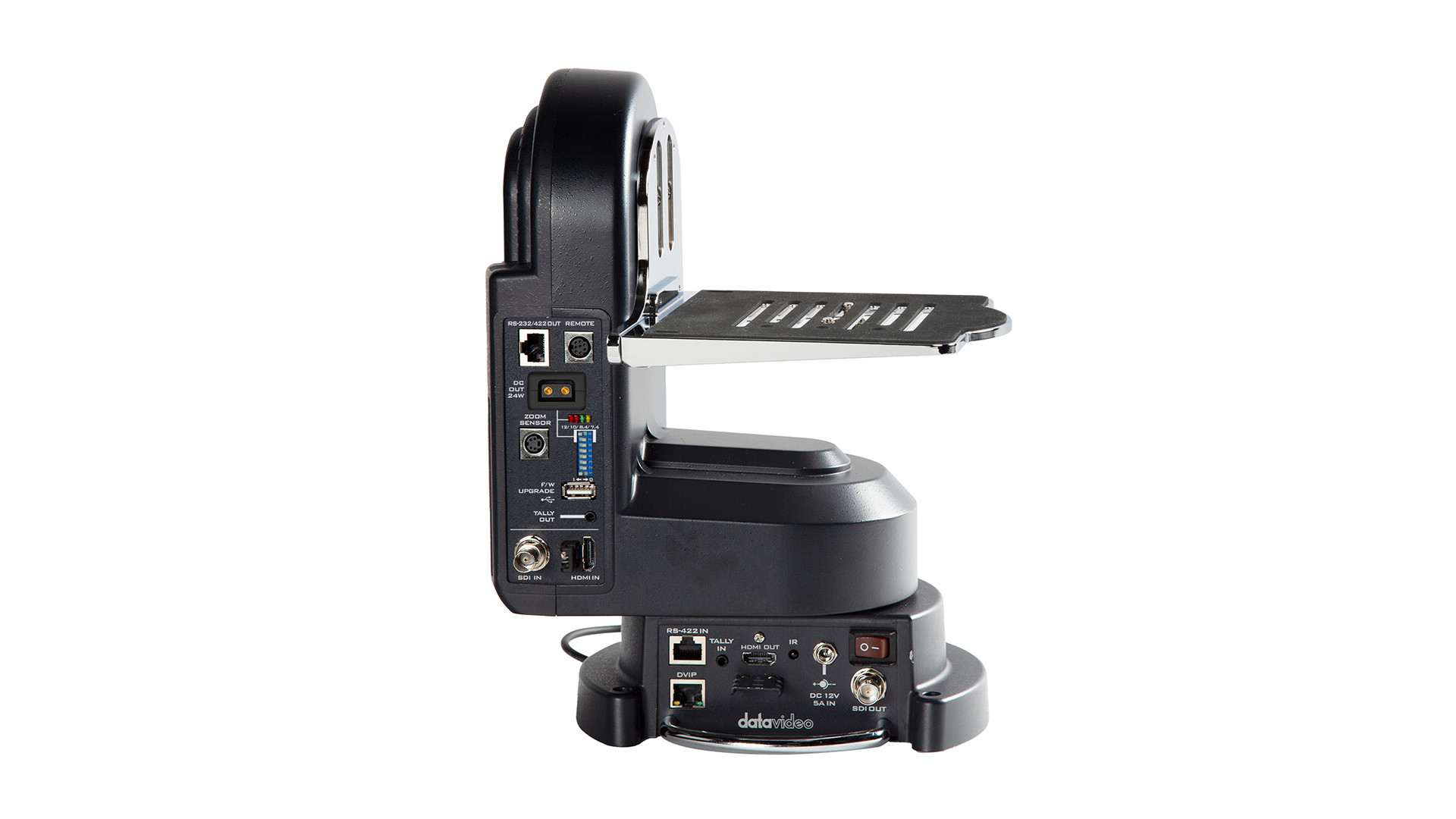

PTR-10T MARK II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.
Cost-Effective
PTR-10T MARK II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.
Wide Range of Compatible Cameras Supported

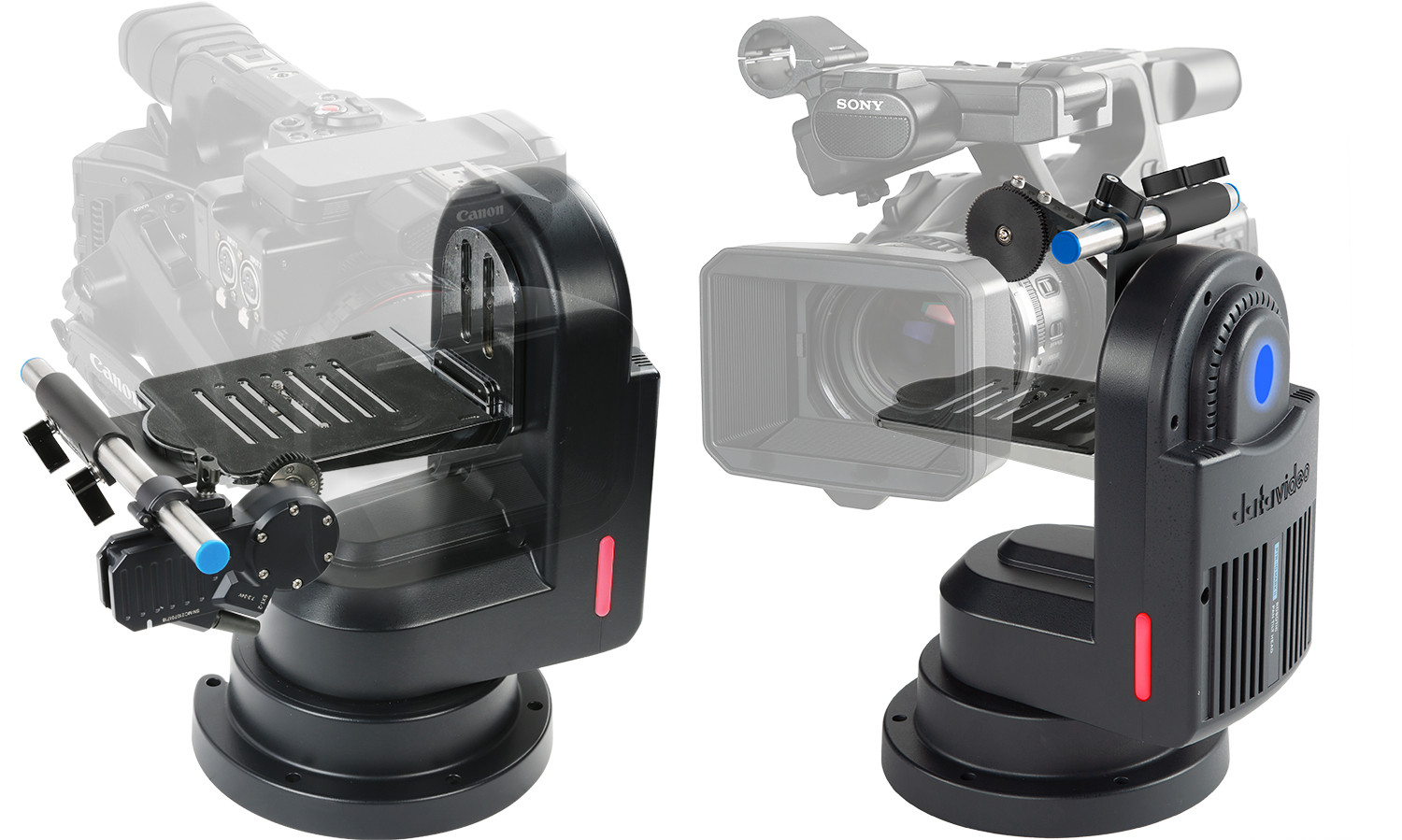

The PTR-10T MARK II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.
Light Weight, Strong, and Sturdy Design
With a weight of 3.4 kg, PTR-10T MARK II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.
Diversified Controller Options
Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, RMC-300A, and HS-1600T series will fit your need.
Support Your Cameras Up to 4 Kg Weight on PTR-10T MARK II
Super strong design. PTR-10T MARK II is built from aluminum alloy, making it a very sturdy base for your camera.
Support 50 Preset Camera Shooting Positions
When your video production requires many different angles and positions, 50 preset camera positions will meet your needs.
Using the IR remote allows you to call up to 50 presets at any time.
When combined with the RMC-300A universal remote controller, the 14 physical buttons can be called at any time.
When using the RMC-180 MARK II remote control, there are 4 physical buttons to call.
PoE++ Supported
You do not need any battery mount on your camera when using PTR-10T MARK II. The PoE++ is building in the PTR-10T MARK II; No extra battery or power needed when operating.
Built-in Tally Light
With the big tally light in the front to show the status of your camera.
D-Tap Connector for DC Output
The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power.
This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras.
Selectable DC
Voltage output for different cameras
(7.4 / 8.4 / 10 / 12V )
Optional Accessories: ZEK-1 Zoom Encoder Kit
ZEK-1 is the solution to your free running Zoom cameras.
PTR-10T MARK II can read its own Pan/Tilt movement and send back to controller for position memory and recall. Now, with ZEK-1, it can detect and read out the Zoom changes. And convert those information into Zoom position to send back for controller to memory and recall the saved zoom position.
Compatible with cameras via zoom moving ring.
ZEK-2 is a Robotic Cinema Camera Solution
ZEK-2 Zoom Encoder Kit is a mechanical device that allows you to mount the Tilta Nucleus-M motor which adds automatic zoom positioning to the Panasonic Lumix BGH-1 camcorder mounted on the PTR-10/10T MARK II Robotic Pan Tilt Head.
Datavideo’s Comprehensive HDBaseT Lineup
Experience a seamless live production future with Datavideo’s exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T MARK II switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo’s HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.
HDBaseT Compatibility List
The chart above shows the product’s direct compatibility with other HDBaseT products.
HDBaseT Certified List of Cables
Tutorial Videos Created Specifically for the PTR-10T MARK II
Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the PTR-10T MARK II is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
PRODUCT WORKFLOW
HDBaseT Robotic Pan Tilt Head
Model Number
Video Interface
SDI x 1
RJ45 x 1 (HDBaseT)
Video Output
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit
HS-1600T
HS-1600T Mark II
RMC-300A
VISCA Protocol Controller
IP Control
IR remote
Genlock
Timecode
Panning / Tilting Range
Tilt: ±45°
Panning / Tilting Speed
Tilt: 0.06~10° /Sec
Preset
Control Distance
100M by HDBaseT
Control Protocal
DVIP
Control Input
HDBaseT
Maximum Load
Control Output
RS-422
BX-Lens
LanC
Power Requirement
DC 12V~ 18V, 5A (With Camera)
Power Supply
Operating Temp. Range
Operating Humidity Range
Storage Temp. Range
Storage Humidity Range
Weight
Dimension (LxWxH)
Optional accessories
WM-10
WM-11
CM-10
What’s in the Box
DC 12V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw x 2
1/4” to 3/8” screw adaptor x 1
