Switcher with Distance Control
Switch over IP, external control or RMC-260 control panel.
Suitable for medium-sized productions.
Supports 6 HD inputs and 4 outputs in HDMI and SDI.
Simple-to-use physical hardware interface.
Intuitive control panel RMC-260 makes switching a piece-of-cake for new and experienced users.
Stunning video effect enrich the scene. Built-in animation and backgrounds.
Two down stream keyers(DSK) and two picture-in-picture(PIP) generators combined with a dual chromakeyer give you enough freedom to be creative.
Pre-saved multiple sets of animated stinger transitions and virtual set backgrounds.
Supports XPT (Cross Point Assignment)
A XPT feature giving you a much easy use on the live production.
Plug-and-Play
There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.
Professional 10-bit processing switcher
Providing you the best and professional quality of video processing.
PRODUCT WORKFLOW

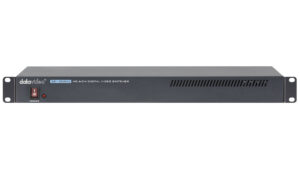

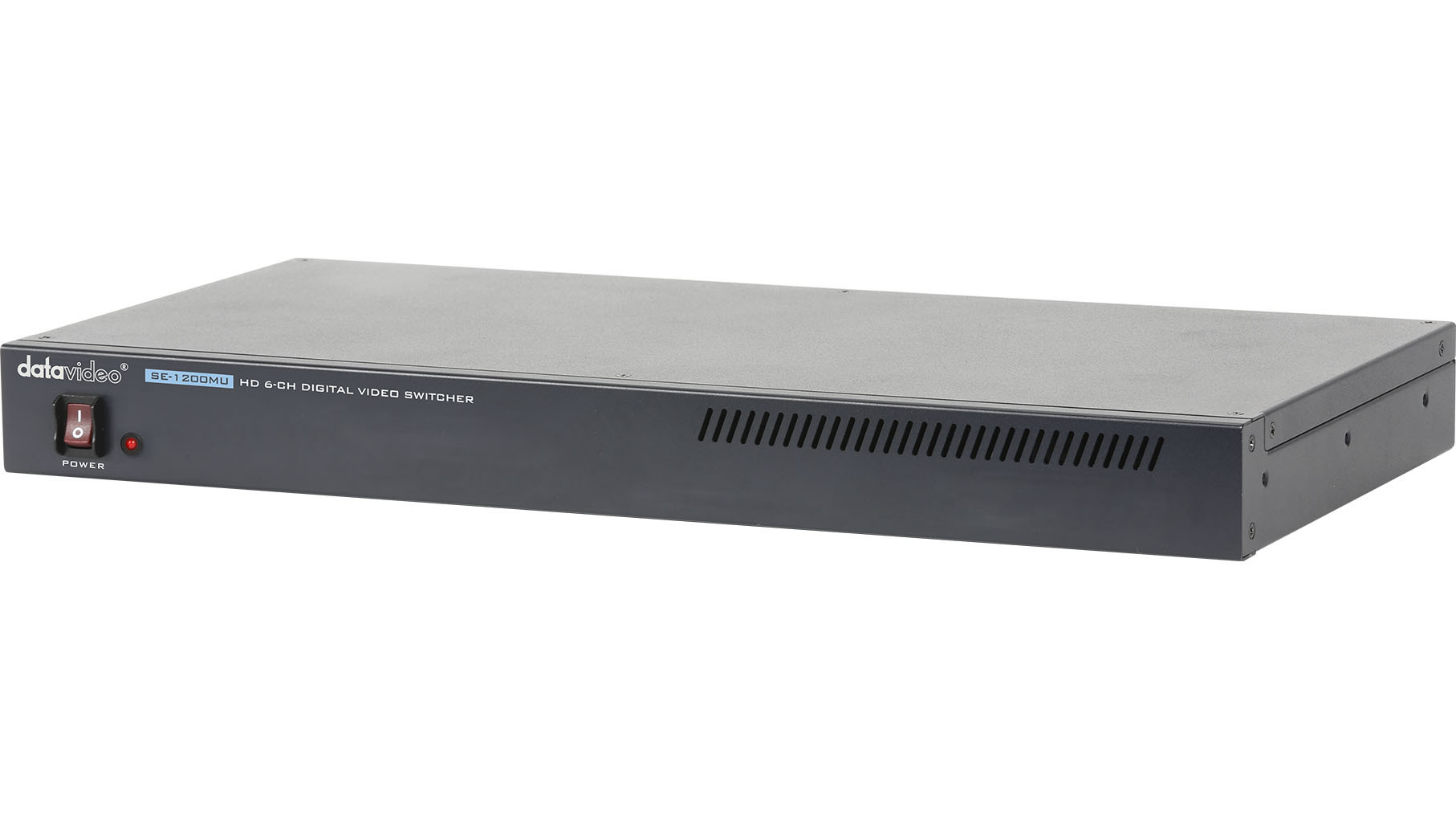

6 Input Rackmount HD Switcher
Model Number
SE-1200MU
Video Standard
HD
Video Format
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
720p 50/59.94/60Hz
Video Processing
SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB 4:4:4
HDMI: YUV 4:2:2 10 bit, RGB 4:4:4
Input Routable / Crosspoint
All 6, repeatable

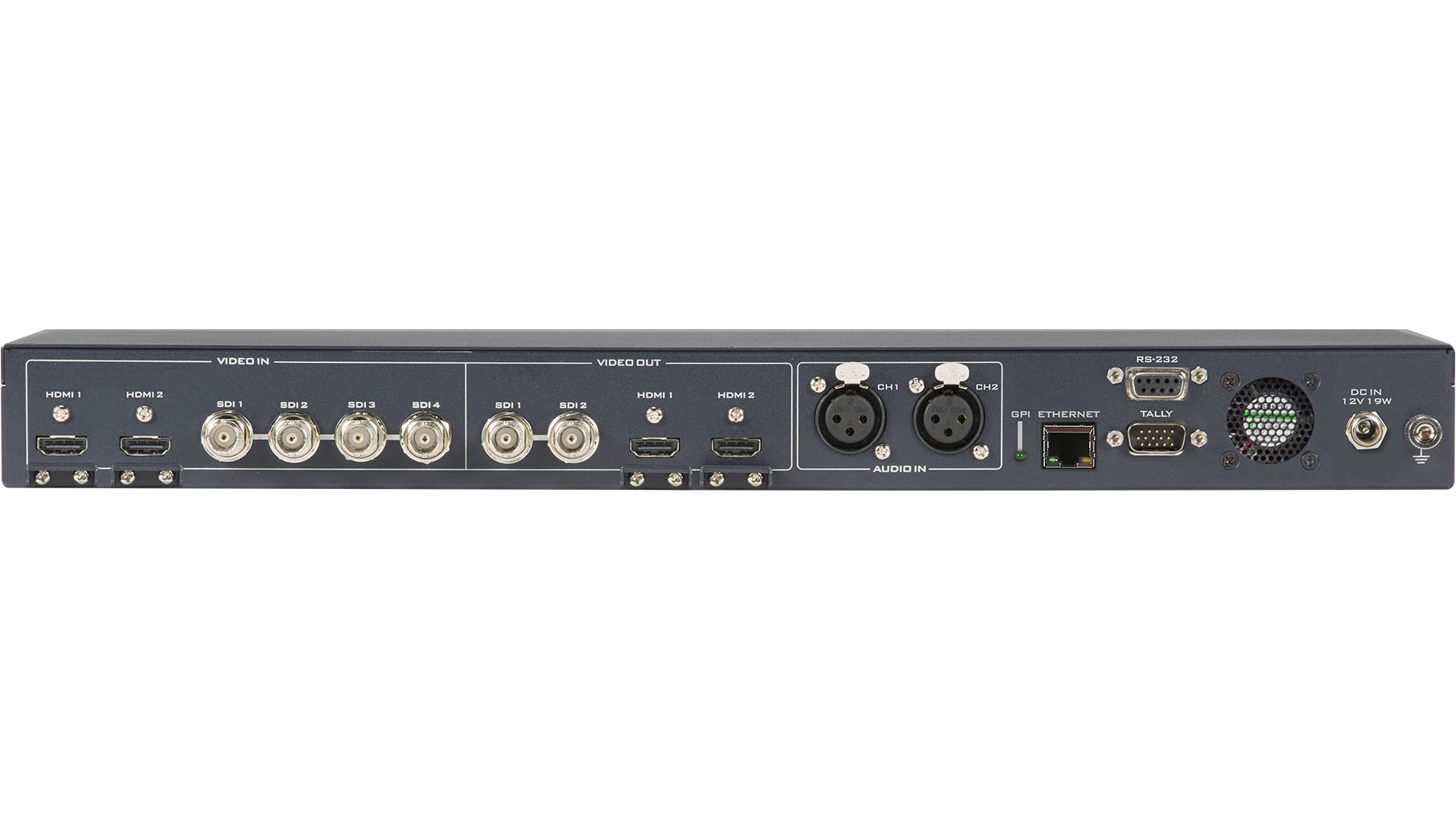

Video Input
4x HD-SDI
2x HDMI (RGB/YUV, 1080i/1080p/720p)
2x HDMI (RGB/YUV, 1080i/1080p/720p)
Mix HD & SD Source
—-
Computer Graphic Interface
2 via HDMI
Video Output
2x HD-SDI
2x HDMI assignable:
PGM(w/DSK 1&2), PGM(w/DSK 1), PGM Clean, PVW(w/o DSK), multi-view, Input 1-6
2x HDMI assignable:
PGM(w/DSK 1&2), PGM(w/DSK 1), PGM Clean, PVW(w/o DSK), multi-view, Input 1-6
Down-converted Output
—-

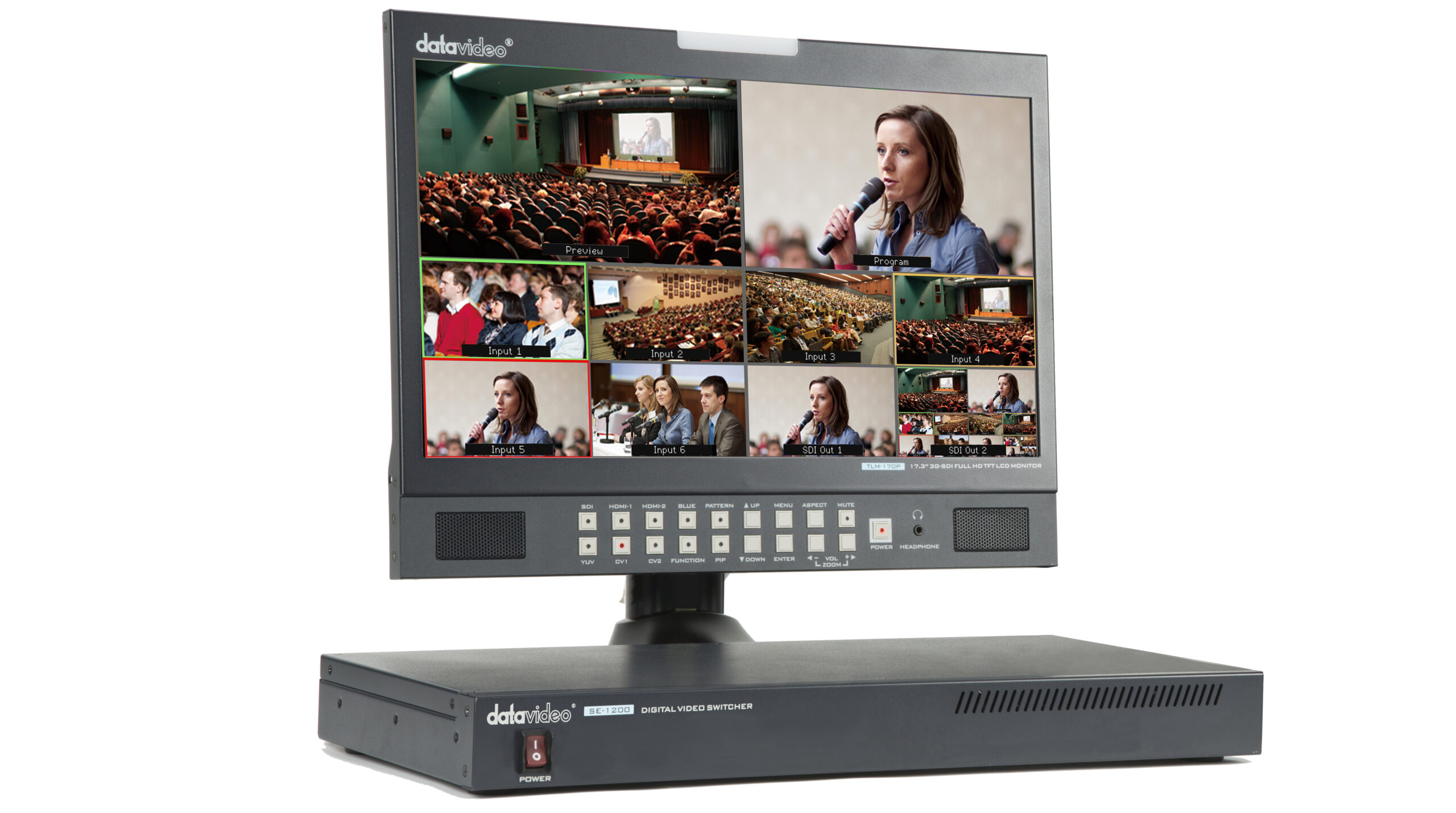

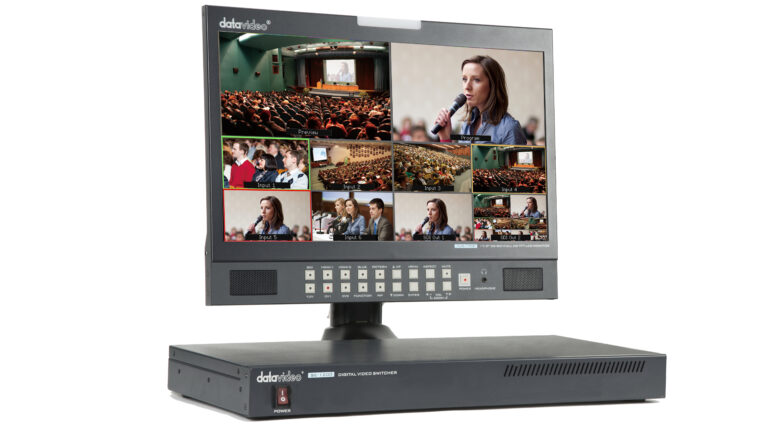

Built-in Multi-view Monitoring Out
HDMI & SDI assignable, Ethernet (MJPEG)
Analogue Audio Input
2x Balanced XLR
Analogue Audio Output
—-
Digital Embedded Audio Support
Input 2 channels, Output 2 channels
Audio Delay Calibration
—-
A+V Switching
Yes
Chromakey
2
Title Creator
—-
USK
2x Keyer support Chromakey/ Linear/ Luma Key
DSK
2x DSK support Lumakey/ Linear key (Key / Fill)
Picture in Picture
1
Logo Insertion
—-
Still Store
500
Effects
FTB, Cut, 32 Wipe with border
Transition Preview
Full transitions preview
Sync / Reference In/Out
Built-in Genlock (internal)
Tally Output
1x D-sub 15pin, dual color

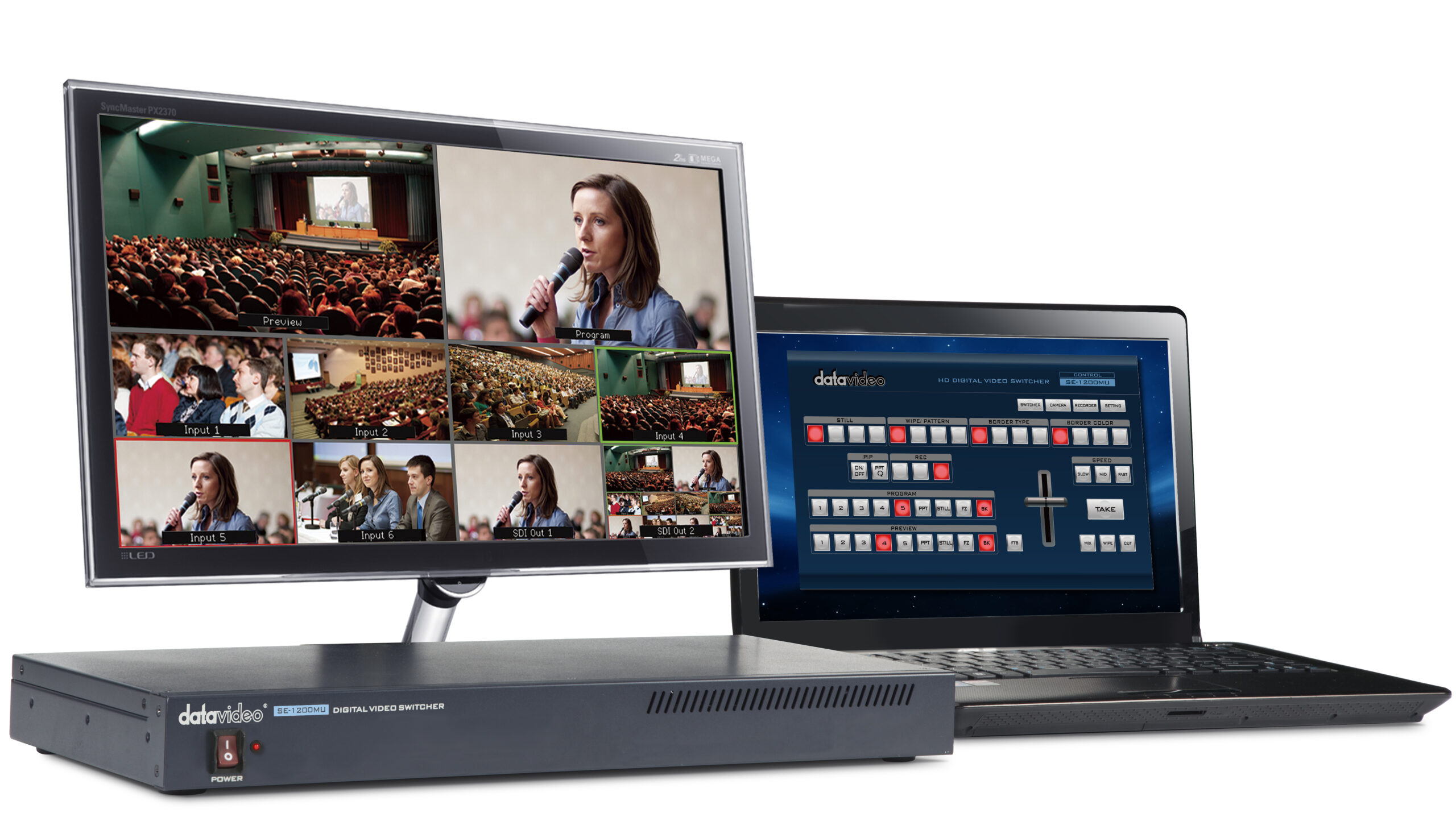

PC Remote Control
Ethernet (free Window software)
RS-422/ RS-232
RS-422/ RS-232
Built-in Audio Mixer
—-
Special Features
Motion JPEG Multi-view streaming
(120 memory preset, BGD Transition on/off option)
Free Virtual Set and Stinger transition included
(120 memory preset, BGD Transition on/off option)
Free Virtual Set and Stinger transition included
Chassis

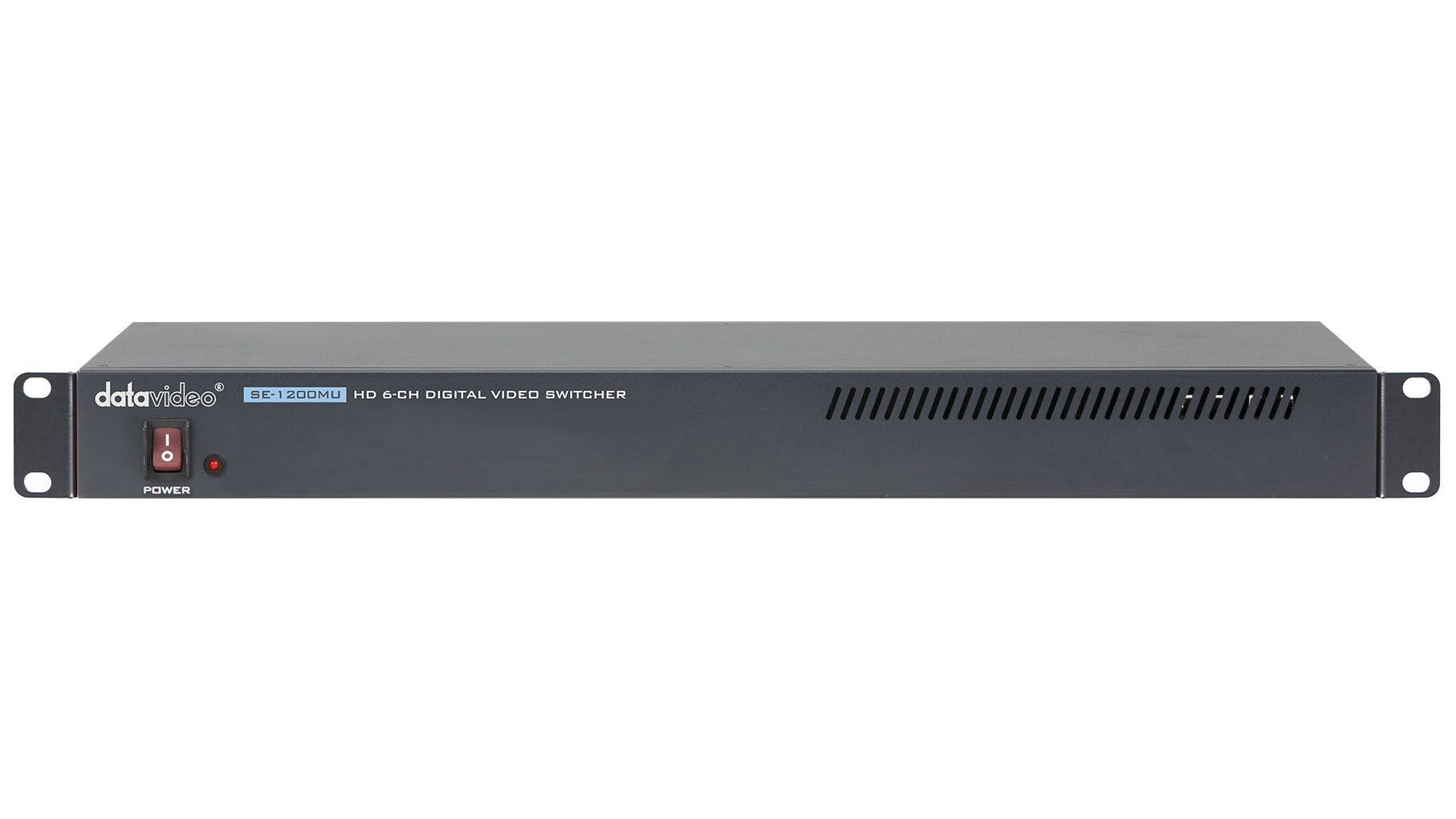

1RU rack-mount mainframe
Dimension (LxWxH)
440 x 215 x 49 mm
Weight
1.5 kg
Power
DC 12V, 19W
Operating Temp. Range
0~40 °C
What’s in the Box
1 x SE-1200MU product
1 x AD Switch DC 12V
1 x DB9P TO DB9P Cable
2 x 1U Rack Mount Ear
6 x M4 Screws for Rack Mount Ear
1 x AD Switch DC 12V
1 x DB9P TO DB9P Cable
2 x 1U Rack Mount Ear
6 x M4 Screws for Rack Mount Ear
