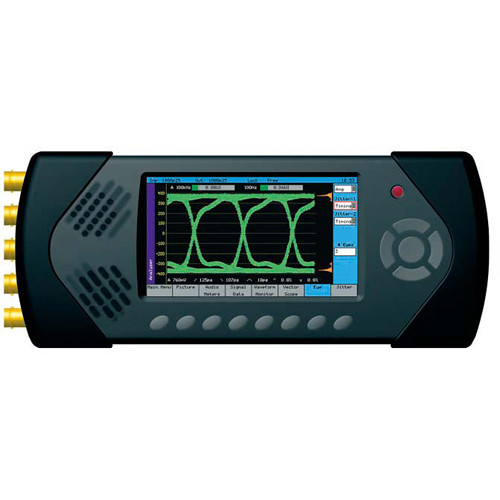

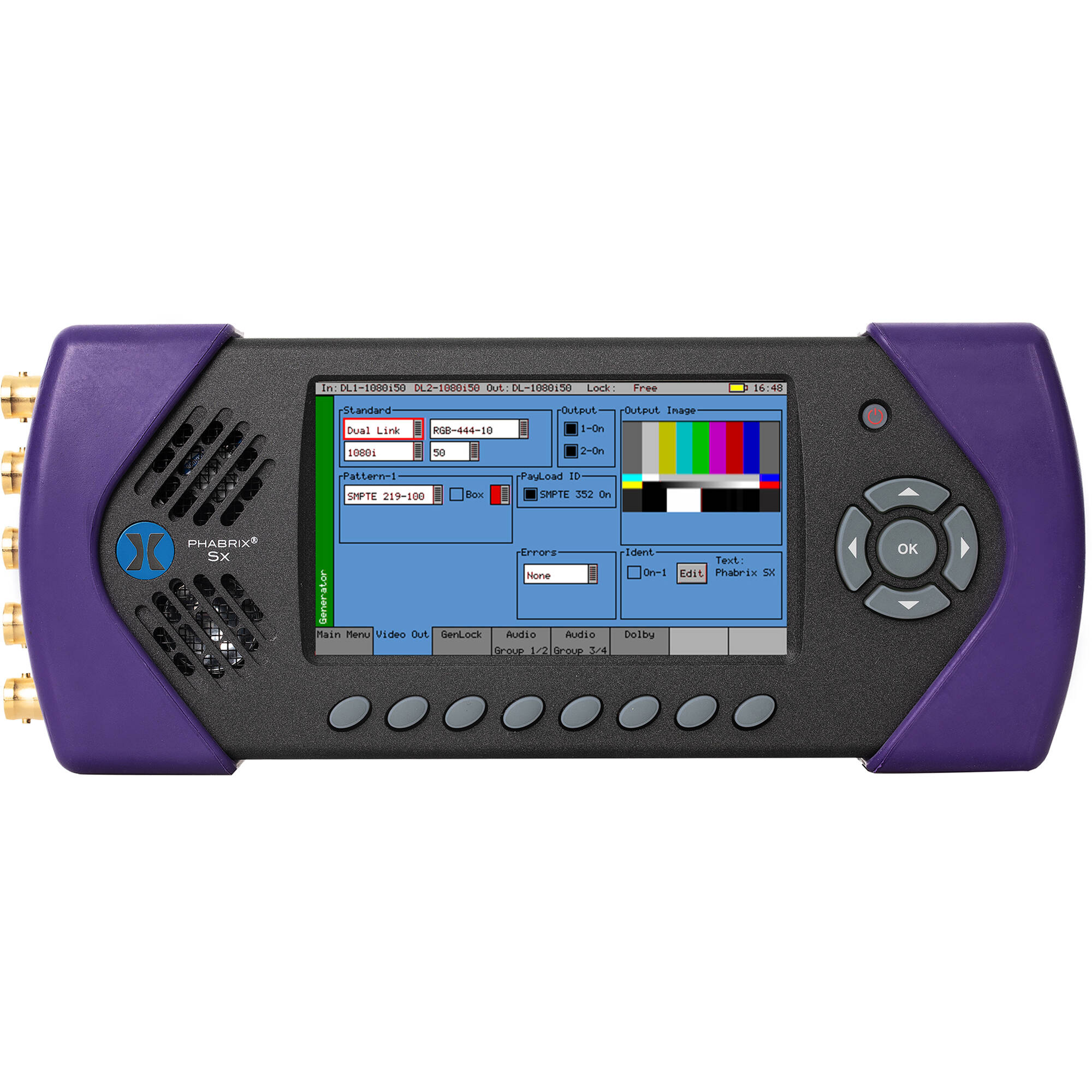

PHABRIX SxD 3 in 1 Generator/Analyzer/Monitor with Dual Link

LEADER PHSXDL PHABRIX SxD 3 in 1 Generator/Analyzer/Monitor with Dual Link

€ 5.040,00

+ additional shipping charge
  • Generator, Analyzer & Monitor
  • 3G/HD/SD-SDI
  • Dual-Link 1.485Gbps SDI
  • Intuitive Interface
  • 16:9 Color TFT Screen
  • Remote Operation
  • Multiple Power Options
Category:

The PHABRIX SxD 3 in 1 Generator/Analyzer/Monitor with Dual Link from Leader is designed to meet the specific demands of both broadcast and manufacturing industries with dual-stream requirements. This unit supports 3G-SDI, HD-SDI, and SD-SDI, as well as dual-link support for (2) 1.485Gbps SDI streams.

It is configured with a full range of static and animated test patterns. This solution is well suited for use in studio, OB, and lab environments. It supports auto bi-level, tri-level, and SDI genlock with cross lock capability. Combined audio features including support for 16 channels of embedded audio.

Built-in USB and Ethernet connectivity allow for remote operation, or the device can be managed via its 4.3″ 16:9 TFT monitor. The unit can be powered either from the internal battery or via the included mains adapter.

Three in one generator, analyzer, and monitor
3G-SDI, HD-SDI,SD-SDI, and dual-link
High quality 16:9 picture monitor
32 + video test signals

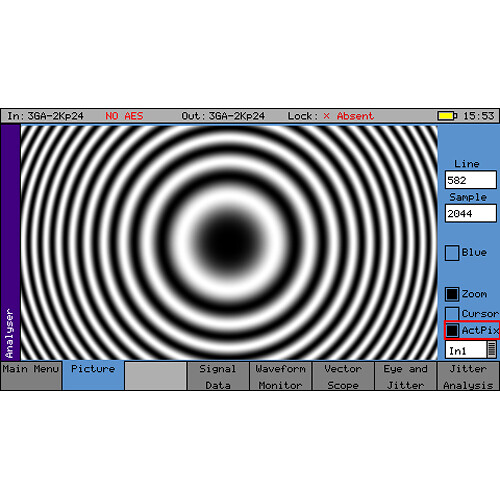

Moving zone plate
Text and logo identification
16 channel embedded audio
Auto genlock BI/TRI/SDI cross lock
16 channel audio metering
Waveform monitor
Vectorscope
Ethernet-based remote operation
Battery plus mains power

PHABRIX SxD Specs

Video
VIDEO
SDI: 3G-SDI, HD-SDI, SD-SDI

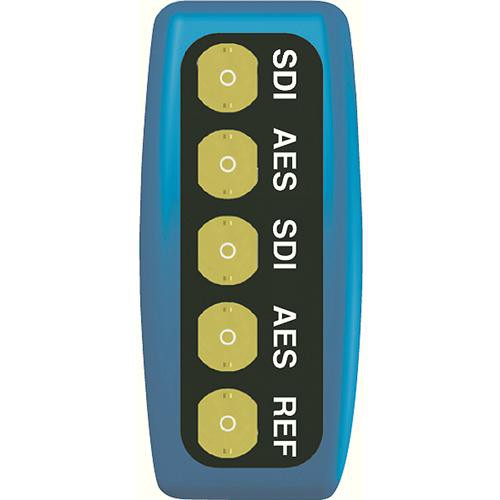

Outputs: 2 x 75 Ohm BNC
Inputs: 2 x 75 Ohm BNC
Genlock: bi/tri/SDI with cross lock
Adjustable: timing 0 to 1 Frame
Text Identification: yes with font, color, point size
Logo Identification: yes
EDH: yes (SD-SDI)

VIDEO TEST SIGNALS
Resolution: 10 bits
Static Test Patterns: 32+ including full frame
User Defined: DPX, YUV, TGA, BMP
Zone Plate: yes

VIDEO INPUTS/OUTPUTS
Eye Bit Rates: 3Gbps,1.485Gbps, 270Mbps
Jitter SMPTE: specification filters
Jitter Thermometers: alignment, timing
Audio
AUDIO
Internal Speaker: 0.5W
Audio DAC: 24 bit stereo
Headphone Socket: 3.5 mm with auto line out
Generator/Monitor: 48kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
16 Channel Embedded Audio: yes
AES Output: 1 x 75 Ohm BNC
AES Input: 1 x 75 Ohm BNC

AUDIO TEST SIGNAL
Fixed Tones: 17
Variable Tones: 1Hz to 24Khz in 1Hz steps
Intermittent Tone: yes
White Noise Generation: yes
Audio Levels Variable: 0 to -100dB in 1dB steps
Audio Phase Invert: yes
Display
Display Resolution: 480 x 272 pixels auto scaling
Display Type: 16:9 24 bit color TFT
Display Size: 95 x 54 mm
Processing: all digital
Power
AC power supply (universal)
3-hour lithium polymer integral battery supply
Dimensions
3.62 x 8.86 x 1.65″ (92 x 225 x 42mm)
Weight
Not specified by manufacturer
Packaging Info
Package Weight
4.85 lb
Box Dimensions (LxWxH)
11.9 x 9 x 4.3″
Weight 2200 g
