Rx500 1U ½ rack HD/SD rasterizer

• 3 in 1 Generator / Analyzer / Monitor
• HD-SDI, SD-SDI Outputs
• HDMI Output
• Up to 4 Simultaneous SDI Channels
• OLED Display
• 2 Integrated Module Slots
• Beeper Loudspeaker
• Internal Temperature Controlled Fan

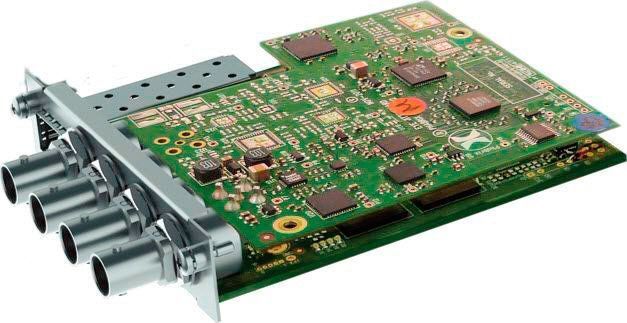

Phabrix PHRXM-AE Dual SDI Input / Single Analyzer with Single Eye/Jitter Input Module for Rx Rasterizer

Phabrix PHRXM-AE Dual SDI Input / Single Analyzer with Single Eye/Jitter Input Module for Rx Rasterizer. Includes PHRXO-EA Advanced Eye Analysis Software Option. The top of the range Rx 2000 offers up to 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring (dual inputs per analyzer), and can also provide signal generation. Up to 16 instruments can be displayed per channel for video analysis and physical layer testing via an external monitor. Monitoring of the instruments and video can also be performed using dual built-in screens and audio speakers. With all these advanced capabilities, Rx 2000 is ideal for broadcast QC, whether it’s in the studio, MCR or live production trucks.The advanced Rx 1000 rasterizer is a compact, 1RU version of the Rx 2000 without the dual built-in monitoring displays or speakers. It provides up to 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring (dual inputs per analyzer), and also provides signal generation. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing via an external monitor.
