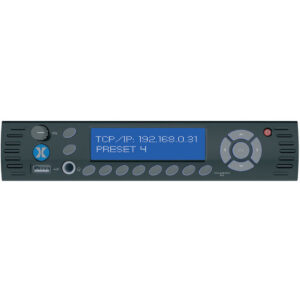

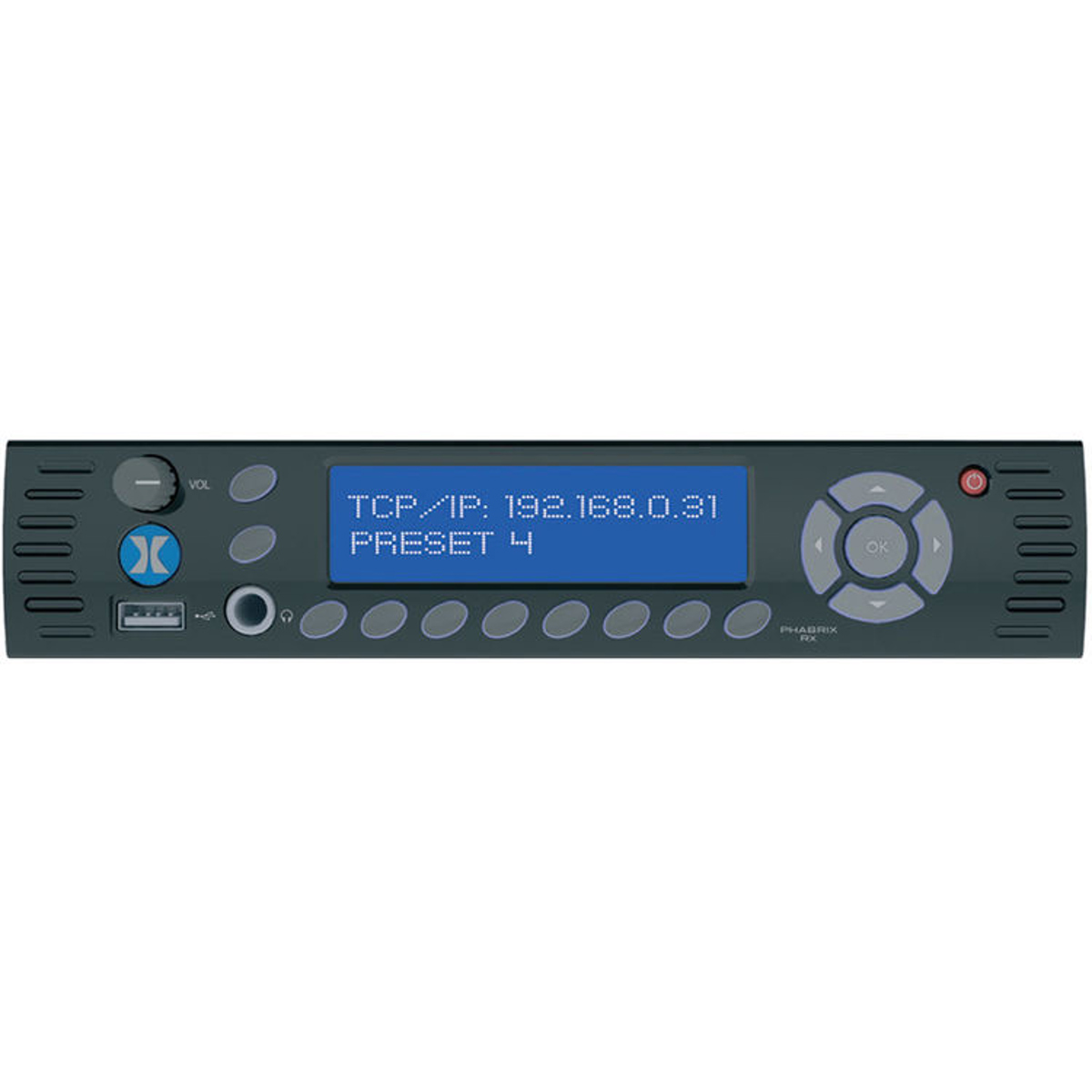

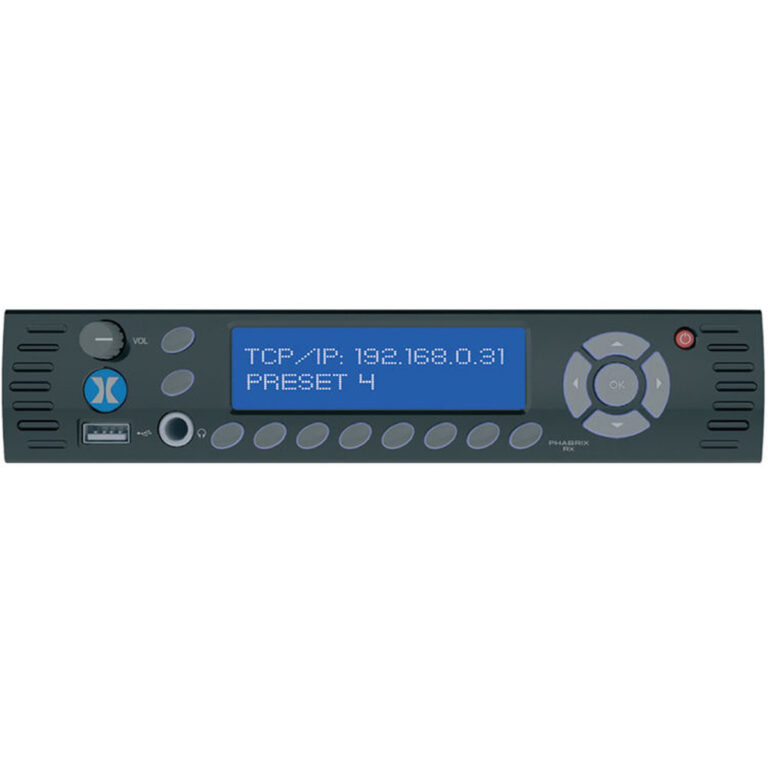

LEADER PHRX500AG PHABRIX Rx500 1U ½ rack HD/SD rasterizer, 1x PHRXM-AG

 7.660,00

+ additional shipping charge

CONTAINS:
1X Rx500 1U ½ rack HD/SD rasterizer
1X Phabrix PHRXM-AG Single SDI Input / Single Analyzer / Single SDI Generator Output Module For Rx Rasterizer

Category:

Rx500 1U ½ rack HD/SD rasterizer

  • 3 in 1 Generator / Analyzer / Monitor
  • HD-SDI, SD-SDI Outputs
  • HDMI Output
  • Up to 4 Simultaneous SDI Channels
  • OLED Display
  • 2 Integrated Module Slots
  • Beeper Loudspeaker
  • Internal Temperature Controlled Fan

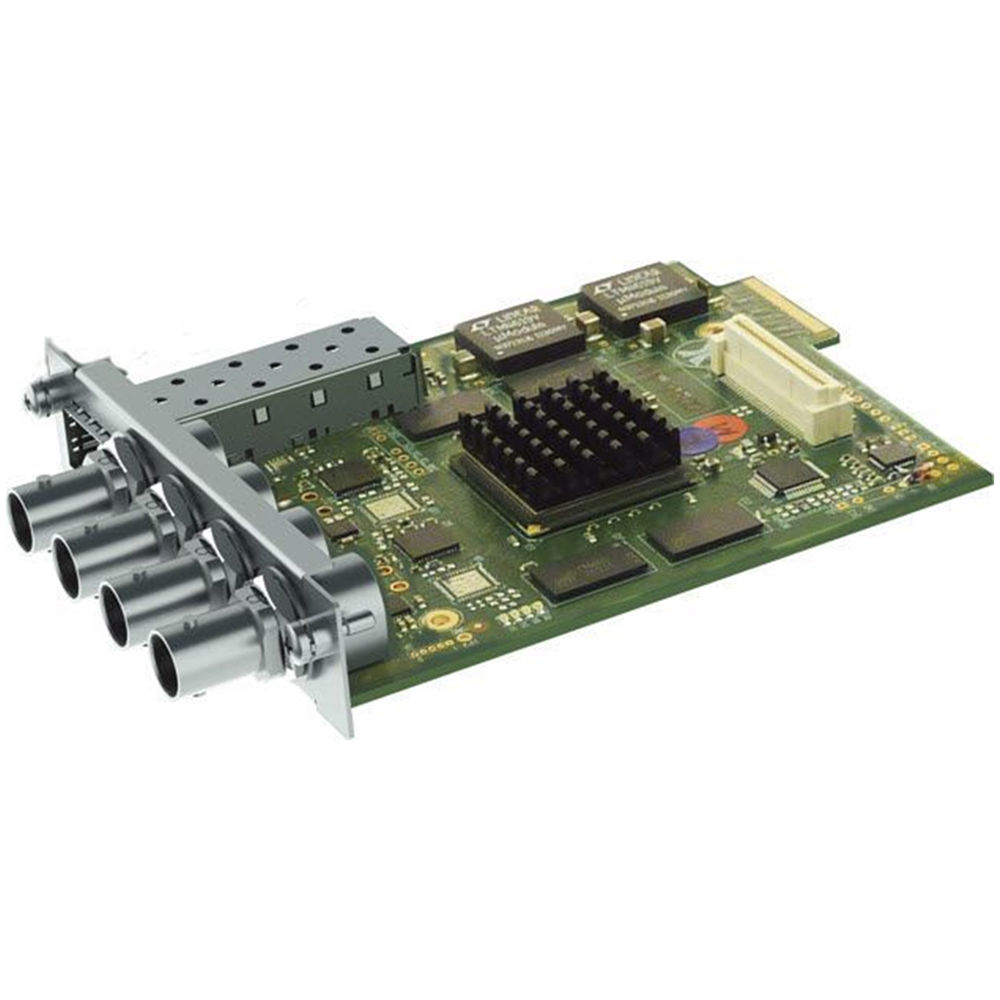

PHABRIX Analyzer & Generator Module for Rx Series T&M Instruments

Key Features
  • HD-SDI, SD-SDI Support
  • Single Analyzer Input
  • Picture Viewer for Confidence
  • Vectorscope for Color Monitoring
  • Waveform Monitor, Level Checking
  • Audio Monitoring & Level Checking
  • 32- & 10-Bit Line-Based Test Patterns
  • Pathological Test Patterns
  • Zone Plate Test Patterns
  • 17 Fixed and Variable Audio Test Tones

PHABRIX PHRXM-AG Overview

The Leader PHABRIX Analyzer & Generator Module for Rx Series T&M Instruments allows a single connected SDI or an optical video signal to be monitored continuously, and allows the generation of a single SDI video test signal. The analyzer functionality allows 2 concurrently connected SD-SDI or HD-SDI inputs to be monitored in the form of a picture, vectorscope, and waveform monitor. 16 channels of embedded audio can also be monitored and the levels can be inspected.

This module provides a single video/audio signal generator that can be set to any one of 32, 10-bit (12-bit with 3G-SDI & Advanced Formats PHRXO-3G; sold seperately) line-based, pathological, or zone plate test signals as well as user-defined test signals. Audio test signals include 17 fixed test tones (100 Hz to 20 kHz), variable test tones (1 Hz to 24 kHz in 1 Hz steps), intermittent tone, or white noise that can be applied in audio levels from 0 to -100 dB in 1 dB steps.

Zone plate
Compatible with the Rx2000, Rx1000, and Rx500 instruments
Intermittent tone and white noise generation
Audio phase invert

PHABRIX PHRXM-AG Specs

Inputs
Analyzer SDI Input
Label: SDI ANA IN
Supported Standards: SD-SDI, HD-SDI
Connector: BNC
Input Return Loss: Better than 15 dB (5 to 1,485 MHz) and 10 dB (1,485 to 2,970 MHz)
Maximum Input Voltage: +/- 2 V
Analyzer Optical Input
Label: SDI ANA OUT for optical video / audio input
Specification: SMPTE 424M, 292M, and 259M
Type: SFP Optical single RX/TX module (option PHRXM-OPTAG sold seperately)
Output
Analyzer SDI Output
Label: SDI ANA out for loop through of SDI ANA in
Connector: BNC
Output Impedance 75Ω terminated
Generator SDI Outputs
Label: SDI GEN OUT for generator output
Supported Standards: SD-SDI or HD-SDI
Connector: 2 x BNC
Level: +/- 400 mV
Generator Optical
Label: OPTICAL GEN for optical video/audio output
Type: SFP Optical single RX/TX module (option PHRXM-OPTAG, sold separately)
Specifications: SMPTE 424M, 292M, and 259M
Test Signals
Video
Resolution: 10 bits
Static Test Patterns: 32+ including full frame
User Defined: DPX, YUV, TGA, and BMP
Audio
Fixed tones: 17
Variable Tones: 1 Hz to 24 kHz in 1 Hz steps
Audio Levels: Variable 0 to -100 dB in 1 dB steps
Compatible With
Rx2000, Rx1000, and Rx500 instruments
