Lilliput 663/O/P2 7″ LCD On-Camera HDMI Monitor
€ 269,00 + VAT
- 7″ 1280 x 800 IPS LCD Display
- 800:1 Contrast Ratio
- HDMI, Component, Composite Inputs
- HDMI Loop Output
- Peaking, False Color, Histogram
- Customizable Front Panel Buttons
- Metal Chassis Sun Hood & Tally Light
- 3 x 1/4″-20 Threaded Mounting Holes
- Sony L & Canon LP-E6 Battery Plates
- V-Mount & Gold Mount Plate Adapter

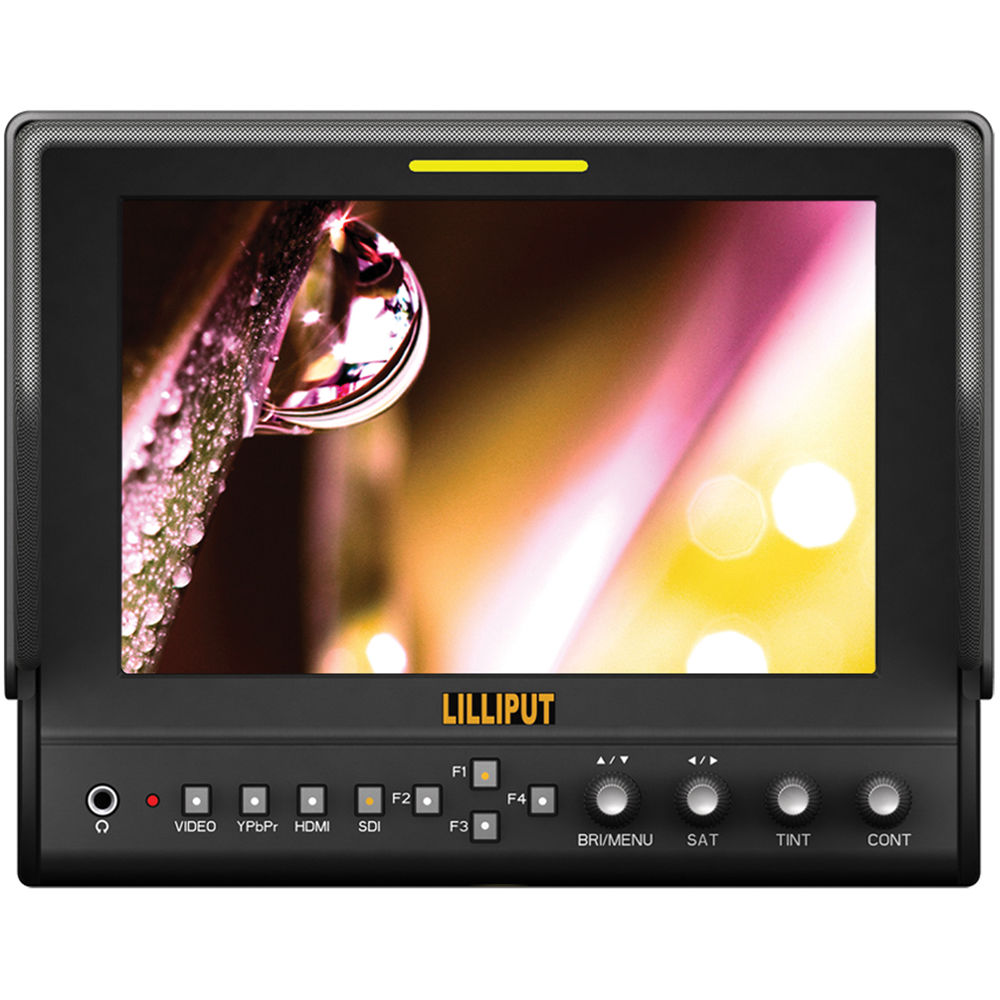

Lilliput’s 663/O/P2 7″ LCD On-Camera HDMI Monitor is an on-camera monitor offering 1280 x 800 resolution with 400 nit brightness and an 800:1 contrast ratio. The monitor allows you to analyze focus, exposure, and other characteristics with False Color, Pixel-to-Pixel, and Histogram. It supports both NTSC and PAL compatible signals with HDMI, Component, and Composite inputs. This monitor also features an HDMI output, allowing you to feed the monitor and send the video signal along an HDMI infrastructure. It also features both a built-in speaker and headphone jack.

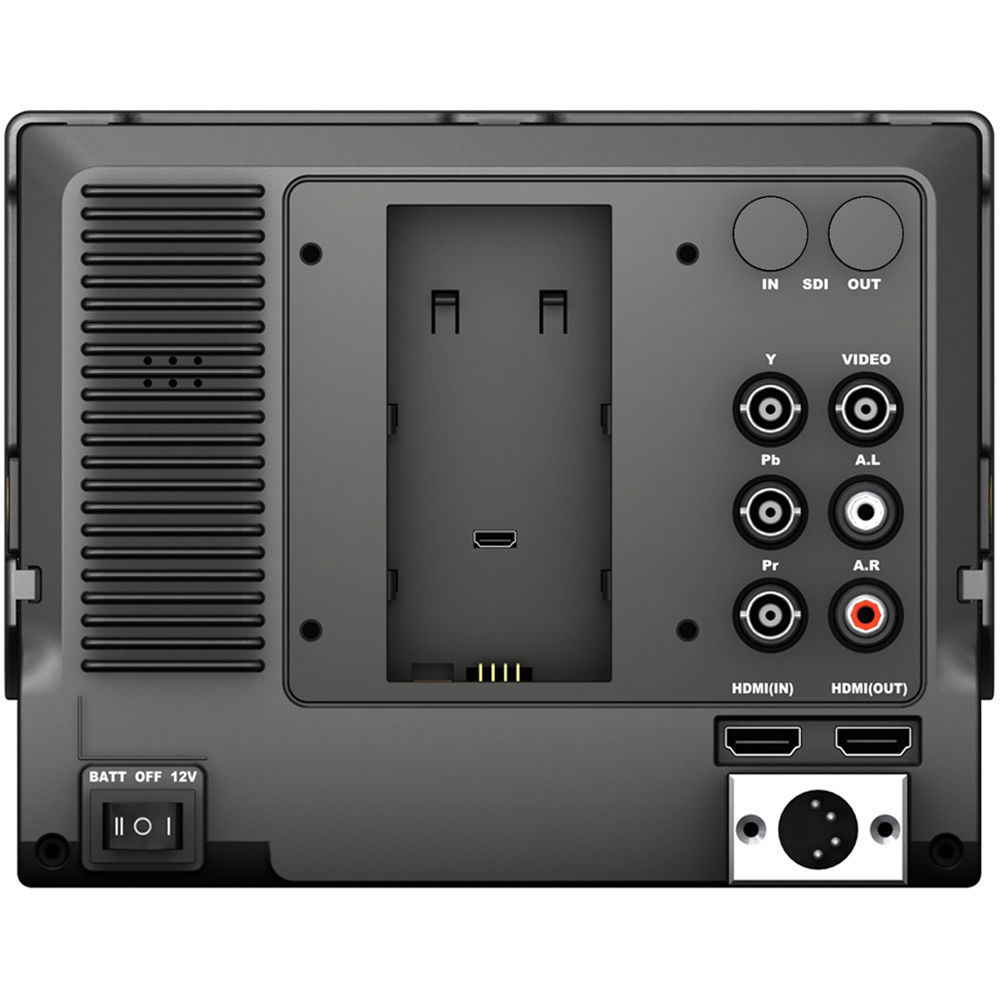

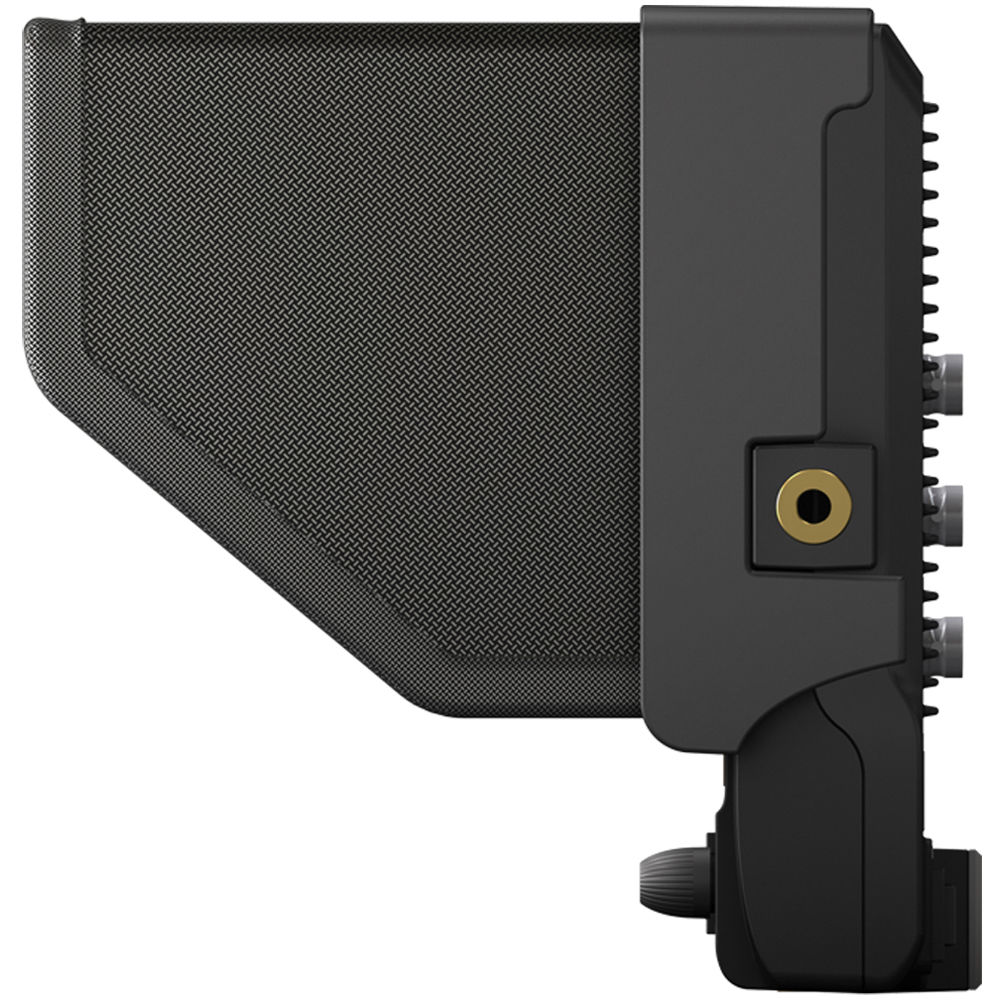

The four front panel buttons and four rotating knobs can be assigned to specific functions that allow you to call up often-used menu functions. You can power the monitor by using the included battery plates or the 4-pin XLR connector. The included 4-pin XLR power cable features a barrel connector and three pigtail cables for connecting to a tally system. The monitor features a tally indicator on the front of the monitor. An assortment of supplied accessories includes a Sony L-type and Canon LP-E6-type battery plates. The monitor incorporates a 1/4″-20 threaded mounting hole on the bottom and on each side, and the included sun hood attaches via hook and loop fastener to a removable sun hood attachment frame. A V-mount and Gold mount plate adapter allows you to mount optional V-mount or Gold mount battery plates.
F1 to F4 Buttons:
- Center Marker
- Check Field
- Color Bar
- Camera (format selection)
- PIP
- Flip
- Zoom
- Pixel-to-Pixel
- Freeze
- Input
- Underscan
- H/V Delay
- Peaking
- False Color
- Exposure
- Histogram
R1 to R4 Knobs
- Contrast
- Brightness
- Saturation
- Tint
- Volume
- Sharpness
- Back Light
- Histogram
- 1:1 Pixel-to-Pixel
- Picture-in-Picture (for when the HDMI and Composite inputs are used simultaneously)
- H/V Delay
- Underscan
- Center Marker
- Zoom (up to 8x)
- False Color
- Peaking
- Color Bar
- Image Flip
- Freeze Input
- Adjustable color temperature
| Weight | 2779 g |
|---|
