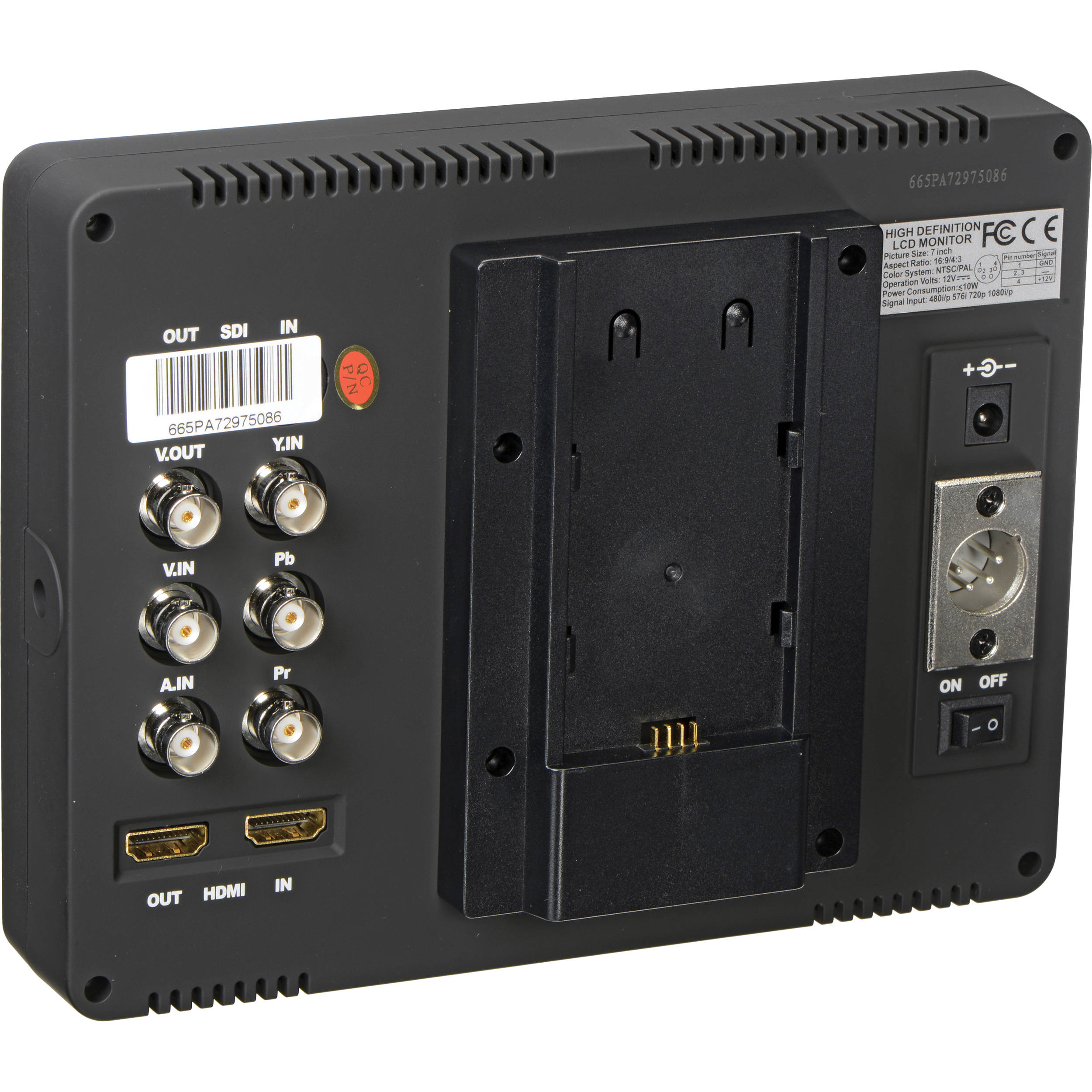

Lilliput’s 665/O/P Peaking Focus Video Monitor is an on-camera monitor offering 1024 x 600 resolution with 250 nit brightness and an 800:1 contrast ratio. The monitor allows you to analyze focus, exposure, and other characteristics with False Color, Pixel-to-Pixel, and Histogram. It supports both NTSC and PAL compatible signals with HDMI, Component, and Composite inputs. This monitor also features an HDMI output, allowing you to feed the monitor and send the video signal along an HDMI infrastructure. It also features both a built-in speaker and headphone jack.

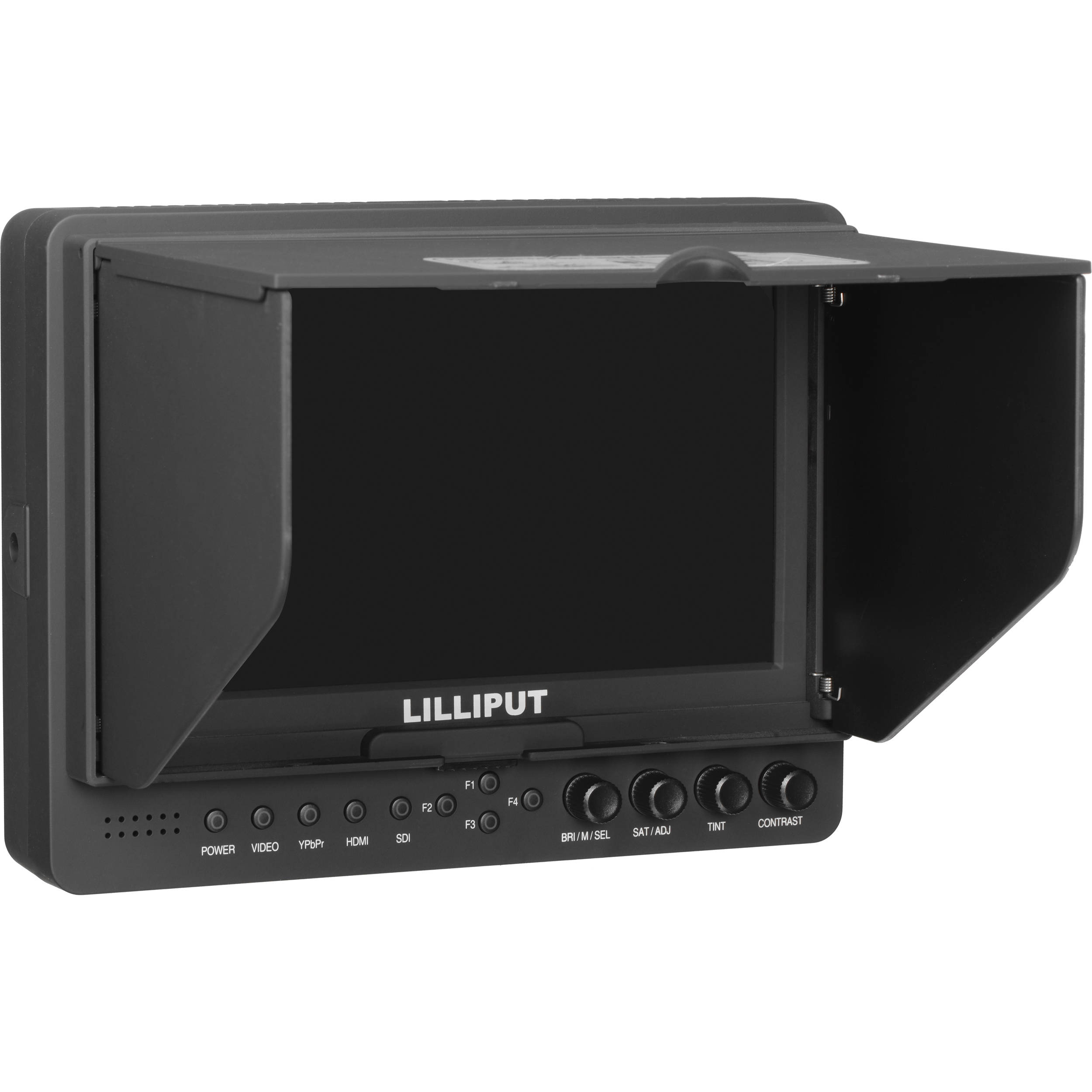

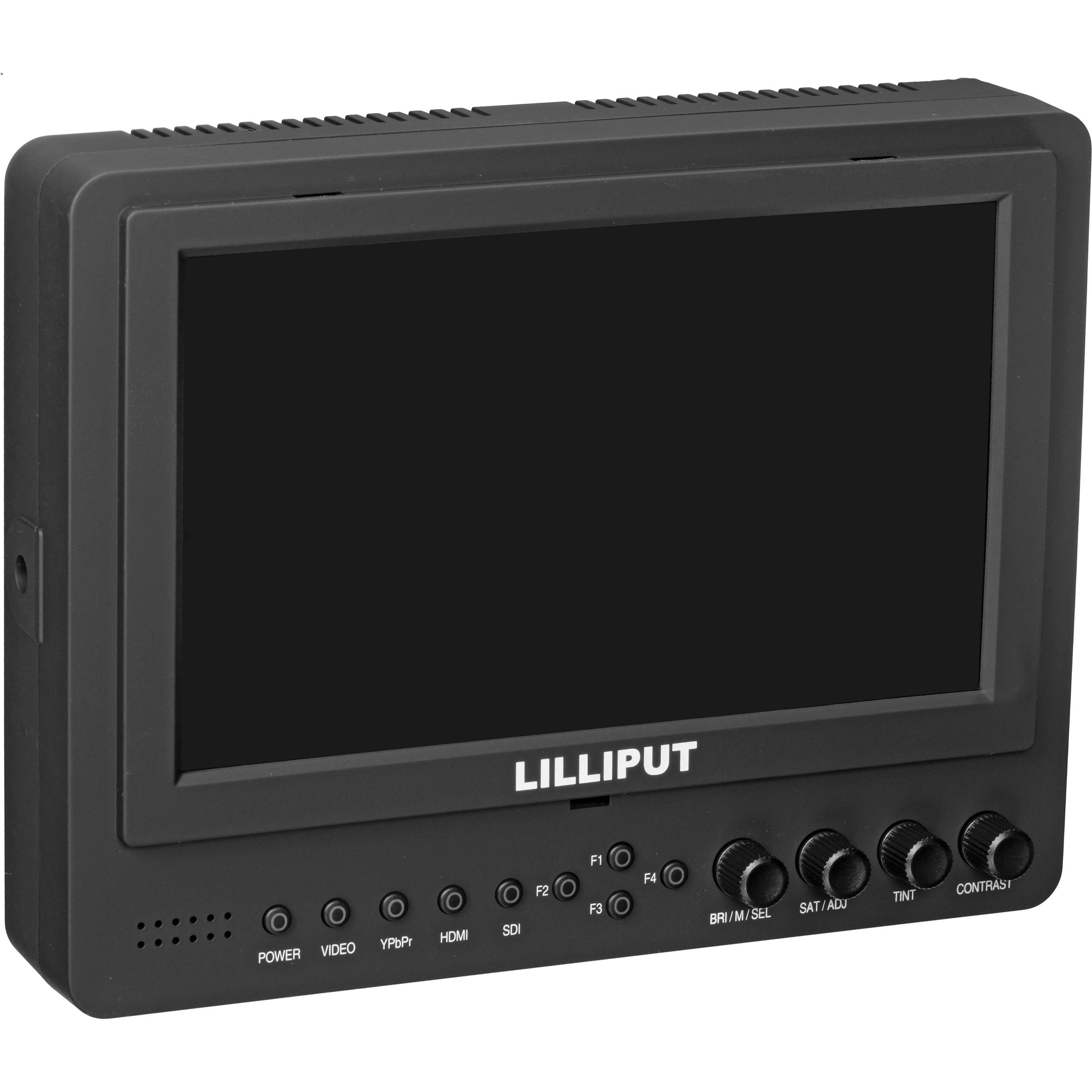

On the face of the monitor are a power button, four input select buttons, four front panel buttons, and four rotating knobs. The four input select buttons are from left to right Composite, Component, HDMI, and SDI; however, the SDI button is not active as the monitor does not feature an SDI input. The four front panel buttons and four rotating knobs can be assigned to specific functions that allow you to call up often-used menu functions. You can power the monitor by using the included battery plates or an optional 4-pin XLR connector. An assortment of supplied accessories includes a Sony L-Series type and a Canon LP-E6 type battery plate, a removable sun hood, a V-mount and Gold-mount plate bracket that allows you to mount optional V-mount or Gold-mount battery plates.
F1 to F4 Buttons:
- Center Marker
- Check Field
- Color Bar
- Camera (format selection)
- PIP
- Flip
- Zoom
- Pixel-to-Pixel
- Freeze
- Input
- Underscan
- H/V Delay
- Peaking
- False Color
- Exposure
- Histogram
R1 to R4 Knobs
- Contrast
- Brightness
- Saturation
- Tint
- Volume
- Sharpness
- Back Light
- Histogram
- 1:1 Pixel-to-Pixel
- Picture-in-Picture (for when the HDMI and Composite inputs are used simultaneously)
- H/V Delay
- Underscan
- Center Marker
- Zoom (up to 8x)
- False Color
- Peaking
- Color Bar
- Image Flip
- Freeze Input
- Adjustable color temperature
