| Wide Viewing Angles : The 869GL is Lilliput’s only 8″ monitor with a widescreen 16:9 aspect ratio making ideal for use in situations where space is tight but a larger screen is still needed, points of sale (for example). |
| Range of Inputs : With HDMI/DVI, VGA and composite inputs, the 869GL-80NP/C/T will be compatible with multiple sources, for example computer, Blu-ray player, CCTV camera or DLSR camera. |

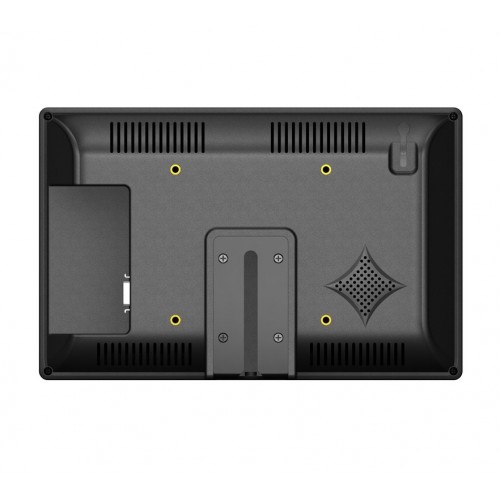

| Mounting Options : With VESA 75, ¼ inch BSW thread and vertical slot mount options, there is a solution for every application. This makes the 869GL very versatile and applicable for most situations |
| Monitor Specification | |
| Screen Size (diagonal) | 8 inch |
| Aspect Ratio | 16:9 |
| Native Resolution | 800×480 (native) |
| Maximum Resolution | 1920×1080 (maximum) |
| Pixel Pitch (mm) | 0.0635×0.190 |
| Scan Frequency (Hz) | 60-72 |
| Response Time (ms) | 15 |
| Viewing Angle (degrees) | 130º x, 120º y |
| Brightness Ratio (cd/m2) | 450 |
| Contrast Ratio | 300:1 |
| Backlight | LED |
| Video Inputs | HDMI, DVI, VGA, composite |
| Audio Outputs | <1W Internal Speaker |
| Touchscreen Technology | None |
| Input Power | 12V DC |
| Mounting Options | VESA 75, ¼ inch BSW thread, vertical slot mount mechanism |
| Contents Of Box | |
| Product | 1x 869GL-70NP/C |
| Connection Cables | 1x HDMI cable, 1x Composite break-out cable, 1x VGA break-out cable |
| Power Adaptor | 1x 3-pin DC 12V plug, 1x in-car cigarette lighter DC 12V adapter |
| Mounts and stands | 1x Adhesive Lilliput stand |
| Additional accessories | 1x Full-function infrared remote control with battery, 1x stylus |
| Dimensions | |
| Height (mm) | 136 |
| Width (mm) | 211 |
| Depth (mm) | 32 |
| Weight (g) | 560 |
