Lilliput A13 13.3″ 4K HDMI/3G-SDI OLED Broadcast Monitor

€ 699,00

+ additional shipping charge
  • 13.3″ 3840 x 2160 OLED Monitor
  • Supports up to UHD 4K60 Input
  • HDMI, 3G-SDI, DisplayPort Input
  • 100,000:1 Contrast Ratio
  • Rec.709/DCI-P3 Color Space, Calibration
  • 170° H/V Viewing Angle
  • 400 cd/m² Brightness
Category:

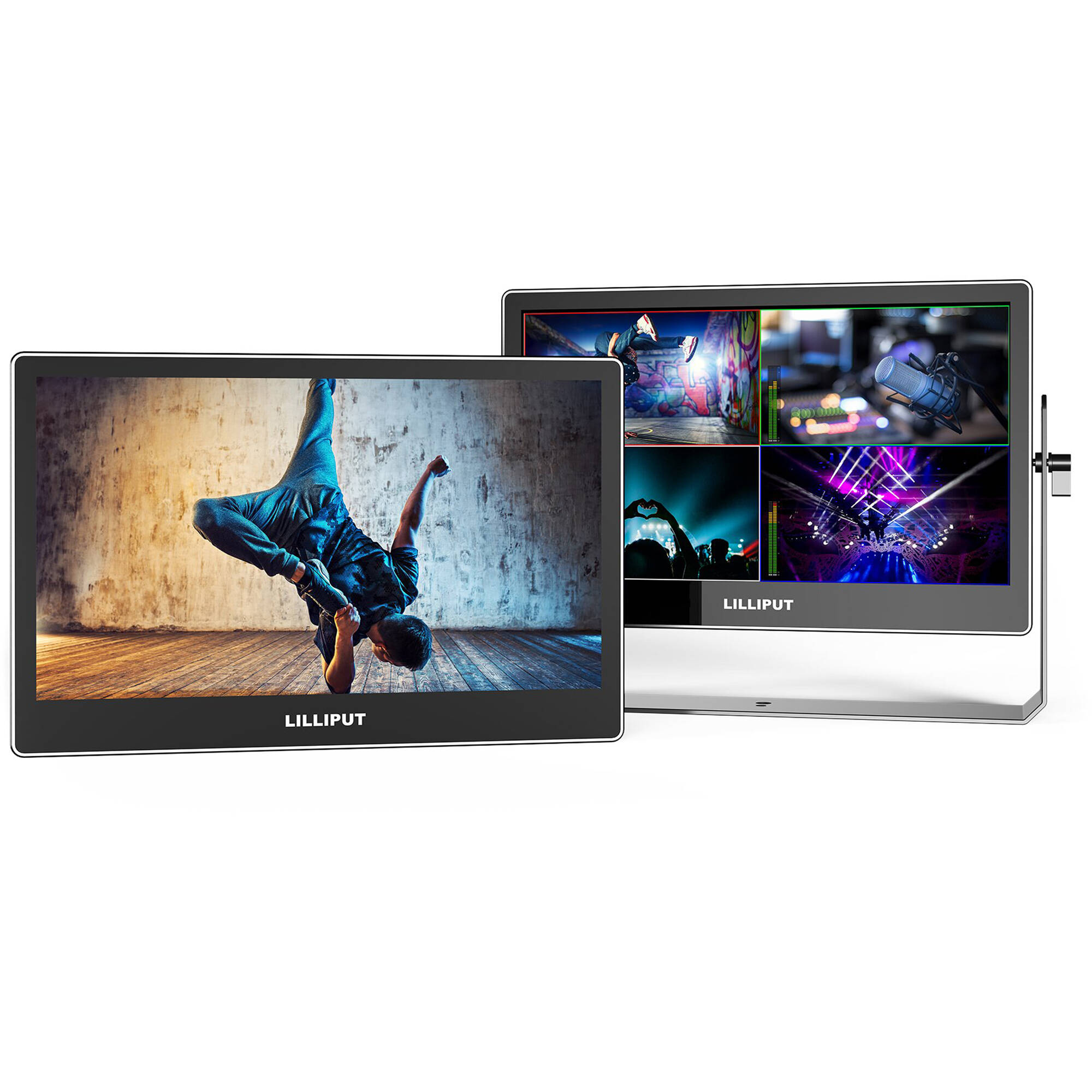

The A13 13.3″ 4K HDMI/3G-SDI OLED Broadcast Monitor from Lilliput is a 13.3″ OLED broadcast studio with a native resolution of 3840 x 2160. It can support up to UHD 4K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a massive 100,000:1 contrast ratio, a viewing angle of 170°, and 400 cd/m² brightness.

The A13 features four HDMI 2.0 inputs, a 3G-SDI input, a DisplayPort input, and a 3G-SDI loop-through output. The monitor supports HDR Rec.709 and DCI-P3 color spaces and accurate color calibration. Other features include quad-split multiview, PbP, PiP, stereo speakers, and a headphone output.

A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment. You may also power the unit with an L-series battery using the included VESA battery plate, or you can utilize a separately available V-mount plate.

Multicamera Setup
The monitor features a multiview function that allows you to switch between PbP, PiP, and quad-split multiview modes.
Supported HDR
It supports 100% Rec. 709 and DCI-P3 color spaces.
Accurate Color Calibration
The monitor supports color calibration to ensure your monitor is displaying your image accurately.
Multiple Interfaces

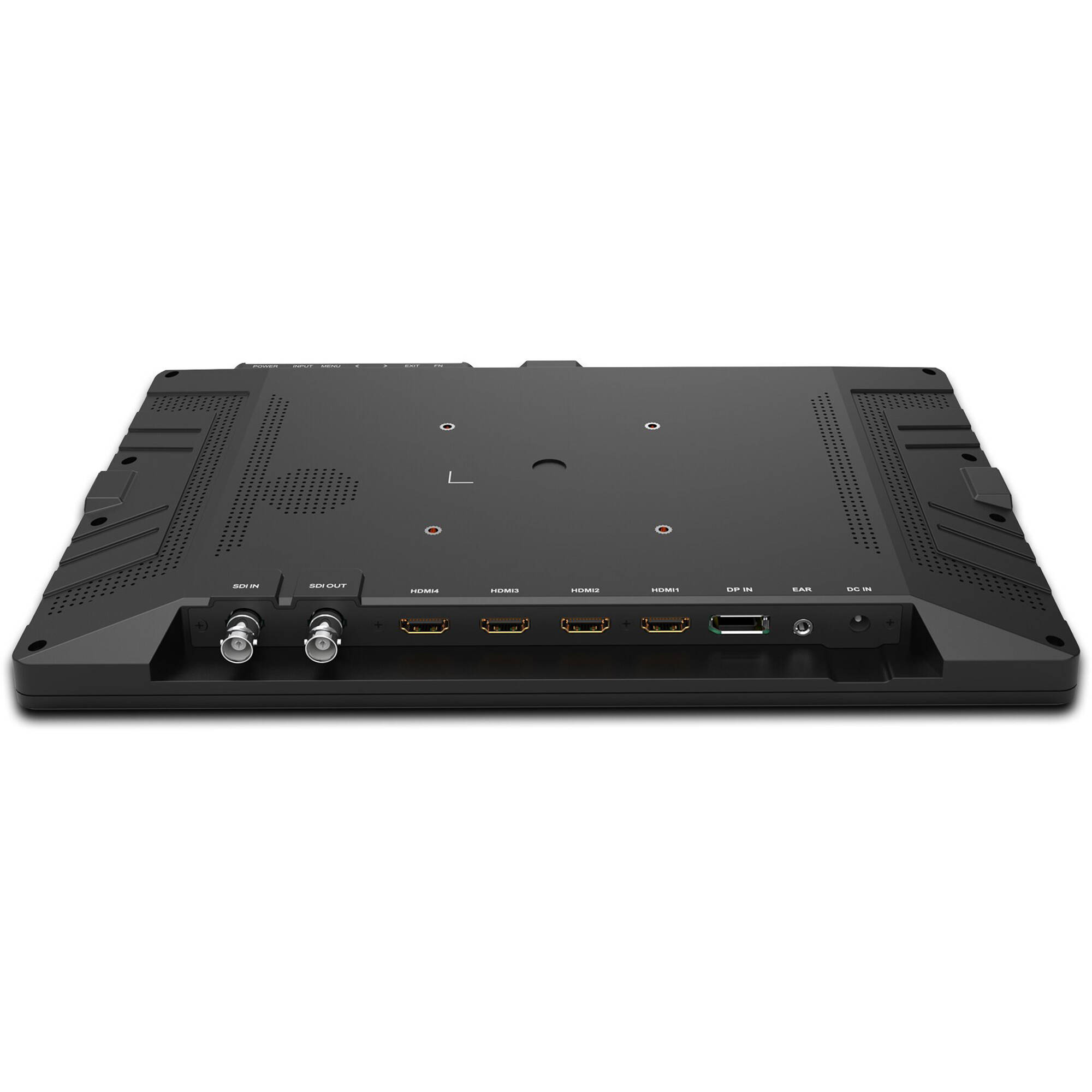

The monitor features a 3G-SDI input that supports up to 1080p60, four HDMI inputs that support up to UHD 4K60, and a DisplayPort input that supports up to UHD 4K60. There is also a 3G-SDI loop output that can pass a 1080p60 signal onto another monitor or switcher.
Included Accessories

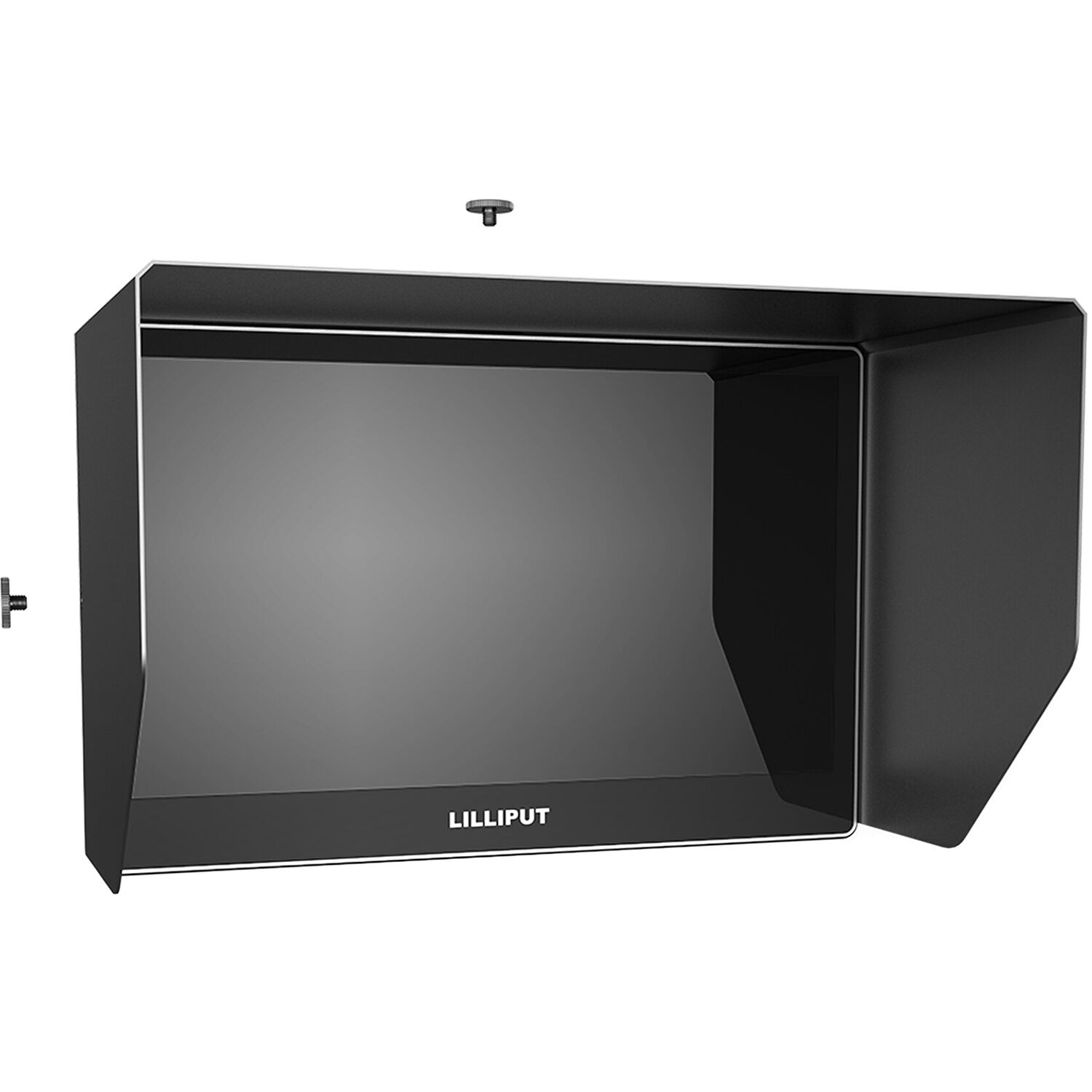

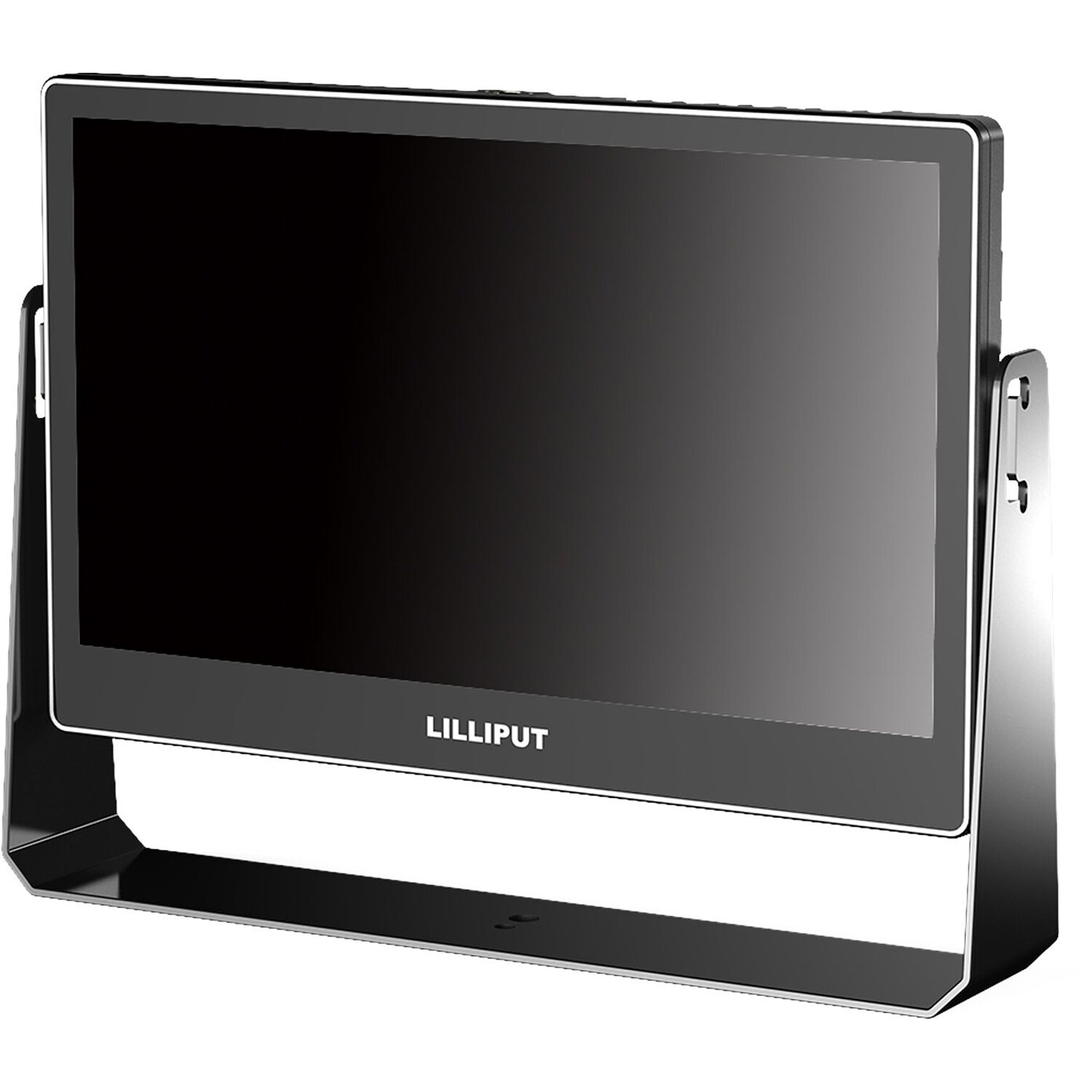

The monitor includes a gimbal bracket for desktop use and tilting, a sun hood, a 12V power adapter, an HDMI cable, and a VESA L-series battery plate. An optional V-mount battery plate is available separately.
Key Specs
Display Size
13.3″ / 33.8 cm
Native Resolution
3840 x 2160
Touchscreen
No
HDR Support
Yes,
Video I/O
1x BNC (3G-SDI) Input
1x BNC (12G-SDI) Loop Output
1x HDMI 2.0 Input
3x HDMI 1.4b Input
1x DisplayPort (Unspecified Signal) Input
Media/Memory Card Slot
No
Video Format
DisplayPort/HDMI
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/50
720p: 60/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/25/24
1080i: 60/50
720p: 60/59.94/50
Built-In Battery
Yes
Battery Type
1x L-Series (Interchangeable Mount)
Power Consumption
20 W
Mounting
3x 1/4″-20 Female
Display
Panel Type
OLED
Display Size
13.3″ / 33.8 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Viewing Angle
Horizontal: 170°
Vertical: 170°
Touchscreen
No
Maximum Brightness
400 nits / cd/m2
Contrast Ratio
100,000:1
HDR Support
Yes,
Pixels Per Inch (ppi)
331 ppi
Color Gamut
100% Rec. 709
100% DCI-P3
Inputs / Outputs
Video I/O
1x BNC (3G-SDI) Input
1x BNC (12G-SDI) Loop Output
1x HDMI 2.0 Input
3x HDMI 1.4b Input
1x DisplayPort (Unspecified Signal) Input
Embedded Audio
SDI
HDMI
Audio I/O
1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
2
Power I/O
1x Proprietary (12 VDC) Input
Other I/O
No
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
DisplayPort/HDMI
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/50
720p: 60/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/25/24
1080i: 60/50
720p: 60/59.94/50
Gamma Curve
ARRI Log C, Canon Log, JVC J-Log, Nikon N-Log, Sony S-Log 2, Sony S-Log 3
Power
Input Power
7 to 24 VDC
Built-In Battery
Yes
Battery Type
1x L-Series (Interchangeable Mount)
Power Consumption
20 W
Mounting
Mounting
3x 1/4″-20 Female
Environmental
Environmental Protection
No
Certifications
No
Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Dimensions
12.6 x 8.2 x 1″ / 320 x 208 x 26.5 mm
Weight
2.54 lb / 1.15 kg
Packaging Info
Package Weight
5.865 lb/ 2661 g
Box Dimensions (LxWxH)
16.3 x 10.5 x 3.1″
Weight 2661 g
