Lilliput BM150‐12G 15.6″ 12G-SDI 4K IPS Monitor

€ 1.299,00

+ additional shipping charge
  • 15.6″ 4K Display
  • 330 cd/m² Brightness
  • 176 x 176° Viewing Angle
  • 12G-SDI, 3G-SDI, HDMI & Tally Inputs
Category:

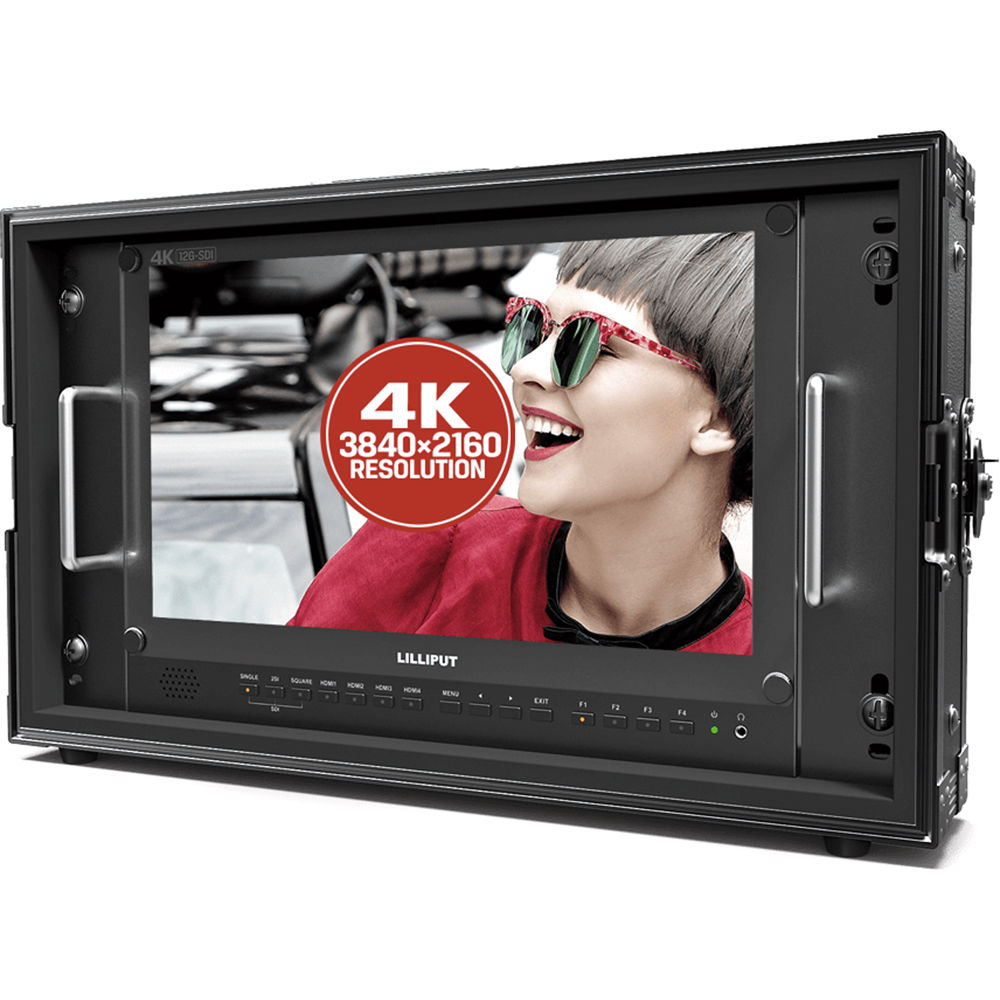

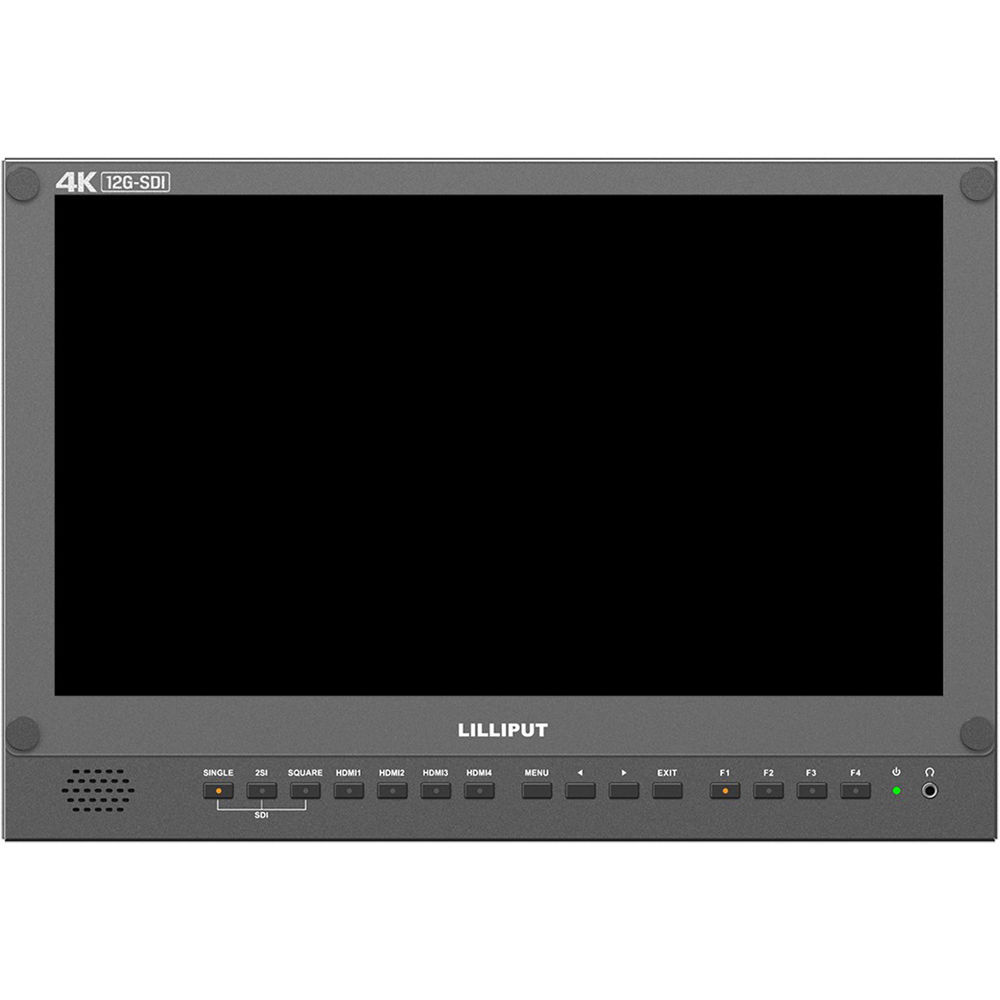

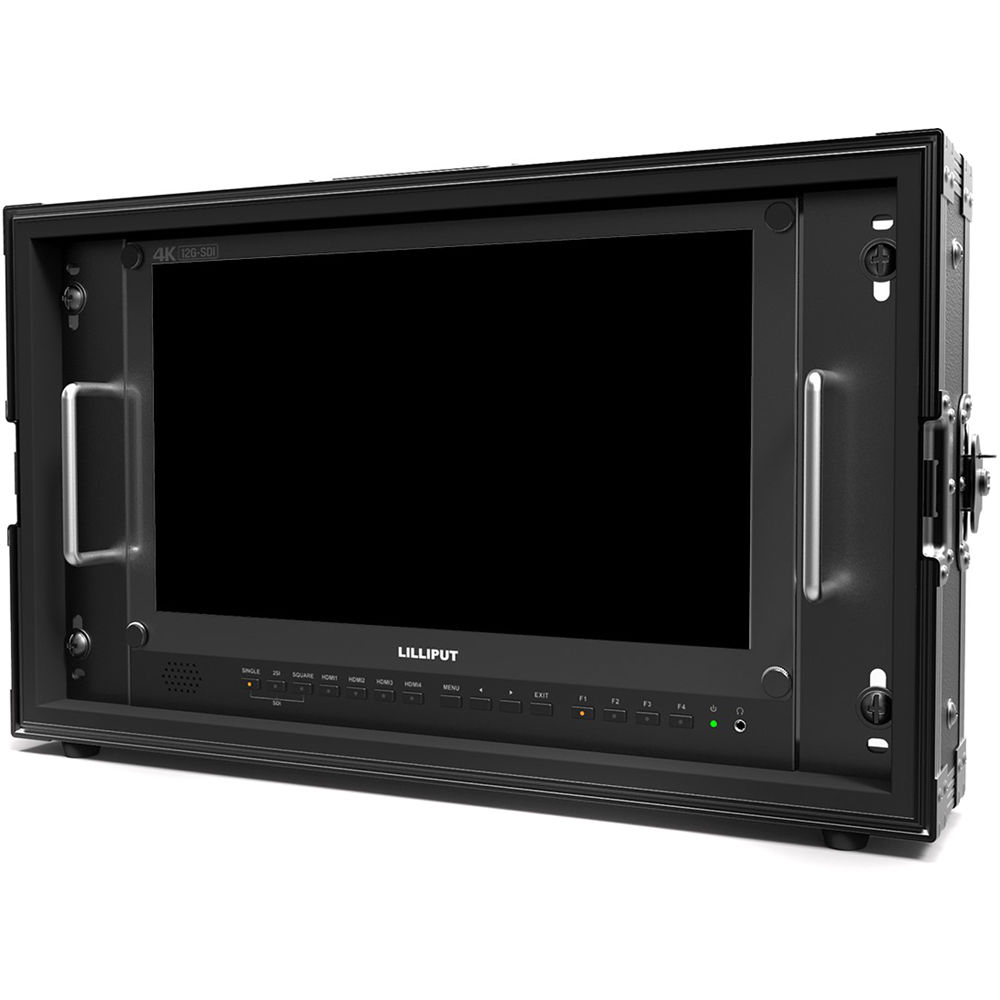

The 15.6″ 12G-SDI 4K IPS Monitor from Lilliput provides you with UHD 4K 3840 x 2160 resolution and a 330 cd/m2 brightness, along with a 1000:1 contrast ratio and wide 176 x 176° viewing angle. The integrated V-mount battery plate allows for longer-lasting runtimes. The monitor fits inside an included carry case for easy transportation and location work. At 6 RU tall, you can also mount it on a rack for a more permanent installation.

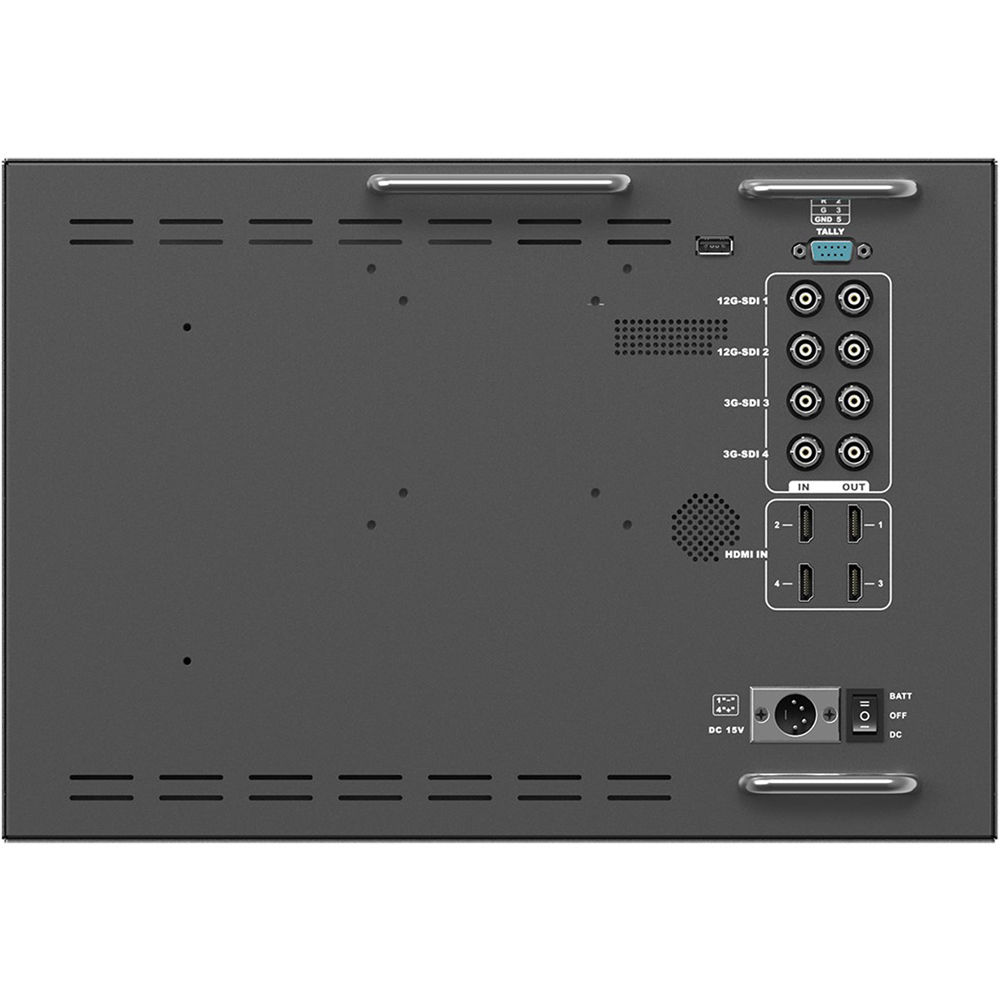

The monitor features two each 12G-SDI and 3G-SDI inputs with loop-through outputs, an HDMI 2.0 and three HDMI 1.4 inputs, and a tally input. It also features 12G-SDI single-link, dual-link, and 3G-SDI quad-link. The monitor supports quad-view, false color, peaking, check field, image flip, overscan, underscan, image freeze, a 16:9 aspect ratio, center marker, screen marker, and color temperature functions.

12G-SDI Dual/Quad Link
Complies with ST425-3 and ST425-5 standards. Allows for Square Division and Sample Interleave at 4K mode.
12G-SDI Single Link
Complies with ST2081-10 and ST2082-10 standards.
4K HDMI Signal Inputs
Compatible with HDMI 2.0 and HDMI 1.4 signals.
Auxiliary Functions
Provides auxiliary functions including:

  • Quad-view
  • False color
  • Peaking
  • Check field
  • Image flip
  • Overscan
  • Underscan
  • Image freeze
  • Center marker
  • Screen marker
  • Color temperature
Key Specs
Display Size
15.6″ / 39.6 cm
Native Resolution
3840 x 2160
Touchscreen
No
Video I/O
2x BNC (12G-SDI) Input
2x BNC (12G-SDI) Loop Output
2x BNC (3G-SDI) Input
2x BNC (3G-SDI) Loop Output
3x HDMI 1.4 Input
1x HDMI 2.0 Input
Media/Memory Card Slot
No
Video Format
HDMIRGB
DCI 2K: 60/59.94/50
UHD 4K: 60/50/30/25/24
DCI 4K: 60/50/24
SDI (10-Bit 4:4:4/4:2:2)
DCI 2K: 30/29.97/25/24/23.98
SDI (10/12-Bit 4:4:4 RGB)
DCI 4K: 30/29.97/25/24/23.98
SDI (10-Bit 4:2:2)
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
Battery Type
1x V-Mount
Power Consumption
34 W
Display
Panel Type
IPS-Type LCD
Display Size
15.6″ / 39.6 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Viewing Angle
Horizontal: 176°
Vertical: 176°
Touchscreen
No
Maximum Brightness
330 nits / cd/m2
Contrast Ratio
1000:1
Dot Pitch
0.0899 x 0.0899 mm
Pixels Per Inch (ppi)
282 ppi
Image Controls
Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Image Flip, Picture-in-Picture, Underscan
Video I/O
2x BNC (12G-SDI) Input
2x BNC (12G-SDI) Loop Output
2x BNC (3G-SDI) Input
2x BNC (3G-SDI) Loop Output
3x HDMI 1.4 Input
1x HDMI 2.0 Input
Audio I/O
1x 1/8″ / 3.5 mm Headphone Input
Built-In Speaker
1
Power I/O
1x XLR 4-Pin (15 VDC) Input
Other I/O
1x DE-15/DB-15 (Tally)
Media/Memory Card Slot
No
Format Support
Video Format
HDMIRGB
DCI 2K: 60/59.94/50
UHD 4K: 60/50/30/25/24
DCI 4K: 60/50/24
SDI (10-Bit 4:4:4/4:2:2)
DCI 2K: 30/29.97/25/24/23.98
SDI (10/12-Bit 4:4:4 RGB)
DCI 4K: 30/29.97/25/24/23.98
SDI (10-Bit 4:2:2)
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
Power
DC Input Power
12 to 24 VDC
Battery Type
1x V-Mount
Operating Current
2.8 A
Power Consumption
34 W
Mounting
Rack Form Factor
6 RU
Environmental
Operating Temperature
12 to 92°F / -20 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
General
Dimensions
15.3 x 10.5 x 1.5″ / 38.9 x 26.7 x 3.8 cm
20.6 x 12 x 6.7″ / 52.3 x 30.5 x 17 cm (Including Case)
Weight
7.50 lb / 3.4 kg
26.46 lb / 12 kg, Including Case
Packaging Info
Package Weight
26.955 lb / 12227 g
Box Dimensions (LxWxH)
23.5 x 15.6 x 11.7″
Weight 12227 g
