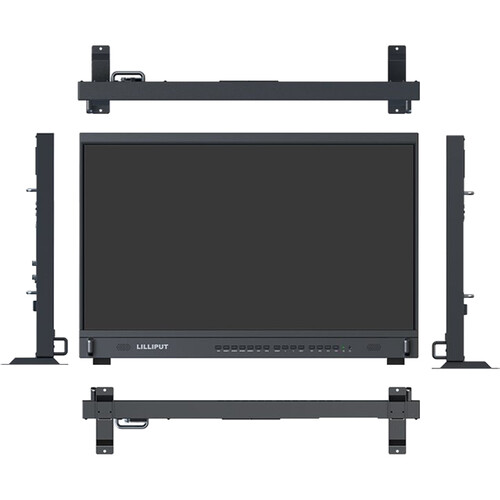

Lilliput BM310-4KS 31.5″ 4K HDMI Carry-On Broadcast Monitor

€ 799,00

+ additional shipping charge
  • 31.5″ 3840 x 2160 10-Bit Display
  • HDMI, SDI, DVI, and VGA Inputs
  • 178° H/V Viewing Angle
  • Built-In Monitoring Tools
  • On-Screen Markers and Focus Peaking
  • USB Input for 3D LUT Support
  • CNC Aluminum Construction
Category:

Whether in the confines of a broadcast studio or on location, when it comes to production monitors, the BM310-4KS 31.5″ 4K HDMI Carry-On Broadcast Monitor with Gold mount plate from Lilliput is the ideal workhorse model to get the job done. Constructed with CNC aluminum and featuring a 31.5″ 3840 x 2160 10-Bit display, the BM310-4KS has a multitude of inputs, including HDMI, SDI, DVI, and VGA, which can be viewed simultaneously by virtue of the display’s quad-view function.

The 178° horizontal and vertical viewing angle is complemented by a series of built-in monitoring tools that include on-screen markers, focus peaking, false color, check field, histogram, and more. Load 3D LUTs via the unit’s USB Type-A connector on the rear of the monitor and activate HDR for a greater dynamic range of luminosity and overall picture quality. Power the BM310-4KS via the included power adapter when you have access to a wall outlet or battery power when working out in the field via the included Gold mount battery plate.

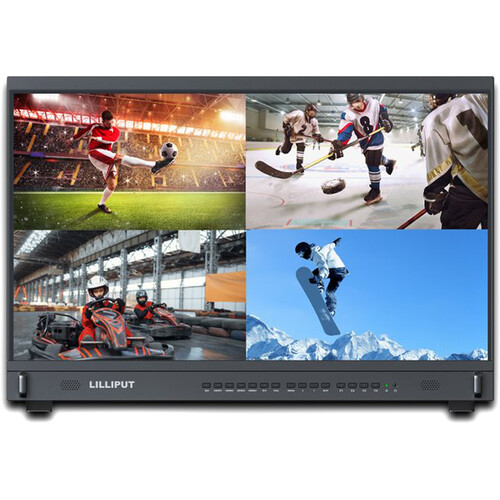

Multiview Display
Supports quad views from different input signals simultaneously, such as SDI, HDMI, DVI, and VGA
97% DCI-P3 Color Space
Options for color space include native, Rec.709, DCI-P3, and three user-defined selections
Wide Color Gamut
Allows you to make precise color reproduction of Rec.709 color space with built-in 3D LUT featuring three user logs
Accurate Color Calibration
Color calibration supports the PRO/LTE version of ClourSpace CMS by Light Illusion for accurate reproduction of the image color space
Camera Auxiliary Functions
  • Peaking
  • False color
  • Level meter
  • Exposure
  • Check field
  • Image flip
  • Underscan
  • Image freeze
  • Histogram
  • Aspect ratio selection
  • Screen markers
  • Color temperature adjustment
Key Specs
Display Size
31.5″ / 80.0 cm
Native Resolution
3840 x 2160
Touchscreen
No
HDR Support
Yes,
Video I/O
2x HDMI 2.0 Input
2x HDMI 1.4 Input
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output
1x DVI-I Dual-Link Input
1x VGA Input
Media/Memory Card Slot
No
Battery Type
1x Gold Mount
Power Consumption
67 W
Display
Display Size
31.5″ / 80.0 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
No
Maximum Brightness
350 nits / cd/m2
Contrast Ratio
1300:1
Color Support
1.07 Billion Colors (10-Bit)
HDR Support
Yes,
Pixels Per Inch (ppi)
140 ppi
Image Controls
Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Image Flip, R/G/B/Chroma Only, Screen Markers, Screen Split – Quarter, Underscan

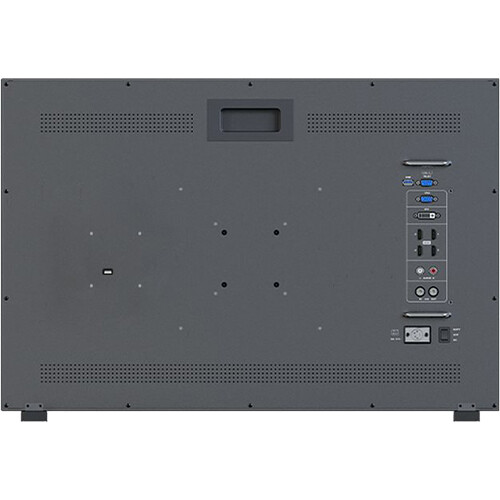

Inputs / Outputs
Video I/O
2x HDMI 2.0 Input
2x HDMI 1.4 Input
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output
1x DVI-I Dual-Link Input
1x VGA Input
Audio I/O
1x 2RCA Line Input
1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
Stereo
Power I/O
1x XLR 4-Pin Input
Other I/O
1x DE-9/DB-9 (Tally)
Media/Memory Card Slot
No
Wi-Fi
Yes
Bluetooth
Yes
Mobile App Compatible
No
Format Support
Gamma Curve
DCI-P3, Rec709
Power
Input Power
12 to 24 VDC
Battery Type
1x Gold Mount
Power Consumption
67 W
Environmental
Operating Temperature
22 to 82°F / -10 to 50°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Material of Construction
Aluminum, Metal
Dimensions
28.3 x 18.8 x 1.5″ / 71.8 x 47.8 x 3.8 cm
Weight
29.3 lb / 13.3 kg
Packaging Info
Package Weight
35.49 lb /  16097 g
Box Dimensions (LxWxH)
32 x 24.3 x 8″
Weight 16097 g
