Lilliput FA1013/S 10.1″ Field Monitor with HDMI & 3G-SDI Inputs

€ 339,00

+ additional shipping charge
  • 10.1″ 1024 x 600 TFT LCD
  • Supports NTSC/PAL & HD
  • Supports Frame Rates from 23.98 to 60p
  • 70/70° L/R, 50/60° Top/Bottom
  • 6 Front Panel Buttons
  • Display Mode Selection
  • 12 VDC Power
  • Remote Control and Shoe Mount Included
Category:

This FA1013/S 10.1″ Field Monitor with HDMI & 3G-SDI Inputs from LILLIPUT is a desktop field monitor that supports 1920 x 1080p, NTSC, and PAL video signals. It features a native resolution of 1024 x 600 and scales your video signal to display on its screen. The monitor supports Full HD video at 60p, and will also display footage shot at 23.98 (23.976) fps, making it suitable for use with any camera that outputs HD video at 23.98 over HDMI or SDI. Featuring an HDMI input and SDI in and out, the monitor can easily fit into most workflows.

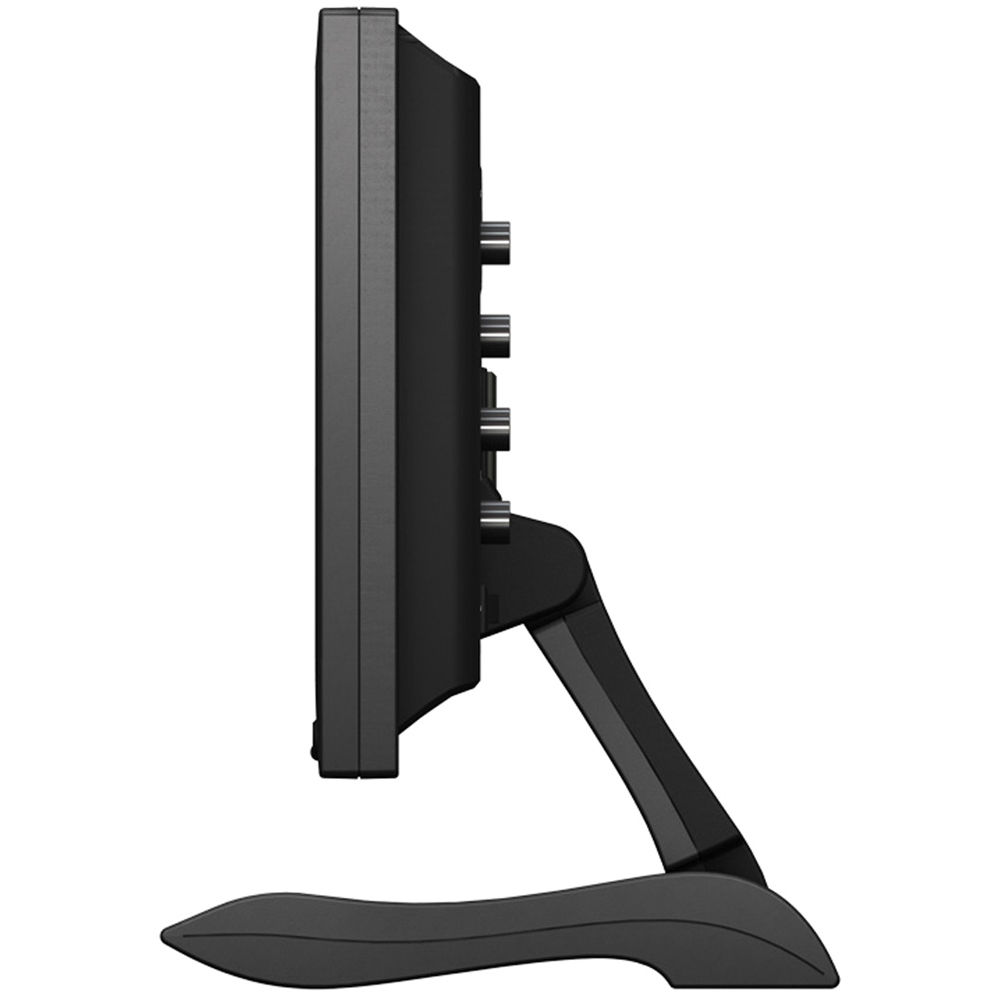

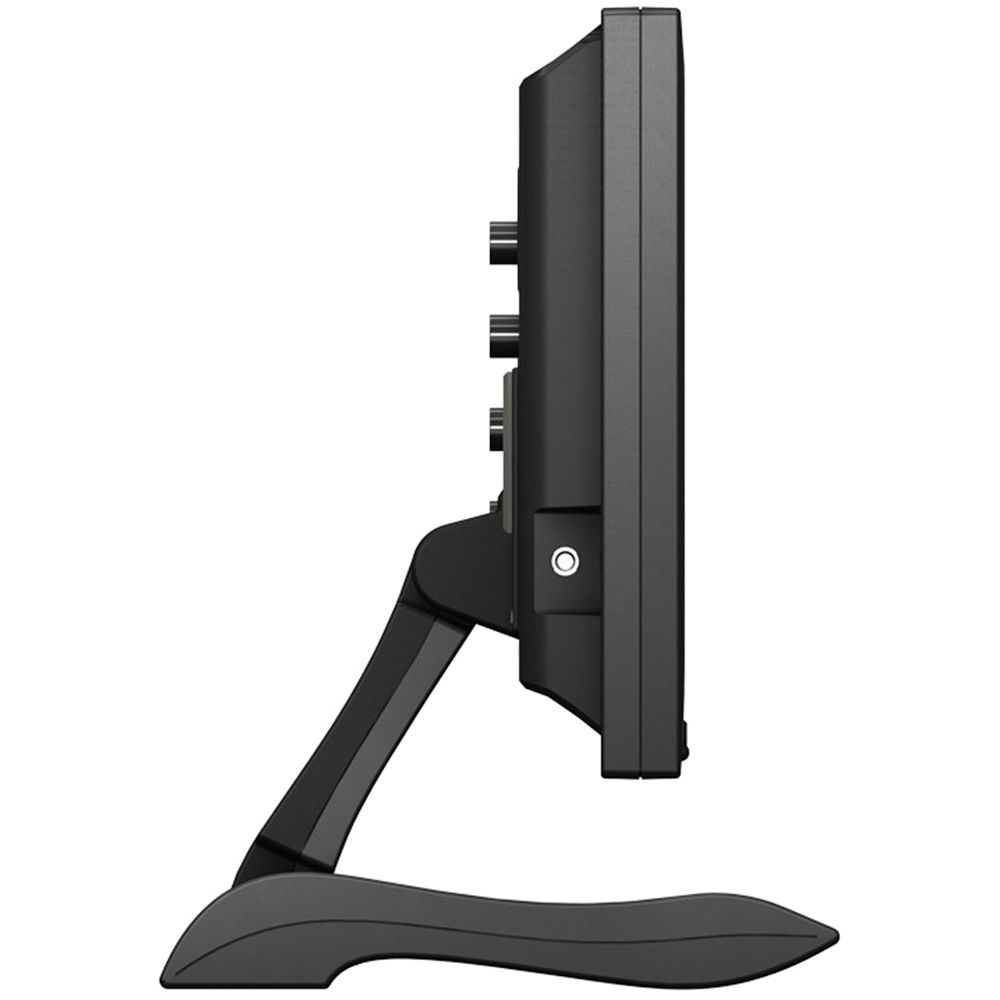

The monitor supports a 140° viewing angle left-to-right for good color and contrast reproduction when viewed slightly off-center. Six front panel buttons provide menu access and navigation. The monitor is powered by 12 VDC via a 4-pin XLR input, which makes it suitable for use in the field, and it is fitted with a desktop stand so you can mount it on a flat surface if you wish. An included remote control allows you to access the monitor’s functions and an included shoe mount allows you to mount the monitor on your camera’s accessory shoe if you wish.

24 and 23.98 Frame Rate Support
The monitor supports Full HD frame rates up to 60p in both NTSC and PAL compatible frame rates. The monitor also supports HD video at 24 fps to allow you to see video shot at cinema frame rates. 23.98 (AKA 23.976) is also supported, which is the video version of 24 fps. This allows you to use this monitor to view footage shot by cameras that record at cinema frame rates.
Basic Display Controls
Volume down
Volume up
MENU
2 x Selection key
Switch key
Power
Advanced Display Controls
Brightness
Contrast
Color
Tone
Clarity
Color Temp
Functionality
Check Field: provides a monochrome view of your image using only the red, green, blue signals, or a grayscale of your image.
Aspect Ratio: Adjust the monitor’s aspect ratio from full screen, 4:3, or 16:9
Pixel-to-Pixel: 1:1 pixel-to-pixel mapping allows you to look at sections of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts.
H/V delay: H/V delay allows you to check your video’s vertical blanking interval. This monitor allows you to check the H/V delay or select either the horizontal delay or vertical delay individually.
Underscan: Shrinks the video image so that the edges are visible.
Language: English, Chinese
Freeze Input
Key Specs
Display Size
10.1″ / 25.6 cm
Native Resolution
1024 x 600
Video I/O
1x BNC (SD-SDI) Output
1x BNC (SD-SDI) Input
1x 3BNC (Component) Input
1x HDMI Input
Media/Memory Card Slot
No
Video Format
SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24
1080i: 50/59.94/60
720p: 25/30/50/59.94/60
HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24
1080i: 50/59.94/60
720p: 25/30/50/59.94/60
576p: 50
576i: 50
480p: 59.94/60
480i: 59.94/60
Component
576p: 50
576i: 50
480p: 59.94/60
480i: 59.94/60
Composite
576p: 50
576i: 50
480p: 59.94/60
480i: 59.94/60
Battery Type
No
Power Consumption
10 W (Maximum)
Display
Panel Type
TFT LCD
Display Size
10.1″ / 25.6 cm
Native Resolution
1024 x 600
Aspect Ratio
16:9
Viewing Angle
Horizontal: 140°
Vertical: 110°
Maximum Brightness
250 nits / cd/m2
Contrast Ratio
500:1

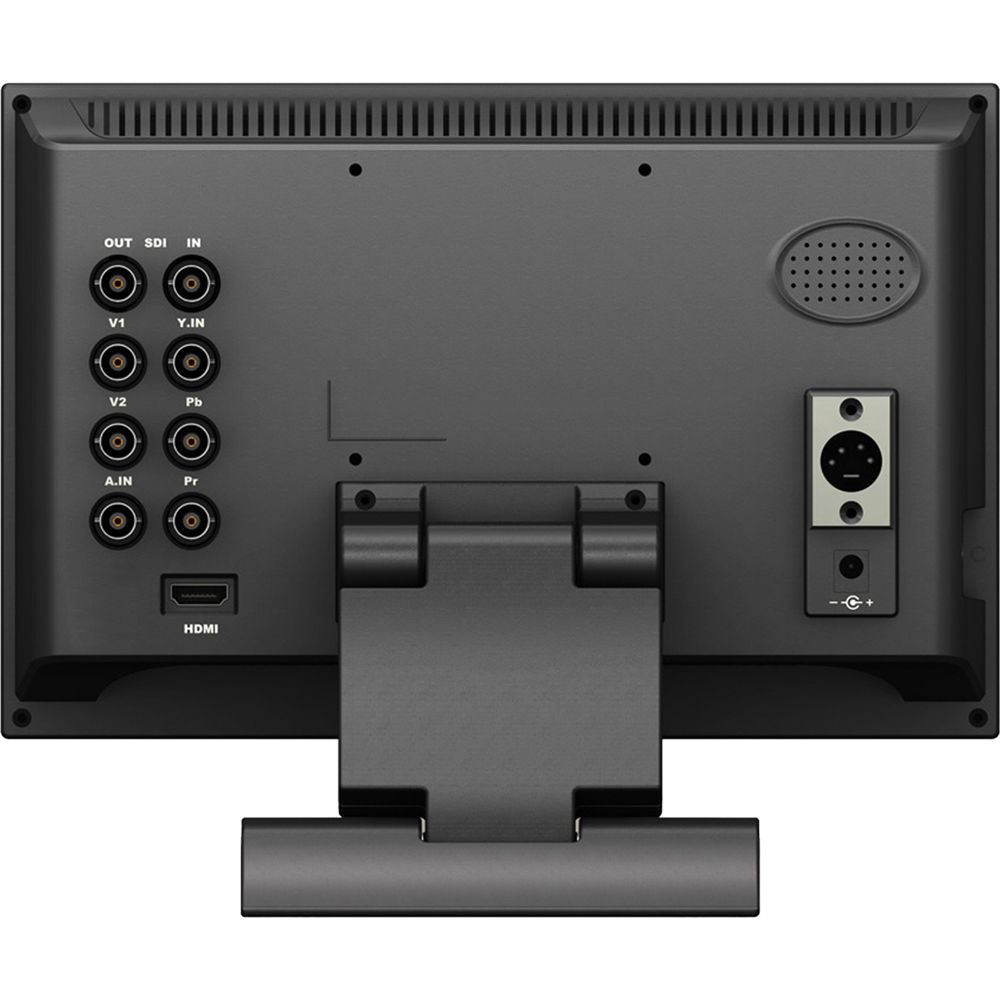

Video I/O
1x BNC (SD-SDI) Output
1x BNC (SD-SDI) Input
1x 3BNC (Component) Input
1x HDMI Input
Audio I/O
1x BNC Output
Built-In Speaker
No
Power I/O
1x Barrel Input
1x XLR 4-Pin Input
Media/Memory Card Slot
No
Format Support
Video Format
SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24
1080i: 50/59.94/60
720p: 25/30/50/59.94/60
HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24
1080i: 50/59.94/60
720p: 25/30/50/59.94/60
576p: 50
576i: 50
480p: 59.94/60
480i: 59.94/60
Component
576p: 50
576i: 50
480p: 59.94/60
480i: 59.94/60
Composite
576p: 50
576i: 50
480p: 59.94/60
480i: 59.94/60
Power
Battery Type
No
Power Consumption
10 W (Maximum)
Environmental
Operating Temperature
-4 to 140°F / -20 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
General
Dimensions
10.2 x 6.7 x 1.4″ / 25.9 x 17 x 3.7 cm
Packaging Info
Package Weight
3.89 lb / 1765 g
Box Dimensions (LxWxH)
13.3 x 11.6 x 3.6″
Weight 1765 g
