The Lilliput FA1210/C/T is your go-to choice for a high brightness capacitive touch monitor. For indoor and outdoor use, the FA1210/C/T sports a 12.1″ 4:3 aspect ratio LED Panel with a 10 point capacitive touch screen for multi touch usage, and has an 800cdm² brightness – significantly higher than the brightness of many of our other monitor units.
Looking for a monitor to use in a Teleprompter? No problem – this model features both X/Y Flip and Mirroring of the input image, making it an ideal tool for the job.
The FA1210-NP/C/T features a 12.1″ 4:3 aspect ratio panel with a native 1024 x 768px resolution. 800 cd/m² high brightness, 900:1 contrast and 170° viewing angles. This higher brightness and high-end visibility leads to uses in outdoor environments such as public information displays, advertising screens, and industrial machinery monitoring among many, many others.
The touch screen also attaches to a built in USB port and has a 10-point capacitive touch capability.
HDMI + VGA Interfaces – Compatible with HDMI at 4K (30Hz), the FA1210/C/T is also compatible with VGA and A/V input signals.
High Temperature Resistance – With heat tolerance levels much higher than with previous Lilliput monitor models, the FA1210 can be used in temperatures as high as 85°C and as low as -30°C
Wide Voltage Power – A higher level of voltage tolerance is as standard with the FA1210/C/T- it allows for 12 to 24V inputs, meaning that the monitor can be installed in a great many voltage-diverse environments.

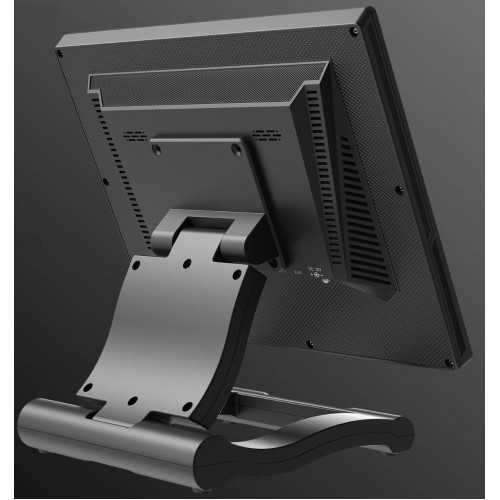

Optional VESA 75 Stand – To allow for either Desktop standing or ceiling mounting, a VESA 75 mount (pictures above) can be optionally purchased. This can be selected above before adding the monitor to your shopping.
Display
Aspect Ratio
4:3
Brightness
800cdm²
Contrast Ratio
900:1
Display Screen
12.1″
Resolution
1024 x 768
Touch Panel
Capacitive 10-point
Viewing Angle
170° / 170°
Monitor Specification
Video Inputs
1x HDMi 1.4b (supports 4K 30Hz), 1x VGA, 1x Mini USB (for Upgrade Only), 1x USB-A (for touch screen)
Audio Outputs
Speaker x 2, Earphone plugs x1

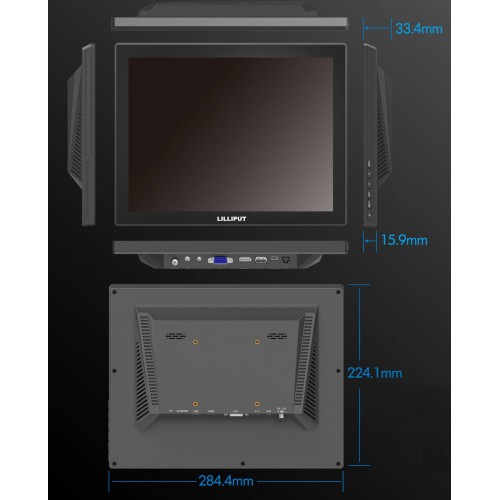

Size
Dimensions
284.4mm x 224.1mm x 33.4mm
Weight
1.27Kg
Power
Current
<=1.1A (12V)
Input Voltage
DC 12-24A
Power Consumption
c. 13W
Environment
Operating Temperature
-30°C to +80°C
Storage Temperature
-30°C to +85°C
Weight
1270 g
