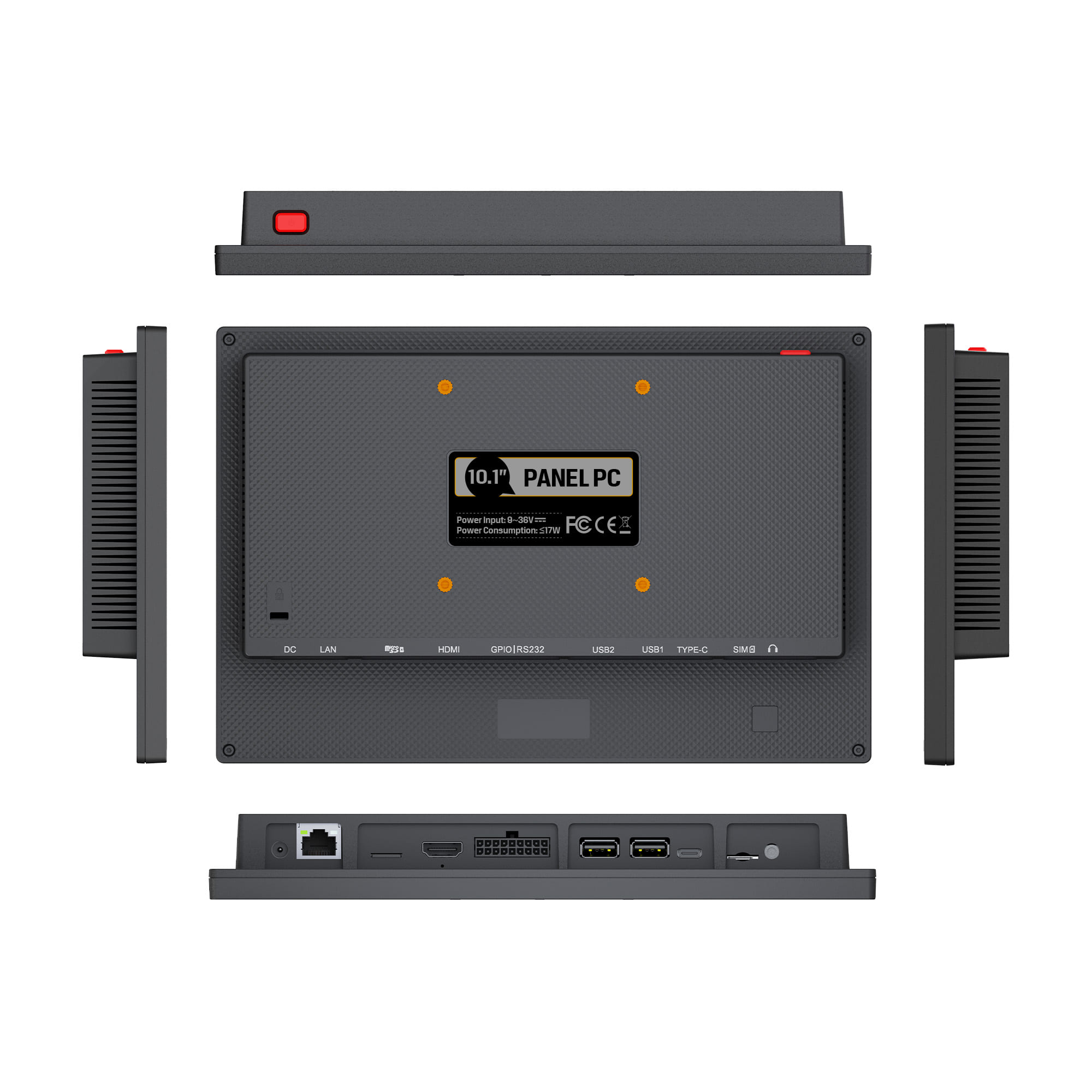

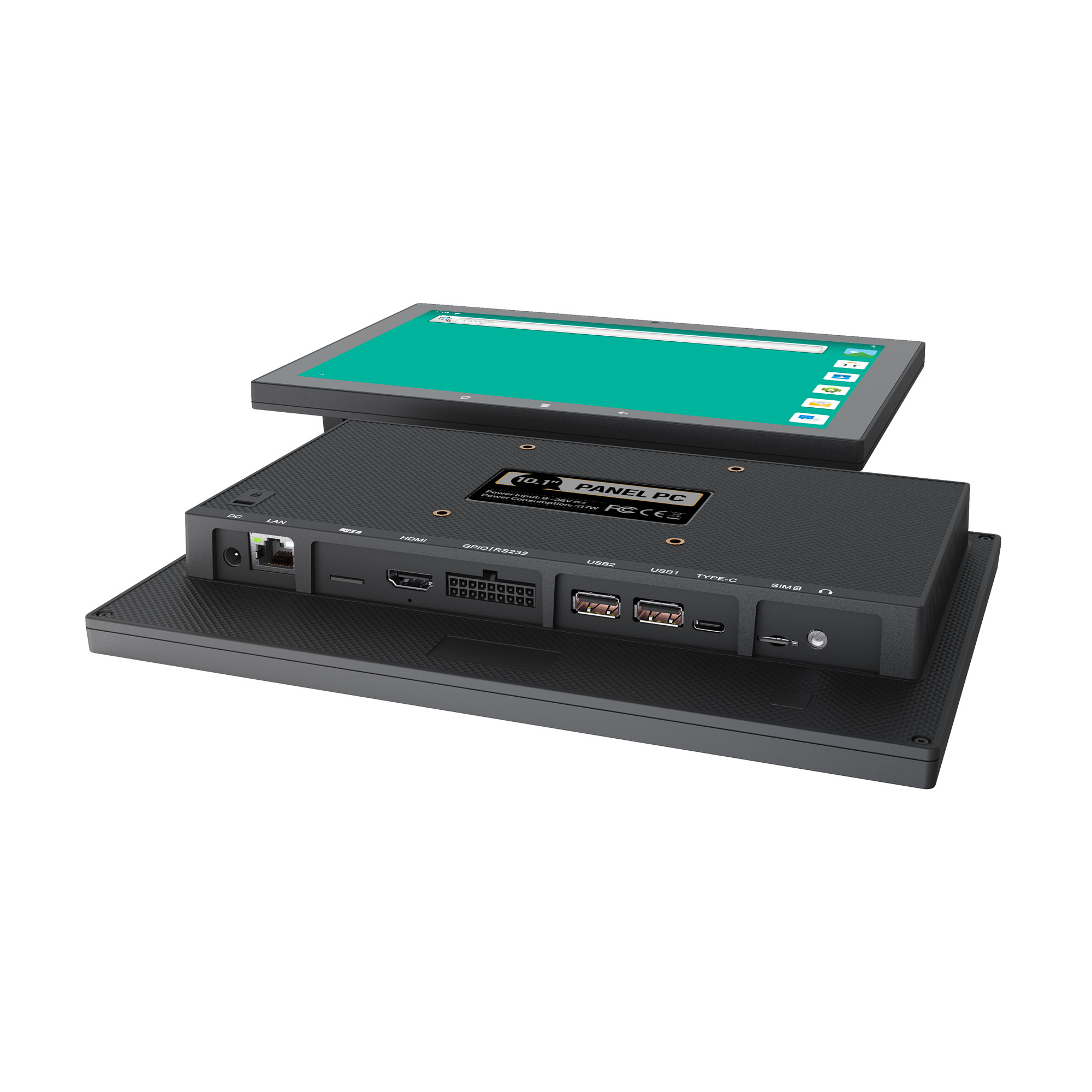

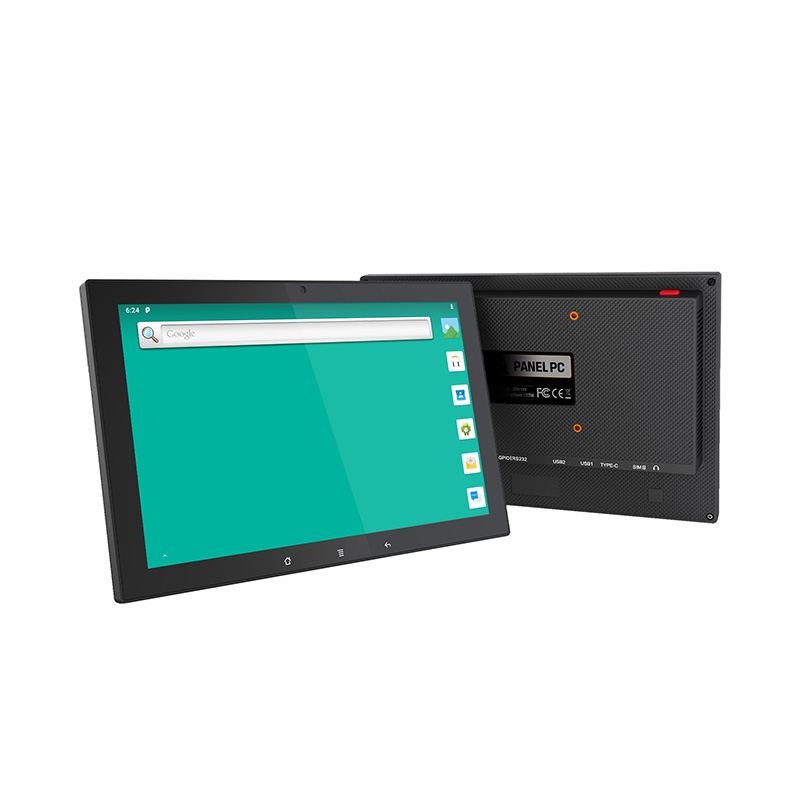

LILLIPUT PC‐1010R 10.1 inch Android Panel PC With Rockchip Processor
€ 389,00 + VAT
This is an Android 10 OS Panel PC with a 10.1” capacitive touch function, and 1000 nits LED screen, which comes with rich interfaces and ABS plastic housing. This device can be connected through LAN, WiFi, Bluetooth and contains transmission interfaces (GPIO, RS232, etc) to be controlled by software.
Description
| Model NO. | PC1010R | PC1010 | |
| SYSTEM | CPU | Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor | Qualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor |
| OS | Android 10 | Android 9.0 | |
| RAM + ROM | 2GB LPDDR3 + 16GB eMMC, 4GB + 64GB are optional | ||
| GPU | Mali-T764 | Adreno 506 | |
| PANEL | Sensors | Light and Proximity Sensor (Auto dimming), Gyroscope & Acceleration | Light Sensor (Auto Dimming) |
| LCD | 10.1” IPS, 1280×800, 1000 nit, 170°/170° viewing angle | ||
| Touch Screen | Multi-point capacitive touch screen | ||
| INTERFACE | LAN | 1000M×1 | 100M×1 (PoE is optional, 25W) |
| GPIO | ×4 (Input×2, output×2) | ||
| COM | RS232×3 | ||
| HDMI | ×1 Output, support up to 1080p | ||
| SIM | ×1 | ||
| Micro SD Card | ×1, support up to 128GB | ||
| USB | USB host×2, USB Type-C OTG×1 | ||
| Earphone Jack | 3.5mm | ||
| WIRELESS | Wi-Fi | Optional 802.11a/b/g/n/ac, 2.4GHZ/5GHZ | 802.11a/b/g/n/ac, 2.4GHZ/5GHZ |
| Bluetooth | Optional 5.0, 2402MHz~2480MHz | 2402MHz~2480MHz | |
| Cellular Network | Optional 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM) | ||
| GNSS | Optional (GPS, GLONASS) | ||
| NFC | Without | Optional | |
| BUILT-IN | Front Camera | Optional, 5.0MP | |
| Speaker | ×1 | ||
| POWER | Power Supply | DC 9~36V | |
| Power Consumption | ≤17W | ≤12W | |
| OTHER | Dimension | 249mm×166mm×32mm | |
| Weight | 980g | ||
| Environment | Operating Temp: -10°C~60°C (14°F~140°F) | ||
| Storage Temp: -20°C~65°C (-4°F~149°F) | |||
Additional information
| Weight | 980 g |
|---|
