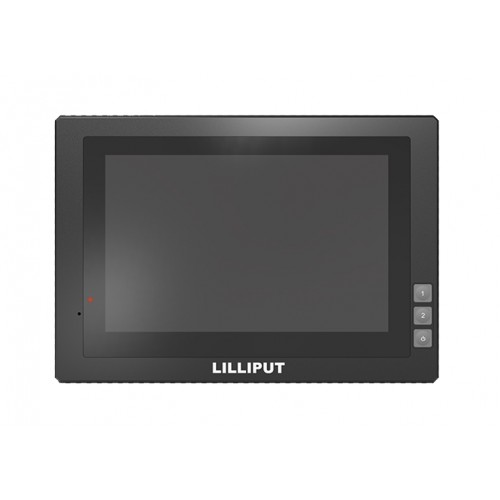

Lilliput PC‐701PRO (2+16G) – 7″ Industrial Computer
€ 434,00 + VAT
A 7″ industrial-grade embedded platform, the PC-701-Pro Embedded PC system is a stable and reliable solution with a plethora of communications interfaces.
It is at home in any installation environment – emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control personal entertainment, and other heavy duty fields.
 |
| Display | |
| Aspect Ratio | 16:10 |
| Brightness | 800cd/㎡ |
| Display Screen | 7″ IPS |
| Resolution | 1280 x 800 |
| Touch Panel | Multi Touch Point Capacitive |
| Panel PC Specifications | |

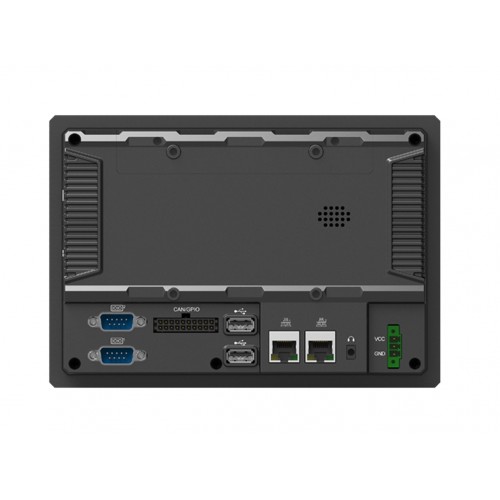

| Connections | USB Host 2.0×2, USB Device 2.0×1 RS232×4 / RS232×3+RS485×1 / RS232×2+RS422×1+RS485×1 GPIO x 8 – Software can determine input or output. |
| Operating System | Android 9.0 / Linux Debian 10 |
| Sensors | Light Sensor (Auto Dimming) |
| Processor | CPU: NXP i.MX 8 Mini Cortex -A53 1.6GHz Quad Core Processor |
| RAM Memory | 2GB LPDDR3 – (Optional 4GB LPDDR3) |
| Internal Storage | 16GB – (Optional 64GB) |
| Networking | Ethernet 100M (RJ45), LAN Port2 PoE for optional |
| Cellular Connectivity | 1x SIM Card |
| Common Parameters | |
| Dimension | 206 × 144 × 31 mm |
| Power | Consumption ≤10W, DC 8-36V |
| Weight | 900 g |
|---|
