It is at home in any installation environment – emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control personal entertainment, and other heavy duty fields.
Two different versions are available – the PC-701 with an ARM i.MX 6DualLite 800MHz processor – and the PC-702 with an Intel Atom Z8350 1.44GHz processor (search our site for “PC-702”).
| Display | |
| Aspect Ratio | 16:10 |
| Brightness | 400cd/㎡ |
| Display Screen | 7″ IPS |
| Resolution | 1280 x 800 |
| Touch Panel | Capacitive |
| Panel PC Specifications | |

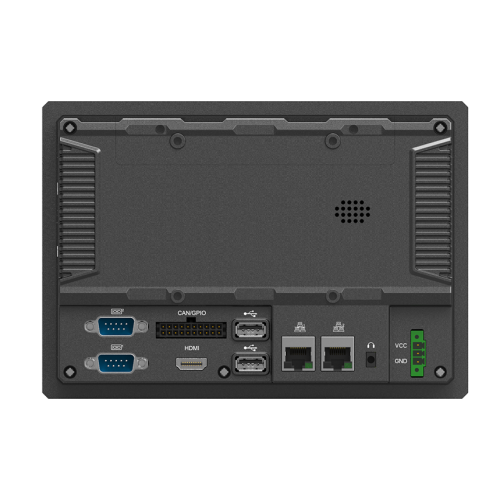

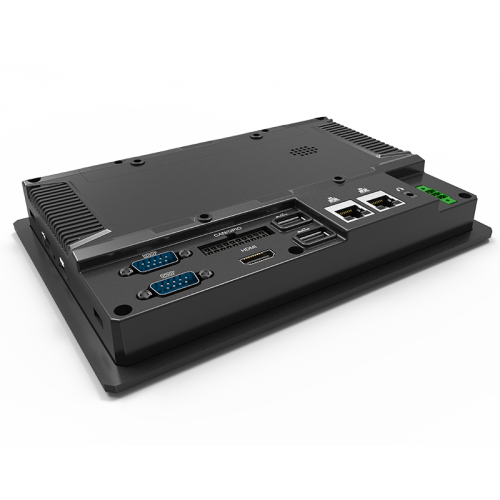

| Connections | USB Host 2.0×2, USB Device 2.0×1 RS232×4 / RS232×3+RS485×1 / RS232×2+RS422×1+RS485×1 GPIO input×4, GPIO output×6 |
| Operating System | Android 5.1.1 / Linux Debian 8.0 |
| Processor | CPU: NXP i.MX 6DualLite 800MHz ARM Cortex-A9 processor Optional: NXP i.MX 6Quad 1.0GHz ARM Cortex-A9 processor |
| RAM Memory | 1GB DDR3 |
| Internal Storage | 8GB eMMC + Micro SD (TF) card |
| Graphics | 3D Vivante GC880 35Mtri/s 266Mpxl/s Open GL ES 2.0 |
| Networking | Ethernet 100M (RJ45), LAN Port2 PoE for optional |
| Common Parameters | |
| Dimension | 206 × 144 × 30.9 mm |
| Power | Consumption ≤10W, DC 9-36V |
