Lilliput PC-766 – 7″ Panel PC with 600MHz processor
€ 320,00 + VAT
The PC766 is a Windows CE 7.0 / Linux Debian 8.0 embedded 7″ Panel PC. With a 600Mhz processor and embedded profile – this reliable Panel PC system is an upgrade to the PC765 system and has a full set of expansion ports and attachment points.


| Display | |
| Brightness | 450 cdm² |
| Contrast Ratio | 500:1 |
| Display Screen | 7″ LED Backlit |
| Resolution | 800 x 480 |
| Touch Panel | 4-Wire Resistive Touch Panel |
| Viewing Angle | 140° Horizontal, 120° Vertical |
| Panel PC Specifications | |

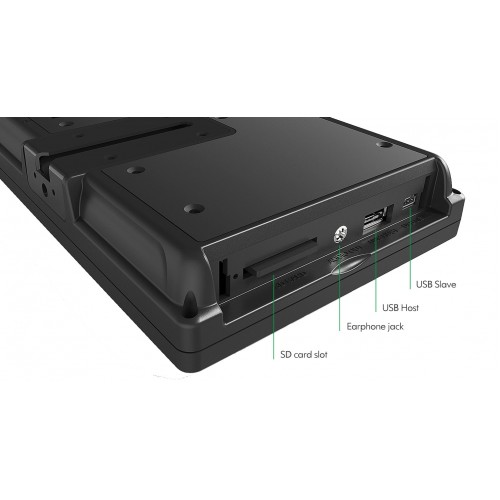

| Connections | USB Host 2.0 x 2, USB Device 2.0 x 1 RS232×3 / (Optional RS232×2, RS485×1 ) + Speaker ×1, Earphone ×1 |
| Processor | TI 3352 Cortex-A8 600MHz processor |
| RAM Memory | 512MB |
| Internal Storage | Flash ROM: 4Gb eMMC , SD Card, USB flash disk |
| Graphics | Integrated |
| Mounting Options | VESA, Vertical slot mount mechanism (optional) |
| Common Parameters | |

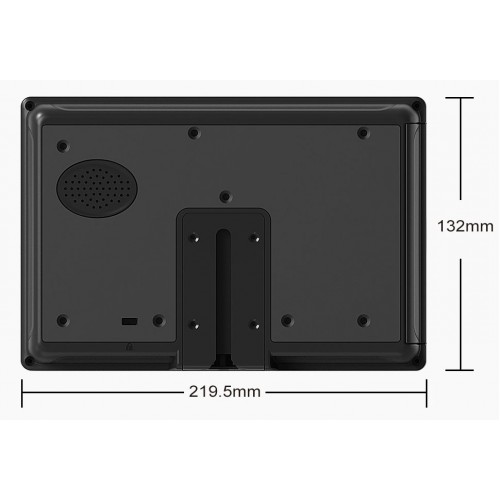

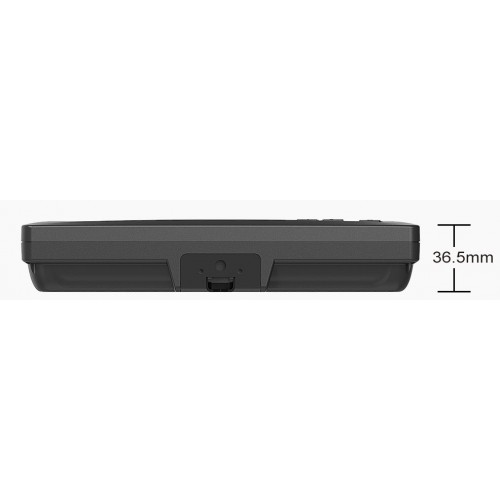

| Dimension | L=184.6mm x W=125mm D=32.9mm |
| Power | DC 9-36 V |
| Storage Temperature (°c) | -30~70ºC |
| Weight (g) | 615 |
| Working Temperature (°c) | -20~60ºC |
| Weight | 615 g |
|---|
