Lilliput PC7106 – 7″ Capacitive Touchscreen Panel PC with ARM9 1000MHz Quad Core processor
€ 448,00 + VAT
7″ LED Capacitive touch enabled All in one PC system available with Windows CE 6.0 / Android 2.3 / Linux 2.6.32. A good solid performer, the PC7105 is one of the best performing panel PC systems that Lilliput have produced, and a stable system for all industrial / automation uses.
- Ideal for industrial monitoring and control / in vehicle ticketing systems
- Display, Control, Communicate and play multimedia – all from a single robust unit
- Using stable ARM Cortex technology for 800Mhz to 1Ghz performance
- High integration capability
- IP64 Rated
- Ideal for industrial monitoring and control
- Display, control, communication and multimedia all in a robust frame
- Using stable ARM Cortex technology for 800Mhz to 1Ghz performance
- High integration capability
 |
 |
 |
| Panel PC Specifications | |
| Processor | NXP i.MX 6 DualLite 800Mhz Cortex A9 Processor OR NXP i.MX 6 QuadLite 1000Mhz Cortex A9 Processor |
| RAM Memory | 1GB DDR3 |
| Graphics | 3D Vivante GC880 35Mtri/s 266 Mpxl/s OpenGL ES 2.0 |
| I/O Connections (additional) | Micro SD Slot, USB Slave 2.0 / USB Host 2.0, Earphone Jack, 1000M Ethernet Jack (RJ45), GPIO Input x4 / GPIO Output x4 / CANBus x2 |
| Screen Size (diagonal) | 7″ LED Backlit – 800 x 480 Native Resolution |
| Aspect Ratio | (16:9) |
| Touchscreen Technology | Capacitive touch screen |
| Software Installed | Android 5.1.1 OR Linux Debian 8.0 OR Windows CE 7.0 |
| Contents Of Box | |

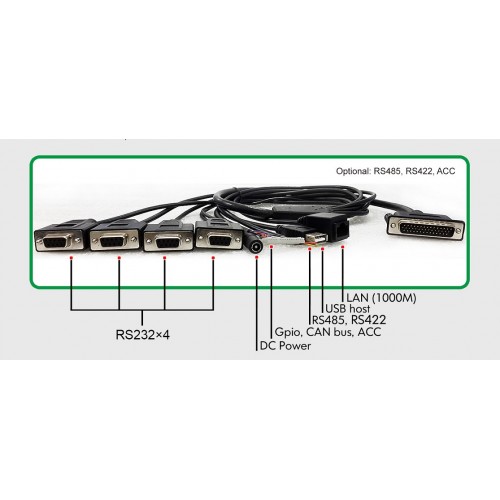

| Connection Cables | Single Cable with 4x RS232 / 3x RS232+ 1x RS485 // Power Jack Point // Network Connector |
| Power Adaptor | 9-36V DC Power Input |
| Dimensions | |
| Height (mm) | 132mm |
| Width (mm) | 220mm |
| Depth (mm) | 36.5mm |
| Weight (g) | 740g |
| Weight | 740 g |
|---|
