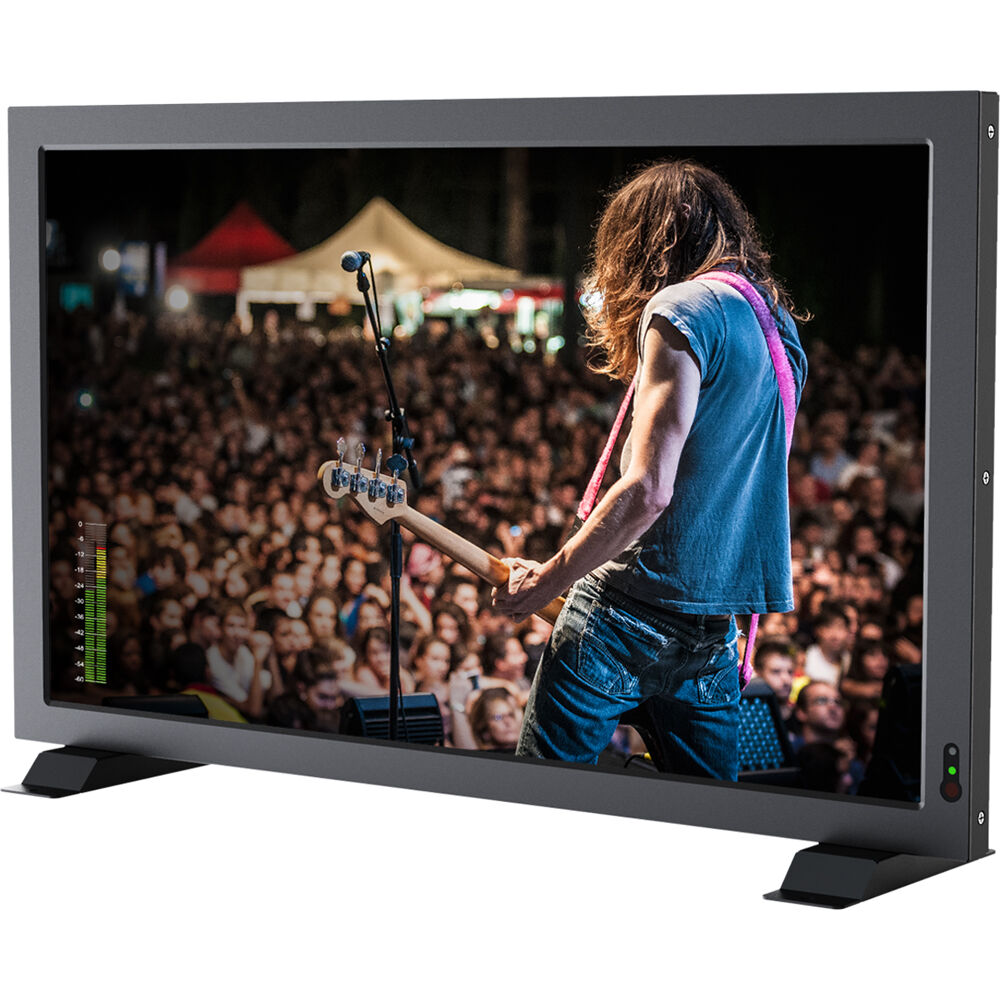

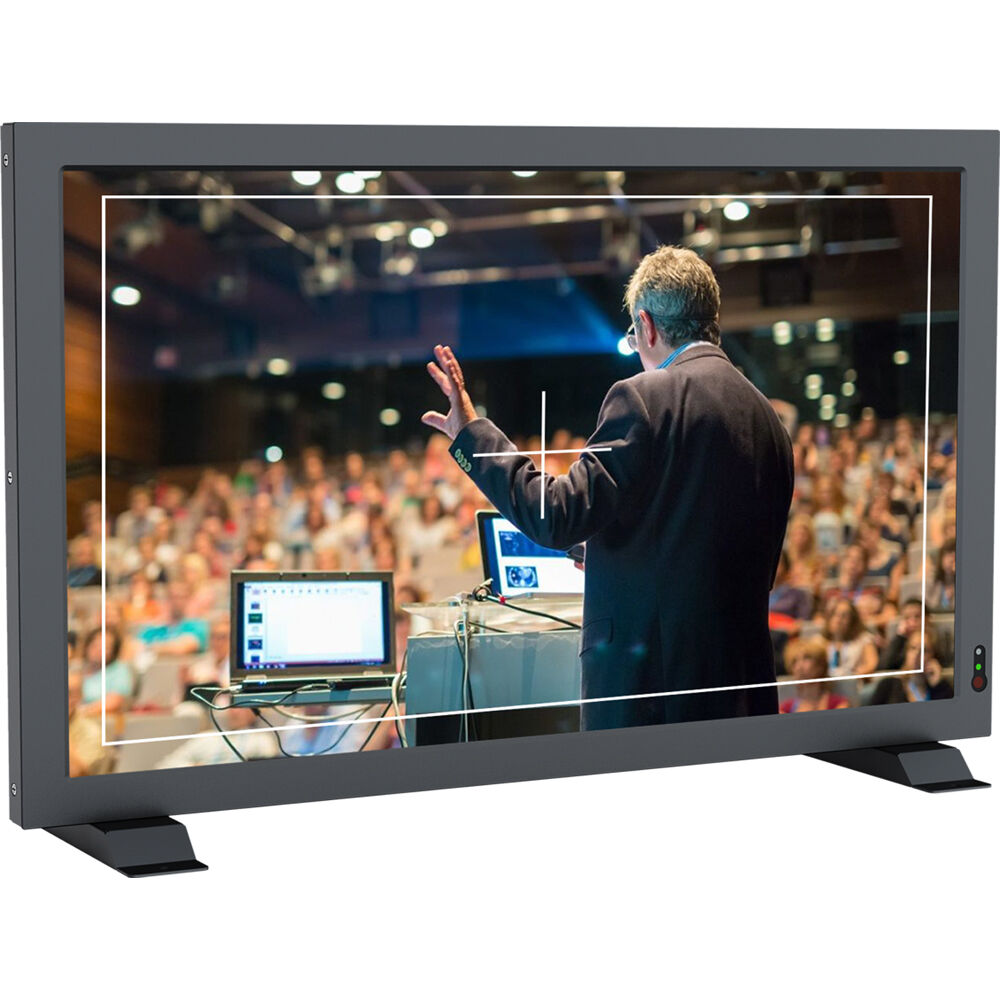

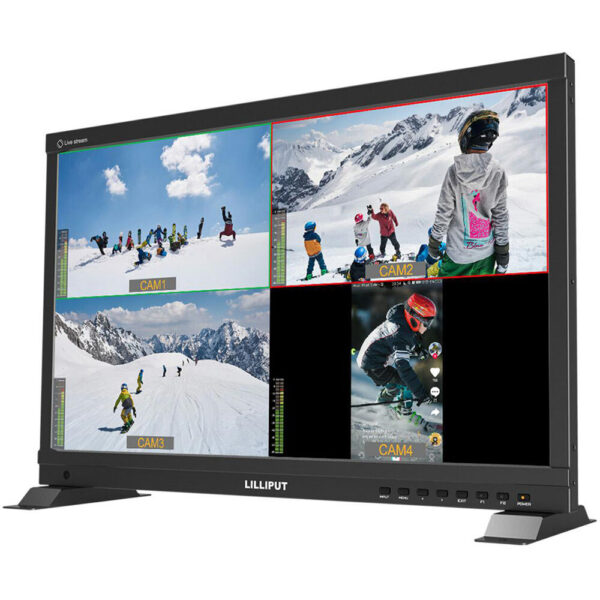

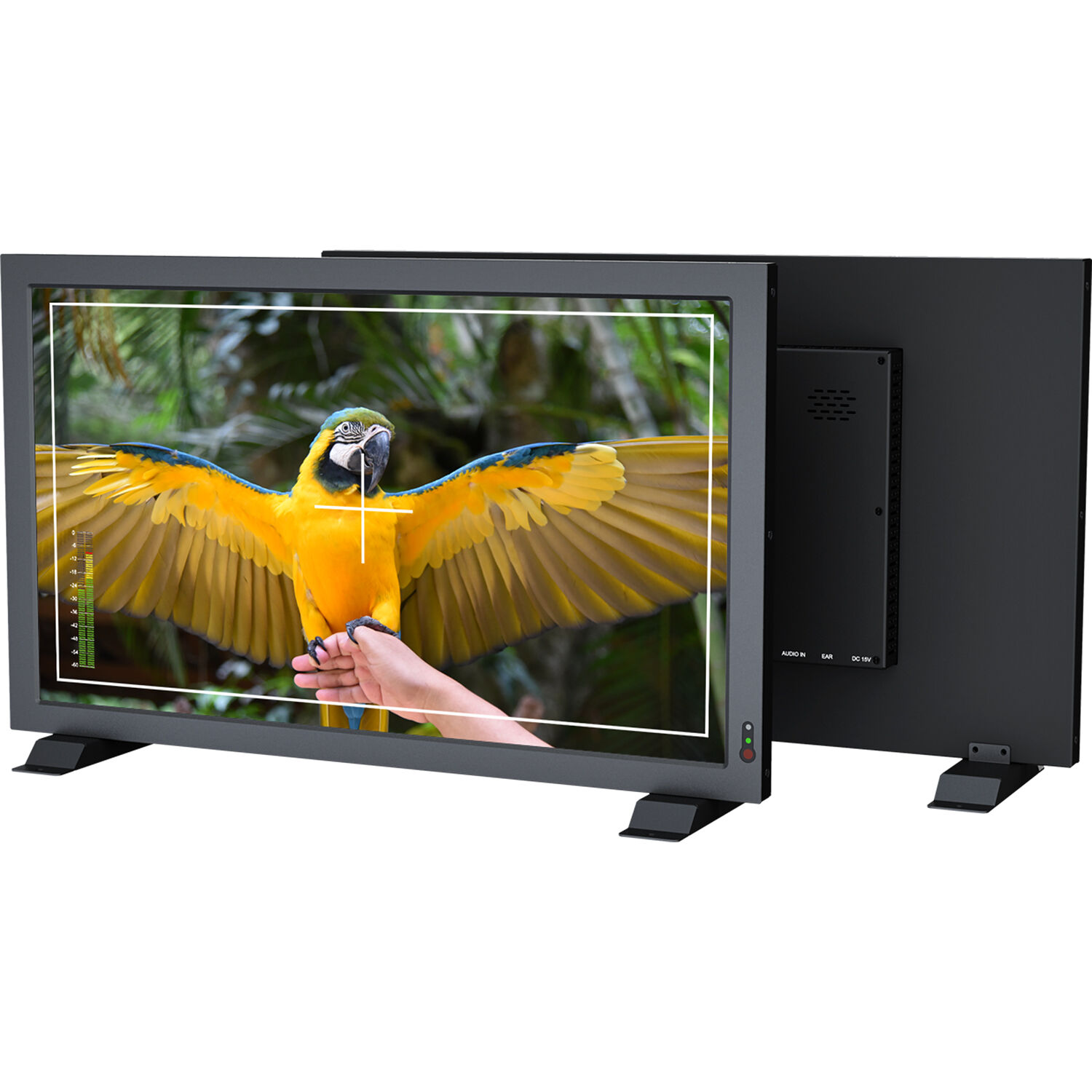

Add a professional monitor to your 4K broadcast studio or field production with this PVM210S 21.5″ 3G-SDI/HDMI Professional Production Monitor from Lilliput. The 21.5″ LCD panel features 1920 x 1080 resolution, a 170° angle of view, a 1500:1 contrast ratio, and 1000 cd/m² brightness, and it supports HDR and Rec.709 color space.
The monitor can input up to UHD 4K 3840 x 2160p30 video via its HDMI input, and it features one 3G-SDI input and one 3G-SDI loop output that support up to 1080p60. It also features a VGA input and an RCA input. Audio support includes support for 24-bit 48 kHz embedded audio, it has two speakers, and it features a 3.5mm headphone output.
Included with the monitor is a DC power adapter, an HDMI type A cable, a VGA cable, AV cables, and a base stand.
Key Specs
| Display Size |
21.5″ / 54.6 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
No
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Video I/O |
1x HDMI 1.4b Input
1x BNC (3G-SDI) Input
1x VGA Input
1x RCA Input
1x BNC (3G-SDI) Output
|
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
UHD 4K: 30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
SDI
1080p: 60/30/25/24
1080i: 60/50
720p: 60/50
|
| Power Consumption |
36 W (Maximum)
|
Display
| Panel Type |
LCD
|
| Display Size |
21.5″ / 54.6 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 170°
Vertical: 170°
|
| Touchscreen |
No
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1500:1
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
102 ppi
|
| Real-Time LUT Monitoring |
No
|
| Video I/O |
1x HDMI 1.4b Input
1x BNC (3G-SDI) Input
1x VGA Input
1x RCA Input
1x BNC (3G-SDI) Output
|
| Embedded Audio |
HDMI: 8-Channel
SDI: 16-Channel
|
| Audio I/O |
1x 2RCA Line Input
1x 1/8″ / 3.5 mm Headphone Output
|
| Built-In Speaker |
Stereo
|
| Power I/O |
1x Barrel Input
|
| Other I/O |
1x USB-A Input
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
Yes
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
UHD 4K: 30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
SDI
1080p: 60/30/25/24
1080i: 60/50
720p: 60/50
|
| Gamma Curve |
Rec709
|
Power
| Input Power |
12 to 24 VDC
|
| Power Consumption |
36 W (Maximum)
|
Mounting
| Mounting-Hole Pattern |
75 x 75 mm, 100 x 100 mm
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
General
| Dimensions |
20.7 x 12.3 x 0.8″ / 524.8 x 313.3 x 19.8 mm
|
| Weight |
10.6 lb / 4.8 kg
|
Packaging Info
| Package Weight |
18.43 lb / 8360 g
|
| Box Dimensions (LxWxH) |
25.4 x 19.1 x 6.6″
|
