Lilliput PVM220S 21.5″ 3G-SDI/HDMI Quad-Split Broadcast Monitor

€ 639,00

+ additional shipping charge
  • 21.5″ 1920 x 1080 LCD Display
  • 3G-SDI & HDMI In/Out, USB Type-C In
  • Quad-Split Multiview + Program Out
  • Horizontal & Vertical Display Modes
  • 500 cd/m² Brightness
  • 1500:1 Contrast Ratio, 16:9 Aspect
  • 2-Ch Audio Level Monitoring
  • 1 x 3.5mm Headphone Jack, 1 x Speaker
  • Histogram / Zebra / Peaking / Markers
  • 75 x 100 VESA & Tabletop Mounting
Category:

The PVM220S 21.5″ 3G-SDI/HDMI Broadcast Monitor from Lilliput features a quad-split display, preview and program output, and both horizontal and vertical display modes suitable for social media content. This 1920 x 1080 resolution monitor provides 3G-SDI, HDMI, and USB Type-C audio input and 3G-SDI and HDMI outputs. It offers 500 cd/m2 brightness, 1500:1 contrast, 2-channel on-screen audio monitoring, and multiple imaging tools for creating an accurate display.

Versatile Video Input and Output
  • Dual 3G-SDI inputs, dual 3G-SDI outputs
  • Dual HDMI inputs, single HDMI program output
  • Single USB Type-C input

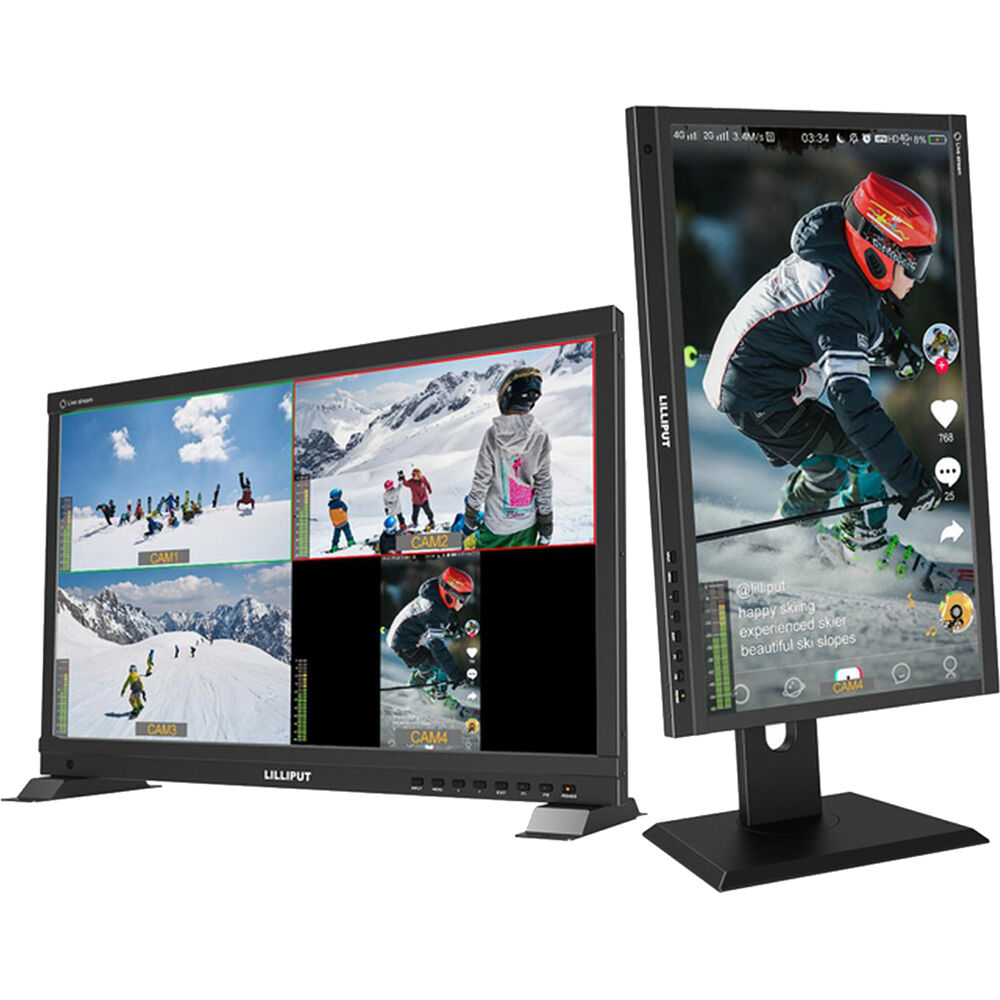

Quad-Split Multiview
Input and view up to four 1080p60 signals
USB Vertical Display
USB Type-C input can be displayed vertically for social media-oriented content
Workflow
  • Cut between preview and program for live mixing
  • Pair with a router and your computer or phone for streaming
Audio
  • Selectable audio monitoring enables you to keep an eye on your audio levels
  • Supports 2-channel embedded audio
Imaging Tools
Multiple tools for creating an accurate display include:

  • Center and safety markers
  • Focus peaking
  • Histogram, zebra, and false color
  • Color temperature selection
  • Check field and freeze frame
Function Buttons
Two front-panel buttons can be assigned to your most-used functions
Versatile Mounting
  • Wall mountable using its 75 x 100mm VESA pattern
  • Tabletop support using the included feet
Key Specs
Display Size
21.5″ / 54.6 cm
Native Resolution
1920 x 1080
Touchscreen
No
HDR Support
No,
Video I/O
2x BNC (3G-SDI) Input
2x HDMI (Unspecified Signal) Input
1x USB-C (Unspecified Signal) Input
2x BNC (3G-SDI) Output
1x BNC (3G-SDI) Monitor Output
Media/Memory Card Slot
No
Video Format
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Power Consumption
33 W
Display
Panel Type
LCD
Display Size
21.5″ / 54.6 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 170° (85/85)
Vertical: 170° (85/85)
Touchscreen
No
Maximum Brightness
500 nits / cd/m2
Contrast Ratio
1500:1
HDR Support
No,
Pixels Per Inch (ppi)
102 ppi
Color Gamut
101% Rec. 709
Image Controls
Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Zebra
Inputs / Outputs
Video I/O
2x BNC (3G-SDI) Input
2x HDMI (Unspecified Signal) Input
1x USB-C (Unspecified Signal) Input
2x BNC (3G-SDI) Output
1x BNC (3G-SDI) Monitor Output
Embedded Audio
SDI: 2-Channel
HDMI: 2-Channel
Audio I/O
1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
Mono
Power I/O
1x Barrel (24 VDC) Input
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Video Signal Conversion
SDI to HDMI

HDMI to SDI
Power
Input Power
12 to 24 VDC
Power Consumption
33 W
Mounting
Mounting-Hole Pattern
75 x 100 mm
Environmental
Environmental Protection
No
Operating Temperature
12 to 92°F / -20 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
General
Dimensions
20 x 12.6 x 1.9″ / 508 x 321 x 47 mm
Weight
11.88 lb / 5.39 kg
Packaging Info
Package Weight
18 lb / 8165 g
Box Dimensions (LxWxH)
25.2 x 19.5 x 5.6″
Weight 8165 g
