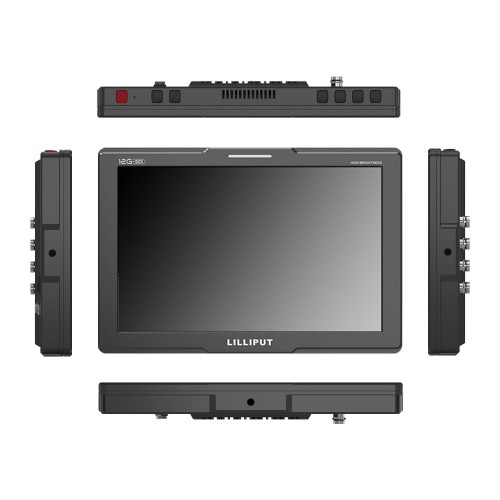

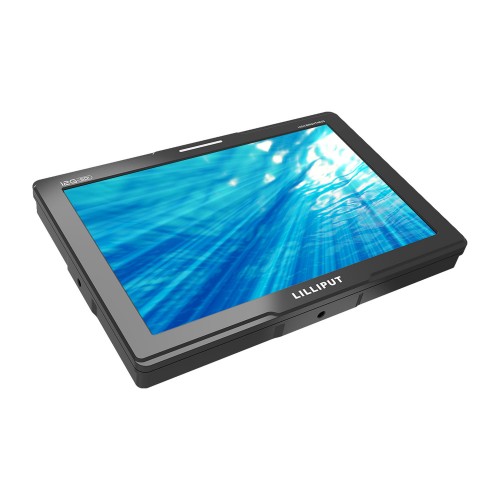

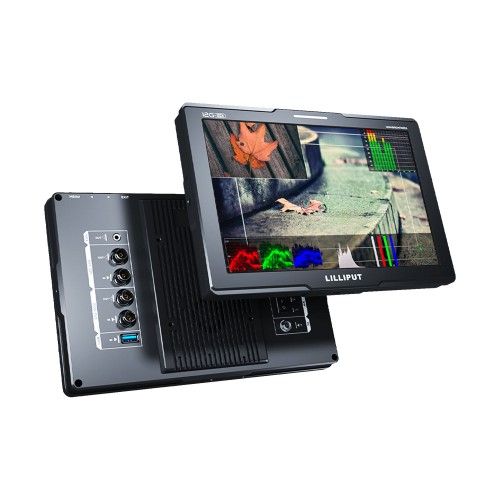

The Lilliput Q10 is a professional camera-top monitor specifically designed for photography and film makers. Fitted with an amazing 1500 nit Ultra Bright LCD screen, it is especially geared for outdoor video and film shooting. The 10.1″ LCD panel has 1920×1200 Full HD native resolution and with 200:1 high-contrast it provides crystal-sharp superior picture quality.
Supporting 4K HDMI 2.0 and 12G-SDI signal inputs and loop outputs, it is possible to receive 2× 12G-SDI signals and display both at the same time via the picture-in-picture function, (the size and position of which can be adjusted) and HDMI signals up to 4K 60Hz through an HDMI 2.0 interface – making it compatible with the very latest DSLR cameras on the market.
| Display |
| Aspect Ratio |
16:10 |
| Brightness |
1500 nits |
| Contrast Ratio |
1000:1 |
| Display Screen |
10.1″ |
| Look Up Table Support |
3D LUT .cube Format |
| Resolution |
1920 x 1200 |
| Viewing Angle |
170° / 170° |
| HDR |
ST2084 300 / 1000 / 10000 / HLG |
| Supported Log Formats |
SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User defined |

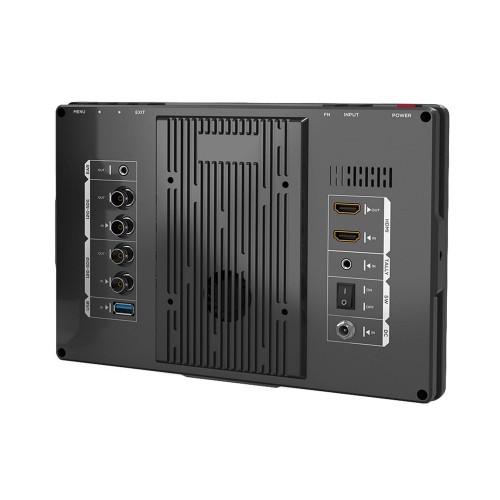

| Connections |
| Audio |
SDI – 16CH, 48Khz, 24-bit : HDMI – 8 CH 24 Bit : Ear Jack – 3.5mm : Built in Speaker x1 |
| HDMI Video Input |
1x HDMI 2.0 – 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50… |
| SDI Video Input |
2x 12G SDI – 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24,1080i 60/50, 720p 60/50… |
| Size |
| Dimensions |
251mm × 170mm × 30.5mm |
| Weight |
4KG (Shipping Weight) |
| Power |
| Input Voltage |
DC 7-24V |
| Power Consumption |
<=37W (12V) |
| Environment |
| Operating Temperature |
0°c to 50°c |
| Storage Temperature |
-20°c to 60°c |
