Lilliput Q13 13.3″ 12G-SDI Studio / Broadcast Monitor

€ 1.599,00

+ additional shipping charge
  • 13.3″ 3840 x 2160 Resolution Monitor
  • Supports up to 4K UHD Input
  • Supports Accurate Color Calibration
  • HDR Support, Load Custom 3D LUTs
  • 178° H/V Viewing Angle
  • 300 cd/m² Brightness
  • 1000:1 Contrast Ratio
  • On-Screen Markers, Focus Peaking
  • V-Mount Battery Plate
  • XLR 4-Pin 12-24 VDC Power Input
Category:

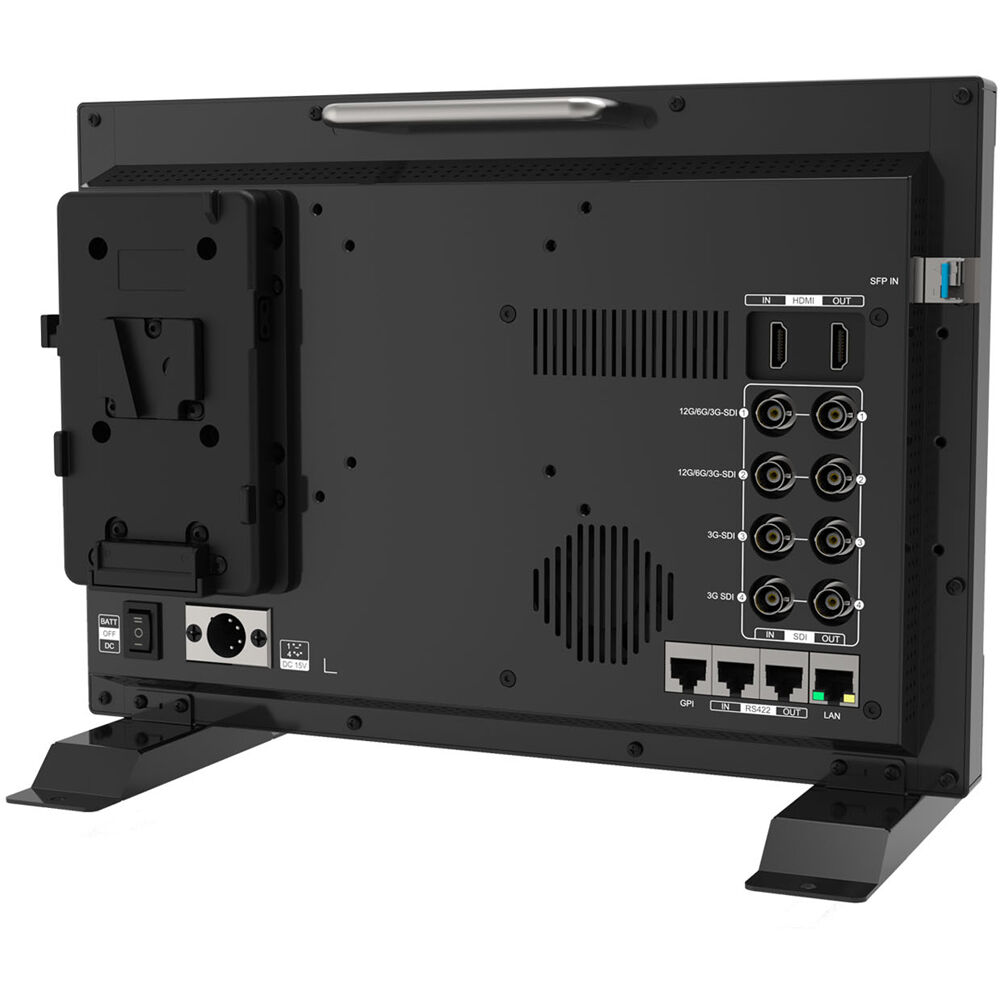

The Lilliput Q13 12G-SDI/HDMI Broadcast Studio Monitor is a 13.3″ native UHD 4K monitor with a V-mount battery plate, useful for both studio and field situations. Supporting up to UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), allowing for single-, dual-, and quad-link SDI input. In addition, the monitor supports 12G-SFP+ input, so you can display images over fiber on this monitor. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream.

Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor’s speakers, and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and you can select from 17 built-in 3D-LUTs or import six of your own. In the studio, the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a V-mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.

Features
Monitoring Tools
  • Peaking
  • Check field
  • Image rotation/flip
  • Overscan
  • Underscan
  • Image freeze
  • Pixel-to-pixel
  • False color
  • Exposure
  • Histogram
  • Timecode (SDI-only)
  • Aspect ratio selection
  • Screen markers
  • Color space
  • HDR
  • Color temperature adjustment
HDR and 3D LUTs
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front-panel USB port.
Supported Log Formats
SLog2. SLog3, CLog, NLog, ARRILiog, JLog, and User
Supported HDR
ST2084 300/1000/10000/HLG
Audio
The monitor can display the Lissajous shape, most useful when used in audio postproduction work for detecting phase variance.
Assignable Buttons
Using the four assignable buttons on the front panel, you can quickly turn any four monitoring tools on and off without venturing into the monitor’s menu system.
Remote Control
The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications as well as link multiple monitors together.
Calibration
The monitor supports color calibration using an optional PRO/LTE version of LightSpace CMS, to ensure your monitor is displaying your image accurately.
Fiber
An integrated slot accepts an optional SFP+ module, should you require an SFP+ fiber connection.
Key Specs
Display Size
13.3″ / 33.8 cm
Native Resolution
3840 x 2160
Touchscreen
No
HDR Support
Yes,
Video I/O
2x BNC (12G-SDI) Input
2x BNC (3G-SDI) Input
1x SFP+ (12G-SDI) Input
1x HDMI 2.0 Input
2x BNC (12G-SDI) Output
2x BNC (3G-SDI) Output
1x HDMI 2.0 Output
Media/Memory Card Slot
No
Video Format
SDI
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
HDMI
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
Fiber
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
Battery Type
1x V-Mount
Power Consumption
31.5 W
Display
Panel Type
LCD
Display Size
13.3″ / 33.8 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
No
Maximum Brightness
300 nits / cd/m2
Contrast Ratio
1000:1
HDR Support
Yes,
Pixels Per Inch (ppi)
331 ppi
Real-Time LUT Monitoring
HDR
Image Controls
False Color, Focus Peaking, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra

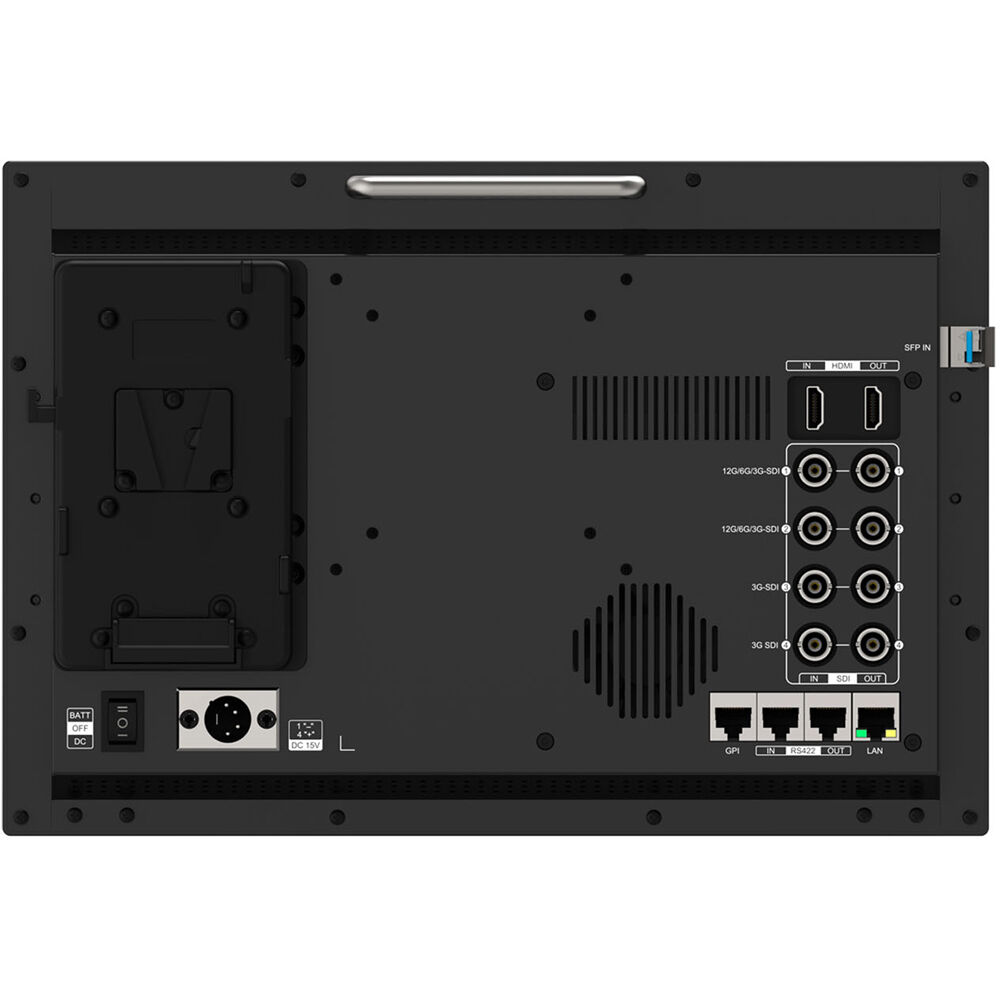

Inputs / Outputs
Video I/O
2x BNC (12G-SDI) Input
2x BNC (3G-SDI) Input
1x SFP+ (12G-SDI) Input
1x HDMI 2.0 Input
2x BNC (12G-SDI) Output
2x BNC (3G-SDI) Output
1x HDMI 2.0 Output
Embedded Audio
SDI: 16-Channel
HDMI: 8-Channel
Audio I/O
1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
Stereo
Power I/O
1x XLR 4-Pin Input
Other I/O
1x USB-A (LUT Upload)
1x RJ45 (GPI) Input
1x RJ45 (RS-422) Input
1x RJ45 (RS-422) Output
1x RJ45 (LAN)
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
SDI
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
HDMI
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
Fiber
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
Power
Input Power
12 to 24 VDC
Battery Type
1x V-Mount
Power Consumption
31.5 W
Environmental
Environmental Resistance
No
Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Material of Construction
Aluminum
Dimensions
13.4 x 9.2 x 1.8″ / 340 x 232.8 x 46 mm
Weight
5.3 lb / 2.4 kg
Packaging Info
Package Weight
10.16 lb /  4632 g
Box Dimensions (LxWxH)
17.7 x 15.9 x 7.7″
Weight 4632 g
