Lilliput Q28 28″ 12G-SDI Professional Production Studio Monitor

€ 2.199,00

+ additional shipping charge
  • 12G-SDI and 4K HDMI 2.0 Connectivity
  • 3840 x 2160 Display Resolution
  • Quad-Split Multiview Display
  • Multiple Color Temperature Presets
  • HDR and 3D-LUT Support
  • Built-In Speakers, 3.5mm Earphone Jack
  • Supports DCI 4K60 Input
  • Audio Vector, Histogram, and Waveform
  • RS-422 Remote Control Application
  • Integrated Tally Light
Category:

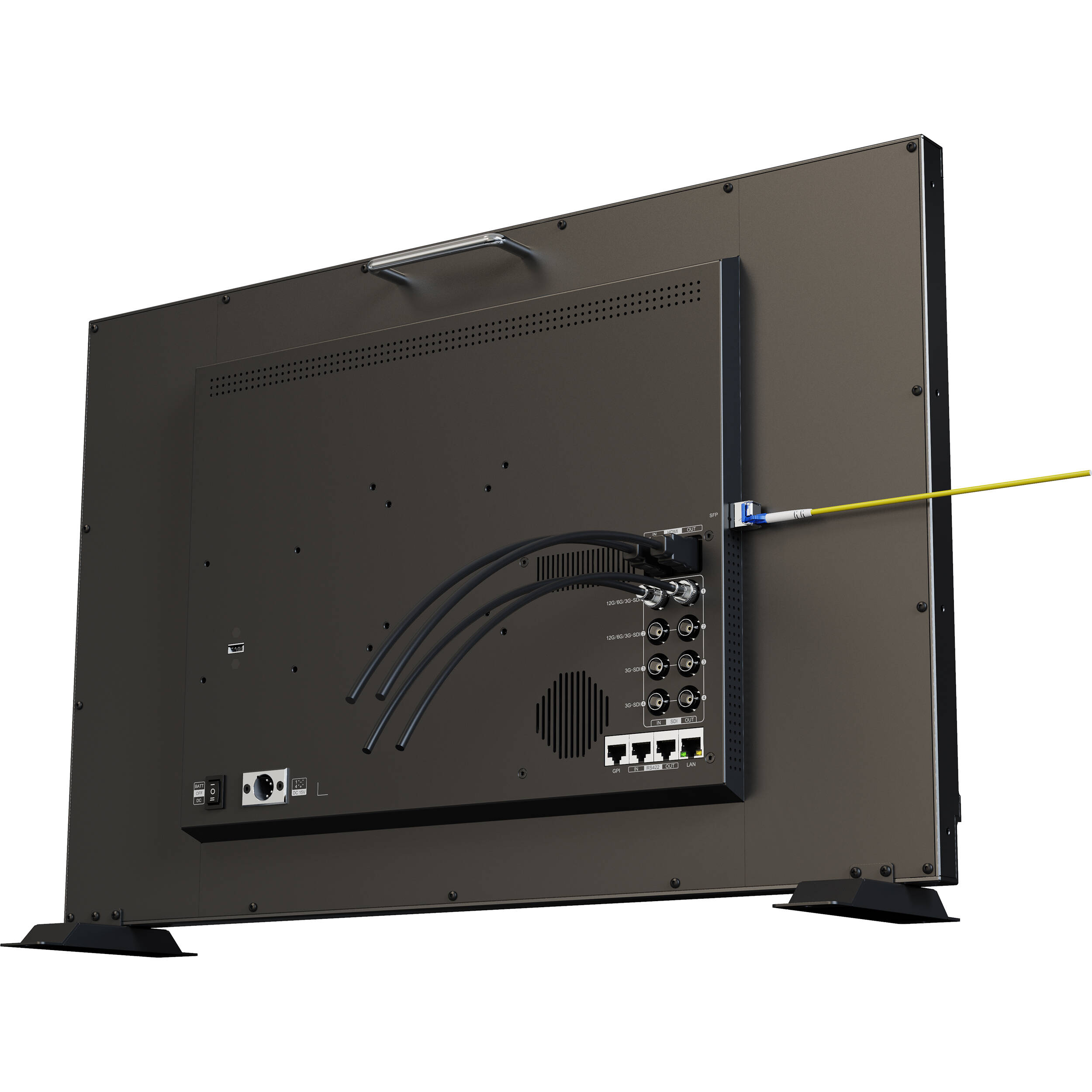

The V-mount Q28 28″ 12G-SDI Professional Production Studio Monitor from Lilliput is a professional studio display with 3840 x 2160 screen resolution that can also receive up to DCI 4K60 signals, which will play as letterboxed content within the appropriate aspect ratio. There are two 12G-SDI and two 3G-SDI inputs, one HDMI input with respective loop outputs, and a 12G-SFP port for optional fiber-optic connectivity, all supporting 4K and embedded, multichannel digital audio.
Four different signals can be monitored via the unit’s quad-split multiview display, and RS-422, LAN, and GPI connectivity allow for remote control application support. Many diagnostic tools, such as audio vector, histogram, and waveform, are accessible from the feature-rich menu, and HDR and 3D-LUTs are also supported. The front panel of the Q28 has two built-in speakers, a 3.5mm headphone jack, and a tally light for studio broadcast applications integrated into the front panel design.
Customizable Color Temperature
Five default presets at 3200, 5500, 6500, 7500, and 9300K are easily customized to user needs.
Natural Gamma Values & HDR Support
Gamma value adjustment from 1.8 to 2.8 redistributes tonal level closer to how our eyes perceive it and HDR support.
User-Friendly Buttons with Auxiliary Functions
F1 to F4 user-definable buttons to organize custom auxiliary functions, such as peaking, underscan, and check field as shortcuts.
Vast Array of Log Support
Supports Sony Slog2 and SLog3, Canon Log, ARRI Log, Nikon N-Log, JVC J-Log, and more.
Powered by Battery for Flexible Mobility
A V-mount battery plate is included to enable you to use your preferred V-mount battery.
Key Specs
Display Size
28.00″ / 71.1 cm
Native Resolution
3840 x 2160
Touchscreen
No
HDR Support
Yes, Hybrid Log Gamma
Video I/O
2x BNC (12G-SDI) Input
2x BNC (3G-SDI) Input
1x SFP (12G-SDI) Input
1x HDMI 2.0 Input
2x BNC (12G-SDI) Loop Output
2x BNC (3G-SDI) Loop Output
1x HDMI 2.0 Loop Output
Media/Memory Card Slot
No
Video Format
Fiber/SDI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50/30/25/24
HDMI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50/30/25/24
Battery Type
1x V-Mount (Interchangeable Mount)
Power Consumption
60 W
Display
Display Size
28.00″ / 71.1 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
No
Maximum Brightness
300 nits / cd/m2
Contrast Ratio
1000:1
HDR Support
Yes, Hybrid Log Gamma
Pixels Per Inch (ppi)
157 ppi
Image Controls
Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Marker Color, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Screen Split – Quarter, Vectorscope, Waveform
Video I/O
2x BNC (12G-SDI) Input
2x BNC (3G-SDI) Input
1x SFP (12G-SDI) Input
1x HDMI 2.0 Input
2x BNC (12G-SDI) Loop Output
2x BNC (3G-SDI) Loop Output
1x HDMI 2.0 Loop Output
Embedded Audio
SDI: 16-Channel
HDMI: 8-Channel
Fiber
Audio I/O
1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
Stereo
Power I/O
1x XLR 4-Pin (24 VDC) Input
Other I/O
1x RJ45 (RS-422) Input
1x RJ45 (RS-422) Output
1x RJ45 (LAN) Input
1x RJ45 (GPI) Input
1x USB-A 2.0 Input
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
Yes
Mobile App Compatible
No
Format Support
Video Format
Fiber/SDI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50/30/25/24
HDMI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50/30/25/24
Gamma Curve
ARRI Log C, Canon Log, HDR-HLG, JVC J-Log, Panasonic V-Log, Rec709, Sony S-Log 2, Sony S-Log 3
Power
Input Power
12 to 24 VDC
Battery Type
1x V-Mount (Interchangeable Mount)
Power Consumption
60 W
Mounting
Mounting-Hole Pattern
75 x 75 mm, 100 x 100 mm
Environmental
Environmental Resistance
No
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Dimensions
25.1 x 16.3 x 2.1″ / 638 x 414.3 x 54.4 mm
Weight
19.0 lb / 8.6 kg
Packaging Info
Package Weight
26.47 lb / 12006 g
Box Dimensions (LxWxH)
28.6 x 20 x 6.5″
Weight 120006 g
