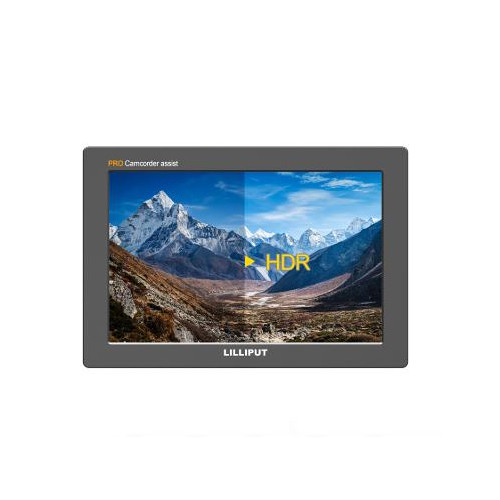

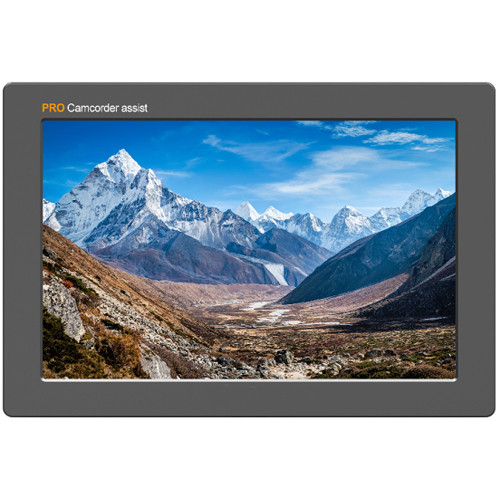

Lilliput Q7 Pro 7″ HDR and LUT Monitor with HDMI/SDI Conversion

 469,00

+ additional shipping charge
  • 7″ 1920 x 1200 Monitor
  • 170 x 170° Viewing Angle
  • Waveform / YRGB / Vectorscope
Category:

The Q7 Pro 7″ HDR and LUT Monitor from Lilliput is a broadcast monitor for professional camera and video applications. It offers a 1920 x 1200 resolution, 500 cd/m² brightness, and 1000:1 contrast ratio. The HDMI connector can actively transmit an HDMI input signal, or output an HDMI signal that has been converted from SDI.

The Q7 Pro features adjustable color space and accurate color calibration, providing clear and vivid images. The HDR feature reproduces a wide dynamic range of luminosity, which allows lighter/darker details to be displayed more clearly. You can select the appropriate gamma mode once the HDR feature is off. The built-in 3D LUT allows for a wide color gamut range and features eight default logs and six user logs. The 3D LUT Load supports loading of .cube files via a USB flash drive.

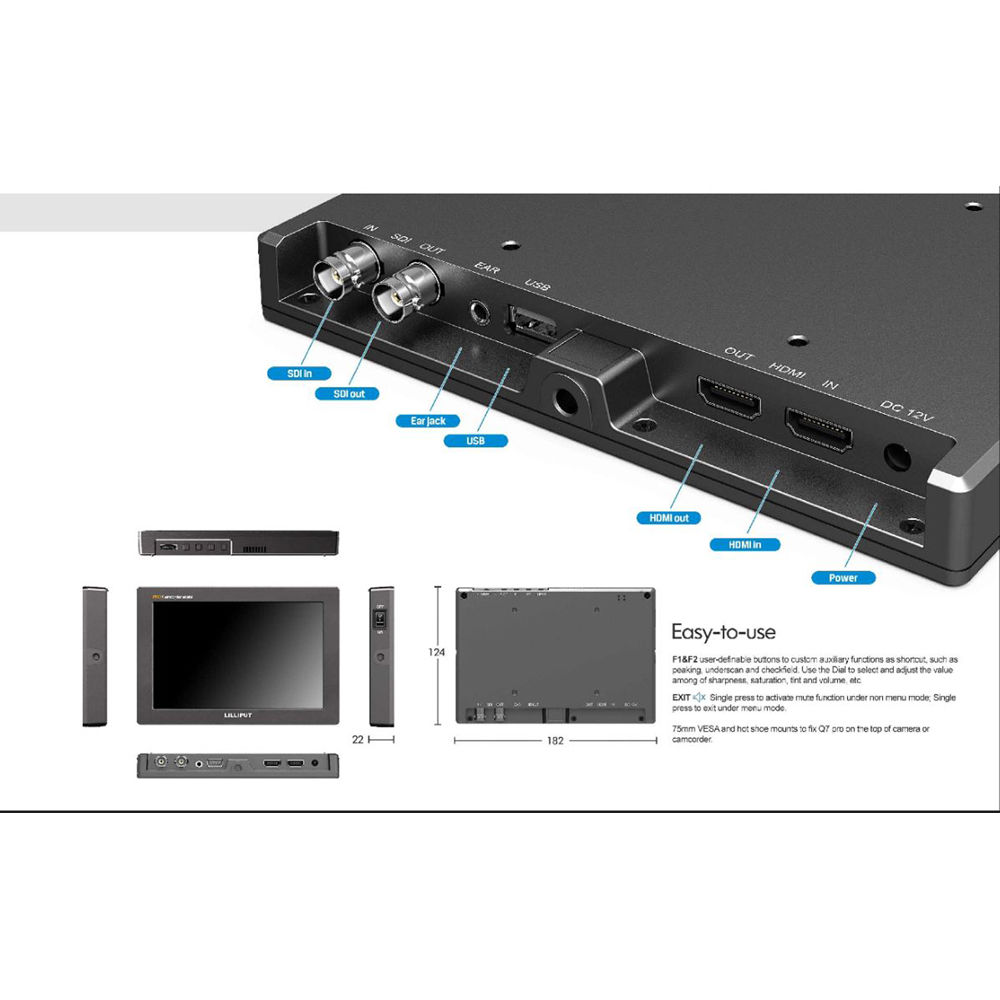

The Q7 Pro provides an array of auxiliary functions designed for improving your photos and movies. These include color space, HDR, timecode, YRGB column, pixel zoom, vectorscope, waveform, audio level meter, peaking, false color, histogram, exposure, check field, color bars, and image flip functions. The F1 and F2 user-definable buttons allow you to customize the auxiliary function shortcuts, and the 75mm VESA and 1/4″-20 shoe mount allow you to mount the Q7 Pro on your DSLR or camcorder.

SDI and HDMI Cross Conversion
Allows you to transmit signals from an SDI input to an HDMI output, and vice versa.
3D LUT
The wide color gamut range allows you to create Rec. 709 color space reproduction, and it features eight default logs and six user logs.
HDR
HDR allows you to view light and dark elements both clearly and vividly.
Gamma
You may select the appropriate gamma mode for your image: 1.8, 2.0, 2.2, 2.35, 2.4, 2.6, and 2.8.

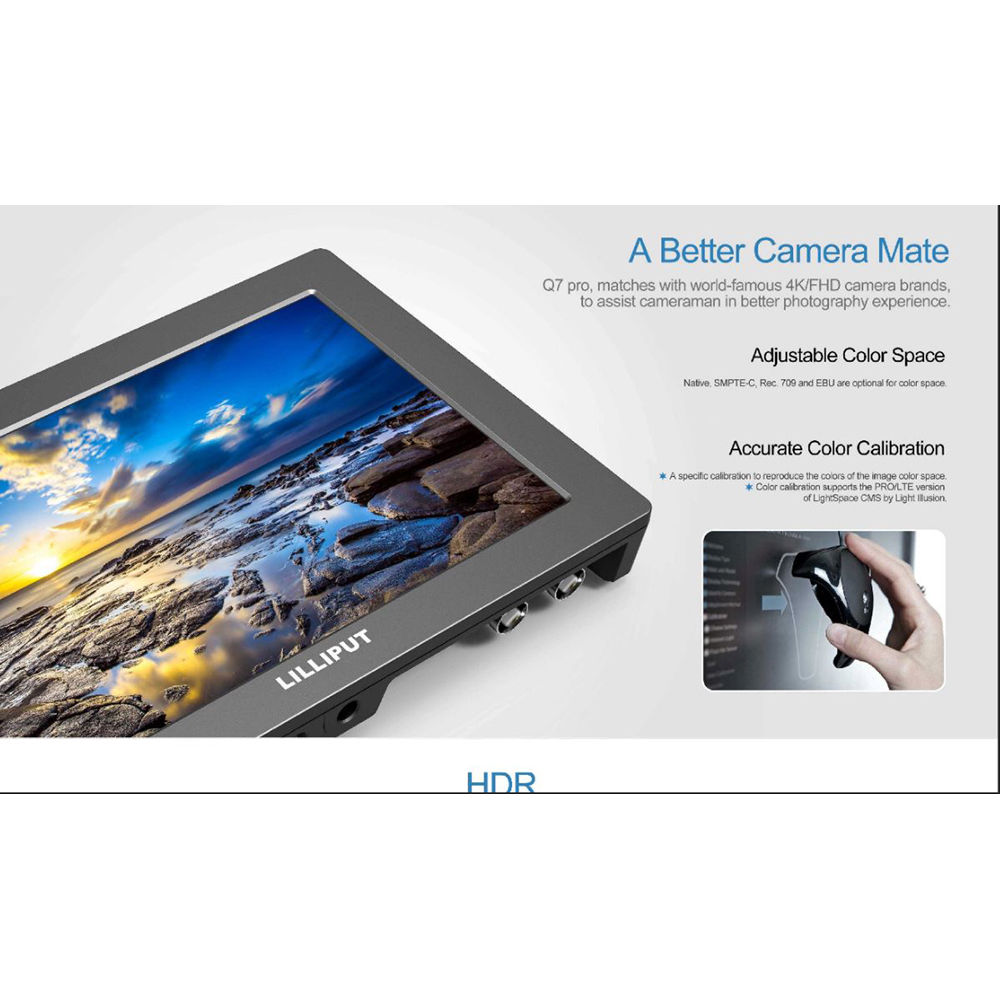

Adjustable Color Space
Native, SMPTE-C, Rec. 709 and EBU options are available for color space.

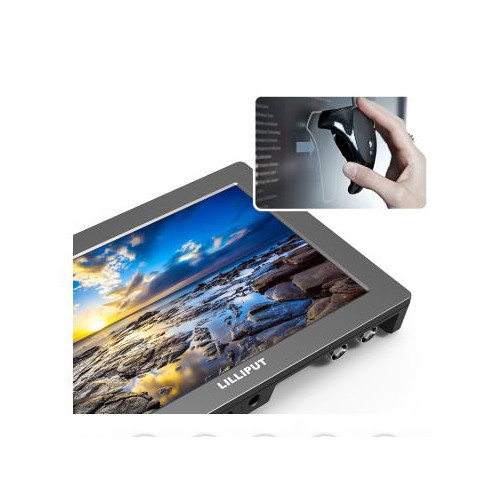

Color Calibration
Supports LightSpace CMS PRO/LTE version, to reproduce the colors of the image color space.

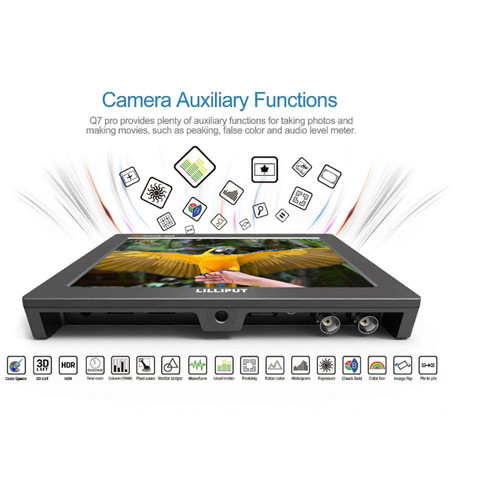

Camera Auxiliary Functions
Various auxiliary functions designed to enhance your photos and videos.
Weight 1275 g
