Lilliput RM‐1731S‐12G 17.3″ HDMI/12G-SDI Pullout Rackmount HD Production Monitor

€ 1.899,00

+ additional shipping charge
  • 17.3″ 1920 x 1080 Resolution Monitor
  • Slim, Space-Saving 1 RU Design
  • Up to UHD 4K60 Resolution Input
  • HDMI 2.0/12G-SDI Input & Loop Output
  • HDR Support, Load Custom 3D LUTs
  • 170° H/V Viewing Angle, Tally Port
  • 300 cd/m² Brightness, 1200:1 Contrast
  • Remote Control via RJ45 LAN Port
Category:

The 17.3″ HDMI/12G-SDI Pullout Rackmount HD Production Monitor from Lilliput is a 17.3″ IPS LCD broadcast monitor with a resolution of 1920 x 1080. It features a slim, space-saving 1 RU pullout rackmount design and support for up to UHD 4K60 video input via 12G-SDI and HDMI. The 17.3″ IPS panel provides a 1200:1 contrast ratio, a viewing angle of 170°, and 300 cd/m² brightness.

The monitor features four 12G-SDI inputs, four 12G-SDI loop outputs, one HDMI 2.0 input, one HDMI 2.0 loop output, a USB-A input for 3D LUT upload, and an RJ45 port for remote control using your computer. This monitor supports multiple HDR color spaces and the ability to load custom 3D LUTs for quick access to a variety of color reference options. A 12 VDC power supply and a tally connector are included with the monitor.

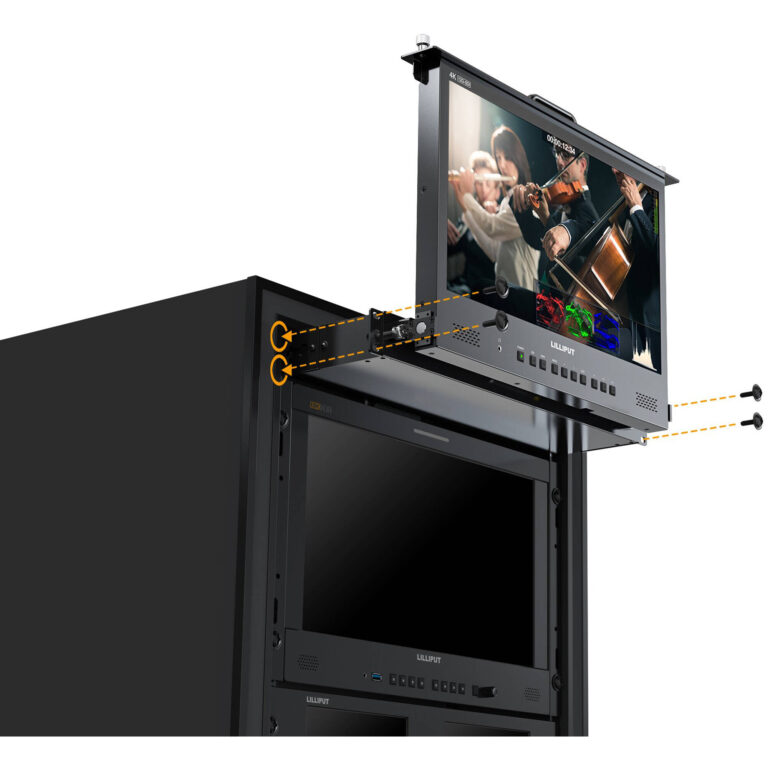

Slim, Space-Saving Design
A pullout space-saving design enables the monitor to use a 1 RU space on your cabinet or truck rackmount.
Interface
Interfaces include four 12G-SDI inputs and loop outputs, an HDMI 2.0 input and loop output, a USB-A input for uploading built-in or custom LUTs, and an RJ45 port for remote LAN control via your computer.
Monitoring Tools
  • Peaking, Check Field, Image Freeze
  • Pixel-to-Pixel Zoom, False Color, Exposure
  • Vectorscope, Histogram
  • Anamorphic De-Squeeze, Screen Markers
  • HDR, Color Space
  • Color Temperature Adjustment
  • Image Flip, H/V Delay
  • Audio Metering
HDR and 3D LUTs
  • When HDR is activated, the display reproduces a greater dynamic range of luminosity.
  • Enables colors and lighter and darker details to be displayed more clearly.
  • Supports HLG and ST2084 300/1000/10,000 HDR.
  • You can use any of the 17 default logs or load up to six of your own custom LUTs in .cube format via the USB port.
Audio
  • This monitor outputs embedded audio via a 3.5mm headphone jack and two speakers.
  • Provides channel selection and onscreen audio metering.
Assignable Buttons
Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor’s menu system.
Remote Control and Tally
Use the RJ45 port to connect to your laptop or computer for remote control. The monitor also supports tally signaling and includes a tally adapter.
Key Specs
Display Size
17.3″ / 43.9 cm
Native Resolution
1920 x 1080
Touchscreen
No
HDR Support
Yes, Hybrid Log Gamma
Video I/O
4x BNC (12G-SDI) Input
1x HDMI 2.0 Input
4x BNC (12G-SDI) Loop Output
1x HDMI 2.0 Loop Output
Media/Memory Card Slot
No
Built-In Battery
Yes
Power Consumption
19 W
Display
Display Size
17.3″ / 43.9 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 170°
Vertical: 170°
Touchscreen
No
Maximum Brightness
300 nits / cd/m2
Contrast Ratio
1200:1
HDR Support
Yes, Hybrid Log Gamma
Pixels Per Inch (ppi)
127 ppi
Color Gamut
100% Rec. 709
Image Controls
False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel Zoom, Vectorscope, Waveform
Inputs / Outputs
Video I/O
4x BNC (12G-SDI) Input
1x HDMI 2.0 Input
4x BNC (12G-SDI) Loop Output
1x HDMI 2.0 Loop Output
Embedded Audio
HDMI: 8-Channel
SDI: 16-Channel
Audio I/O
1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
Stereo
Power I/O
1x Barrel (12 VDC) Input
Other I/O
1x RJ45 (LAN)
1x DE-15/DB-15 (Tally)
1x USB-A (LUT Upload)
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Standard Compliance
SMPTE ST-2084
Power
Input Power
12 to 24 VDC
Built-In Battery
Yes
Power Consumption
19 W
Mounting
Rack Form Factor
1 RU
Environmental
Certifications
No
Operating Temperature
32 to 82°F / 0 to 50°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Dimensions
20 x 19 x 1.7″ / 507.5 x 482.5 x 44 mm
Weight
22.3 lb / 10.1 kg
Packaging Info
Package Weight
25.545 lb / 11590 g
Box Dimensions (LxWxH)
26.4 x 22.7 x 6.1″
Weight 11590 g
