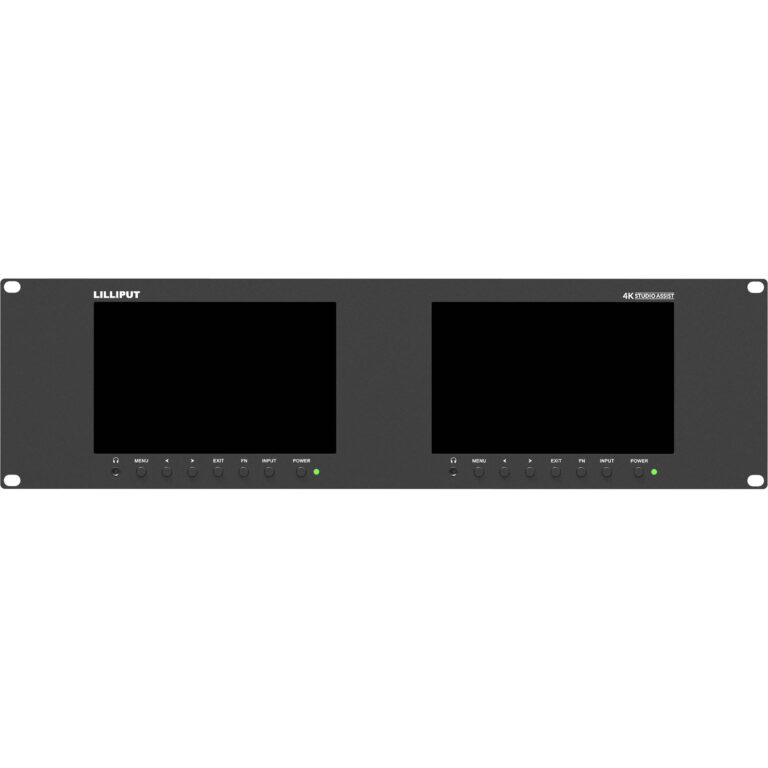

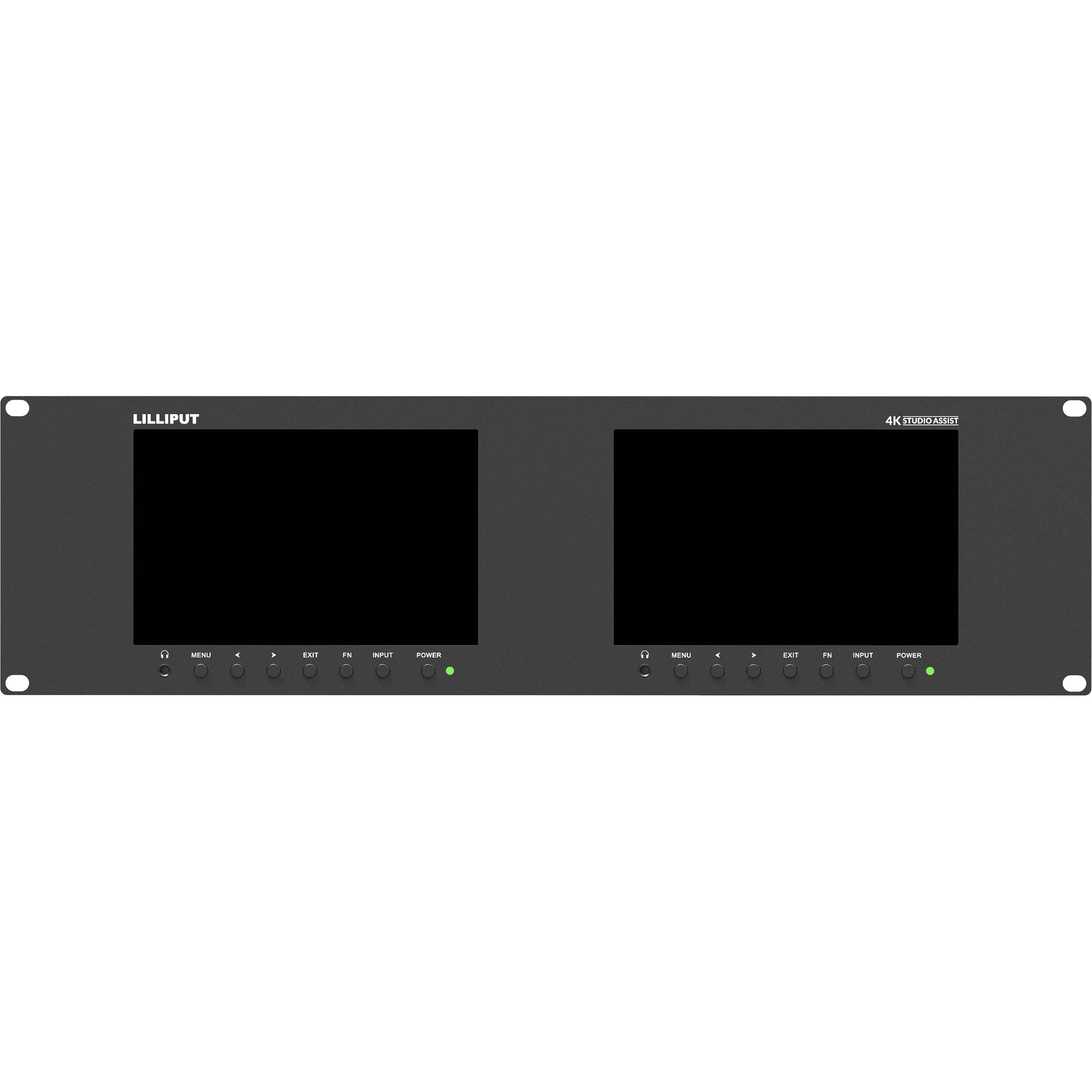

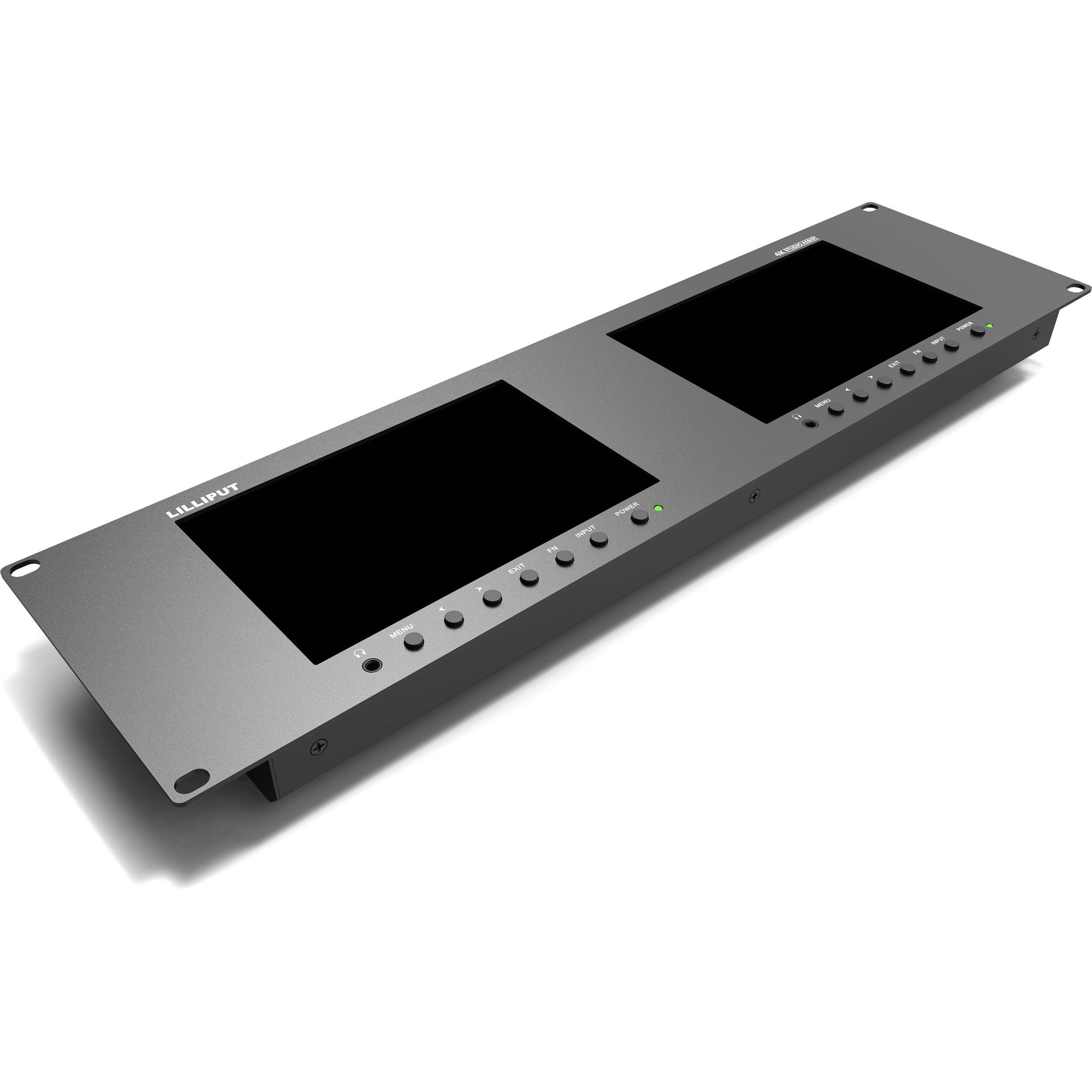

Lilliput RM‐7029S Dual 7″ Rackmount Monitors with 3G-SDI & HDMI (3 RU)

€ 699,00

+ additional shipping charge
  • 1920 x 1200 LCD 7″ Screens
  • For Video Wall or Broadcast Truck
  • 3G-SDI and HDMI Inputs/Outputs
  • Supports up to 1080p SDI and 2160p HDMI
  • Load Custom 3D LUTs via USB
  • Support for HDR
  • Ethernet Input for Control
  • 1 x Headphone Jack per Display
Category:

Monitor two different cameras simultaneously for your next live broadcast using the 1920 x 1200 resolution Lilliput Dual 7″ Rackmount Monitors with 3G-SDI & HDMI, which can be installed in a video wall or broadcast truck thanks to its 3 RU form factor. Various video assist functions such as false color, histogram, and timecode are independently available for each monitor, allowing production managers to easily and precisely analyze image quality. Custom 3D-LUTs can be uploaded using the USB-A input for accurate color comparison.

Two 3G-SDI and two HDMI inputs support video up to 1080p60 and 2160p60 respectively. There are also two 3G-SDI and two HDMI loop outputs, which expand your display options. Control for both monitors is possible with the onboard buttons or using the LAN input and a connected computer to adjust settings like picture, marker, function, source, audio, and tally light. Audio can be monitored via the two 3.5mm headphone jacks.

3D-LUTs
  • Supports .cube files uploaded via the USB-A input
  • Built-in 17 default logs and six user logs
  • Makes color calibration of previous shooting more intuitive
HDR
  • When activated, the display reproduces greater dynamic of luminosity
  • Allows lighter and darker details to be more visible
  • Supports ST-2084 300, 1000, 10,000, and HLG
Video Assist Functions
  • Check field
  • Color bar
  • Exposure
  • False color
  • Freeze
  • Histogram
  • Level meter
  • Markers
  • Peaking
  • Pixel to pixel
  • Pixel zoom
  • Timecode
Key Specs
Display Size
7.0″ / 17.8 cm
Native Resolution
1920 x 1200
Touchscreen
No
HDR Support
Yes, Hybrid Log Gamma
Video I/O
2x BNC (3G-SDI) Input
2x BNC (3G-SDI) Loop Output
2x HDMI 2.0 Input
2x HDMI 2.0 Loop Output
Media/Memory Card Slot
No
Video Format
SDI
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
HDMI
DCI 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
Power Consumption
16 W
Display
Panel Type
LCD
Display Size
7.0″ / 17.8 cm
Native Resolution
1920 x 1200
Aspect Ratio
16:10
Viewing Angle
Horizontal: 160°
Vertical: 160°
Touchscreen
No
Maximum Brightness
400 nits / cd/m2
Contrast Ratio
2000:1
HDR Support
Yes, Hybrid Log Gamma
Pixels Per Inch (ppi)
323 ppi
Image Controls
Check Field, False Color, Focus Peaking, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers

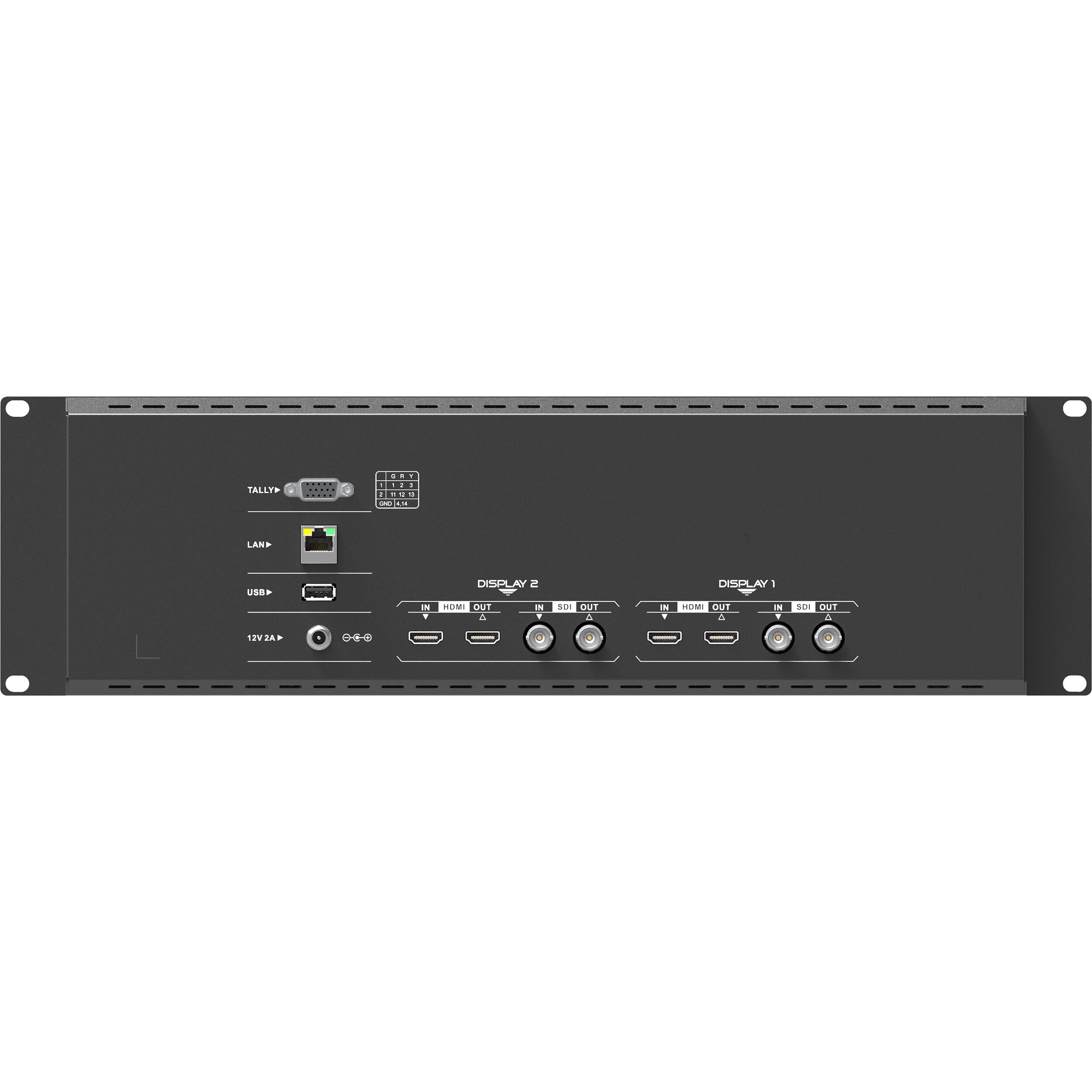

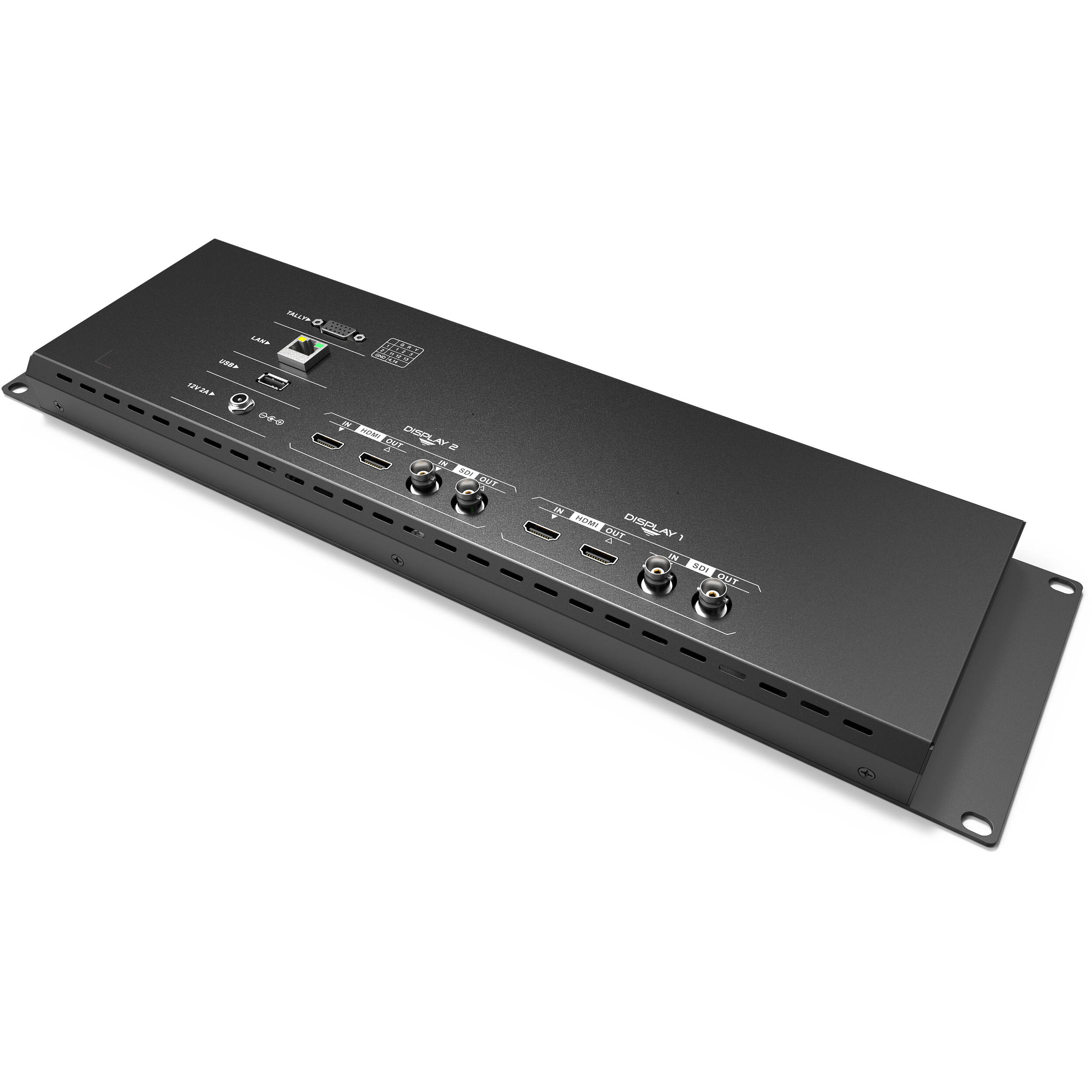

Inputs / Outputs
Video I/O
2x BNC (3G-SDI) Input
2x BNC (3G-SDI) Loop Output
2x HDMI 2.0 Input
2x HDMI 2.0 Loop Output
Audio I/O
2x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x Barrel (1.5 A / 24 VDC) Input
Other I/O
1x RJ45 (LAN) Input
1x DE-15/DB-15 (Tally) Input
1x USB-A
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
SDI
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
HDMI
DCI 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
Gamma Curve
ARRI Log C, Canon Log, JVC J-Log, Panasonic V-Log, Sony S-Log 2, Sony S-Log 3
Video Standard Compliance
SMPTE ST-2084
Power
Input Power
10 to 24 VDC
Operating Current
1.5 A
Power Consumption
16 W
Mounting
Rack Form Factor
3 RU
Environmental
Operating Temperature
32 to 82°F / 0 to 50°C
Storage Temperature
-4 to 158°F / -20 to 70°C
General
Material of Construction
Metal
Dimensions
18.9 x 5.2 x 1.2″ / 480 x 131.6 x 29.3 mm
Weight
4.9 lb / 2.2 kg
Packaging Info
Package Weight
6.26 lb / 2840 g
Box Dimensions (LxWxH)
23.6 x 7.5 x 3.7″
Weight 2840 g
