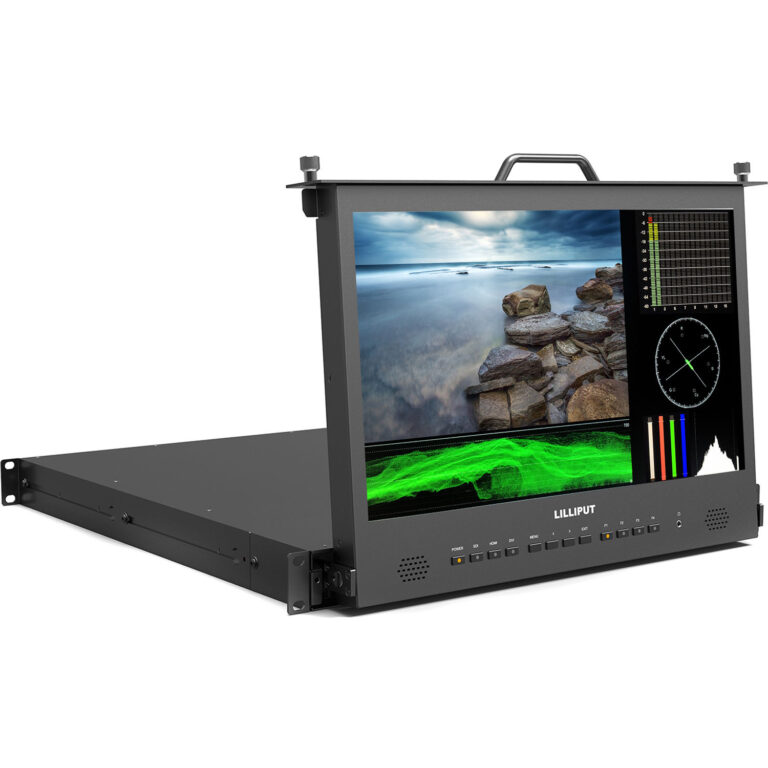

Lilliput RM-1730S 17.3″ Full HD 3G-SDI/HDMI Pullout Rackmount Monitor (1 RU)

€ 1.199,00 + VAT

Add to compare
Add to wishlist
Category:
Description

The LILLIPUT RM-1730S 17.3″ Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60. It offers a brightness rating of 300 cd/m2, contrast ratio of 700:1, and viewing angles of 178°. The monitor comes with a host of functions including cross conversion, timecode, pixel zoom, vectorscope, waveform, level meter, peaking, false color, histogram, exposure, check field, color bars, and Image flip. Its 1 RU design allows it to be easily integrated into a studio or post-production rackmount setup.

Metal housing with pullout drawer for protection from shocks and drops
Monitor powers off automatically when screen is down and pushed in
Signal cross conversion from SDI to HDMI, and from HDMI to SDI out
Supports various methods of mounting for use in broadcast, on-site monitoring, and live broadcast vans
1 RU rackmount design
LCD Size
17.3″ (43.9 cm)
Display Resolution
1920 x 1080 (RGB)
Active Area
H x V: 15 x 8.45″ (381.89 x 214.81 mm)
Dot Pitch
H x V: 0.1989 x 0.1989 mm
Aspect Ratio
16:9
Brightness
300 cd/m2
Contrast
700:1
Light Source
LED
Surface Treatment
Hard coating (3H)
High-resolution adaptable AG
Response Time
Rising: 14 ms (typical), 19 ms (maximum)
Falling: 11 ms (typical), 16 ms (maximum)
Formats Supported
SDI
SMPTE-425M-AB: 1080p 60/59.94/50, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98
SMPTE-372M: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 29.97/25/24/23.98, 720p 60/59.94/50
SMPTE-296M: 720p 60/59.94/50/30/29/25/24/23.98
SMPTE-292M: 1080p 30/29.97/25/24/24PsF/23.98/23.98PsF
SMPTE-125M: 1080p 30/29.97/25/24/24PsF/23.98/23.98PsF, 1080i 60/59.94/50, 480i 59.94
ITU-R BT.656: 576i 50

HDMI
1080p Full HD
1080i
720p
576p
576i
480p
486i
Viewing Angle
178°/178° (H/V)
Input and Output Connectors
Inputs
1 x 3G-SDI
1 x HDMI
2 x Audio (L/R)
1 x TALLY
1 x DVI

Output
1 x 3G-SDI
1 x HDMI
1 x Earphone jack
Audio
2 x Speakers
1 x Earphone
Power Requirements
Current: 2.5 A
Input Voltage: 15 VDC
Controls
Basic
Power, SDI, HDMI, DVI
Menu, < > button, exit, user-definable buttons

Advanced
Brightness, contrast, saturation, tint, sharpness, color temp
Markers (center/aspect/safety), marker color, marker mat
Thickness, scan, aspect, underscan, H/V delay, check field
Zoom, freeze, DSLR, waveform, peaking (color/level), false color
Exposure, exposure level, histogram
Volume, level meter, audio ch, language
HDMI-SDI convert, color bar, OSD time, back light, fan, reset
Power Consumption
≤32 W
Speaker
1 W, built-in
Menu Language
English/Chinese
Temperature & Humidity
Operation: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 80% RH
240 hours of operation at high temperature/humidity
Dimensions
19 x 1.7 x 19.9″ (48.25 x 4.4 x 50.75 cm)
Weight
18.95 lb (8.6 kg)
Packaging Info
Package Weight
25.15 lb / 11408 g
Box Dimensions (LxWxH)
26.1 x 23 x 5.2″
Additional information
Weight 11408 g
