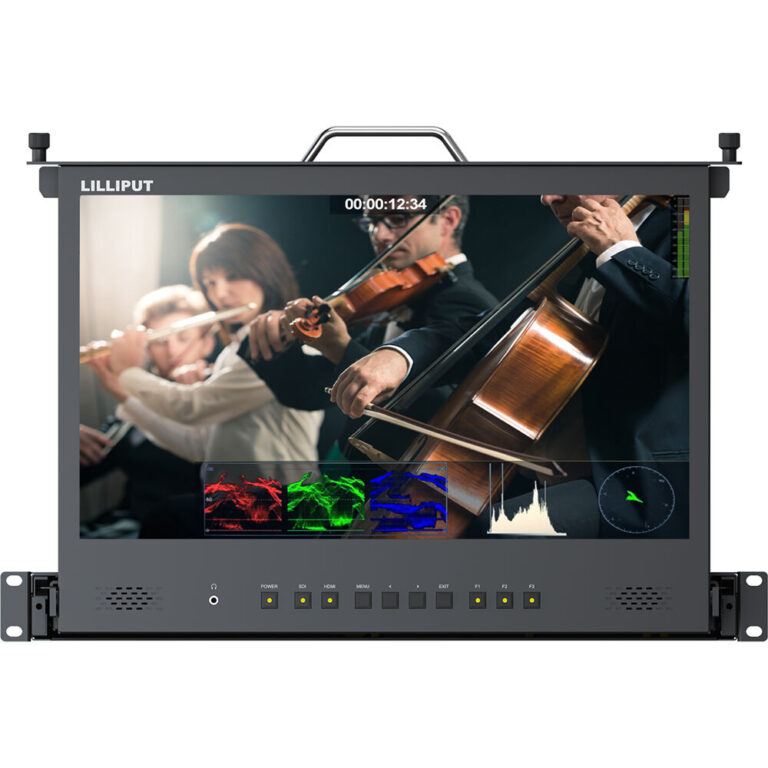

Lilliput RM-1731S 17.3″ Pullout Rackmount 3G-SDI/HDMI Monitor

€ 999,00 + VAT

17.3″ 1920 x 1080 Resolution Monitor
Slim, Space-Saving 1 RU Design
Up to UHD 4K60 HDMI, Up to 1080p60 SDI
HDMI 2.0 In/Out, 3G-SDI In/Out
HDR Support, Load Custom 3D LUTs
170° H/V Viewing Angle
300 cd/m² Bright, 800:1 Contrast
Remote Control via RJ45 Port & Computer

Add to compare

Add to wishlist

Category: LILLIPUT

Description

The RM-1731S Pullout Rackmount 3G-SDI/HDMI Monitor from Lilliput is a 17.3″ broadcast monitor with a resolution of 1920 x 1080. It features a slim, space-saving 1 RU pullout rackmount design and support for up to 1080p60 video input via 3G-SDI and up to UHD 4K60 input via HDMI. The 17.3″ IPS panel provides an 800:1 contrast ratio, a viewing angle of 170°, and 300 cd/m² brightness. The RM-1731S monitor features a 3G-SDI input and loop-out, an HDMI 2.0 input and loop-out, a USB-A port for LUT upload, and an RJ45 port for remote control using your computer.

This monitor supports multiple HDR color spaces and the ability to load custom 3D LUTs for quick access to a variety of color reference options. A 12 VDC power supply and a tally connector are included with the monitor.

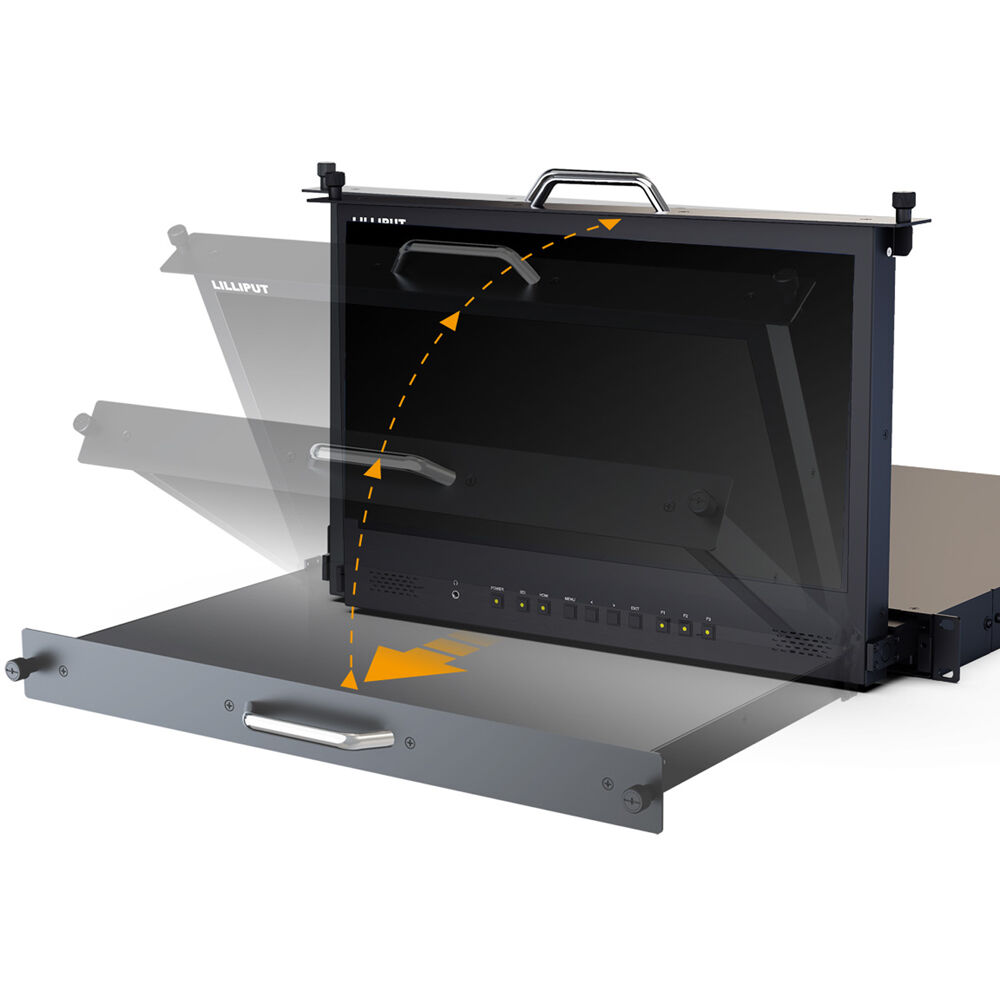

Slim, Space-Saving Design

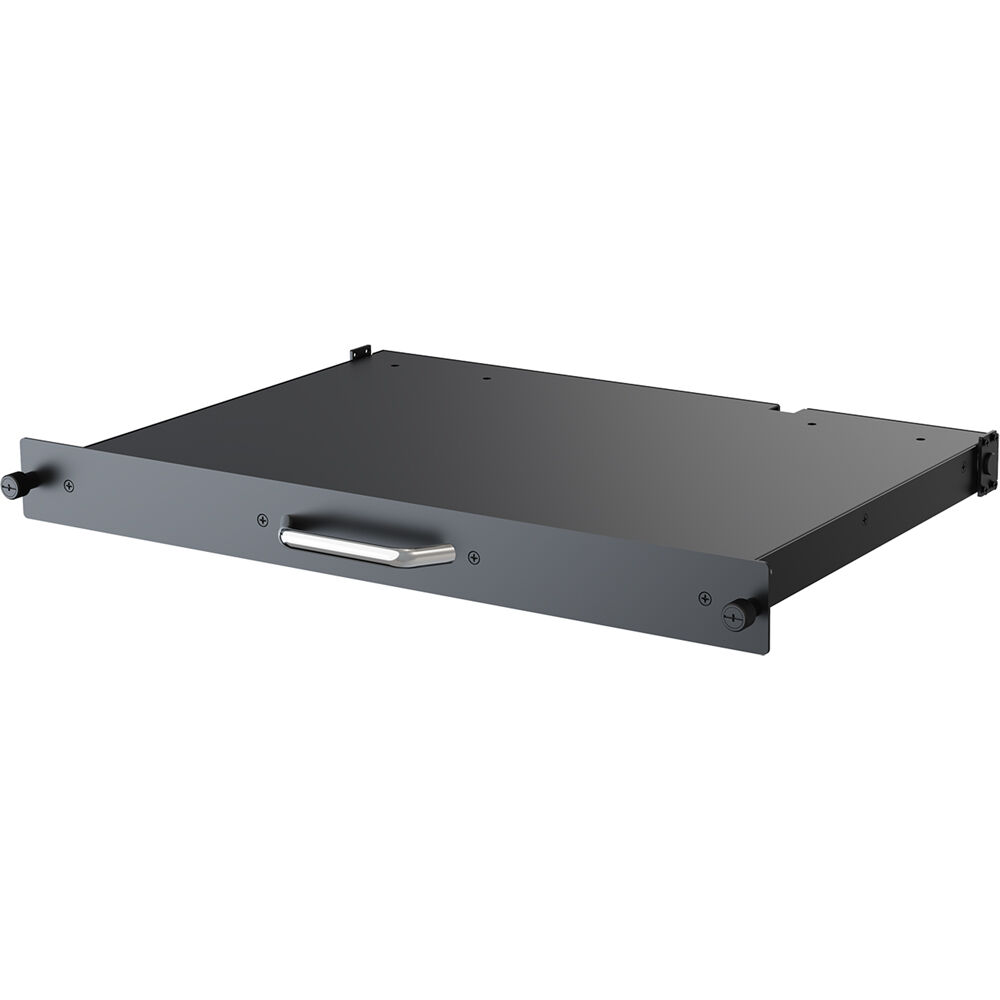

A pullout space-saving design enables the RM-1731 monitor to use a 1 RU space on your cabinet or truck rackmount.

Interface

Interfaces include a 3G-SDI input and loop-out, an HDMI 2.0 input and loop-out, a USB-A port for uploading built-in or custom LUTs, and an RJ45 port for remote control via your computer.

Monitoring Tools

Peaking, Check Field, Image Freeze
Pixel-to-Pixel Zoom, False Color, Exposure
Vectorscope, Histogram
Anamorphic De-Squeeze, Screen Markers
HDR, Color Space
Color Temperature Adjustment
Image Flip, H/V Delay
Audio Metering

HDR and 3D LUTs

When HDR is activated, the display reproduces a greater dynamic range of luminosity.
Enables colors and lighter and darker details to be displayed more clearly.
Supports HLG and ST2084 300/1000/10,000 HDR.
You can use any of the 17 default logs or load up to six of your own custom LUTs in .cube format via the USB port.

Audio

This monitor outputs embedded audio via a 3.5mm headphone jack and two speakers.
Provides channel selection and onscreen audio metering.

Assignable Buttons

Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor’s menu system.

Remote Control

Use the RJ45 port to connect to your laptop or computer for remote control.

Key Specs

Display Size	17.3″ / 43.9 cm
Native Resolution	1920 x 1080
Touchscreen	No
HDR Support	Hybrid Log Gamma
Video I/O	1x BNC (3G-SDI) Input 1x HDMI 2.0 Input 1x BNC (3G-SDI) Loop Output 1x HDMI 2.0 Loop Output
Media/Memory Card Slot	No
Power Consumption	14 W
Mounting	No

Display

Display Size	17.3″ / 43.9 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 170° Vertical: 170°
Touchscreen	No
Maximum Brightness	300 nits / cd/m²
Contrast Ratio	800:1
HDR Support	Hybrid Log Gamma
Pixels Per Inch (ppi)	127 ppi
Image Controls	False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel Zoom, Vectorscope, Waveform

Inputs / Outputs

Video I/O	1x BNC (3G-SDI) Input 1x HDMI 2.0 Input 1x BNC (3G-SDI) Loop Output 1x HDMI 2.0 Loop Output
Embedded Audio	HDMI: 8-Channel SDI: 16-Channel
Audio I/O	No
Built-In Speaker	2
Power I/O	1x Barrel (12 VDC) Input
Other I/O	1x RJ45 (LAN) 1x DE-15/DB-15 (Tally) 1x USB-A (LUT Upload)
Media/Memory Card Slot	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Gamma Curve	ARRI Log C, Canon Log, JVC J-Log, Nikon N-Log, Sony S-Log 2, Sony S-Log 3, V-Log
Video Standard Compliance	SMPTE ST-2084

Power

DC Input Power	10 to 24 VDC
Power Consumption	14 W

Mounting

Rack Form Factor	1 RU
Mounting	No

Environmental

Environmental Protection	No
Operating Temperature	32 to 82°F / 0 to 50°C
Storage Temperature	-4 to 140°F / -20 to 60°C

General

Dimensions	19 x 1.7 x 20″ / 482.5 x 44 x 507.5 mm
Weight	19.6 lb / 8.9 kg

Packaging Info

Package Weight	24.585 lb /11149 g
Box Dimensions (LxWxH)	26.4 x 22.7 x 6.3″
