Lilliput RM-503S 5″ 3G-SDI/HDMI Rackmount Monitor (2 RU)

€ 899,00

+ additional shipping charge
  • Full 1920 x 1080 HD Resolution
  • Three 5″ LED Displays
  • Brightness of 450 cd/m^2
  • Supports HDR
  • Built-In 3D LUT Support
  • Waveform, Vectorscope, and Histogram
  • LAN-Based Remote Control Functions
  • 2 RU Rackmountable
Category:

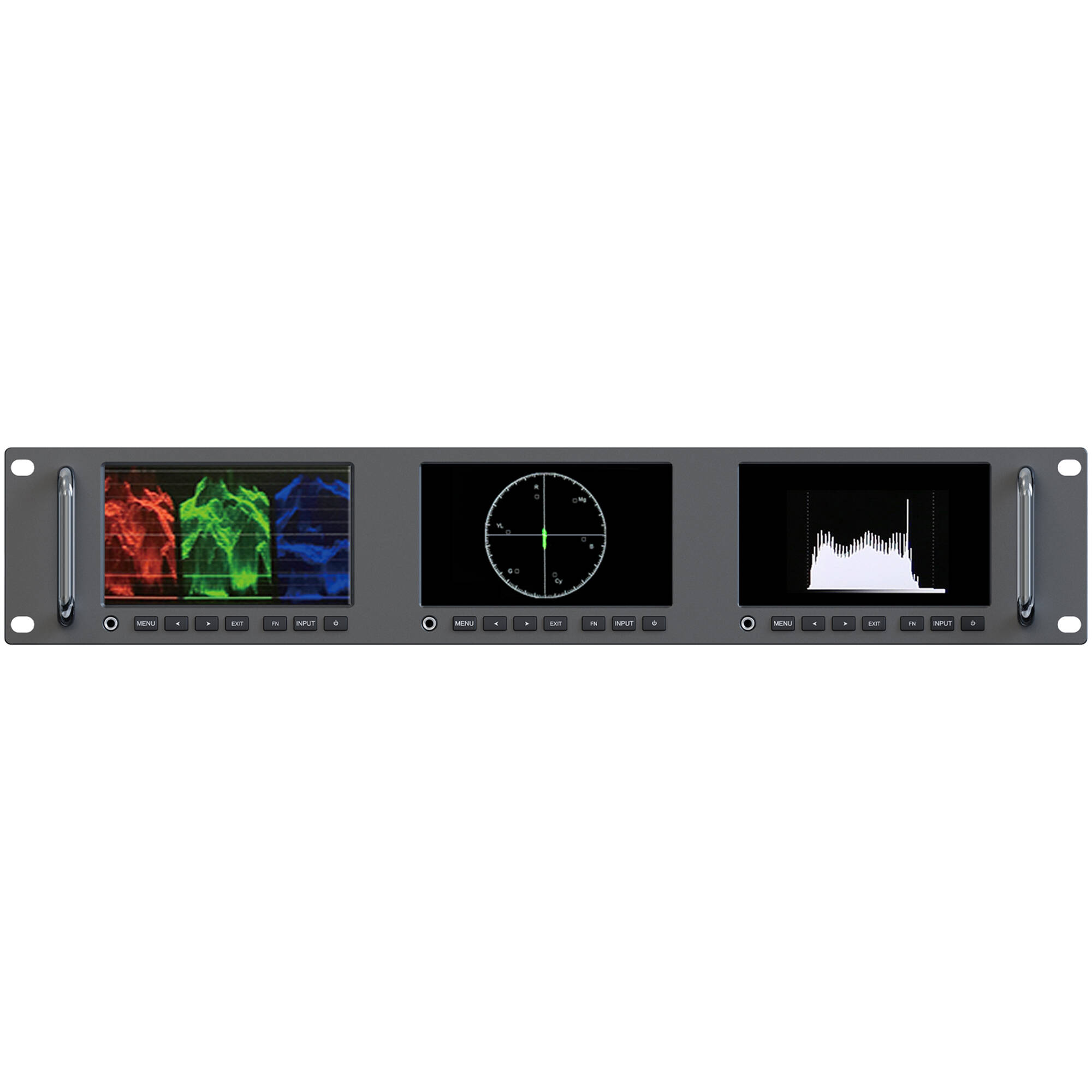

The RM-503S 5″ 3G-SDI/HDMI Rackmount Monitor from Lilliput features three 5″ LED displays, each with a brightness of 450 cd/m² and Full HD 1920 x 1080 resolution. The 2 RU rack-mountable metal chassis has two built-in handles to facilitate mounting and dismounting from your video wall or mobile broadcast system. With integrated 3D LUT and HDR support, the RM-503S is tailor-made for broadcast, post-production, and livestreaming applications.

The unit may be operated remotely using LAN connectivity, giving you the flexibility to use any computer that supports the protocol. Waveform, vectorscope, and histogram are all accessed in full screen, along with a wide variety of camera auxiliary functions such as false color, peaking, and audio level meter.

Wide Color Space, 98% DCI-P3 Screen
Native, Rec.709, and three user-defined options are available for color space.
Color Calibratable
Color calibration supports the PRO/LTE version of ColourSpace CMS by Light Illusion.
HDR
When HDR is activated, the displays reproduce a greater dynamic range of luminosity, giving clearer identification between lighter and darker details, thus enhancing overall picture quality.
USB Input for Importing 3D LUTs
Upload 3D LUTs via the rear-panel USB connector and recombine color tone to quickly form different color styles with 17 default logs and six user logs.
Easy Remote Control
Connect to a computer via LAN, adjust IP address details, and the link for remote operation is ready for action.
Key Specs
Display Size
5.0″ / 12.7 cm
Native Resolution
1920 x 1080
Touchscreen
No
HDR Support
Yes,
Video I/O
3x BNC (3G-SDI) Input
3x HDMI 2.0 Input
1x RJ45 LAN Input
Media/Memory Card Slot
No
Video Format
SDI
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50/30/24
HDMI
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50/30/25/24
Power Consumption
27 W
Display
Display Size
5.0″ / 12.7 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 160°
Vertical: 160°
Touchscreen
No
Maximum Brightness
450 nits / cd/m2
Contrast Ratio
1000:1
HDR Support
Yes,
Pixels Per Inch (ppi)
440 ppi
Color Gamut
98% DCI-P3
Real-Time LUT Monitoring
HDR
Image Controls
Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Marker Color, Pixel Zoom, Screen Markers, Underscan, Vectorscope, Waveform
Inputs / Outputs
Video I/O
3x BNC (3G-SDI) Input
3x HDMI 2.0 Input
1x RJ45 LAN Input
Embedded Audio
HDMI/LAN (RJ45)/SDI
Audio I/O
3x 1/8″ / 3.5 mm Headphone Input/Output
Built-In Speaker
No
Power I/O
1x Barrel (2.5 A / 12 VDC) Input
Other I/O
1x DE-9/DB-9 (Tally)
1x USB-A 2.0 Input
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
SDI
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50/30/24
HDMI
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50/30/25/24
Gamma Curve
DCI-P3, Rec709
Power
Input Power
12 to 24 VDC
Operating Current
2.5 A
Power Consumption
27 W
Mounting
Rack Form Factor
2 RU
Environmental
Operating Temperature
32 to 82°F / 0 to 50°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Material of Construction
Aluminum, Metal
Dimensions
18.9 x 4.6 x 3.5″ / 480 x 116 x 88 mm
Weight
4.6 lb / 2.1 kg
Packaging Info
Package Weight
6.665 lb / 3024 g
Box Dimensions (LxWxH)
22.2 x 8.3 x 4.9″
Weight 3024 g
