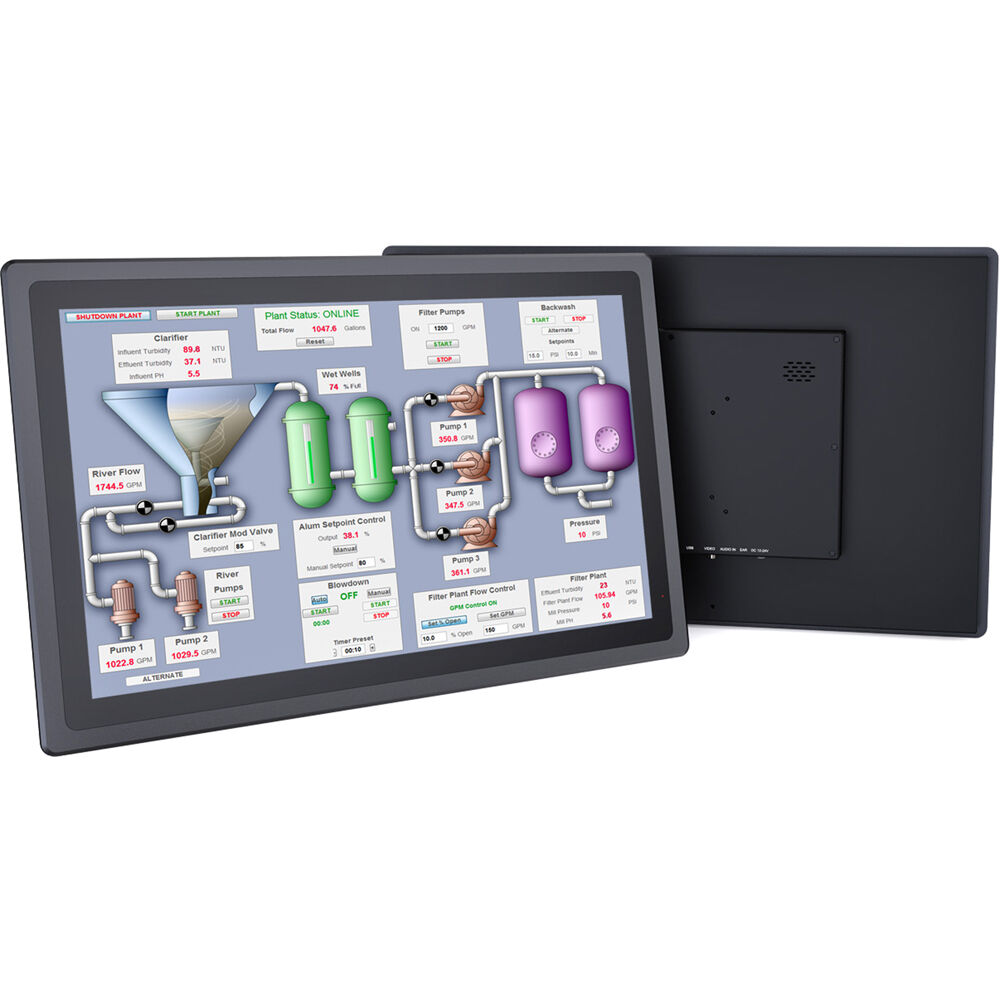

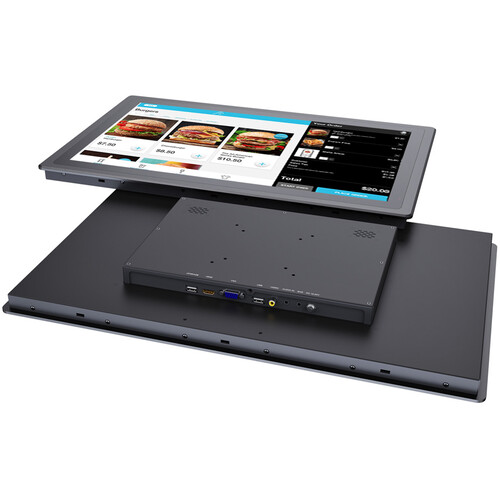

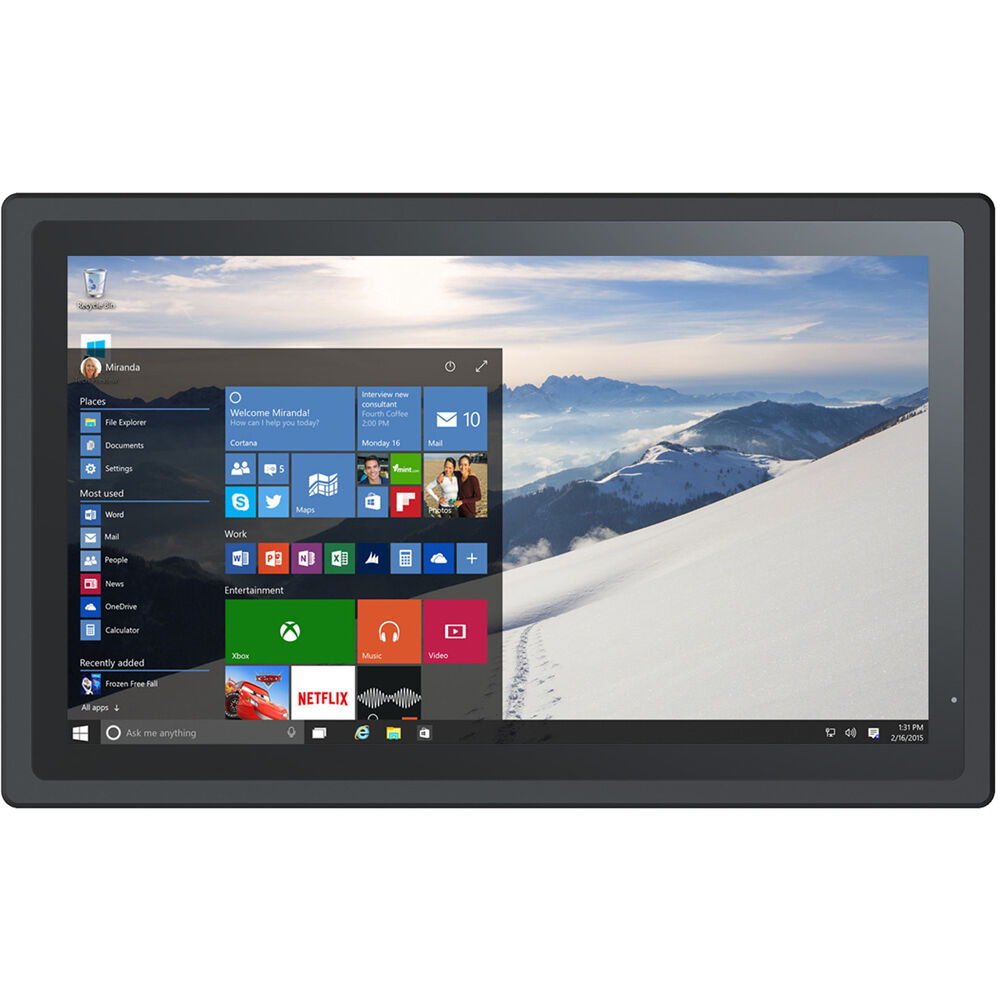

Lilliput TK2150T 21.5″ Full HD Touchscreen Industrial Display
€ 599,00 + VAT
- For Industrial HMI Applications
- Full HD 1080p Native Resolution
- 10-Point Capacitive Touch
- IP65-Rated Water & Dust Resistant
- 1000 nits of Brightness
- Auto Dimming
- Built-In Stereo Speakers
- HDMI, VGA & Composite Video Inputs
- 3.5mm Audio Input & Headphone Out
- Industrial-Grade Aluminum Housing
Designed for HMI applications, the 21.5″ Full HD Touchscreen Industrial Display from Lilliput can be used as a solution for various situations within many industries. Some examples include various aspects of the medical field, at AI-equipped production facilities, within smart locker installations, or as part of self-service kiosks. Depending on how it’s used, the 10-point capacitive touchscreen can be utilized as an information display or interactive interface for both workers and guests. The display panel is a generous 21.5″ in size, delivers a crisp and detailed 1080p image, and can handle outdoor usage with IP65-rated dust and water resistance.
- Industrial-grade aluminum metal housing
- 1000 nits of brightness
- Auto-dimming
- Two built-in speakers
- 12-24 VDC power input compatibility
- One HDMI, VGA, and composite video input
- 3.5mm audio input and headphone output
- USB Type-A port for firmware upgrading
| Display Size |
21.5″
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
1000 nits/cd/m2
|
| Touchscreen Technology |
Capacitive
|
| Inputs |
Rear:
1x HDMI 1.4 1x DE-15/DB-15 (VGA) 1x RCA (Composite) 1x 1/8″ / 3.5 mm |
| Outputs |
Rear:
1x 1/8″ / 3.5 mm (Analog Audio) |
| USB I/O |
Rear:
2x USB-A (Unspecified Version) |
| Ethernet I/O |
No
|
| Built-In Speakers |
Yes, 2
|
| Media Card Reader |
No
|
| Display Size |
21.5″
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
1000 nits/cd/m2
|
| Contrast Ratio |
1000:1
|
| Refresh Rate |
60 Hz
|
| Viewing Angle (H x V) |
178 x 178°
|
| Pixels Per Inch (ppi) |
103 ppi
|
| Touchscreen Technology |
Capacitive
|
| Multi-Touch Points |
10
|
| TV Tuner |
No
|
| Inputs |
Rear:
1x HDMI 1.4 1x DE-15/DB-15 (VGA) 1x RCA (Composite) 1x 1/8″ / 3.5 mm |
| Outputs |
Rear:
1x 1/8″ / 3.5 mm (Analog Audio) |
| USB I/O |
Rear:
2x USB-A (Unspecified Version) |
| Ethernet I/O |
No
|
| Built-In Speakers |
Yes, 2
|
| Speaker Configuration |
2-Channel
|
| Media Card Reader |
No
|
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Power Consumption |
Typical: < 37.0 W
|
| Input Power |
12 to 24 VDC
|
| Power Adapter Type |
External
|
| Material of Construction |
Aluminum
|
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Dimensions |
21.9 x 13.6 x 1.9″ / 556.3 x 345.4 x 48.3 mm
|
| Weight |
13.21 lb / 5.99 kg
|
| Package Weight |
21.045 lb / 9546 g
|
| Box Dimensions (LxWxH) |
26.3 x 19.4 x 5.7″
|
| Weight | 9546 g |
|---|
