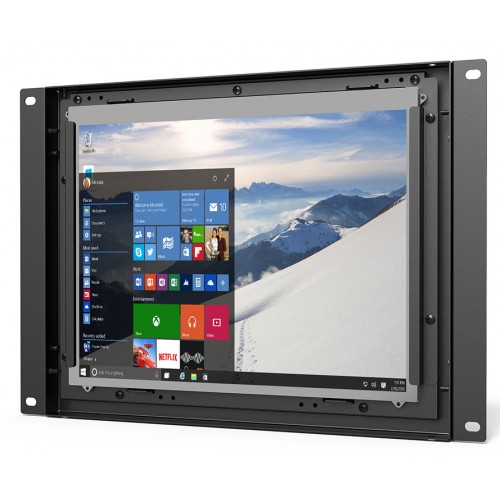

Lilliput TK970-NP/C/T – 9.7″ HDMI touchscreen open frame monitor
€ 228,00 + VAT
The Lilliput TK970-NP/C/T is a 9.7″ inch 4:3 TFT LCD open frame monitor with HDMI, DVI, VGA and video-in. It features a 9.7″ resistive touch screen for HMI deployments, and its frame design is a metal housing with both VESA & rear mounting methods. The rugged metalwork of the shell offers better protection in all kinds of working and operational environments.
It is designed as a human-machine interface, for use in such applications as:-
Entertainment kiosks / Booths
Retail Checkout Screens,
Supermarket advertising and Self Service
Shopping Mall Advertising
CCTV Monitoring
Numerical Control Machinery
Intelligent industrial control system, etc
15 inch high definition screen
9.7” open frame monitor
The Lilliput TK970-NP/C monitor has an high resolution LCD panel and is ideal for industrial integration into point of sales equipment, entertainment machines and ticketing machines. Suitable for all kinds of installation and custom projects
multiple input types
Full ranges of inputs designed around computer and CCTV systems
Use the TK970 in a wide range of appications thanks to it’s range of inputs including HDMI, VGA and composite video
open frame monitor
Steel enclosure with flexible mounting options

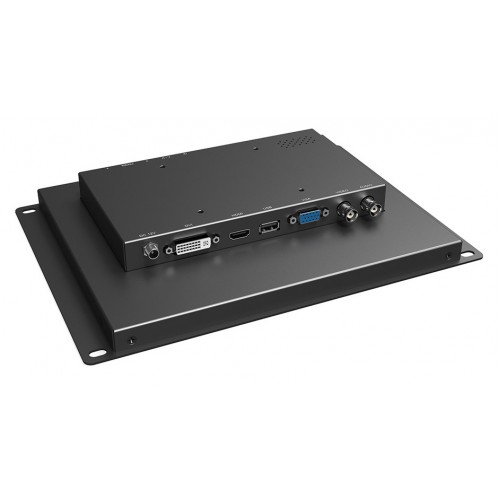

The TK970 is mounted within a mild steel frame giving a rugged feel to this monitor. The unit can be flush mounted to a surface using the mounting points on the front, or mounted more traditionally on a VESA 75 or VESA 100 mounting point on the rear.
entertainment solutions
Entertainment and multimedia.
Lilliput monitors are ideal for small form factor multimedia systems such as karaoke systems, DJ setups and as confidence monitors for home cinema systems
agriculture solutions
Industrial and Agriculture.
Lilliput open frame units are ideal for integration into assembly lines and automation systems for monitoring and interaction.
smart home solutions
Smart Home systems.
Lilliput open frames can be integrated into smart home systems and CCTV loops for greater control and functionality.
vehicle solutions
Vehicle integration.
Open frame monitors offer a great deal of flexibility for installing within vehicle and car computer systems.
| Monitor Specification | |
| Screen Size (diagonal) | 9.7 inch |
| Aspect Ratio | 4:3 |
| Native Resolution | 1024×768 |
| Maximum Resolution | |
| Pixel Pitch (mm) | |
| Scan Frequency (Hz) | 60-72 |
| Response Time (ms) | |
| Viewing Angle (degrees) | |
| Brightness Ratio (cd/m2) | 350 |
| Contrast Ratio | 900:1 |
| Backlight | LED |
| Video Inputs | HDMI, DVI, VGA, composite (BNC) |
| Video Outputs | |
| Audio Outputs | |
| Touchscreen Technology | 5 wire resistive |
| Input Power | 12V |
| Operating Temperature | |
| Mounting Options | VESA 75, VESA 100 |
| Contents Of Box | |
| Product | 1 x TK970-NP/C/T |
| Connection Cables | 1x HDMI cable, 1 x VGA Cable, USB A-A Cable, |
| Power Adaptor | 12V DC (UK,EU and US available) |
| Mounts and stands | |
| Additional accessories | |
| Dimensions | |
| Height (mm) | 195.5 |
| Width (mm) | 279.6 |
| Depth (mm) | 36.1 |
| Weight (g) | 1600 |
| Weight | 1600 g |
|---|
