Lilliput TM-1018/P 10.1 inch Camera top monitor
€ 349,00 + VAT
| TM-1018/O/P (with new advanced Functions, with HDMI input & output) |
| Lilliput creatively integrated waveform, vector scope, video analyzer & touch control into on-camera monitor, which provides Luminance/Color/RGB histograms, Luminance/RGB parade/YCbCr parade Waveforms, Vector scope and other waveform modes; And measurement modes such as Peaking, Exposure & Audio level meter. These assist users to accurately monitor when shooting, making and playing movies/videos. Level meter, Histogram, Waveform & Vector scope can be displayed horizontally at the same time; Professional waveform measurement & color control to realize and record Natural color. |
| Advanced Functions: |
| Histogram:
Histogram consist of RGB, Color & Luminance histograms.
|
Luminance Color |
RGB overlay |
| Waveform Waveform monitoring consist of Luminance, YCbCr parade & RGB parade Waveforms, which used for measuring the brightness, luminance or chroma values from a video input signal. It not only can warn the user for out-of-range conditions such as overexposure errors, but also assist with colour correction & camera white and black balance |
Y / Luminance YCbCr parade |
RGB parade Y – enlarged horizontally |
| Vector scope Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time. |
Vector scope Vector scope |
| Audio Level Meter The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. |
Audio level meter |

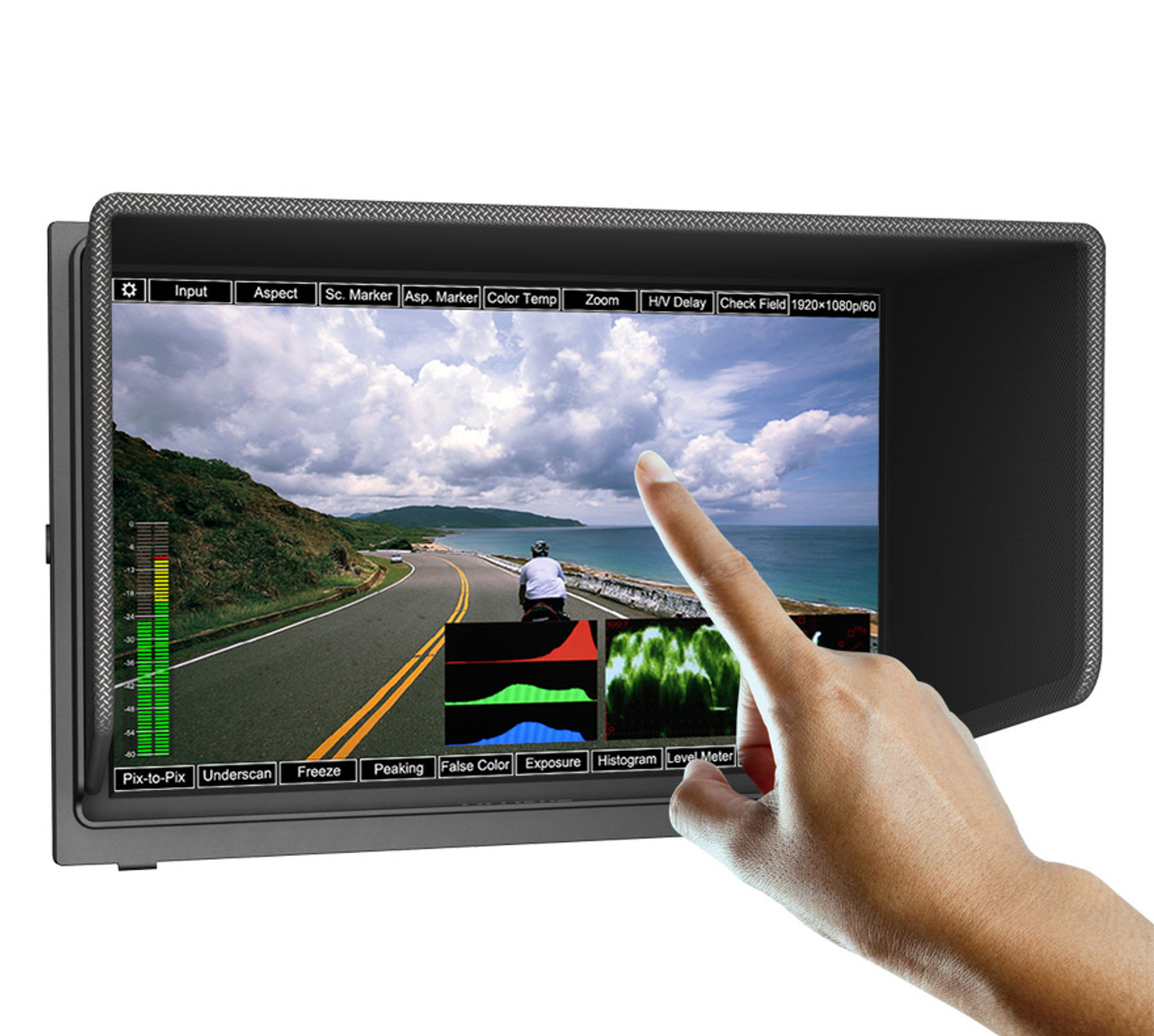

| The Lilliput TM-1018/O/P is our 10.1 inch HDMI field monitor designed for use with DSLR and higher standard cameras. With a very high quality panel, and featuring a capacitive touchscreen function to access and operate the internal settings functions, the TM1018-O/P is the high watermark for the Lilliput monitor range. | |
 |

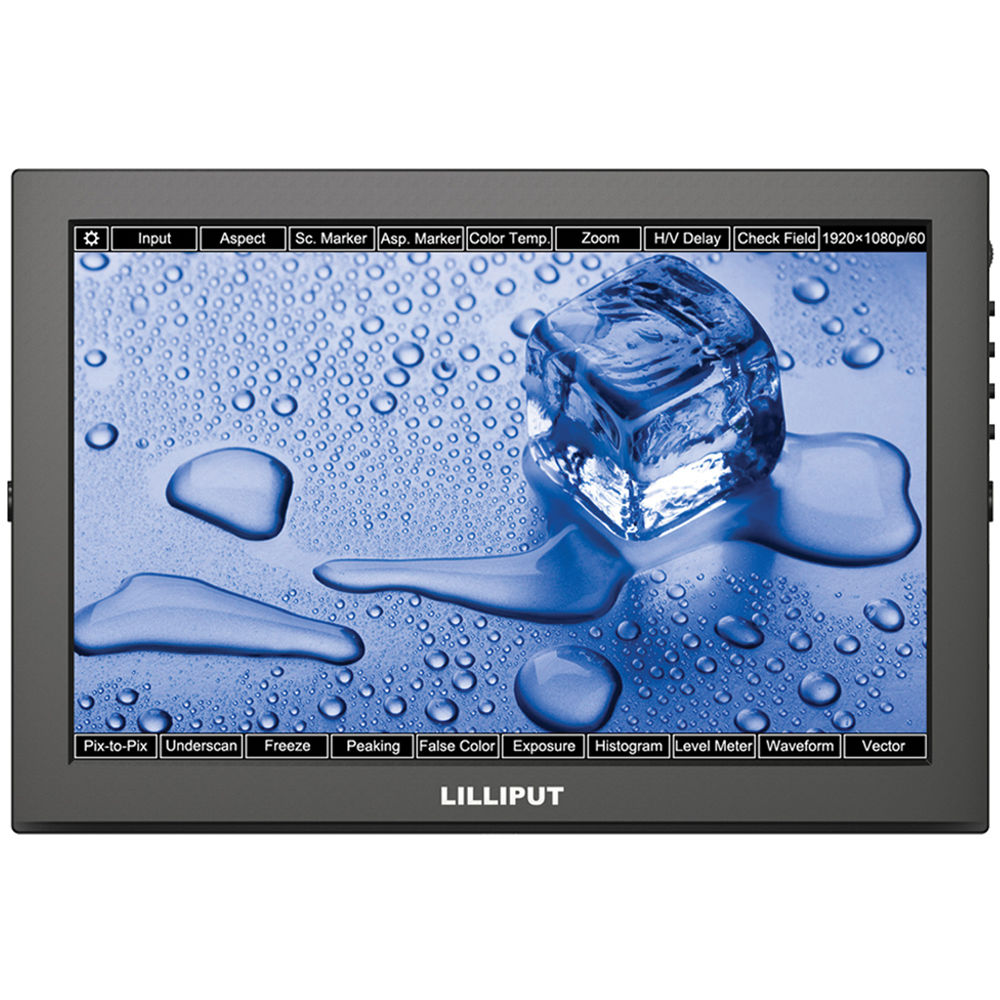

10.1″ Widescreen panel
The 16:9 widescreen aspect ratio makes the TM-1018 ideal for a variety of AV applications. You can find the TM-1018 in TV broadcast rooms, audio-visual installations, and it is ideally suited as a preview monitor with professional camera crews for both on-camera and Video Village installations. |
 |
IPS LED screen
Lilliput are proud to announce the use of the latest IPS screen panels in the Lilliput TM1018/O/P. IPS screen panels allow for much greater pixel pitch, which gives wider viewing angles and superb base resolutions of 1280 x 800 – allowing upscaling to a full 1080p HD signal |
 |
800:1 Contrast ratio for crisp sharp colors
The TM-1018 boasts a rich clear and sharp picture thanks to a high contrast ratio and LED backlight. The onboard matt LCD display means that all colors are well represented, and that there are no reflections evident on the screen. What’s more, LED technology brings great benefits in terms of low power consumption,”instant-on” back lighting, and consistent brightness over years and years of use |
 |
Made for DSLR cameras
The TM-1018-O/P has a large range of compatibility, with all major DSLR camera types supported using HDMI input Our Field Monitors allow for confident shot taking allowing you to see the shot in its full glory before taking. |
 |
Advanced camera functions on the fly
Packed with advanced features usually only offered on more expensive field monitors, Features on this unit include Including Peaking, Histograms, False Color Filtering, Exposure, and much more! |
 |
HDMI pass-through
The TM-1018 includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor – no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected. |
 |
Optional battery plates
Lilliput’s ever popular battery plate options allow battery compatibility with 90% of major battery types. Included are a choice of 2 from SONY, PANASONIC, and 2 types of CANON, with for an extra charge ANTON BAUER and V-TYPE plates. |
 |
Audio monitoring on device
Lilliput TM-1018 features an on-screen volume level, ideal for monitoring any excessive background noise or volume peaks whilst filming video and connecting via HDMI. |
| Display | |
| Size | 10.1″ |
| Resolution | 1280×800, support up to 1920×1080 |
| Touch Panel | Multi-touch capacitive |
| Brightness | 350cd/m² |
| Aspect Ratio | 16:9 |
| Contrast | 800:1 |
| Viewing Angle | 170°/170°(H/V) |
| Input | |
| HDMI | 1 |
| Composite | 1 |
| TALLY | 1 |
| VGA | 1 |
| Output | |
| VIDEO | 1 |
| AUDIO | |
| Speaker | 1(built-in) |
| Er Phone Slot | 1 |
| Power | |
| Current | 1200mA |
| Input Voltage | DC7-24V(XLR) |
| Power Consumption | ≤12W |
| Battery Plate | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
| Environment | |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Dimension | |
| Dimension(LWD) | 250×170×29.6mm |
| Weight | 630g |
| Weight | 630 g |
|---|
