7 inch high definition screen
7” monitor with widescreen

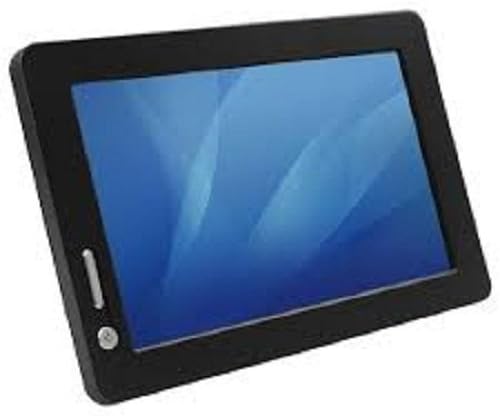

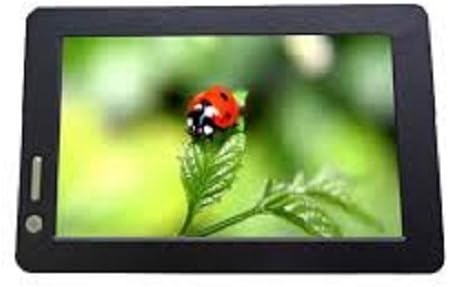

The Lilliput UM70/C monitor has an widescreen type LCD designed for use with laptops and desktop PC systems
High resolution LCD
800 x 480 Resolution for maximum PC compatibility
The UM70/C used the industry standard resolution of 800 x 480 giving maximum compatibility with PC systems.
displaylink usb monitor
USB Displaylink Powered
The Lillput UM70/C is powered by the flexible Displaylink system allowing you to connect a secondary monitor quickly and easily to your PC system by way of the USB connection.
entertainment solutions
Entertainment and multimedia solutions.
Lilliput USB monitors can be connected to many PC based multimedia systems giving you extra screen real estate when you need it most.
smart home solutions
Smart home solutions.
Lilliput USB monitors can be integrated with PC systems for smart home control and monitoring.
vehicle solutions
Vehicle installation solutions.
Lilliput USB monitor can be installed as side monitors to car computers systems allowing even greater flexibility in your portable system.
| Monitor Specification | |
| Screen Size (diagonal) | 7 inch |
| Aspect Ratio | 16:9 |
| Native Resolution | 800×480 (fixed) |
| Maximum Resolution | |
| Pixel Pitch (mm) | 0.0635×0.190 |
| Scan Frequency (Hz) | 60-72 |
| Response Time (ms) | 15 |
| Viewing Angle (degrees) | 140º x, 120º y |
| Brightness Ratio (cd/m2) | 300 |
| Contrast Ratio | 250:1 |
| Backlight | LED |
| Video Inputs | USB |
| Video Outputs | |
| Audio Outputs | |
| Touchscreen Technology | None |
| Input Power | USB 5V, 500mA |
| Operating Temperature | |
| Mounting Options | |
| Contents Of Box | |
| Product | 1x UM70/C |
| Connection Cables | 1x USB to Mini USB cable |
| Power Adaptor | |
| Mounts and stands | |
| Additional accessories | |
| Dimensions | |
| Height (mm) | 123 |
| Width (mm) | 188 |
| Depth (mm) | 24 |
| Weight (g) | 288 |
