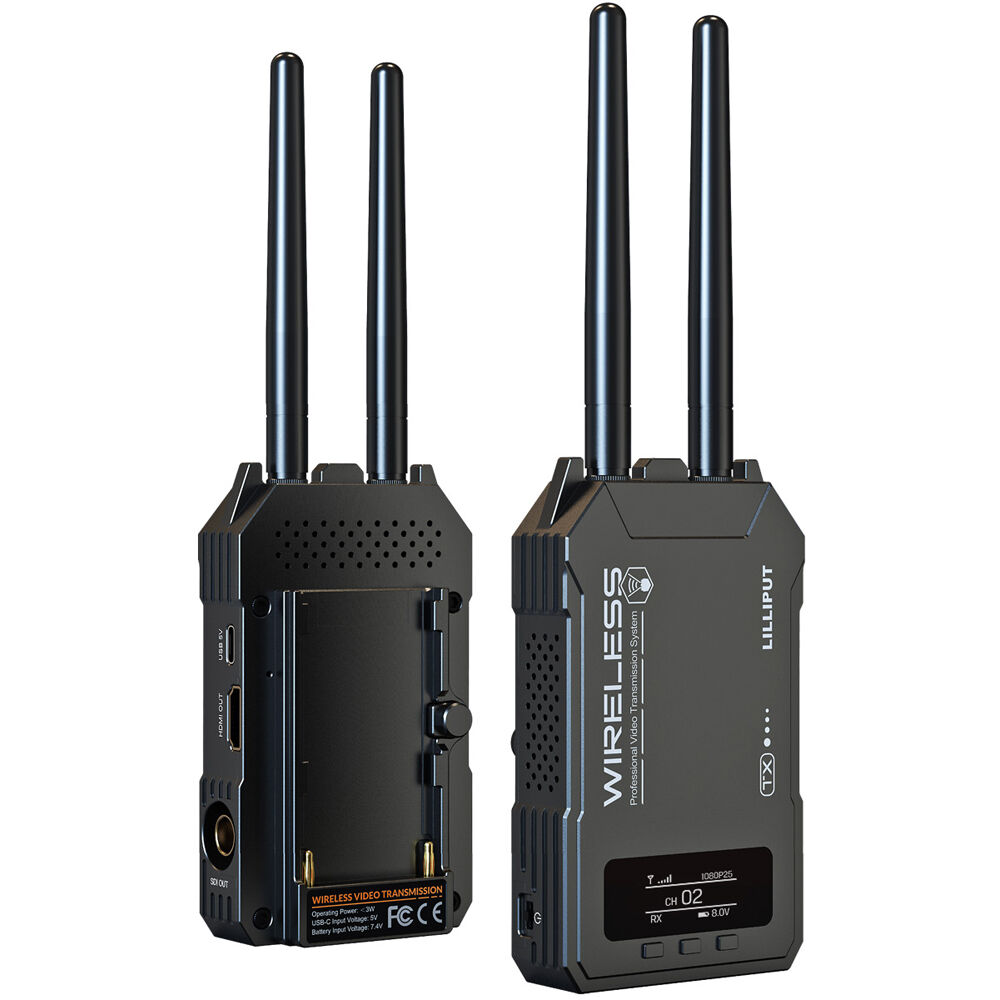

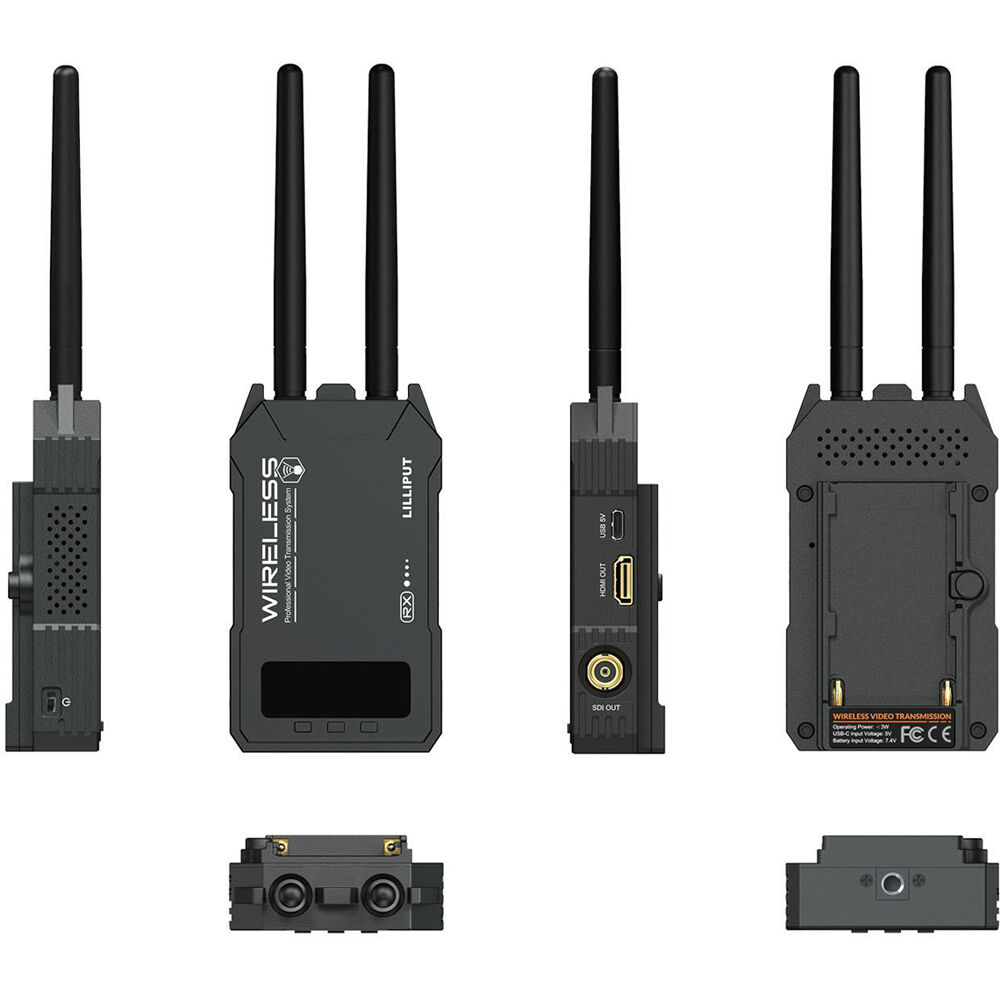

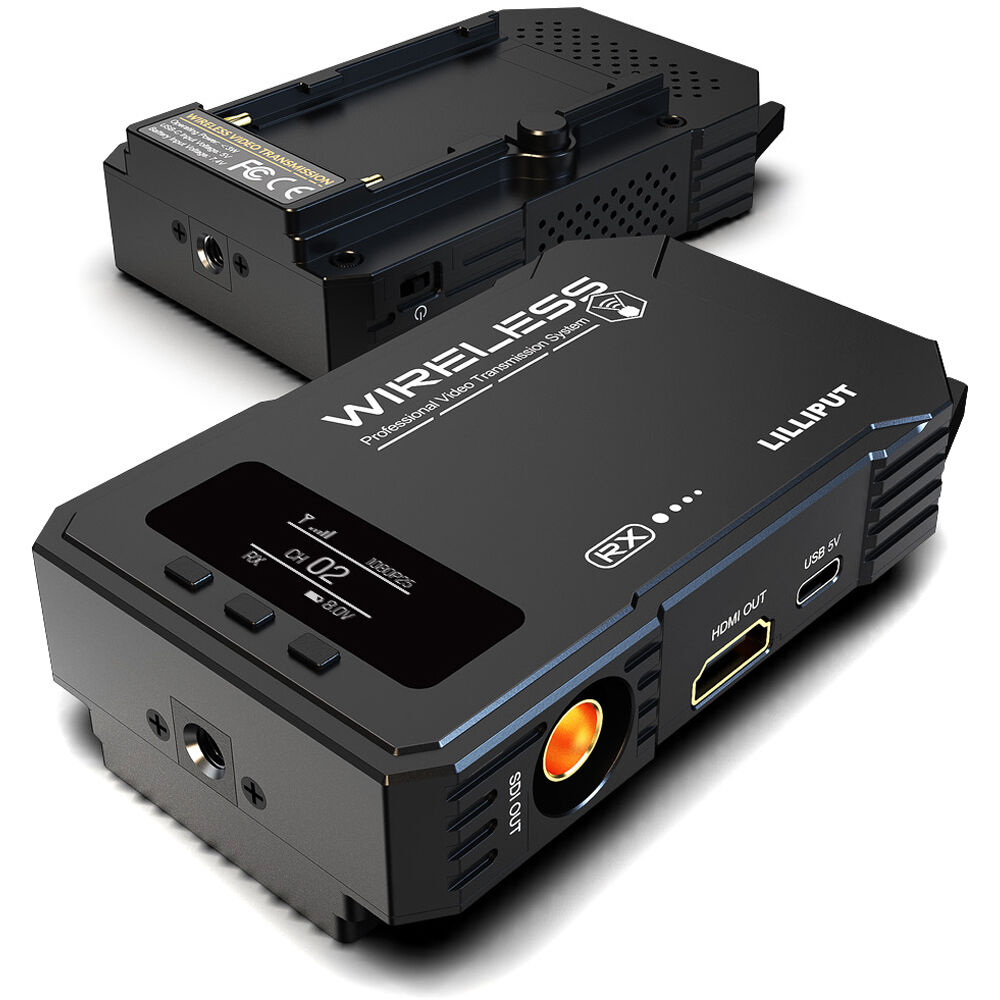

Lilliput WS500 ( one pair) Wireless Video Transmission System

€ 499,00 + VAT

Up to 500′ Range
Compact 1080p60 Transmitter & Receiver
3G-SDI and HDMI Inputs and Outputs
Live Streaming via Mobile Device & App
13 Channels with Automatic Selection
Scan QR Code to Link to Mobile Device
L-Series Battery or USB Type-C Power
Compact LED Screen
Quiet, Fan-Less Design

Add to compare

Add to wishlist

Category: LILLIPUT

Description

The WS500 Wireless Video Transmission System from Lilliput features a 500′ line-of-sight range and both 3G-SDI (BNC) and HDMI inputs and outputs. This compact system can be linked to up to three mobile devices, enabling multiple viewers to watch your video feed simultaneously. WS500 system features include an LED status screen, Sony L-Series battery and USB Type-C power options, and 13 channels with automatic selection.

500′ Transmission Range

Extend your wireless video transmission up to 500′ (line of sight) with just 80ms latency

SDI and HDMI Input/Output

Switch between SDI (BNC) and HDMI inputs and outputs depending on your choice of camera and monitoring devices

Mobile Device Streaming

Use with the Lilliput app and your mobile device for uploading to a live streaming platform

Automatic Channel Selection

This system automatically searches for the clearest of 13 available channels

App Display Controls

Use the Lilliput app to adjust controls like focus peaking, exposure, zoom, markers, and start/stop recording

App QR Code Scanning

Use the transmitter to generate a QR code that can be scanned using your mobile device to link up to three devices simultaneously

Compact Design/Dual Power

These compact, fan-less components can be powered using their USB Type-C input or Sony L-Series batteries

Display Screen

A 1.3″ LED screen displays the channel selection, signal strength, and more

Key Specs

Resolution	Not Specified by Manufacturer
Touchscreen	No
Video I/O	Transmitter: 1x BNC Input Transmitter: 1x HDMI Input Receiver: 1x BNC Output Receiver: 1x HDMI Output
Embedded Audio	SDI HDMI
Latency	80 ms
Video Format	HDMI/SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/50 720p: 60/50
Battery Type	Transmitter: 1x L-Series Receiver: 1x L-Series
Power Consumption	Transmitter: 3 W Receiver: 3 W
Mounting	1/4″-20 Female

Display

Panel Type	Transmitter: OLED Receiver: OLED
Display Size	Transmitter: 1.3″ / 3.3 cm Receiver: 1.3″ / 3.3 cm
Resolution	Not Specified by Manufacturer
Aspect Ratio	Not Specified by Manufacturer
Touchscreen	No
Image Controls	Focus Peaking, Pixel Zoom, Zebra

Inputs / Outputs

Video I/O	Transmitter: 1x BNC Input Transmitter: 1x HDMI Input Receiver: 1x BNC Output Receiver: 1x HDMI Output
Embedded Audio	SDI HDMI
Audio I/O	No
Power I/O	Transmitter: 1x USB-C (5 VDC) Input Receiver: 1x USB-C (5 VDC) Input
Other I/O	No

Wireless

Wireless Range	500′ / 152.4 m (Line-of-Sight)
# of Channels	13
Channel Bandwidth	20 MHz
Frequency Range	5 GHz
Latency	80 ms
RF Power	17 dBm
Wi-Fi	Yes
Bluetooth	No
Cellular Support	No

Format Support

Video Format	HDMI/SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/50 720p: 60/50
Audio Format	24-Bit 48 kHz
Timecode Support	No

Power

Input Power	5 VDC
Battery Type	Transmitter: 1x L-Series Receiver: 1x L-Series
Power Consumption	Transmitter: 3 W Receiver: 3 W

Mounting

1/4″-20 Female

Environmental

Environmental Resistance	No
Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	-4 to 140°F / -20 to 60°C

General

Dimensions	Transmitter: 4.4 x 2.6 x 1.1″ / 113 x 65 x 29.2 mm Receiver: 4.4 x 2.6 x 1.1″ / 113 x 65 x 29.2 mm
Weight	Transmitter: 7.1 oz / 200 g Receiver: 7.1 oz / 200 g

Packaging Info

Package Weight	1.415 lb / 642 g
Box Dimensions (LxWxH)	6.7 x 4.7 x 3″

Additional information

Weight	642 g
