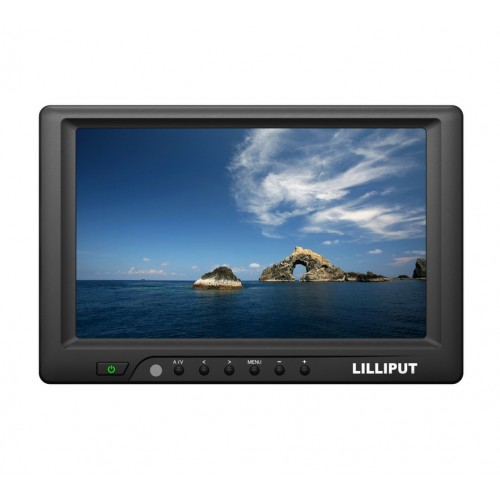

Lilliput 669GL-70NP/C/T – 7″ HDMI Touchscreen monitor
€ 169,00 + VAT
The Lilliput 669GL-70NP/C/T is a 7″ widescreen LCD touchscreen monitor with HDMI, VGA and composite inputs.
| 7 inch monitor with widescreen aspect ratio
Featuring a widescreen 16:9 aspect ratio, the 669GL includes multiple AV connections to satisfy a broad range of customers requirements. |
|

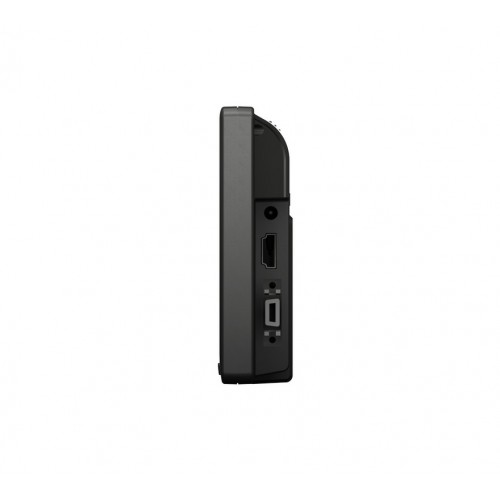

| Connection friendly: HDMI/DVI, VGA, and composite
As with all modern Lilliput monitors, 669GL ticks all the boxes when it comes to AV connectivity: HDMI, DVI, VGA and composite. You may see s 7″ monitors that still only have VGA connectivity: why settle for a standard invented in the 1980s? 669GL features a variety of interfaces for complete compatibility. |
|
| Intelligent HD scaling
Experience 1080p video on a 7 inch monitor. The 669GL uses intelligent engineering to magically scale 1920×1080 video onto a 800×480 LCD panel without losing detail. P |
|
| Touchscreen
The 669GL (model number 669GL-70NP/C/T) is available with a 4-wire resistive touch screen. Lilliput UK continually stock both non-touch screen and touchscreen models, so customers can make a choice that best suits their application. |
|

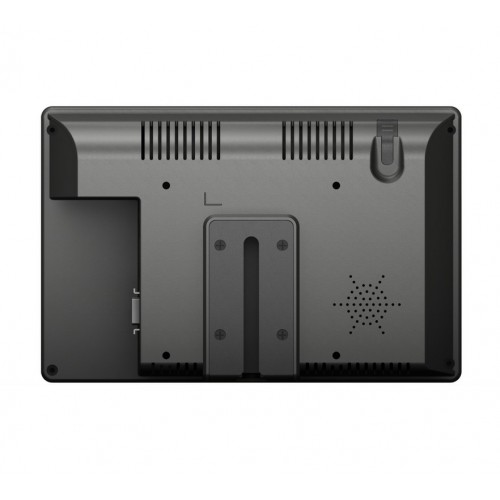

| Three common mounting options, including VESA 75 mount
Customers have three mounting choices for the 669GL; VESA 75 mount (for fixed and flexible mounting), quarter inch British Standard Whitworth thread (common mounting standard for camera equipment) and vertical slot mount mechanism. |
|
| Monitor Specification | |
| Screen Size (diagonal) | 7 inch |
| Aspect Ratio | 16:9 |
| Native Resolution | 800×480 (native) |
| Maximum Resolution | 1920×1080 (maximum) |
| Pixel Pitch (mm) | 0.0635×0.190 |
| Scan Frequency (Hz) | 60-72 |
| Response Time (ms) | 15 |
| Viewing Angle (degrees) | 130º x, 120º y |
| Brightness Ratio (cd/m2) | 250 |
| Contrast Ratio | 500:1 |
| Backlight | LED |
| Video Inputs | HDMI, DVI, VGA, composite |
| Audio Outputs | Internal Speaker |
| Touchscreen Technology | 4-wire resistive, USB |
| Input Power | DC 12V |
| Mounting Options | VESA 75, ¼ inch BSW thread, vertical slot mount mechanism |
| Contents Of Box | |
| Product | 1 x 669GL-70NP/C/T monitor |
| Connection Cables | 1x HDMI (touch) cable, 1x Composite break-out cable, 1x VGA (touch) breakout cable |
| Power Adaptor | 1x DC 12V plug (available in UK, US and EU style), 1x in-car cigarette lighter DC 12V adapter |
| Mounts and stands | 1x Adhesive Lilliput stand |
| Additional accessories | 1x Full-function infrared remote control with battery |
| Dimensions | |
| Height (mm) | 122 |
| Width (mm) | 185 |
| Depth (mm) | 32 |
| Weight (g) | 495 |
| Weight | 495 g |
|---|
