MODEL NO. | C20P | C30P | C20N | C30N | |
INTERFACES | Video Out | SDI, HDMI | |||
LAN Port | IP Streaming: RTSP/RTMP/SRT | ||||
POE | POE | POE&NDI丨 HX | POE&NDI丨 HX | ||
Audio Input | 3.5mm audio (Line-level) | ||||
Control Interface | RS-232 In and Out, RS485 In | ||||
Control Protocol | Onvif, VISCA over IP/ VISCA/ Pelco-D/P | ||||
Video Format | HDMI/ SDI Video up to 1080P60 | ||||
CAMERA PARAMETERS | Optical Zoom | 20× | 30× | 20× | 30× |
Focal Length | F=5.5~110mm | F=4.3~129mm | F=5.5~110mm | F=4.3~129mm | |
View Angle | 3.3°(tele) | 2.34°(tele) | 3.3°(tele) | 2.34°(tele) | |
54.7°(wide) | 65.1°(wide) | 54.7°(wide) | 65.1°(wide) | ||
Aperture Value | F1.6 ~ F3.5 | F1.6 ~ F4.7 | F1.6 ~ F3.5 | F1.6 ~ F4.7 | |
Sensor | 1/2.8 inch, High quality HD CMOS sensor | ||||
Effective Pixels | 16: 9, 2.07 Megapixel | ||||
Digital Zoom | 10× | ||||
Minimum Illumination | 0.5Lux (F1.8, AGC ON) | ||||
DNR | 2D & 3D DNR | ||||
SNR | >55dB | ||||
White Balance | Auto/ Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K | ||||
WDR | OFF/ Dynamic level adjustment | ||||
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | ||||
Other Camera Parameters | Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC | ||||
PTZ PARAMETERS | Rotation Angle | Pan: ±170°, Tilt: -30°~+90° | |||
Rotation Speed | Pan: 60°/sec (Range: 0.1 -180°/sec), Tilt: 30°/sec (Range: 0.1-80°/sec) | ||||
Preset Number | 255 presets (10 presets by remote controller) | ||||
OTHERS | Input Voltage | DC12V±10% | |||
Input Current | 1A (Max) | ||||
Consumption | 12W (Max) | ||||
Temperature | Working Temperature: -10~+50°C, Store Temperature: -10~+60°C | ||||
Working Humidity | Working Humidity: 20~80% RH (no condensation), Store Humidity: 20~95% RH (no condensation) | ||||
Dimension | 170×170×180.31mm | ||||
Weight | Net weight: 1.25kg; Gross weight: 2.1kg | ||||
Accessories | Power Supply, RS232 Control Cable, Remoter, Manual | ||||
Installation Methods | 1/4 inch tripod hole; Bracket installation for Optional |
LILLIPUT

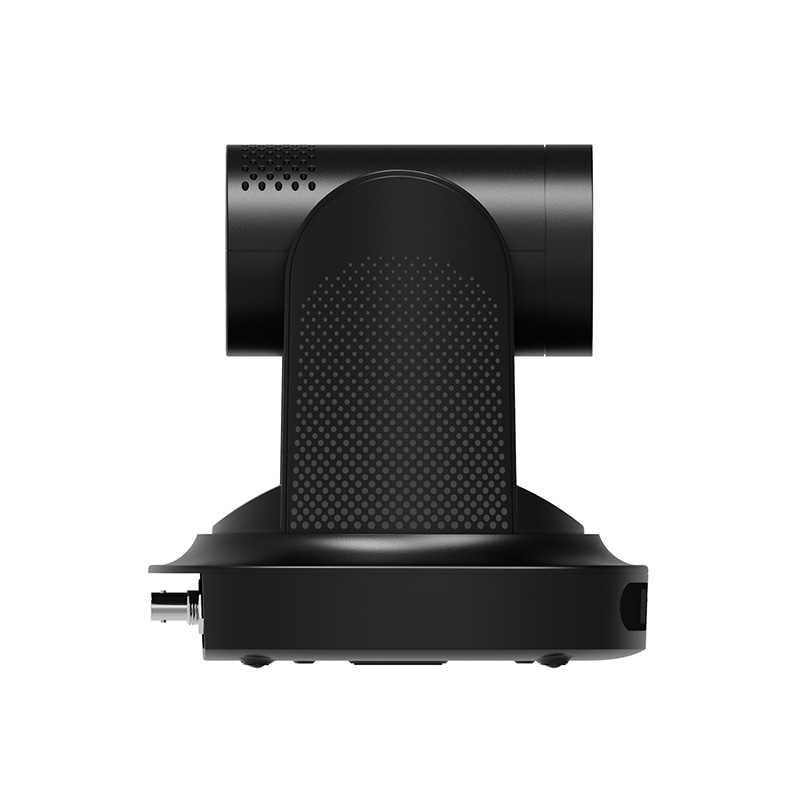

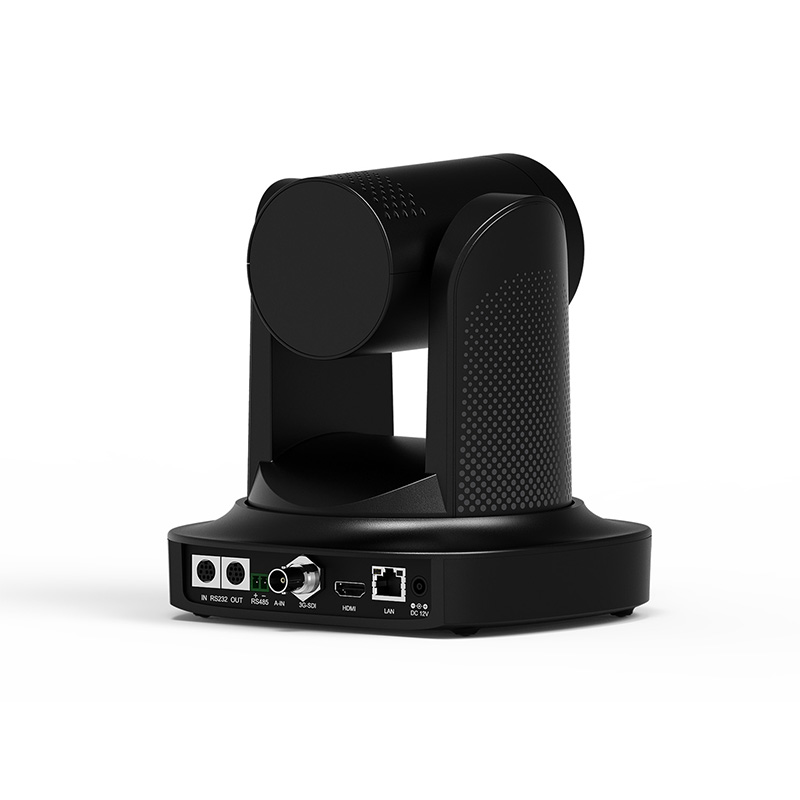

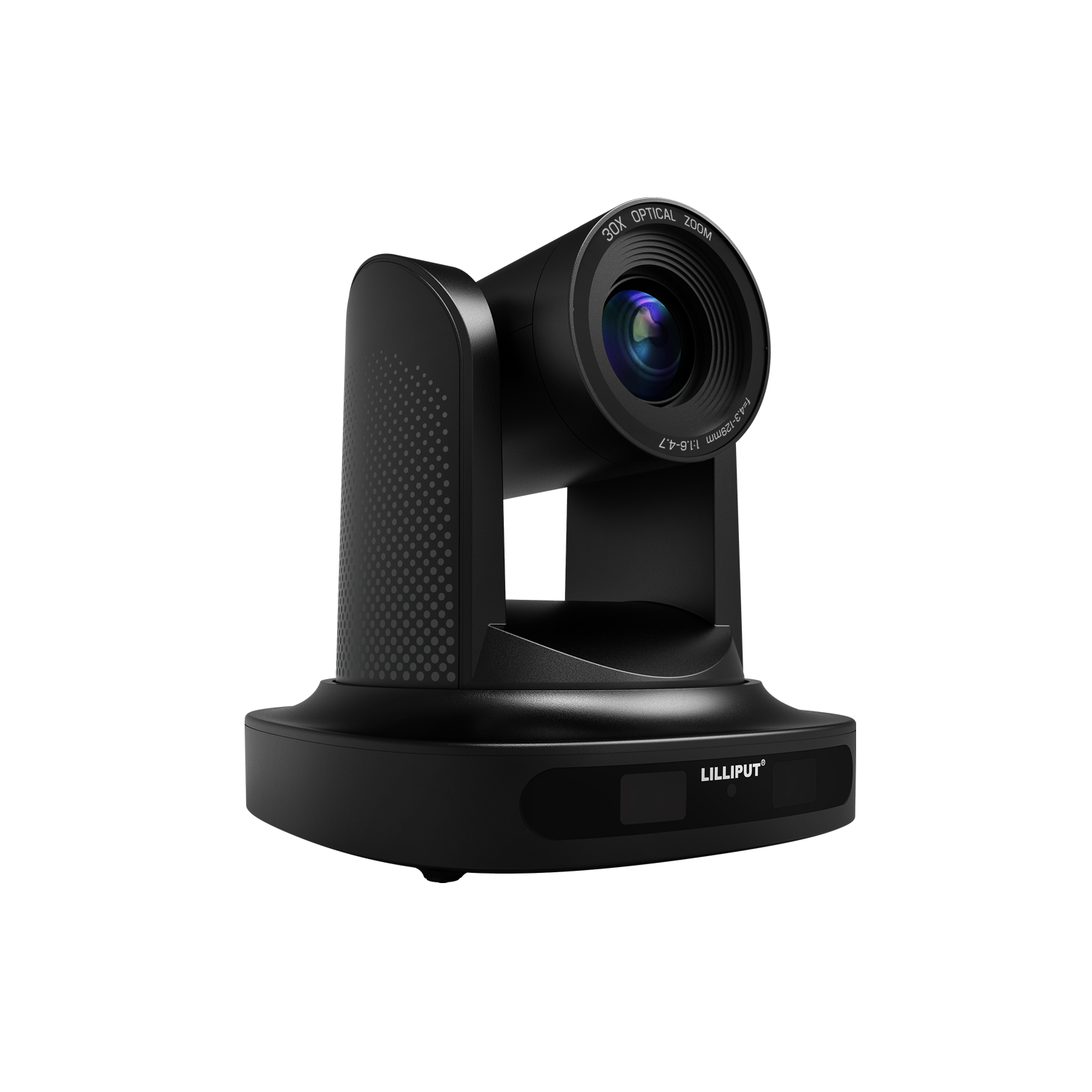

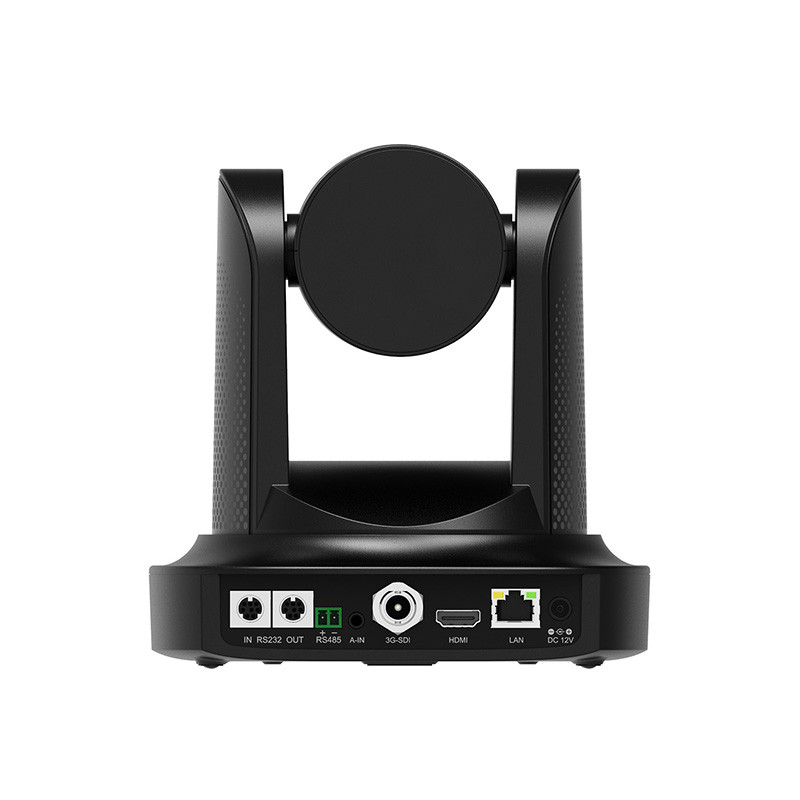

LILLIPUT C30N Full HD PTZ Camera 30x POE / NDI
€ 1.399,00
+ additional shipping charge– 1/2.8″ HD CMOS Sensor, 20X/30X Optical Zoom
– HDMI & 3G-SDI Video Output, PoE Power
– RS-232/RS-485 Serial Control, Cascading
– Streaming Protocols: RTSP, RTMP, SRT & NDIHX(optional)
– Control Protocols: Onvif, VISCA over IP, VISCA, PELCO-D/P
– Tripod, Wall & Ceiling Mounting
Weight | 2100 g |
---|
